Tracked Tank Platform (Remote-controlled load, can carry weapon stations, material bins. Patrol and inspection platform)
Print Profile(2)
Description
Installation methods and tutorials will be updated later

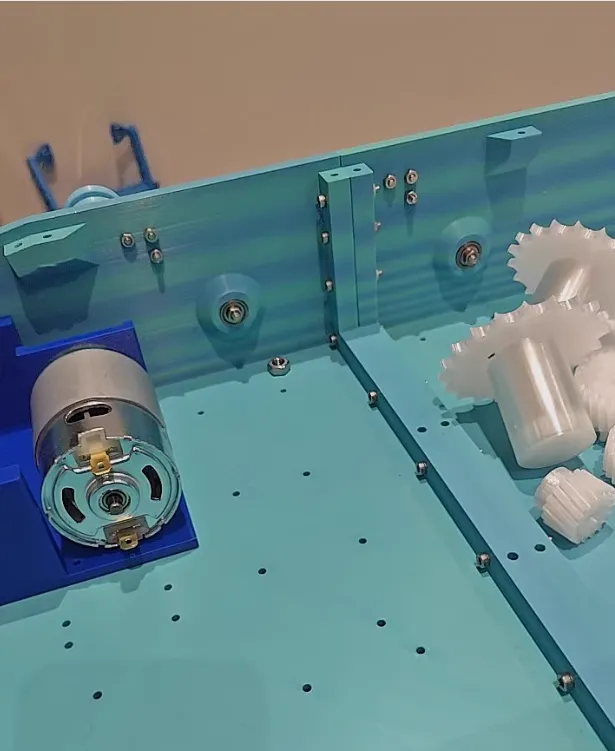

Has a certain level of difficulty, equipped with an 895 motor, and uses a servo to control the gear set for high and low-speed shifting
Boost Me (for free)
Bearing inner and outer thickness dimensions:
6*13*5 18 pieces
4*13*5 44 pieces
4*9*4 6 pieces
Screw dimensions
M3*25 M3*30 M3*8 M3*10 ME*16 M3*20
M4*16 M4 *35 M4*40
M5*50 It is recommended to buy 4-50 pieces of each size
M6 threaded rod 300mm *1
These lock nuts are also needed

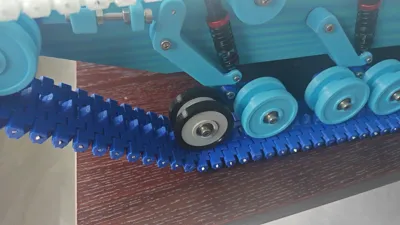

RC shock absorber dimensions
Due to the considerable weight after assembly, it is recommended to purchase a few of these to enhance shock absorption and support capabilities

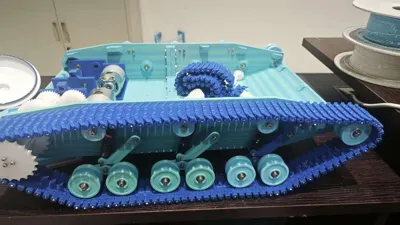

Track assembly
I bought 7 one-meter long pieces, cut a segment every 25mm, and then assemble
Updated on 2025.10.19

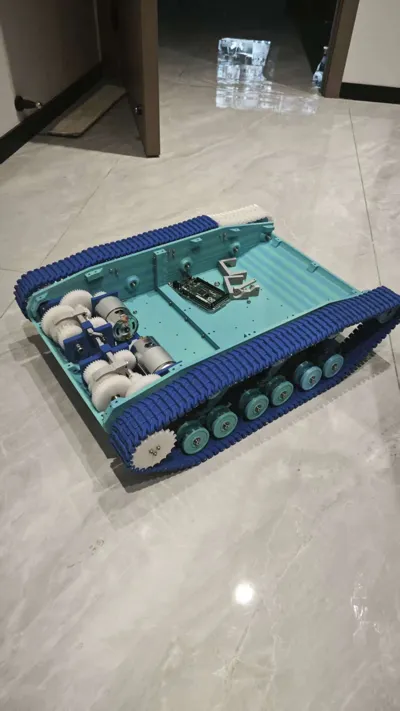

0.71 Copy and open Douyin, see [Works by Pasaha Laiha] The track chassis is finally done 😂😂😂 https://v.douyin.com/xIrWWwwbiYo/ foq:/ 10/01 p@d.NJ
The video after production is here
