Bambu Lab P2S/P1/X1/H2 Series Bambu Poop Exhaust Bin

🌪️【Bambu P2S Exhaust Extension System | Modular Air Purification and Poop Bin Kit】---【Both single-hole and double-hole exhaust designs uploaded】

“When printing is no longer stuffy, the air itself becomes smart”

💡Background Story

The newly released Bambu P2S features a more compact chamber structure, but because the traditional exhaust port has been removed, when printing materials that require cooling (such as PLA, PETG, etc.), heat accumulation makes the temperature somewhat 'scorching'🔥
So we rethought the matter of airflow—making exhaust a system, not a flaw

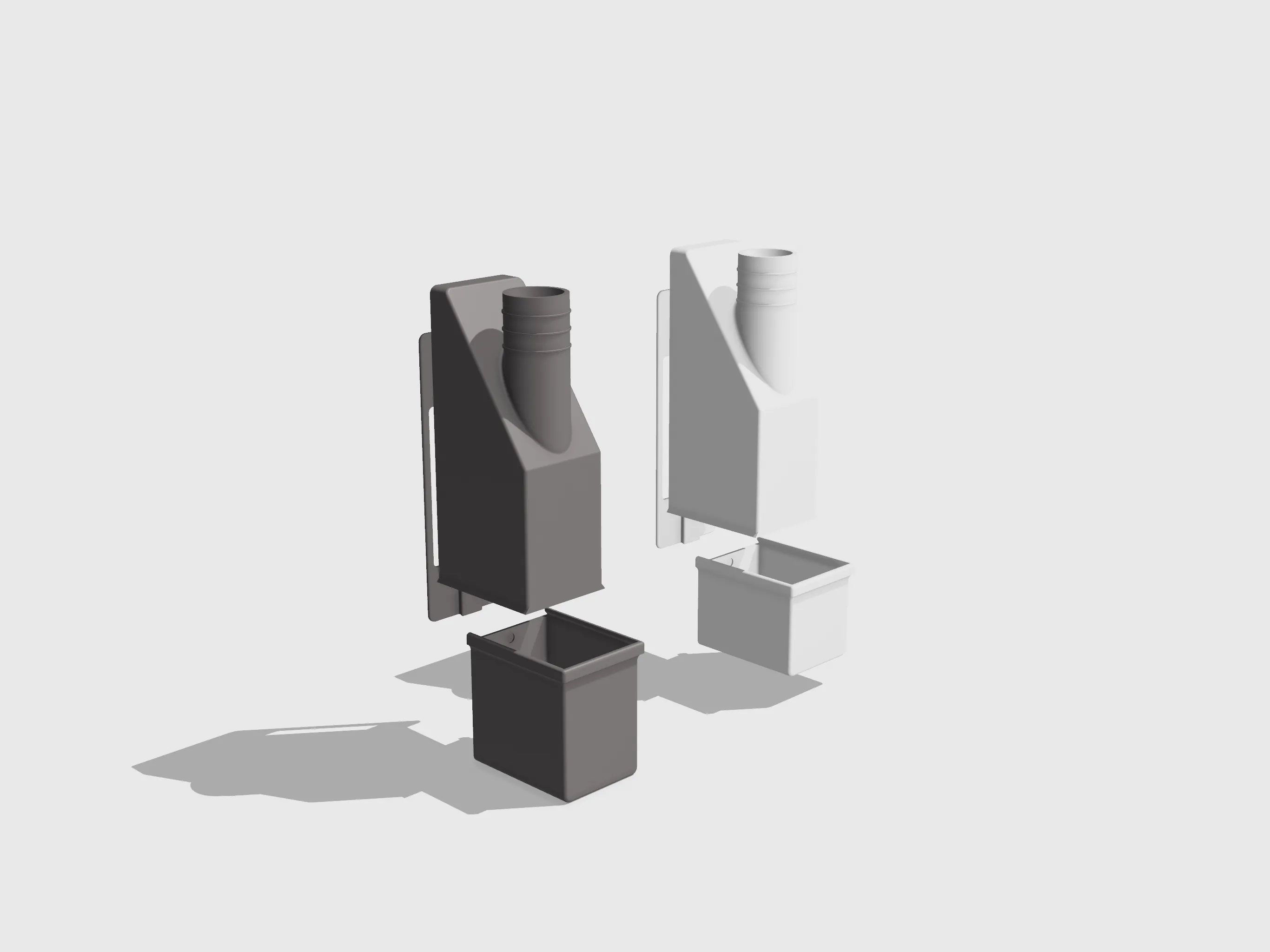

🧩Modular Design: From Flange to Poop Bin, Full-Link Optimization

The entire system adopts a modular concept and is divided into four major components:

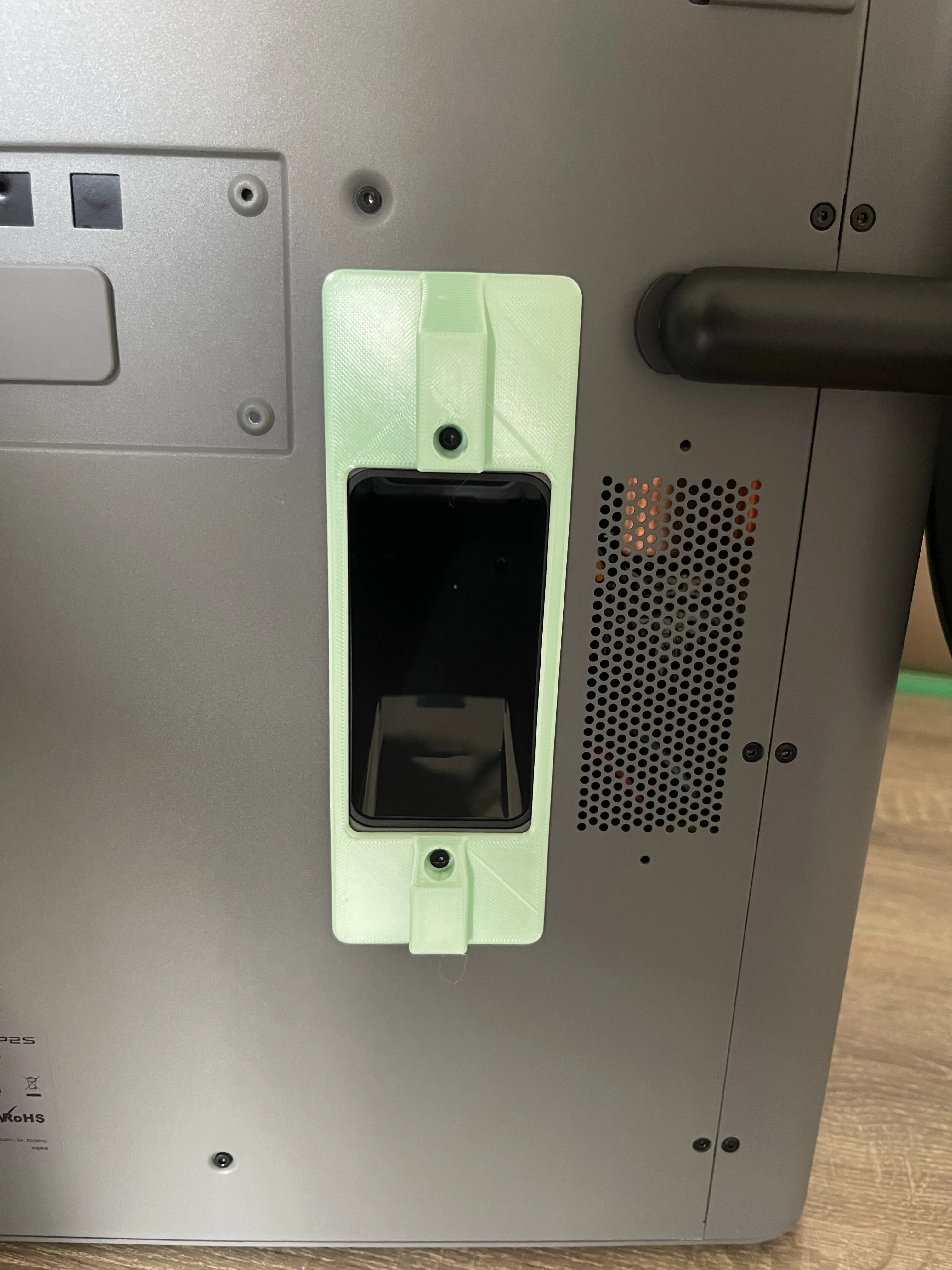

1️⃣ Flange:

Precisely interfaces with the original Bambu P2S structure, perfectly compatible with previous models Simply use the original screws in this location
The interface uses standard 40mm corrugated pipe specifications, commonly available and easy to expand (The new version has now been fully upgraded to a 50mm corrugated pipe diameter)

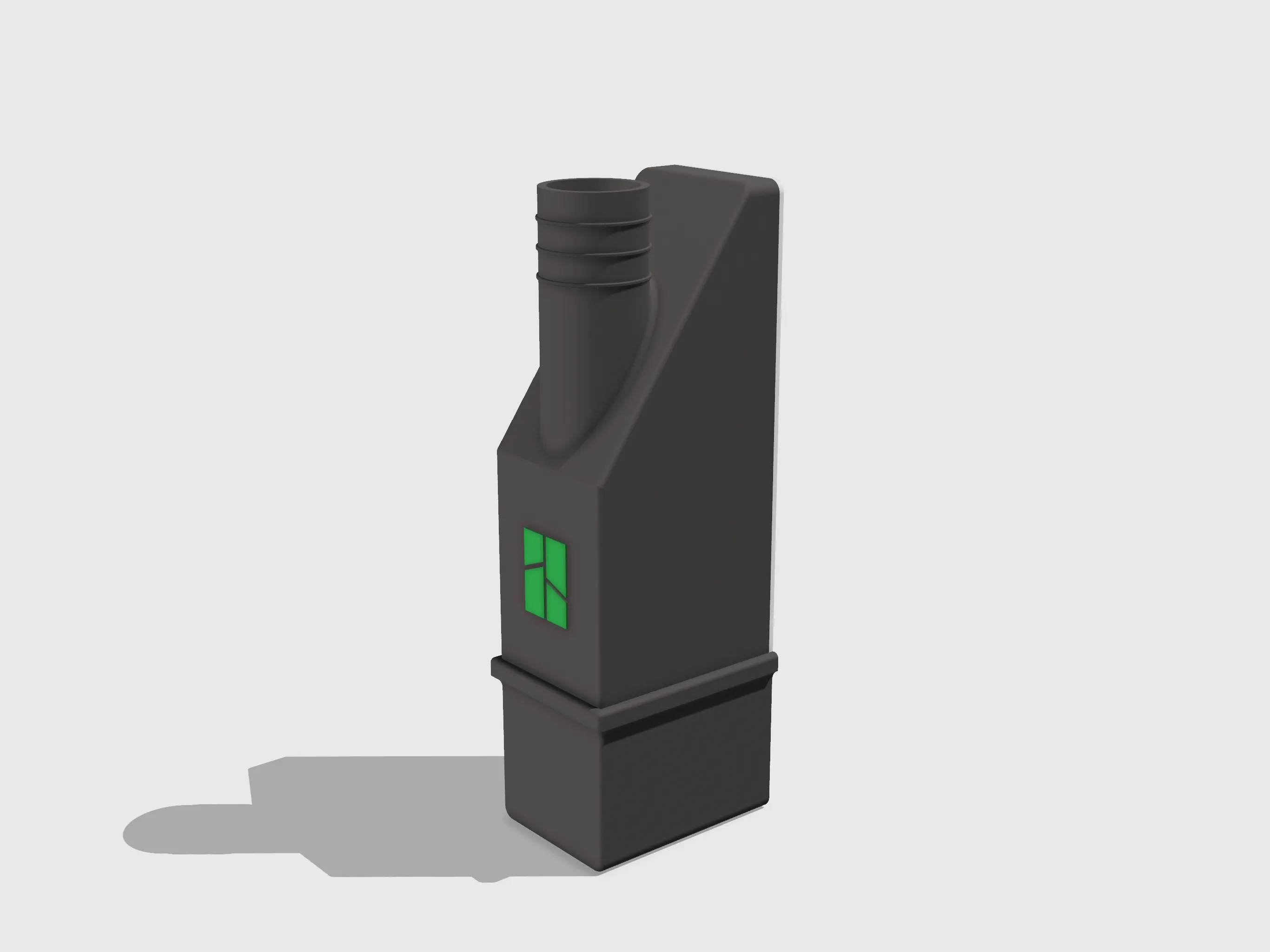

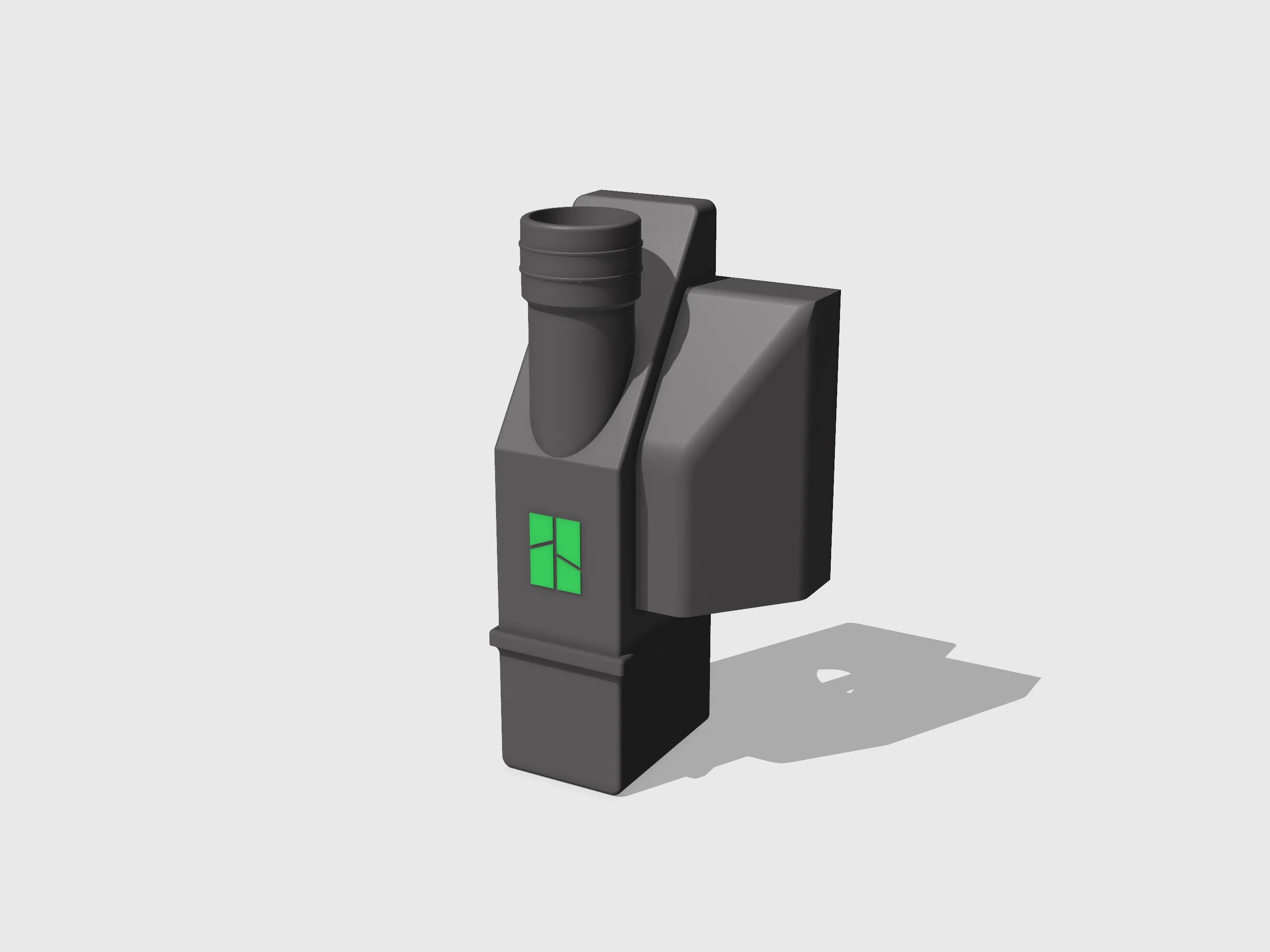

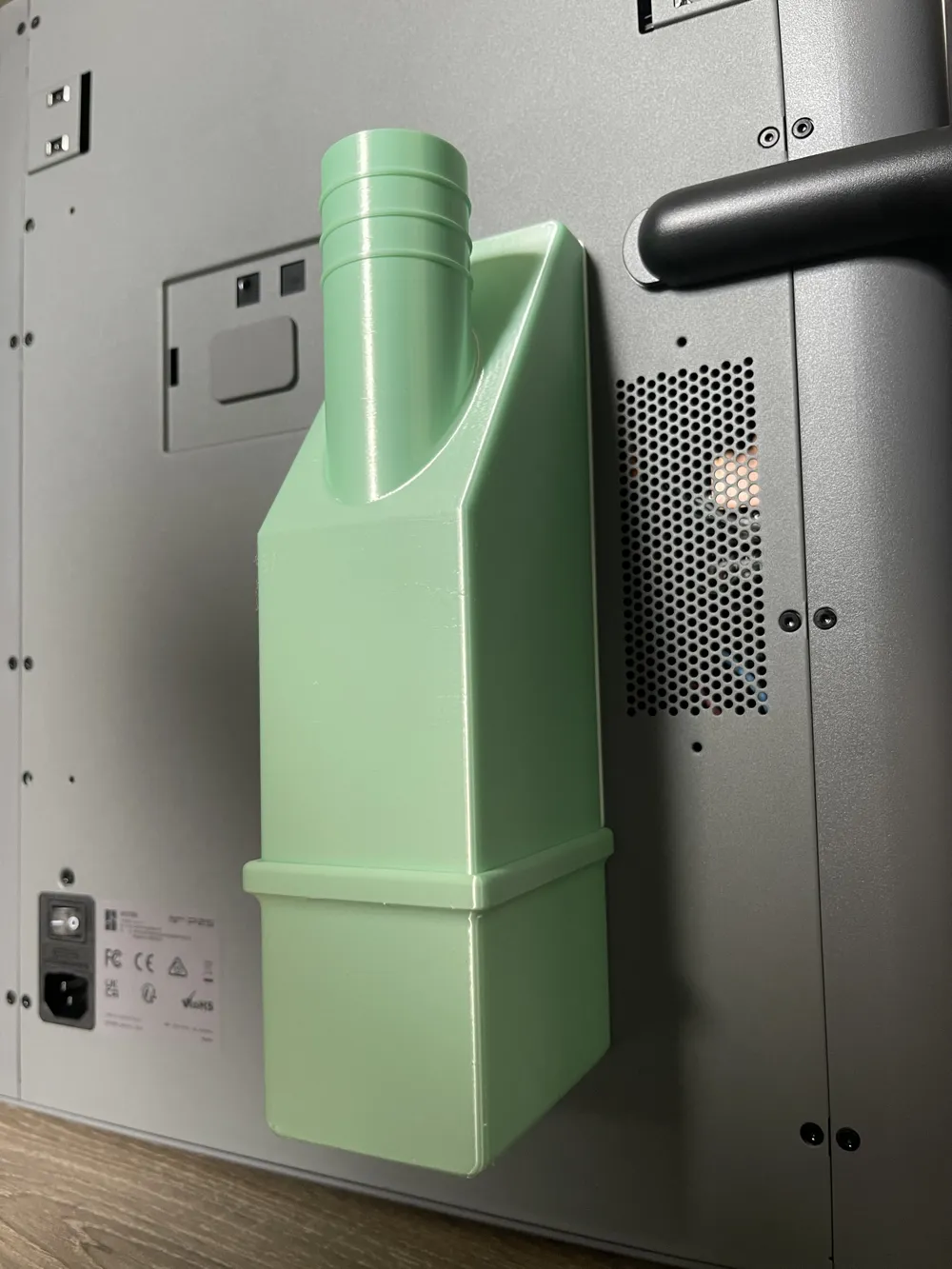

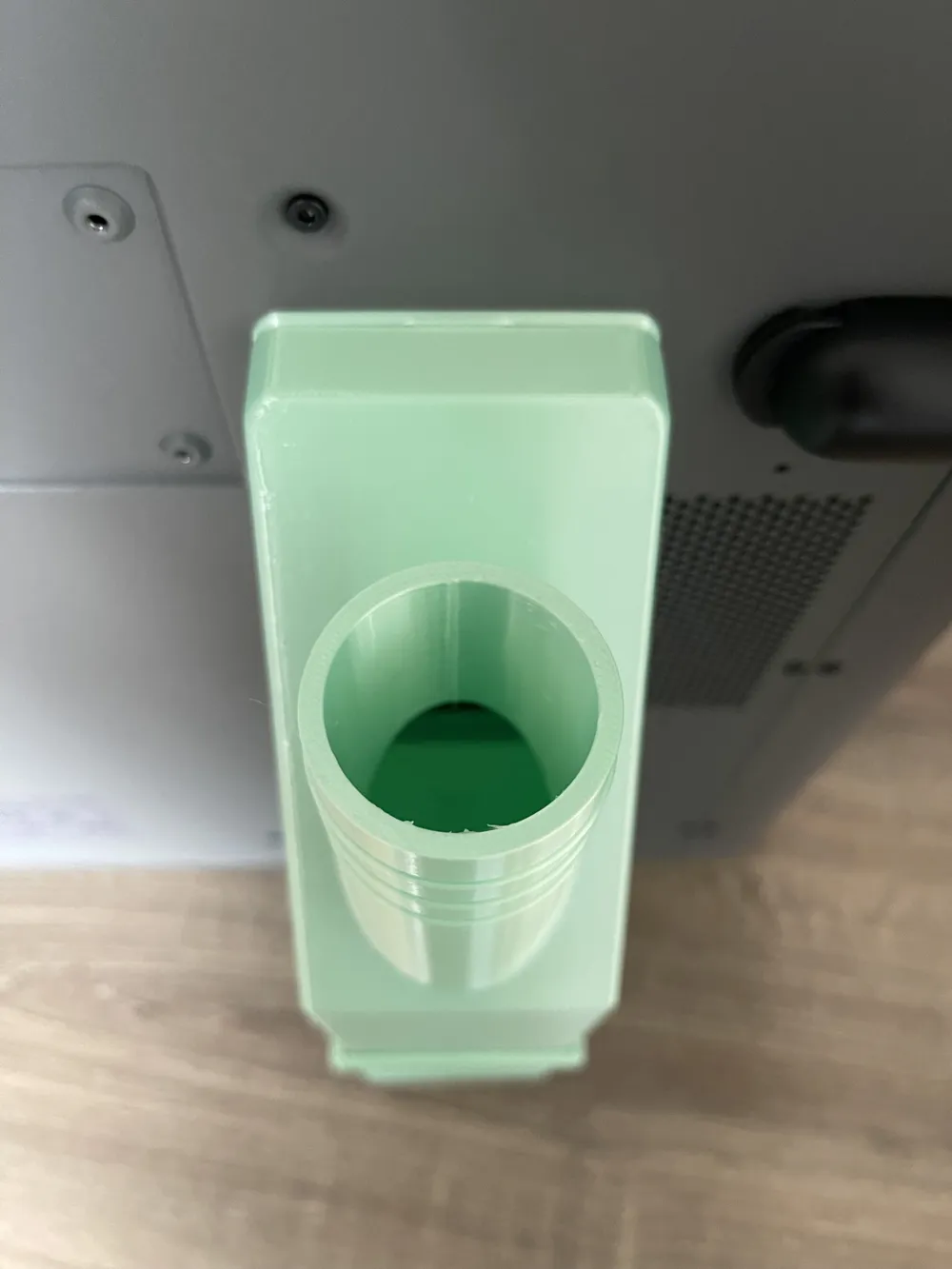

2️⃣ Main Body (Figure 2):

Core airway structure, smooth inner walls guide airflow, air and waste gas are efficiently separated here
Supports quick disassembly and assembly for easy maintenance

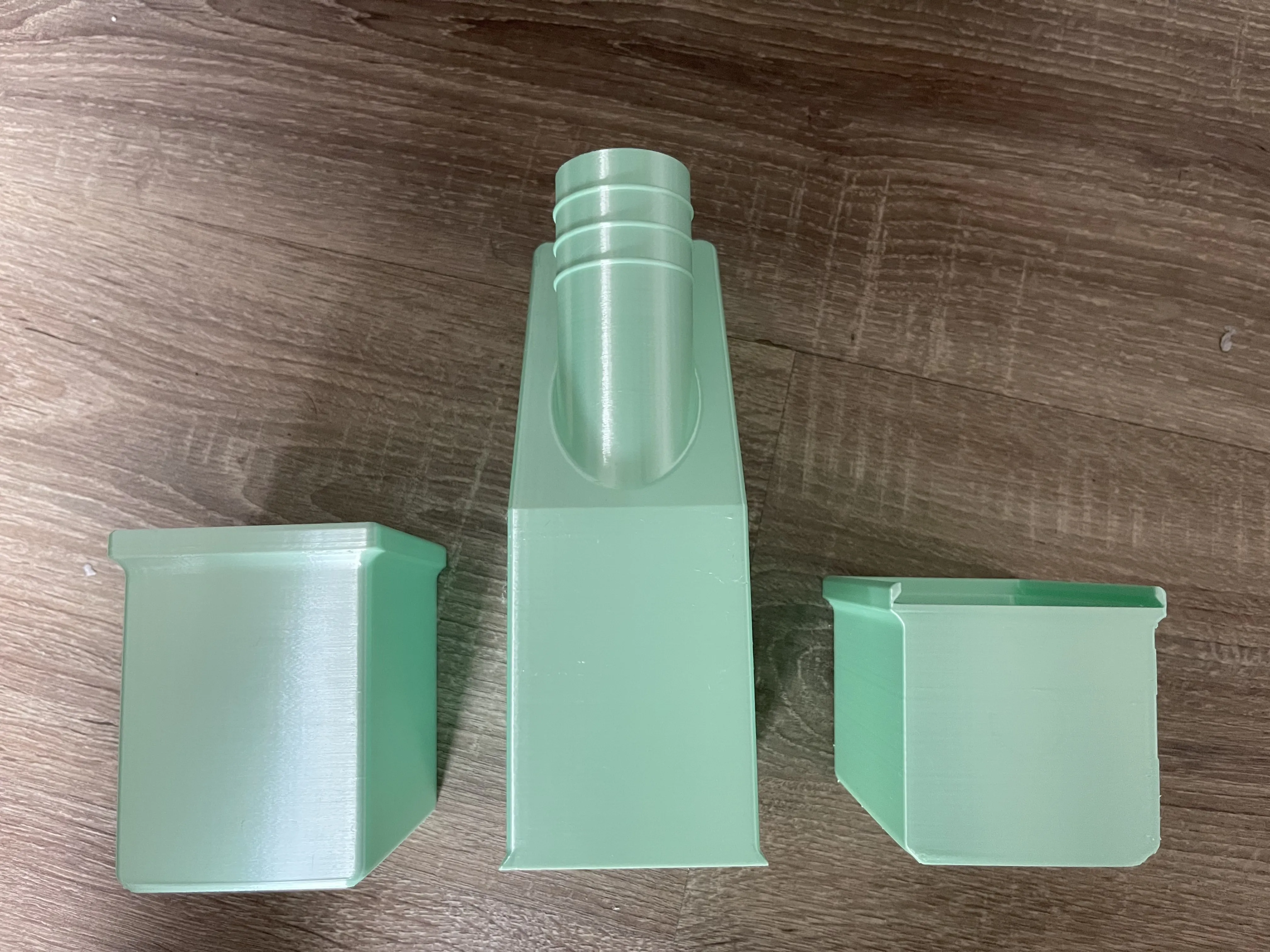

3️⃣ The medium and large cups in the poop bin, see which cup you're still missing!!!

🗑️Dual-Size Poop Bins: Not just a simple 'bigger one'

“Just like Starbucks' mysterious cup sizing logic—a medium isn't medium, a large isn't large, and an extra-large is just right.” ☕️

Medium size, suitable for daily leftover print material and small waste filament storage
Large size, prepared for long printing sessions and multiple machines running in parallel, double the capacity, still stable

—No matter your 'cup size,' this time it will be just right

🌬️Cooling and Purification Dual Effect in One

Connected to an external exhaust fan via a 40mm corrugated pipe, it can achieve:

• Chamber air dynamic circulation cooling
• Odors and particles centralized purification treatment
• Continuous and stable printing environment

🔧Compatibility and Expansion

• ✅ Supports Bambu P2S and previous models (P1 series, X1 series, H2 series)
