Suzuki Tank Ring quicklock evo compatible
Print Profile(1)
Description

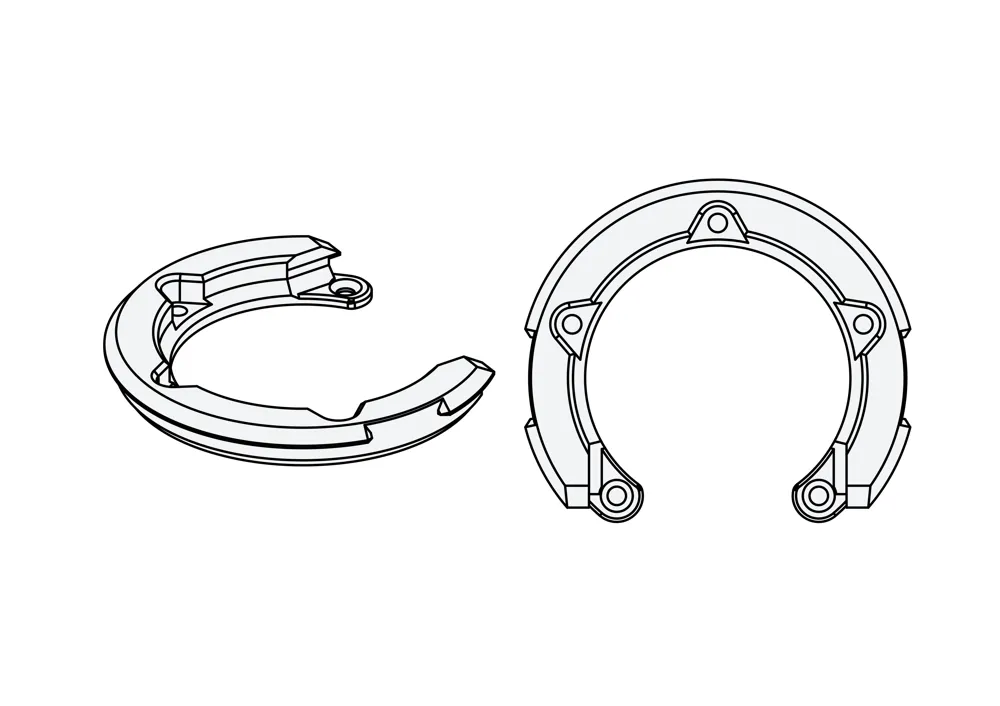

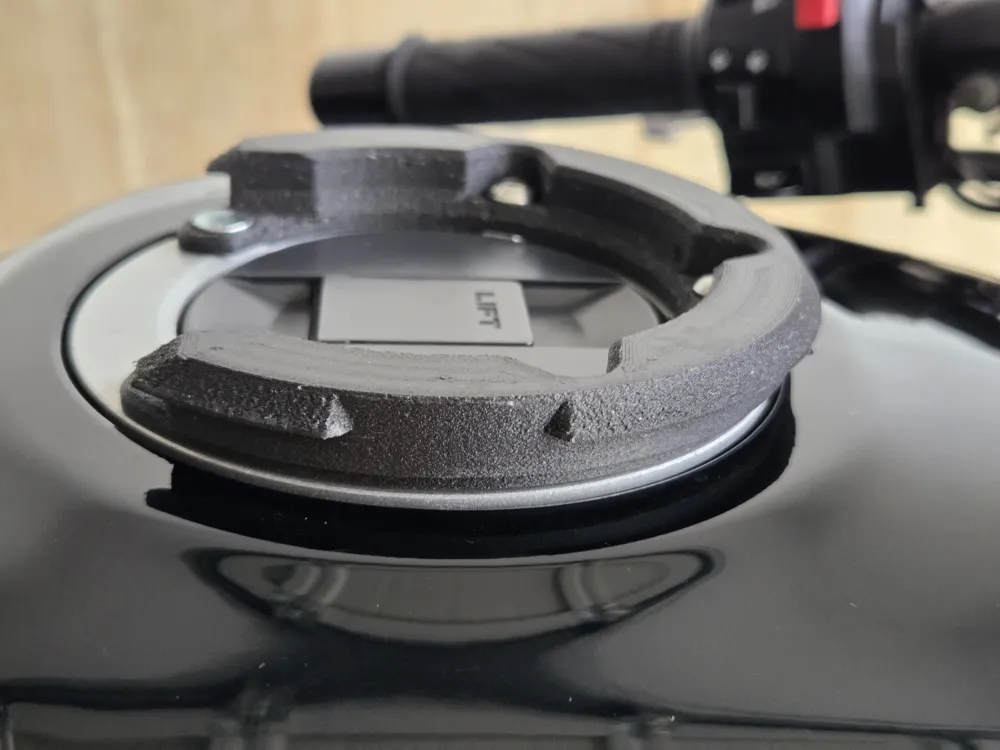

This is a tank ring to for quicklock evo tank bags (made by sw motech) for Suzuki. The bike in the picture is a 2006 Suzuki Bandit 650. SW Motech changed the tank ring on their current tank bags and they do not sell the old ones anymore but i needed a tank ring to fit a exisitng bag on a Suzuki.

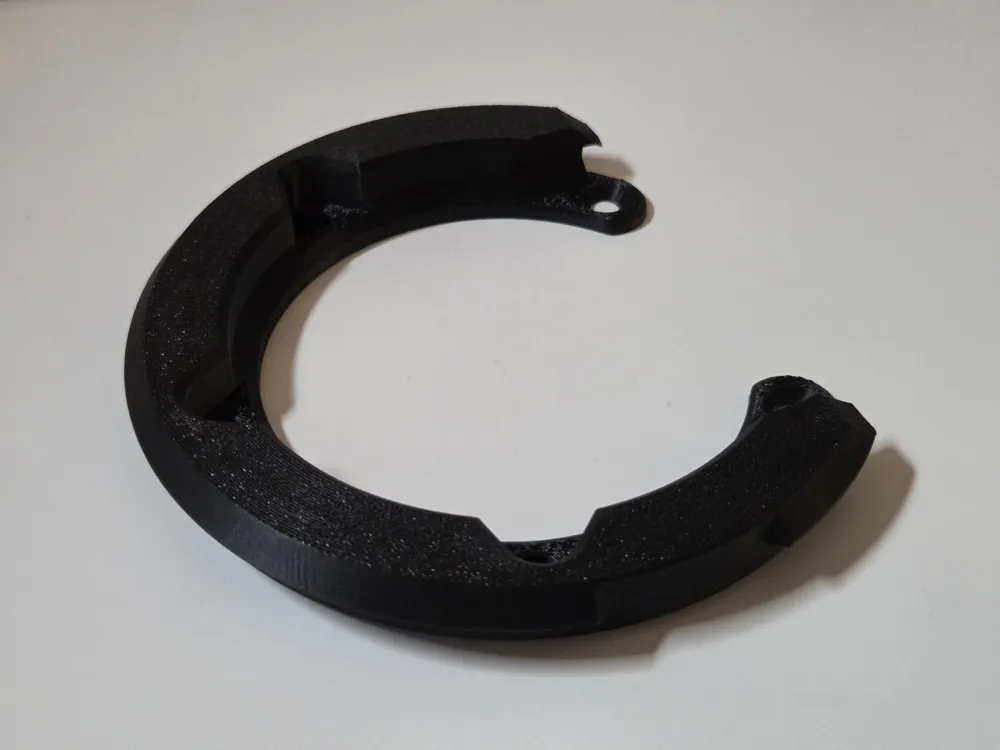

This is most likely not as strong as the original rings but for a smaller tank bag it is fine. I printed in PA6-CF but PETG HF does also work. Choose a filament with good layer adhesion and some gasoline resistance.

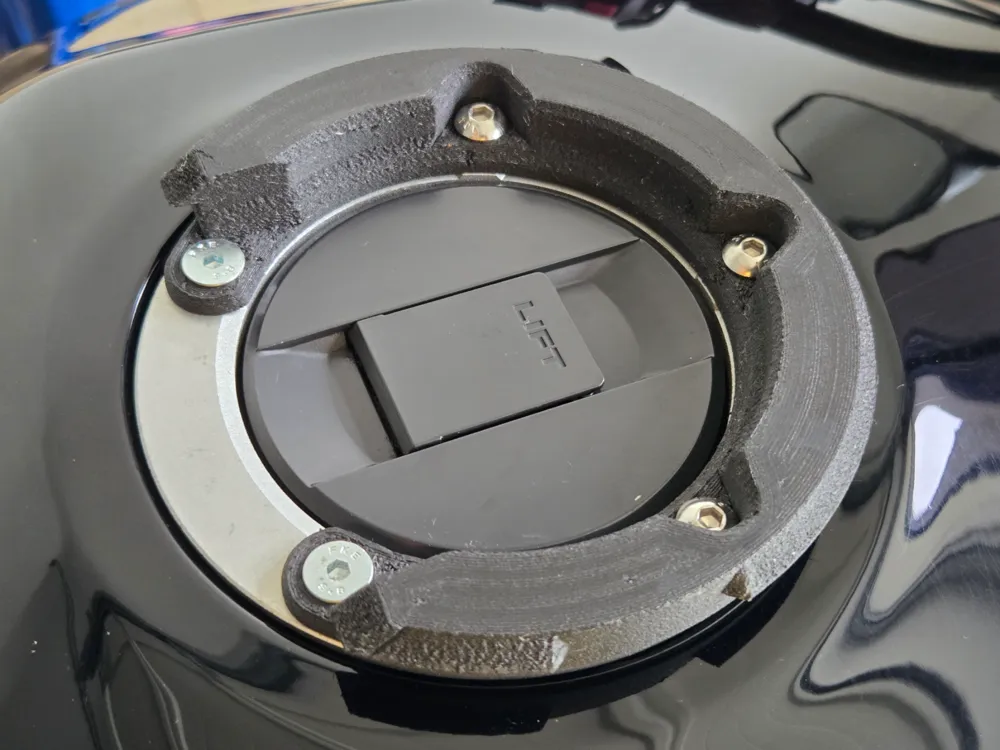

You will have to get some screws that are a bit longer than whatever is used on the bike. On my bike only the front and back screws went into the steel fuel tank (don't omit these), those in the middle only hold the filler cap together.
