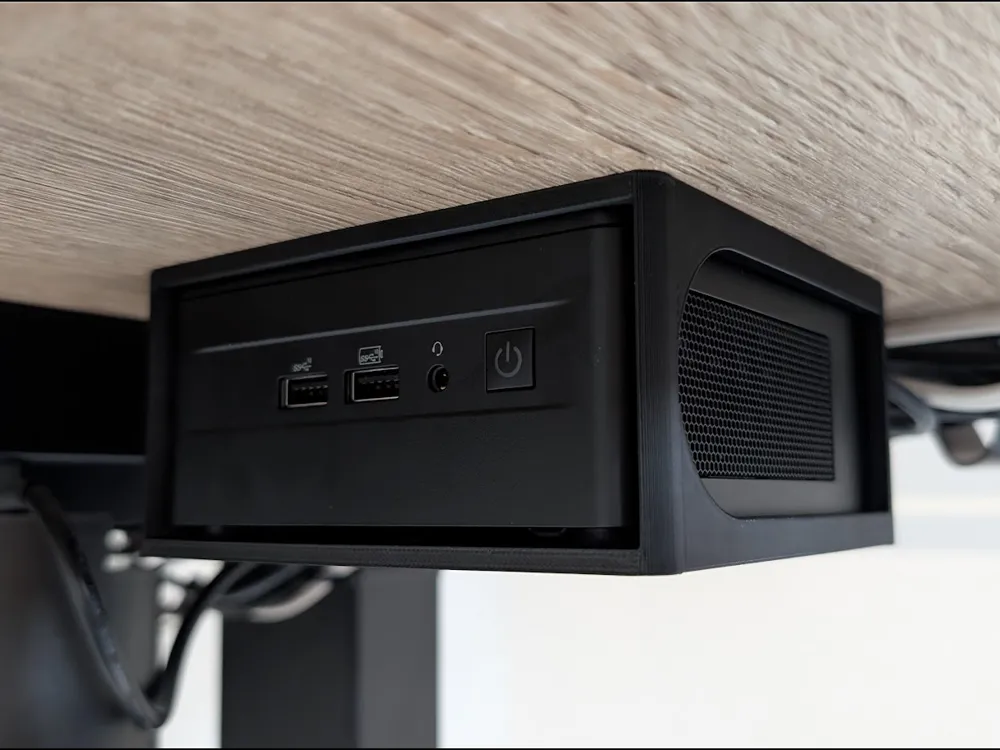

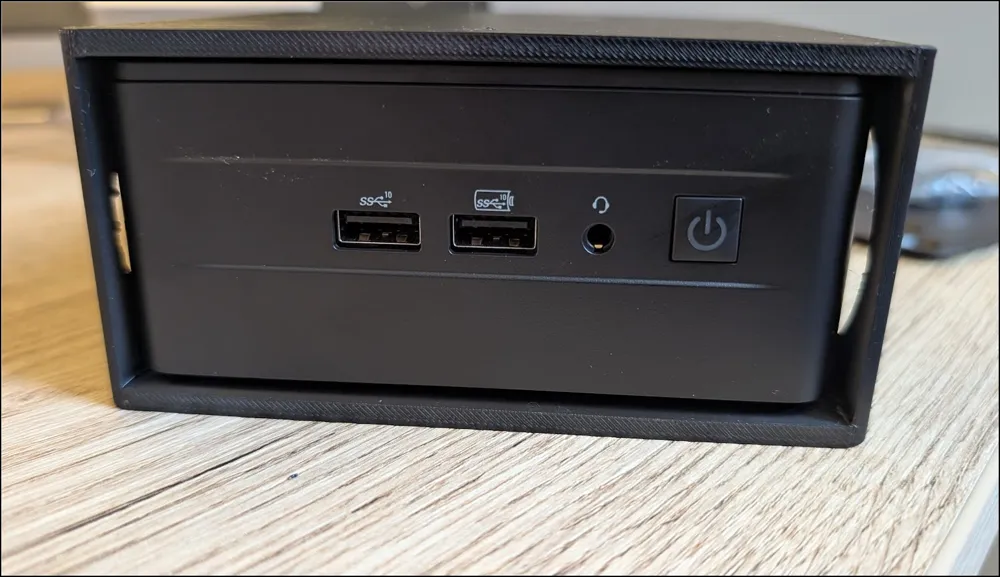

This is a NUC desk mount I created for my NUC12WSHi7.

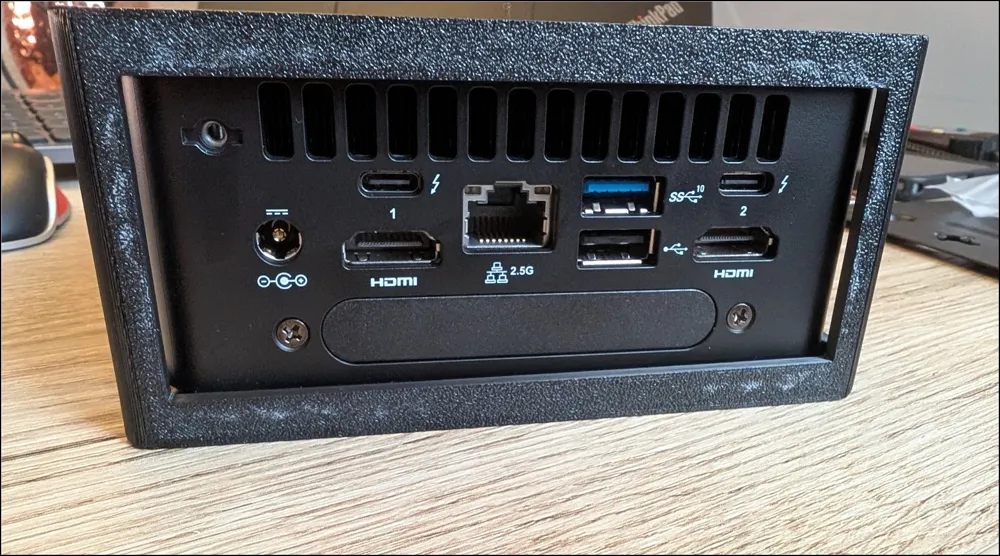

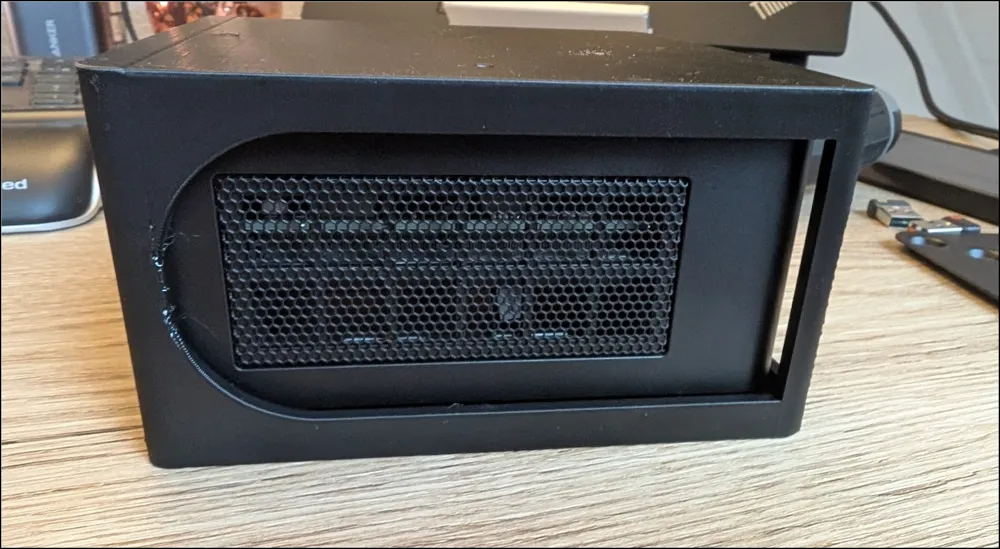

It's suitable for standard High NUCs (with dimensions: 117 × 112 × 54 mm).

Made for easy removal of the NUC if needed.
There’s a cutout for the NUC’s rubber feet to ensure a stable fit.

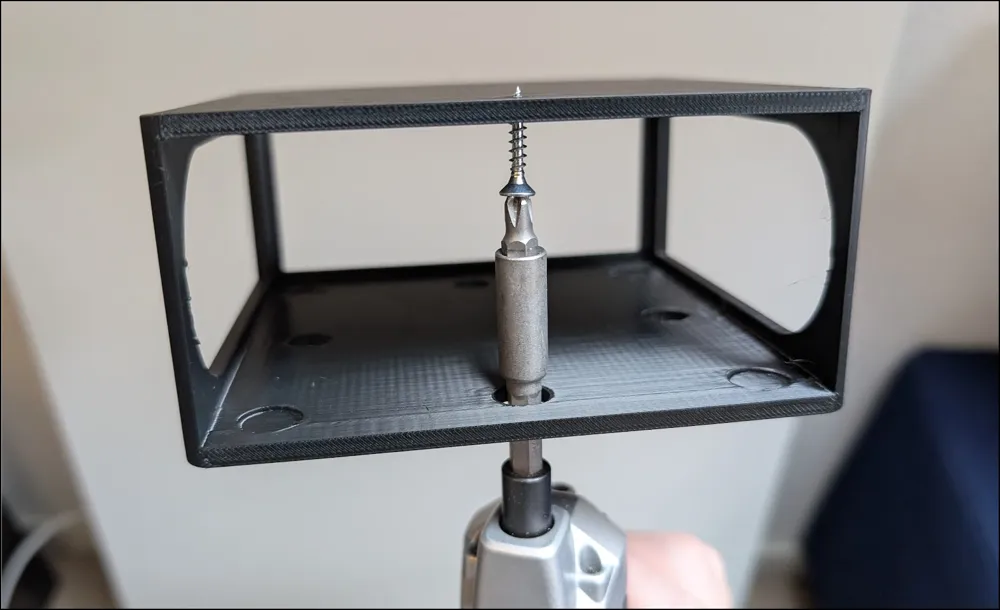

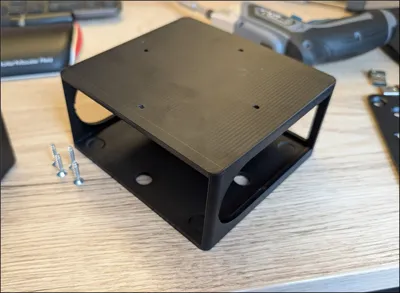

The mount can be easily attached to your desk using small screws (see photo).

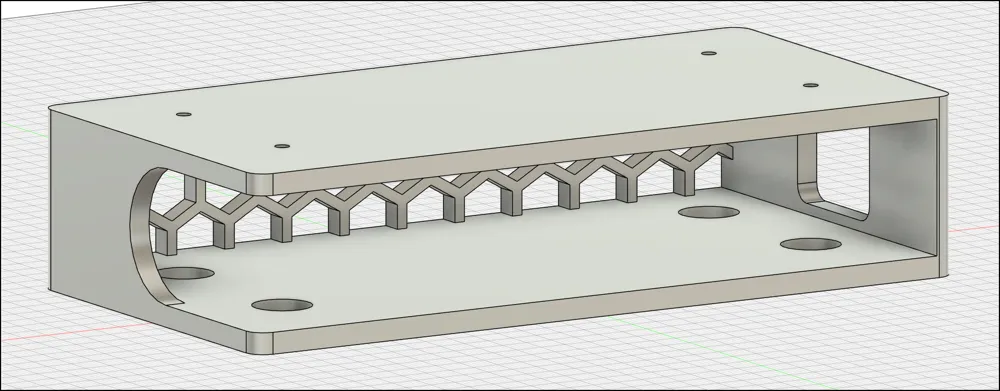

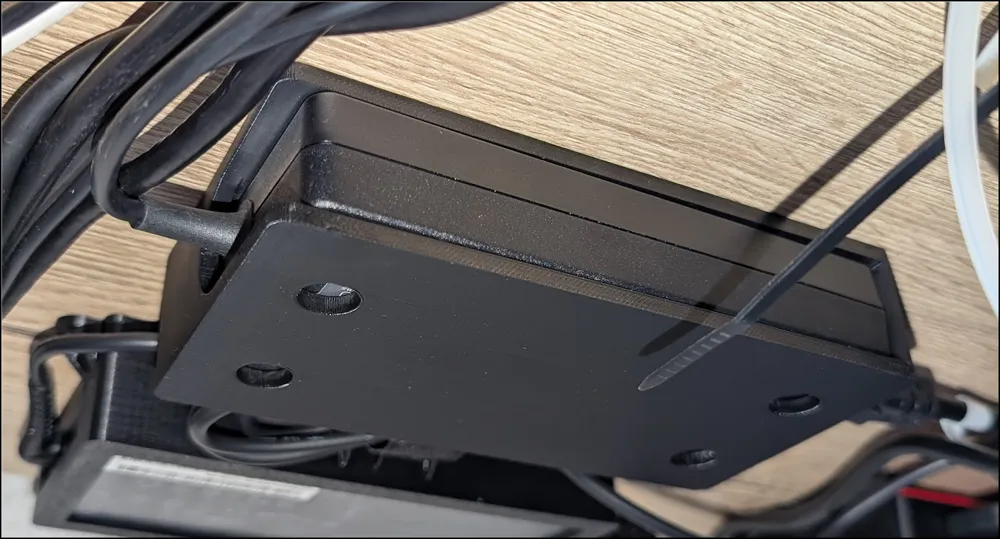

UPDATE: I've added a mount for the default power brick for this NUC.

NUC

mount

Comment & Rating (11)

@sIacker

Great print thank you!

@user_2518207785

Print Profile

0.2mm layer, 2 walls, 15% infill

I wish I was good enough with this to print one for my shorter height unit but this one still works very well.

@user_2650751349

In the 'Prepare' section of BambuStudio, select the model and press 'S' or choose 'Scale', then tinker with the Y axis to scale it to 45mm (which is the height of the low proflie NUC + the thickness of the bracket)
