Wheel fitment gauge [repaired]
IP Report
Print Profile(2)
0.2mm layer, 5 walls, 15% infill
Designer
17.8 h
2 plates
0.2mm layer, 5 walls, 15% infill
Designer
19.6 h
5 plates
Open in Bambu Studio
Boost
897
2623
63
31
930
587
Released
Description

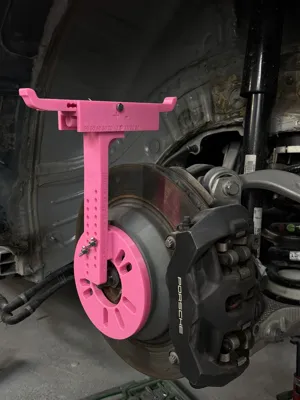

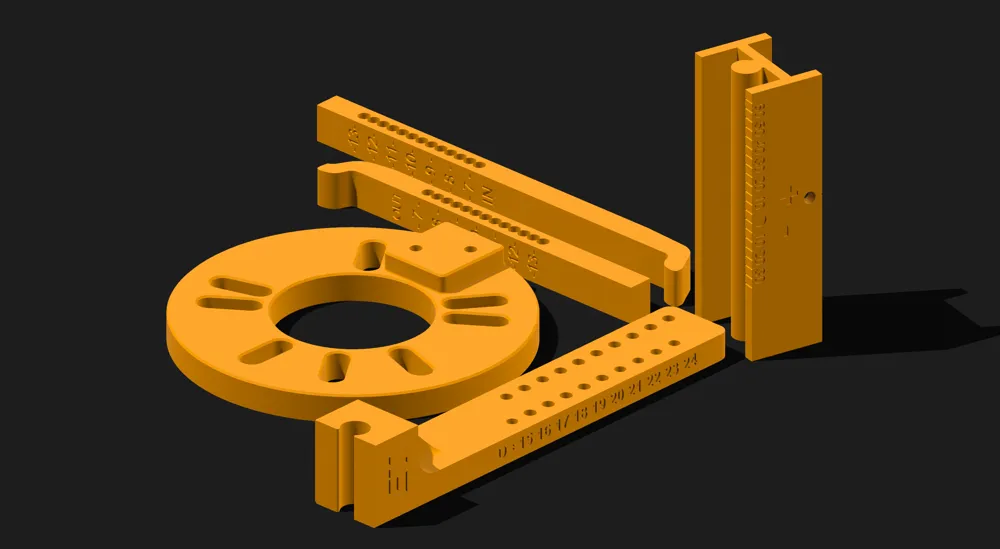

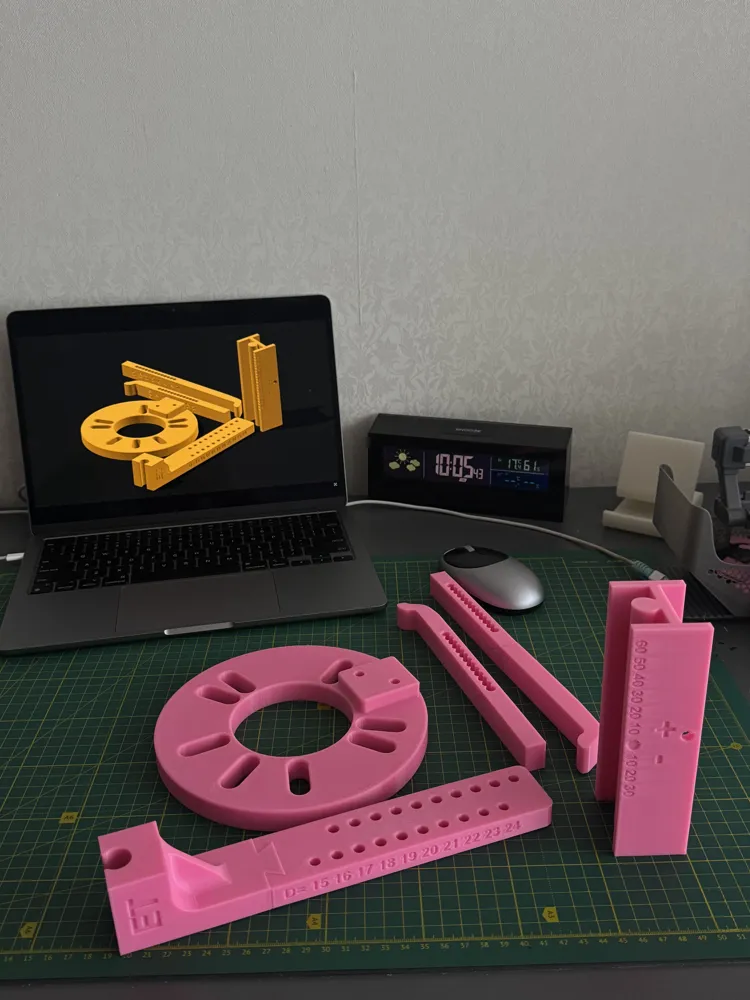

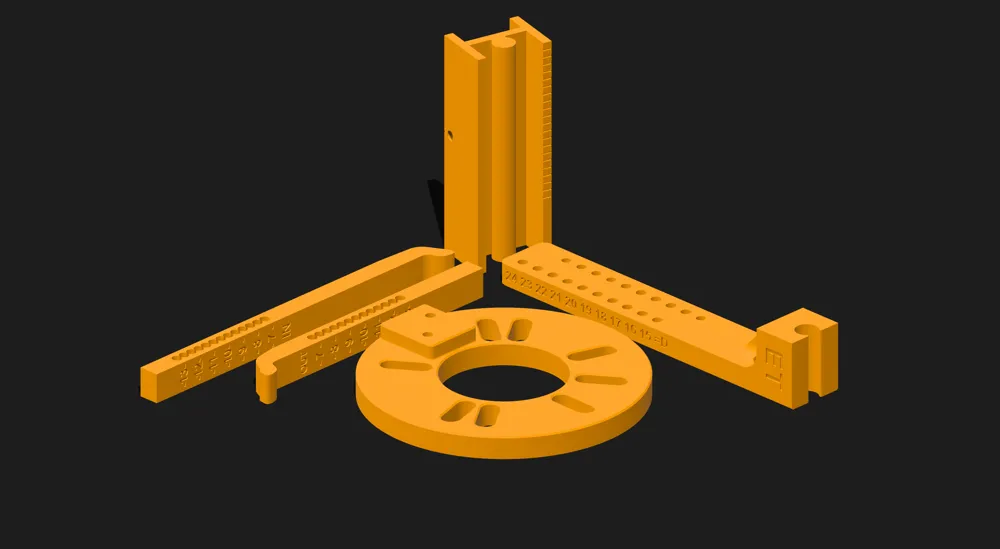

Wheel fitment test tools
Specs
This tool supports wheels that are:

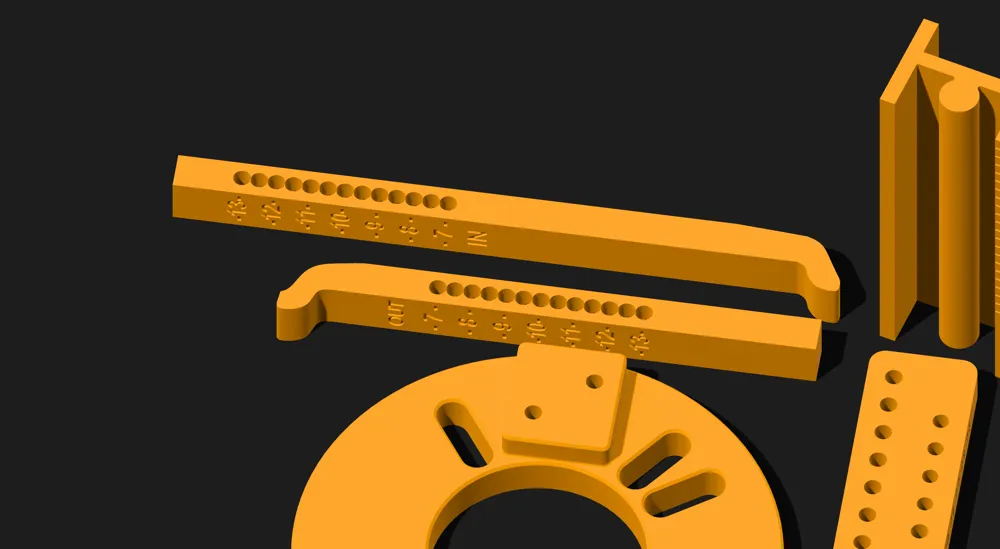

- PCD: 4-6

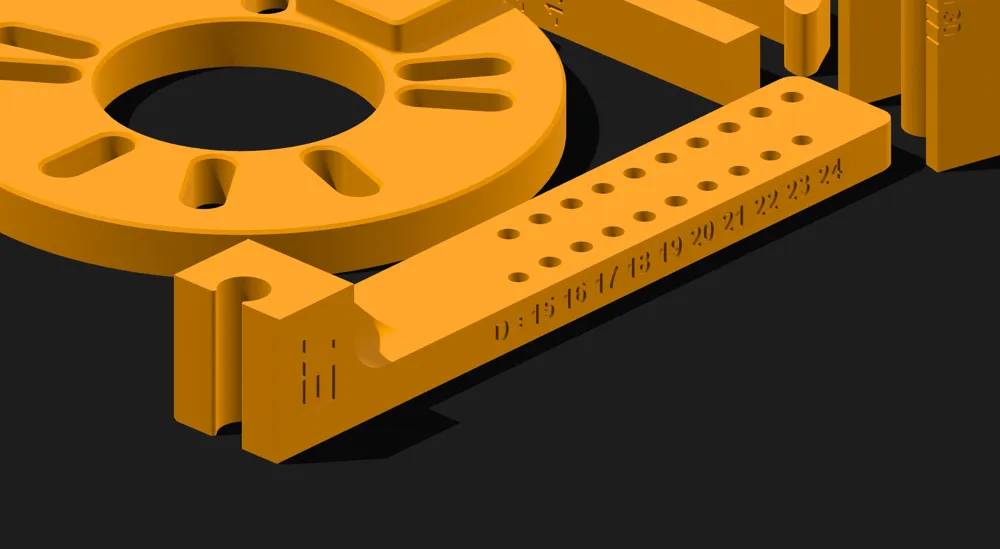

- D: 15-23
- J: 7-13 inches in width

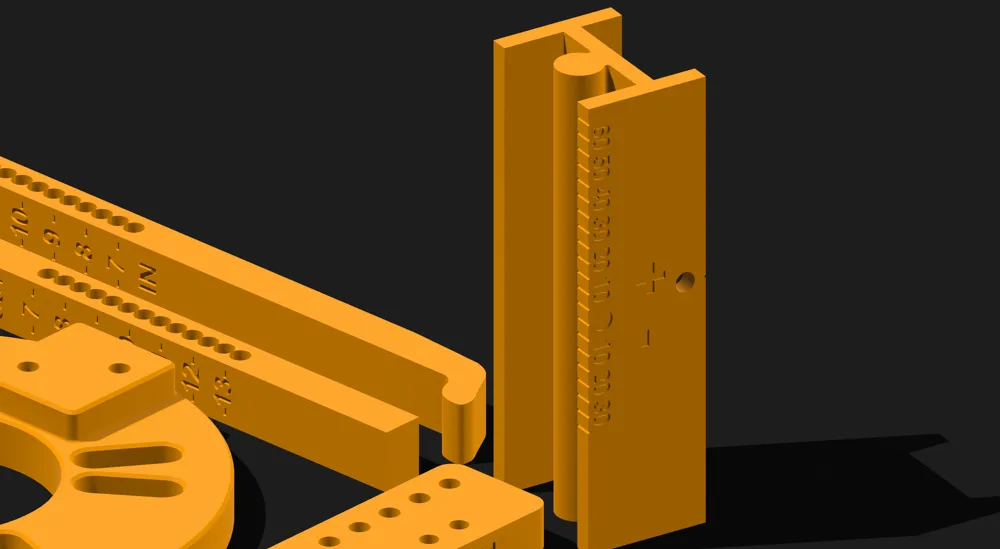

- ET: -30/+60 offset
Parts Required
- M6 Fly nuts - 3pcs
- M6-35mm bolts - 2pcs
- M6-60mm bolt - 1pcs
Print recommendation
- 0.20 Strength profile
- Sliced on smaller parts to print on A1 Mini
Disassembling video
