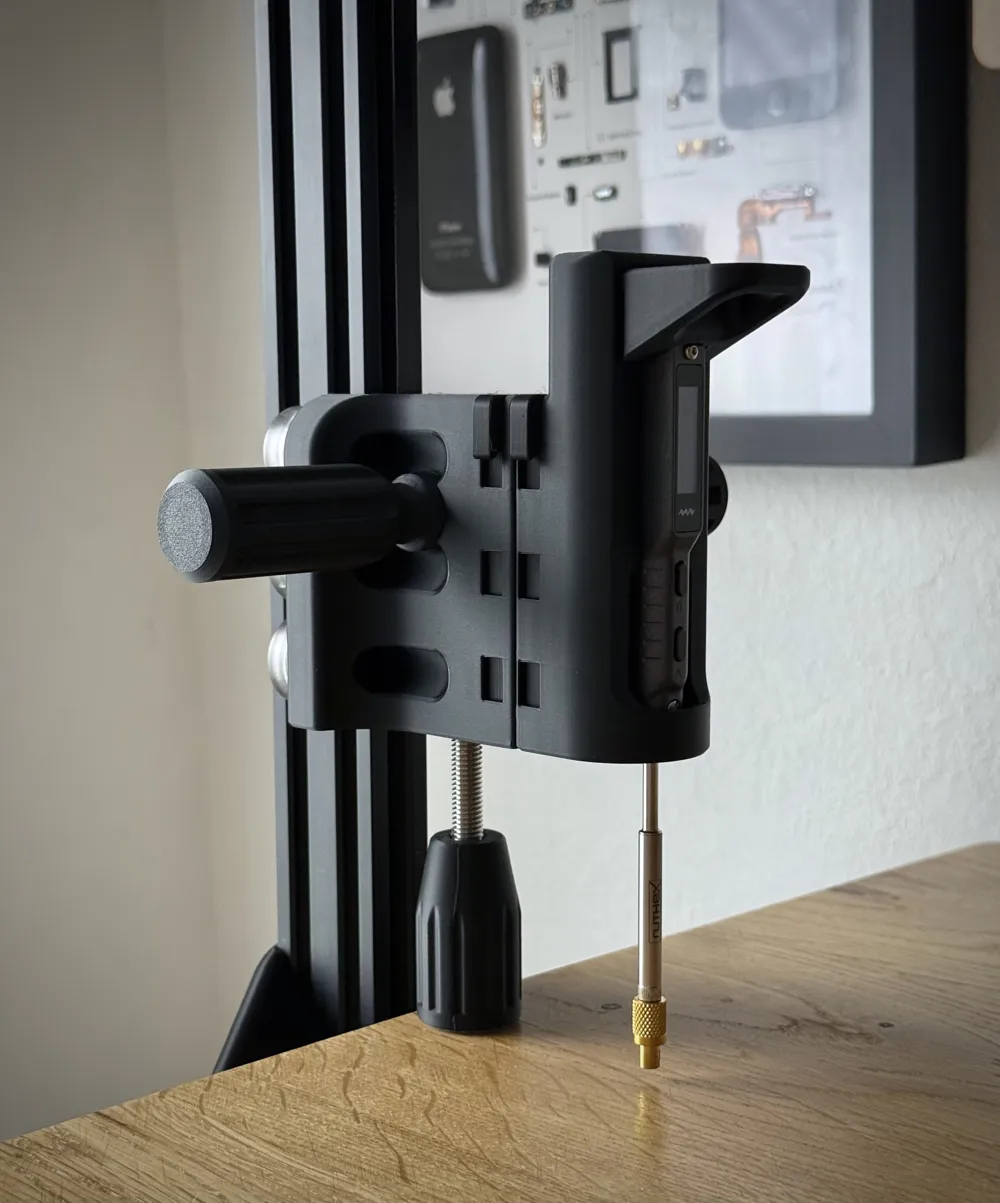

Modular Magnetic Vertical Press

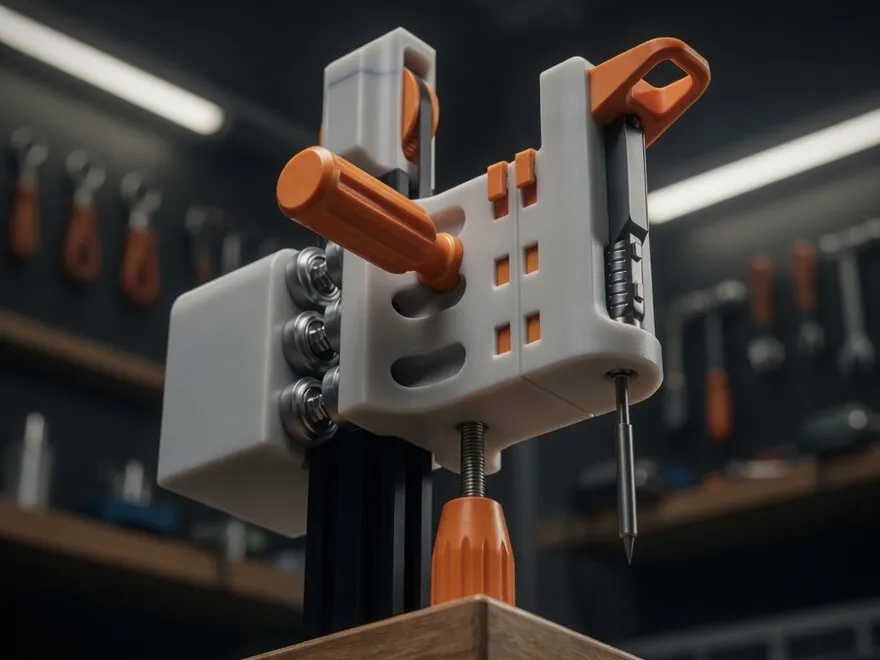

The MODULAR MAGNETIC VERTICAL PRESS.

Available attachments:

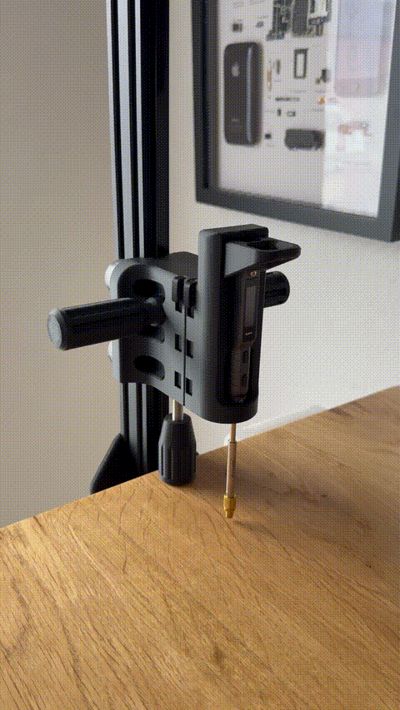

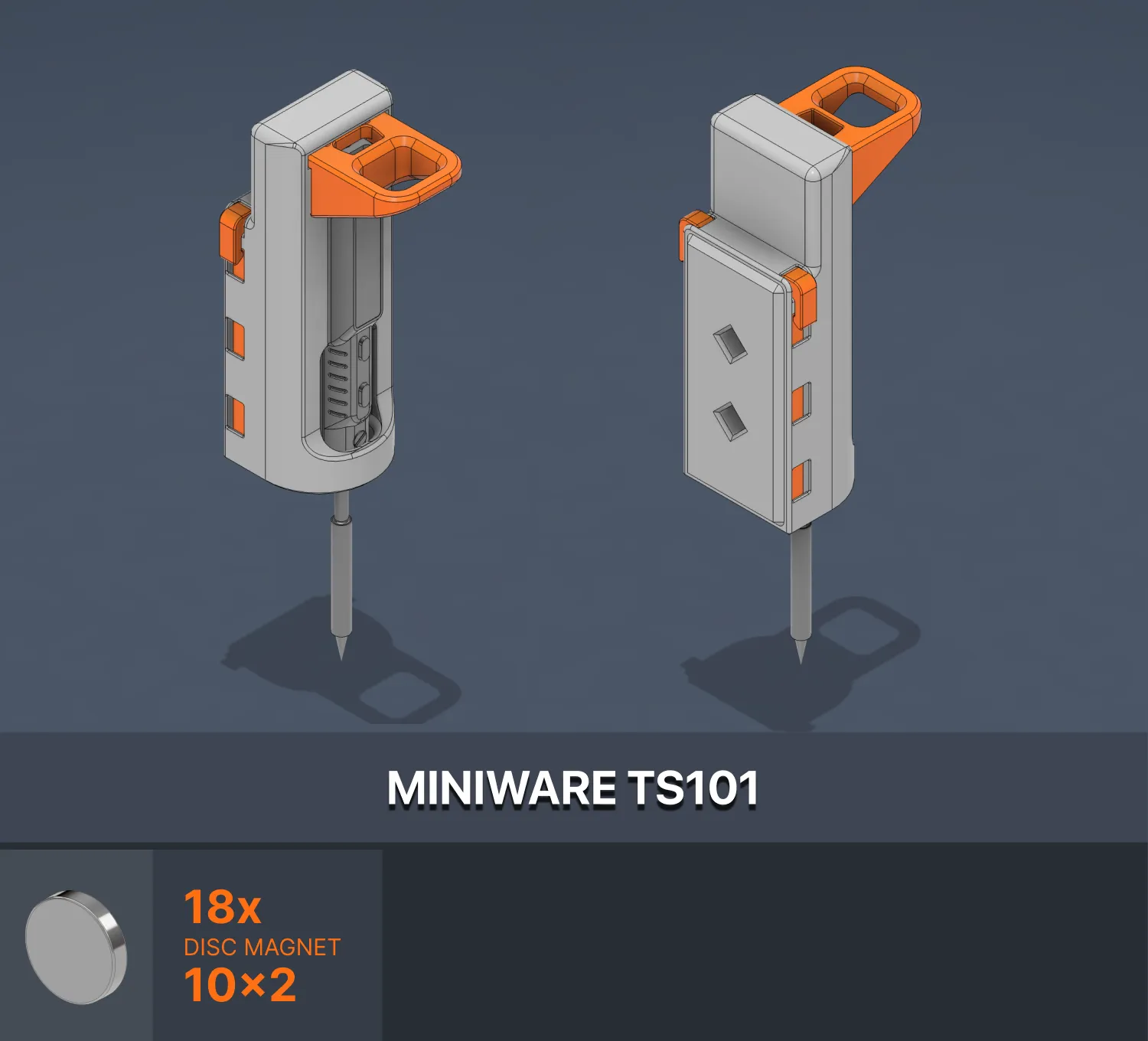

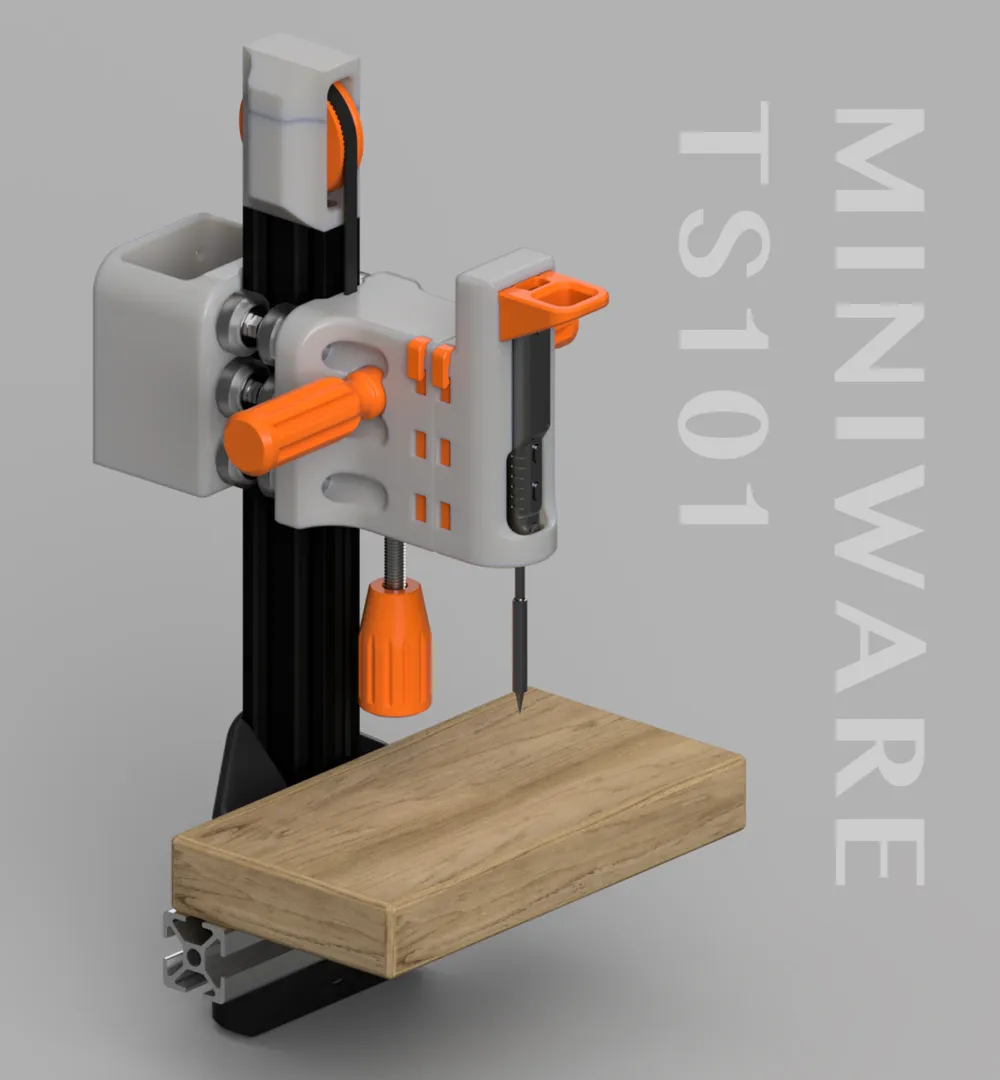

• Miniware TS101 Soldering Iron for heat press inserts

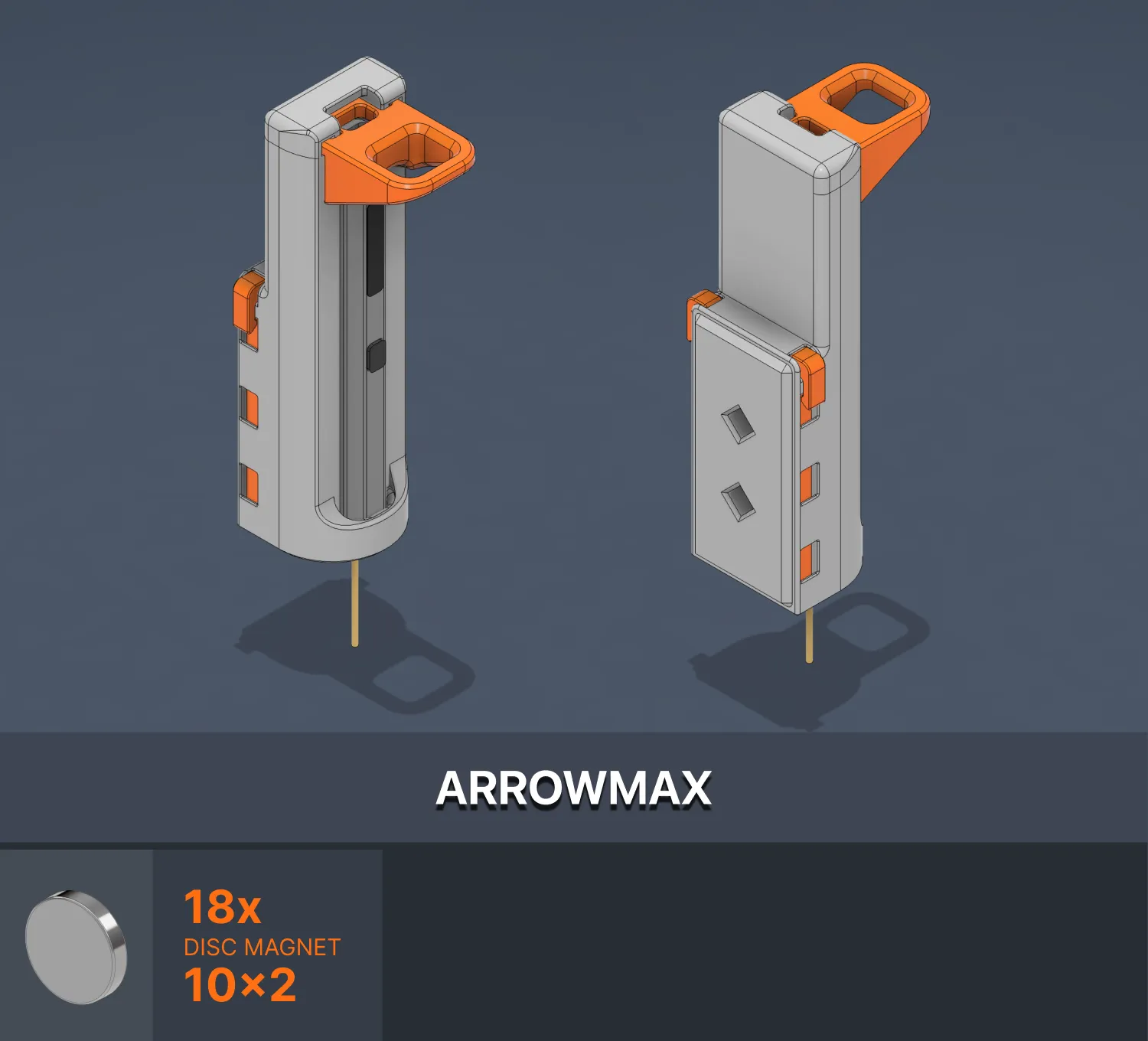

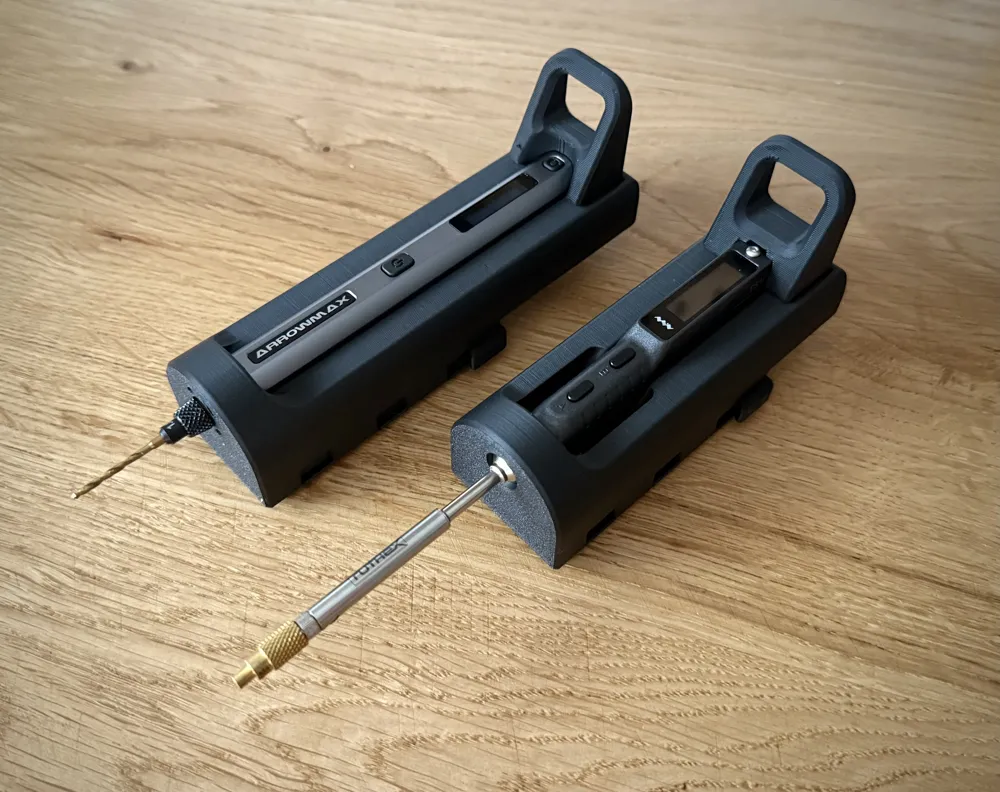

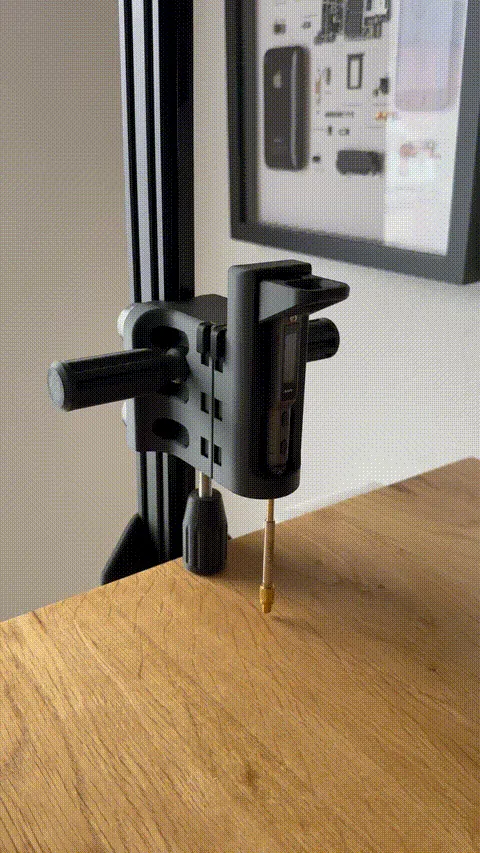

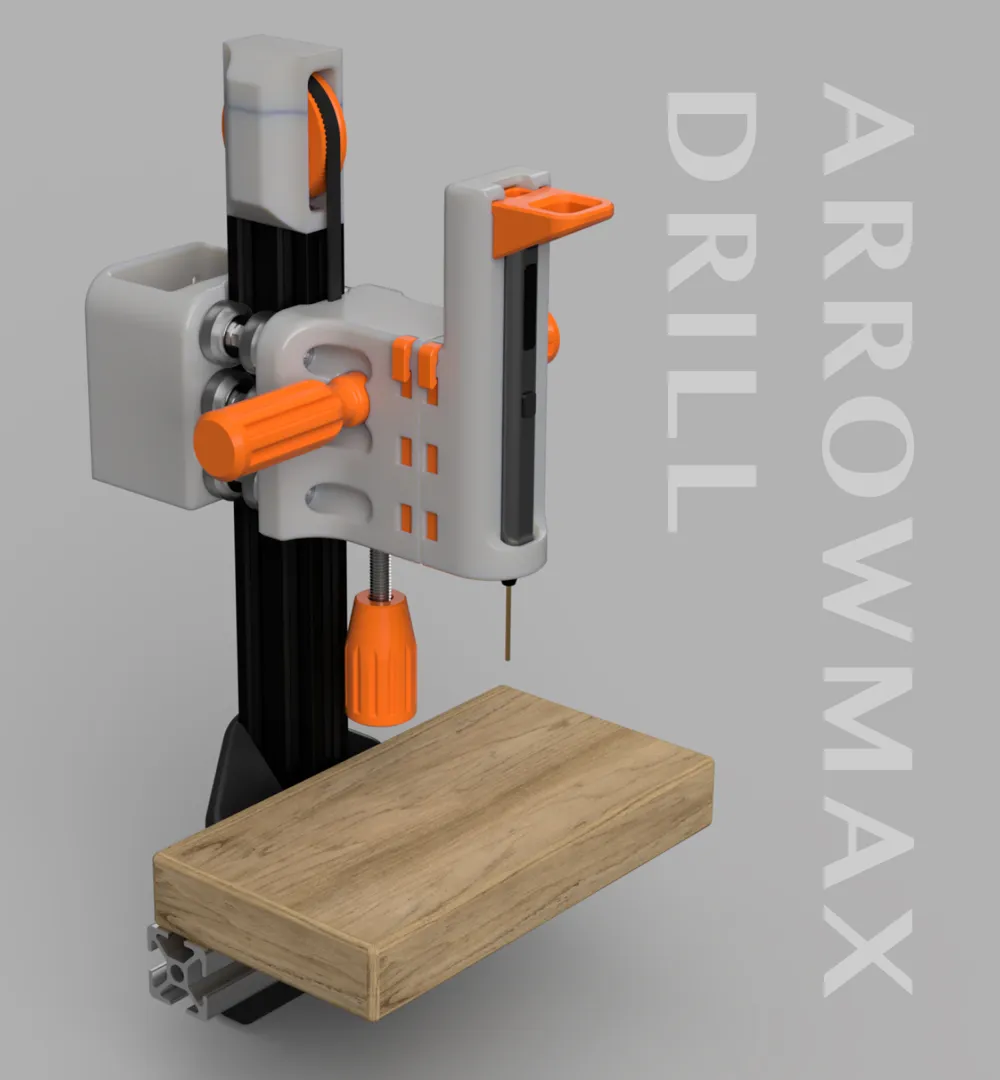

• Arrowmax Electric Mini Drill
• Sumsour 80W Soldering Iron (→aliexpress) created by @BRSS

If you want to create custom attachments or have ideas for some → send me a DM!

There is an “Attachment Prefab.STEP” file in the downloads available to get going.

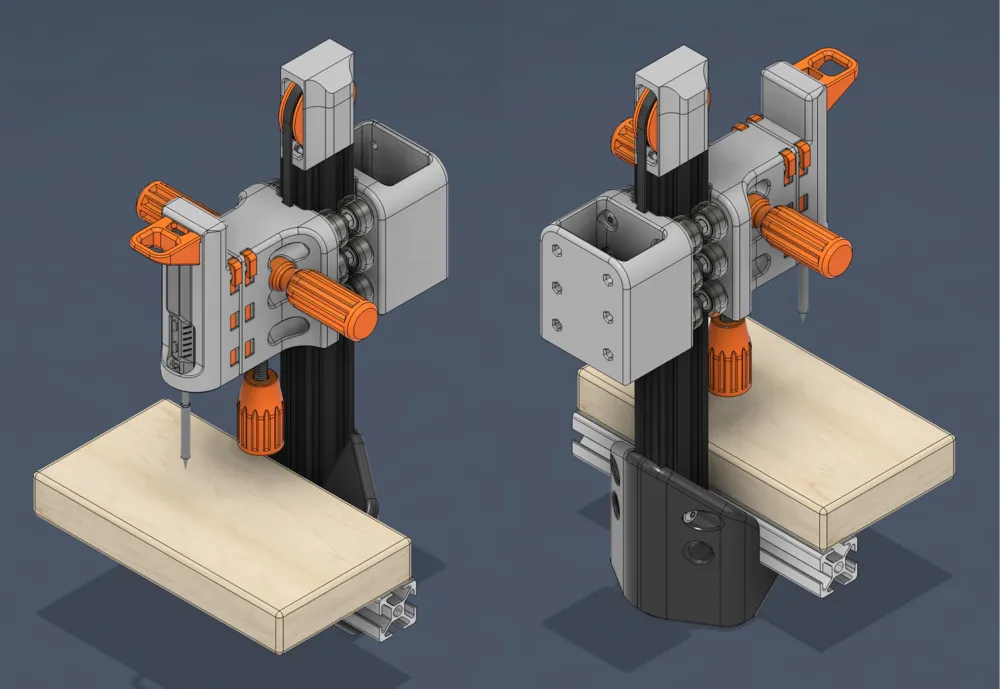

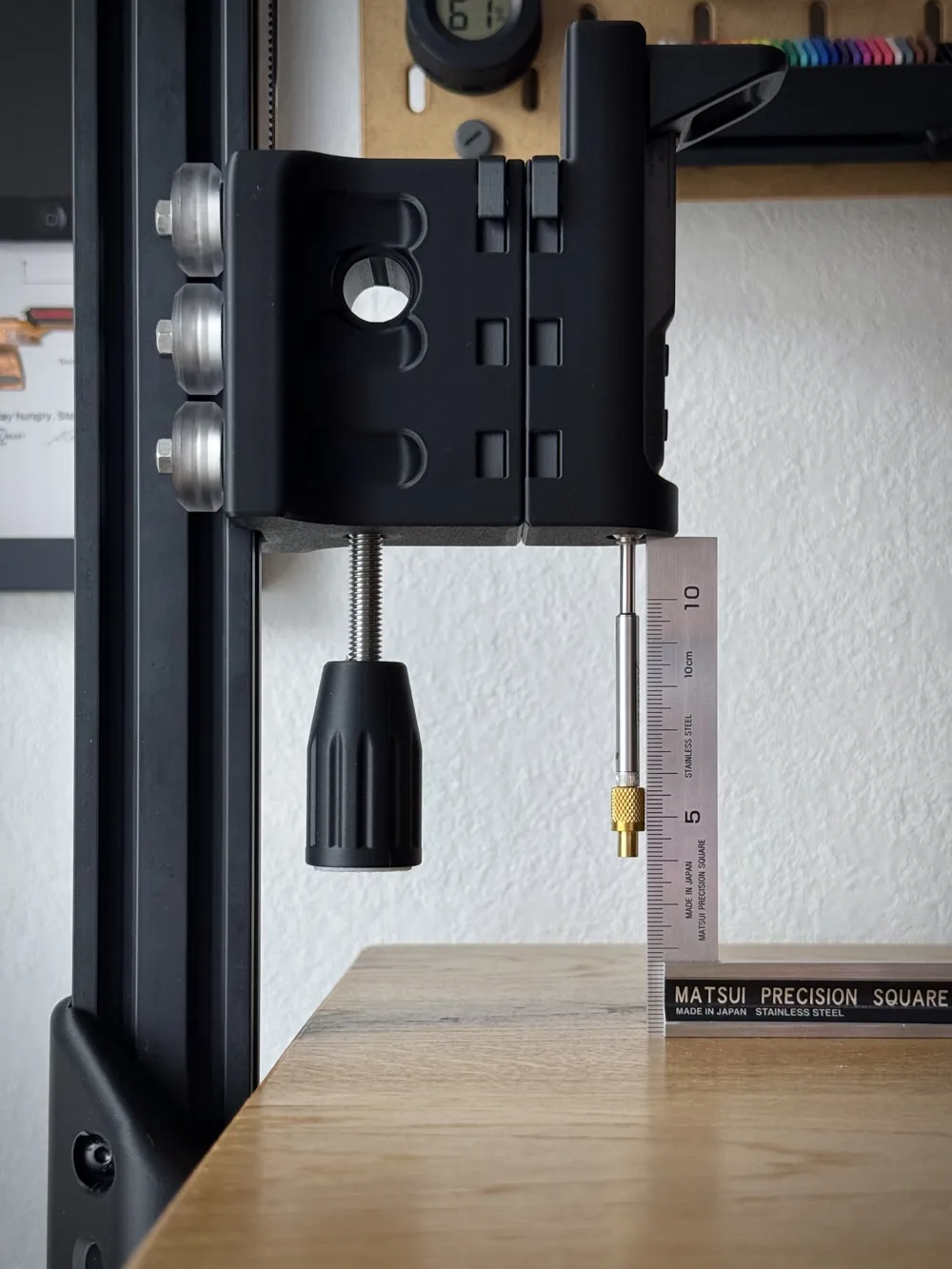

Different usage combinations possible:

• Standalone, just use a single 2020 V-Slot (Nut6) profile and print the toolhead + attachments

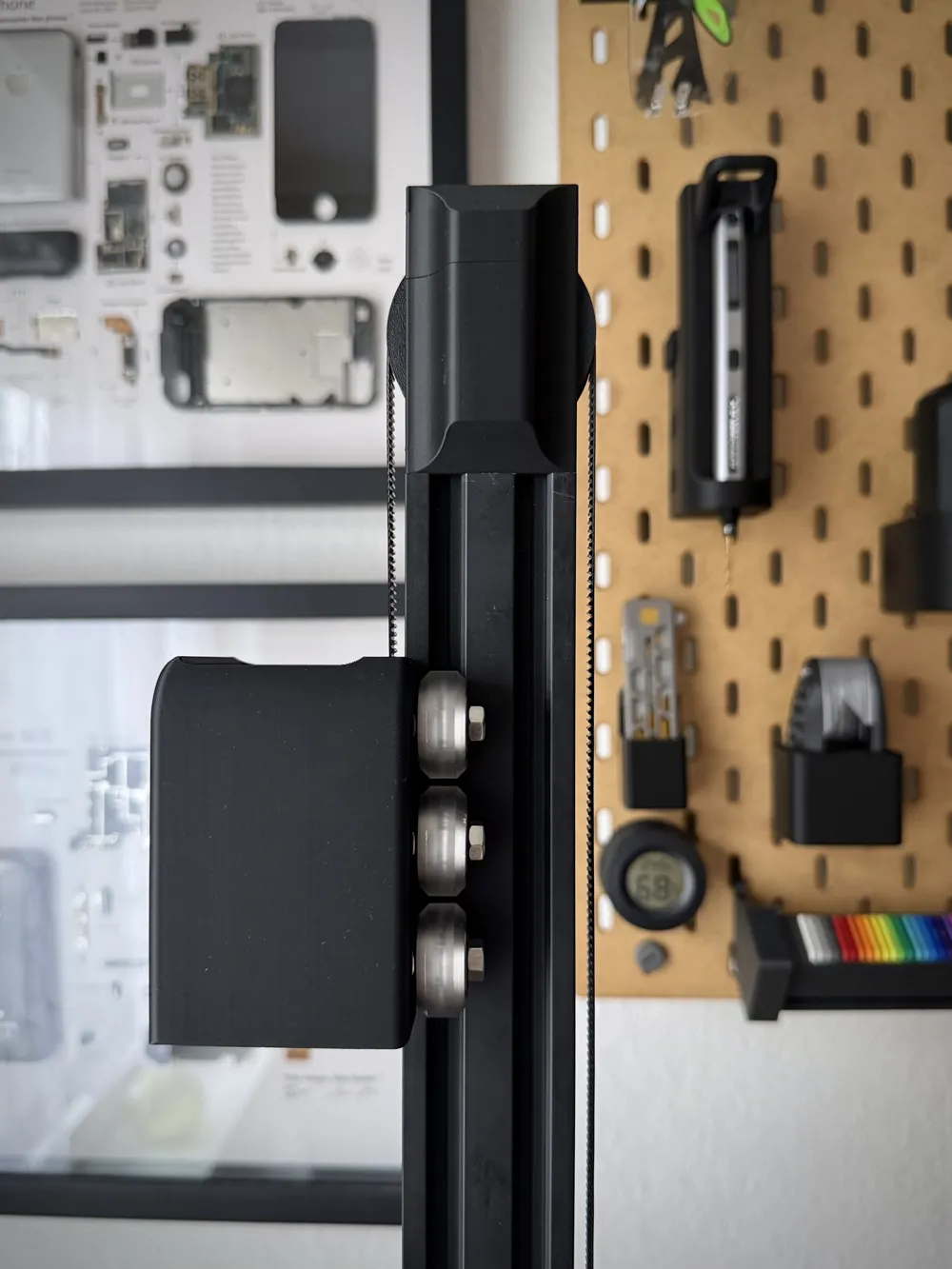

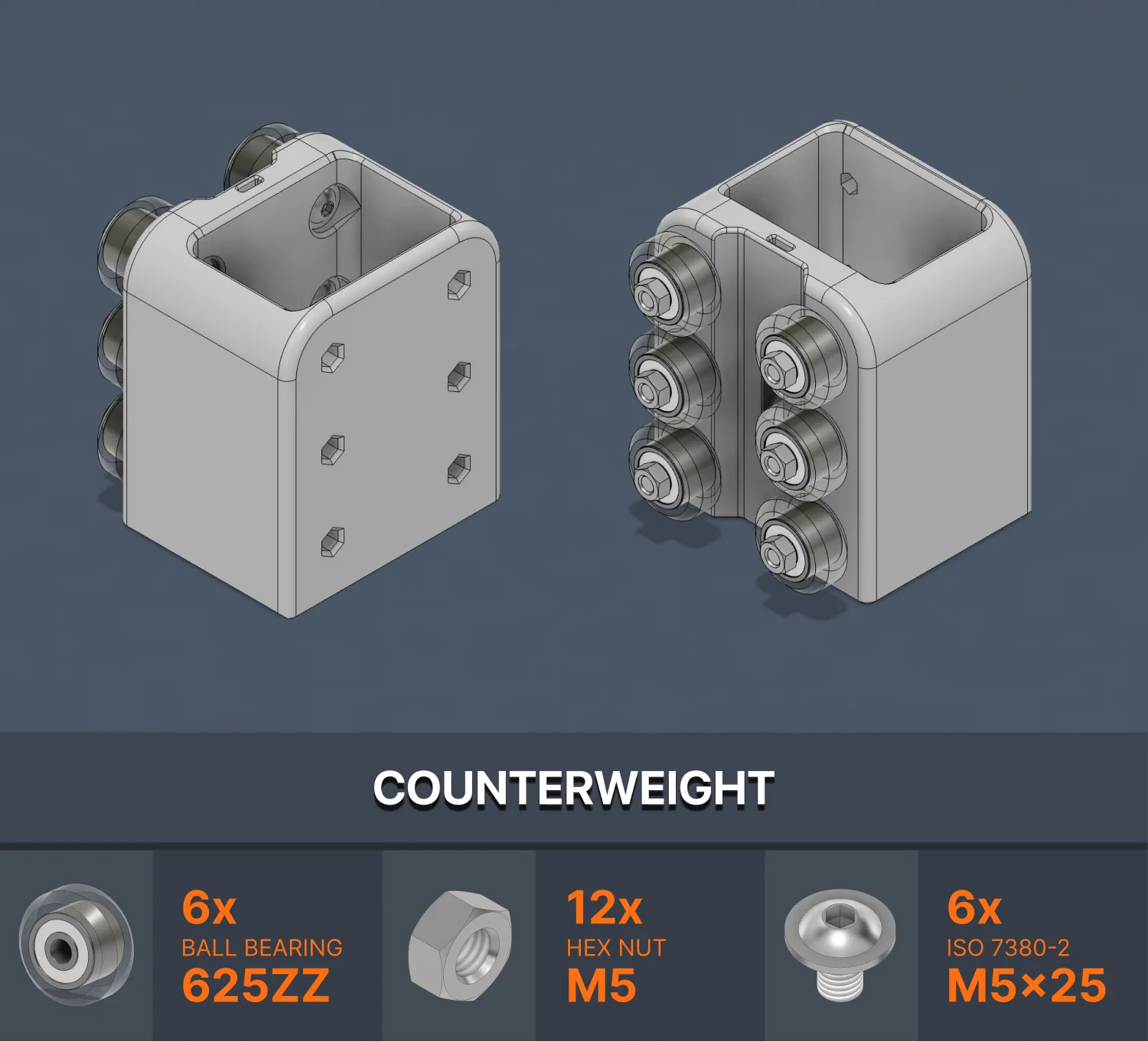

• Counterweight, use a 2040 V-Slot with the GT2 belt and counterweight

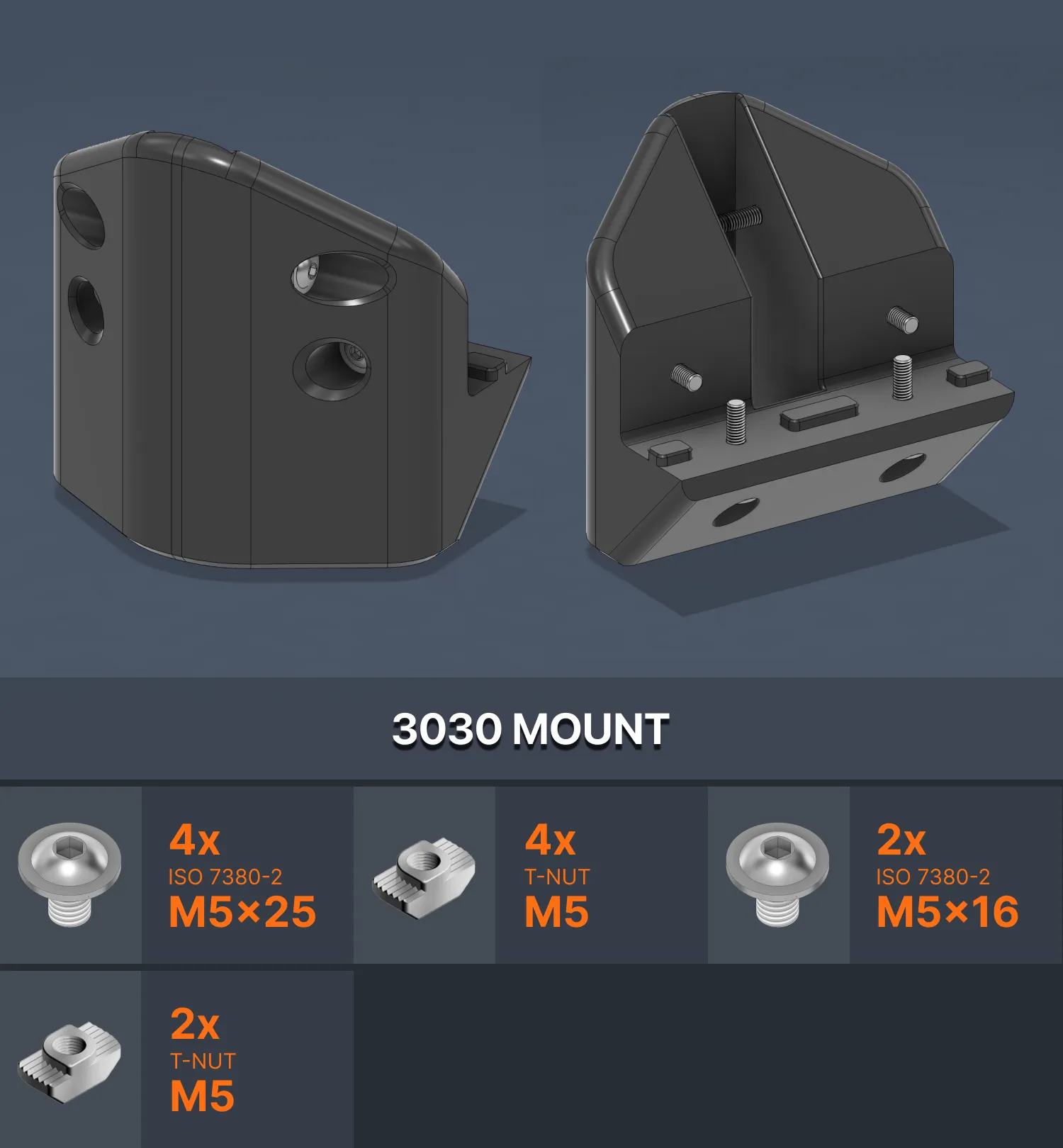

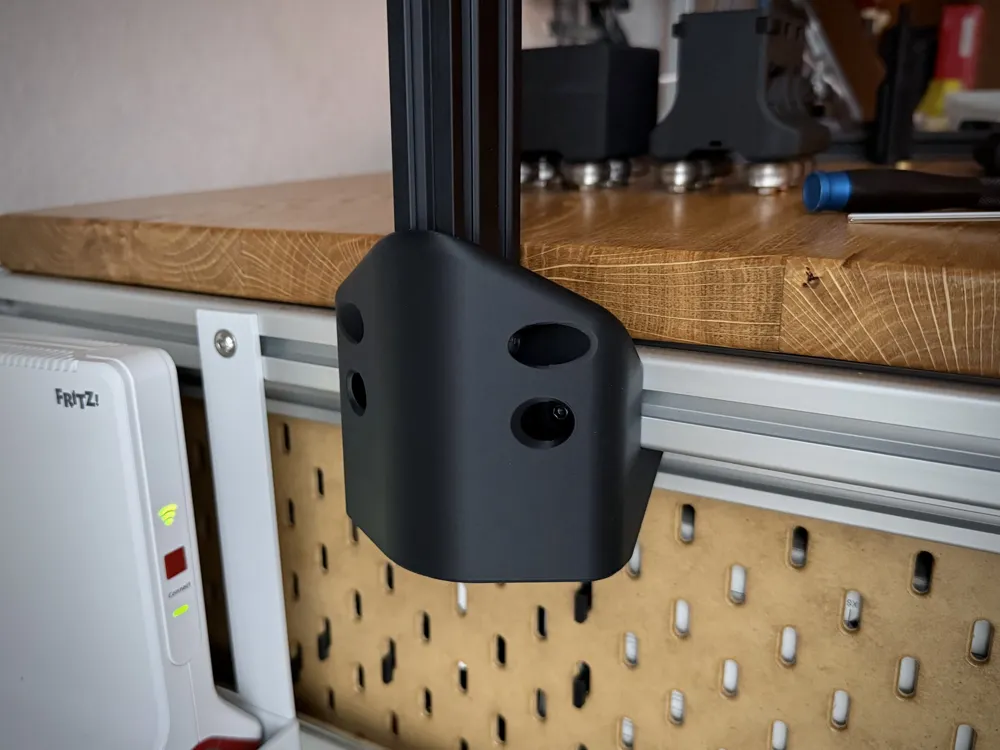

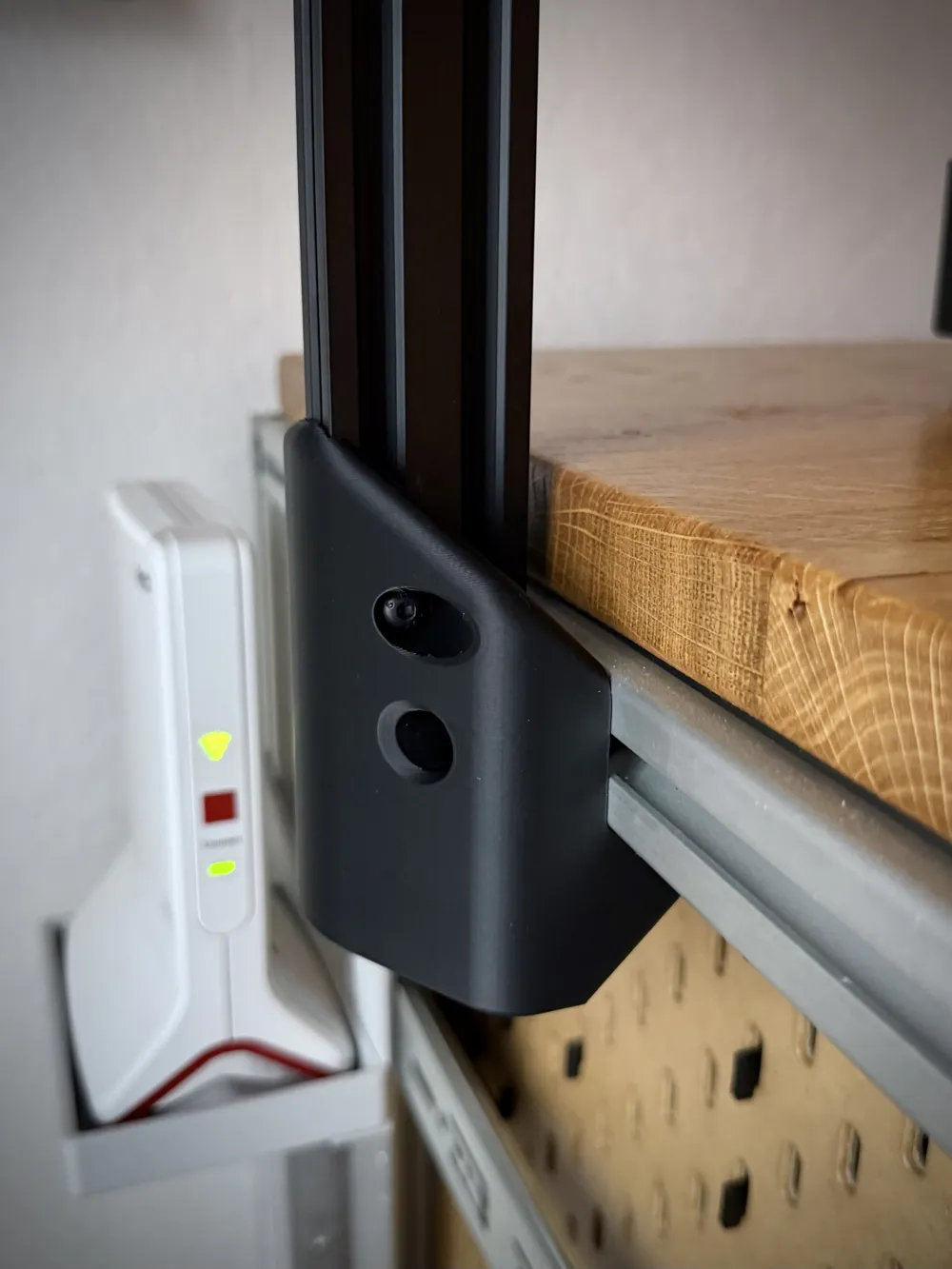

Due to the nature and flexibility of aluminum extrusions different base mounting options are possible. You can use simple angles or baseplates. Feel free to experiment.

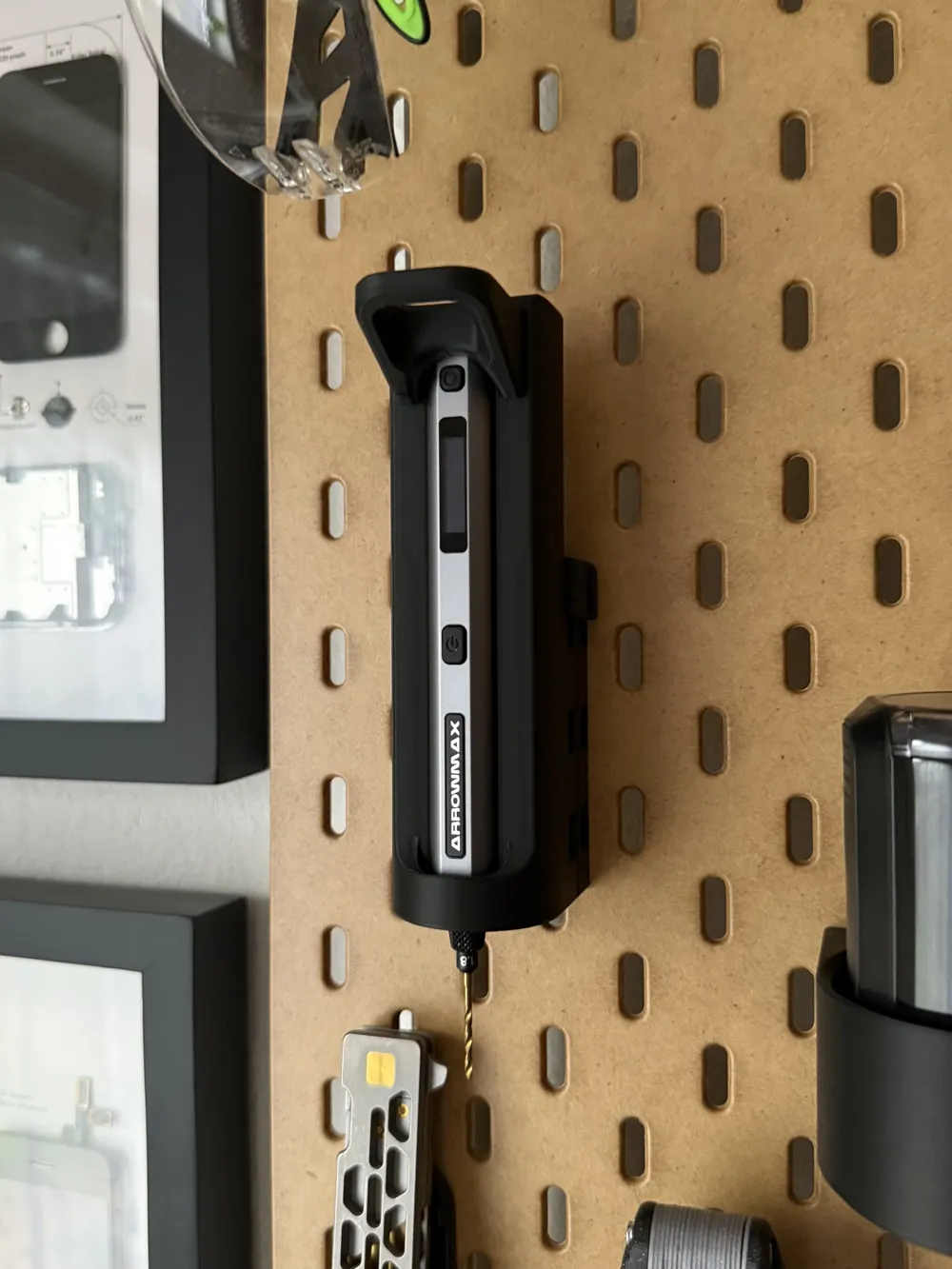

Additional IKEA Skadis mount to park the attachments available as well!

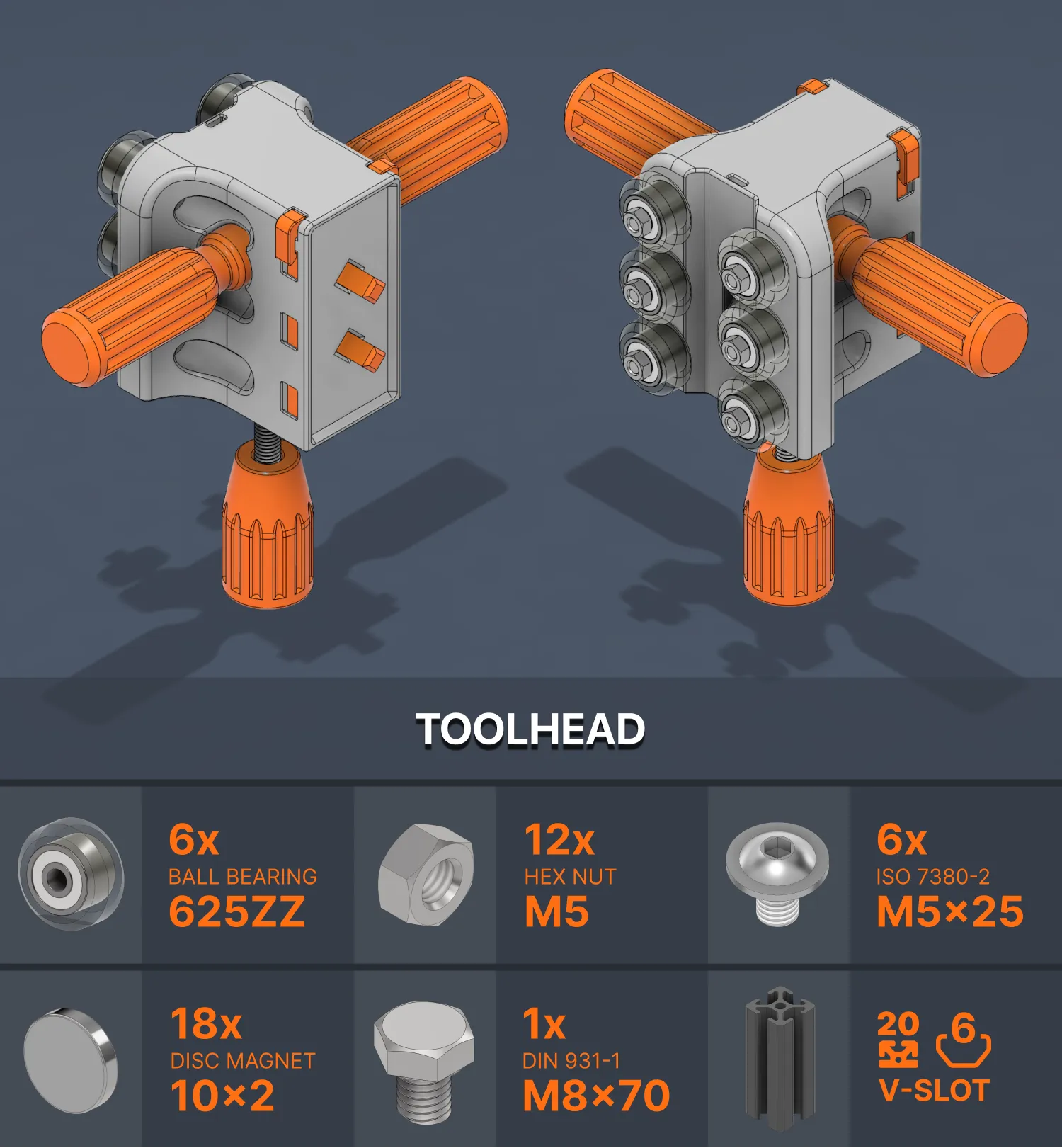

Hardware Requirements:

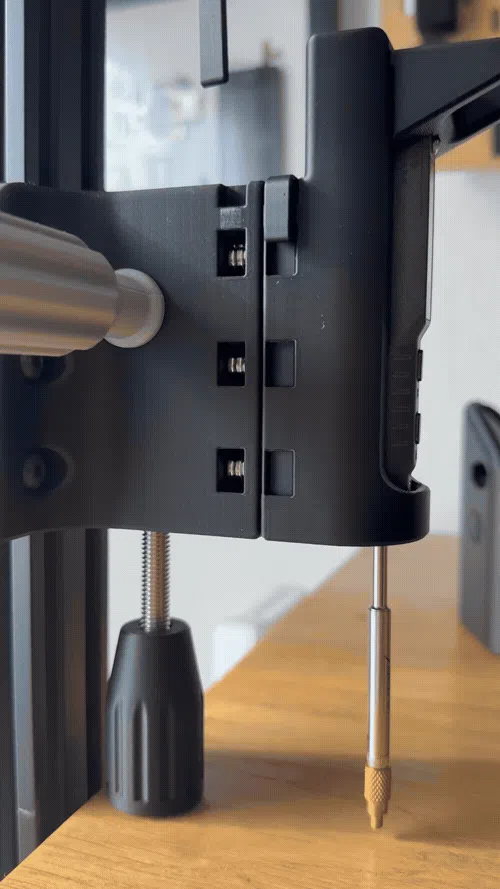

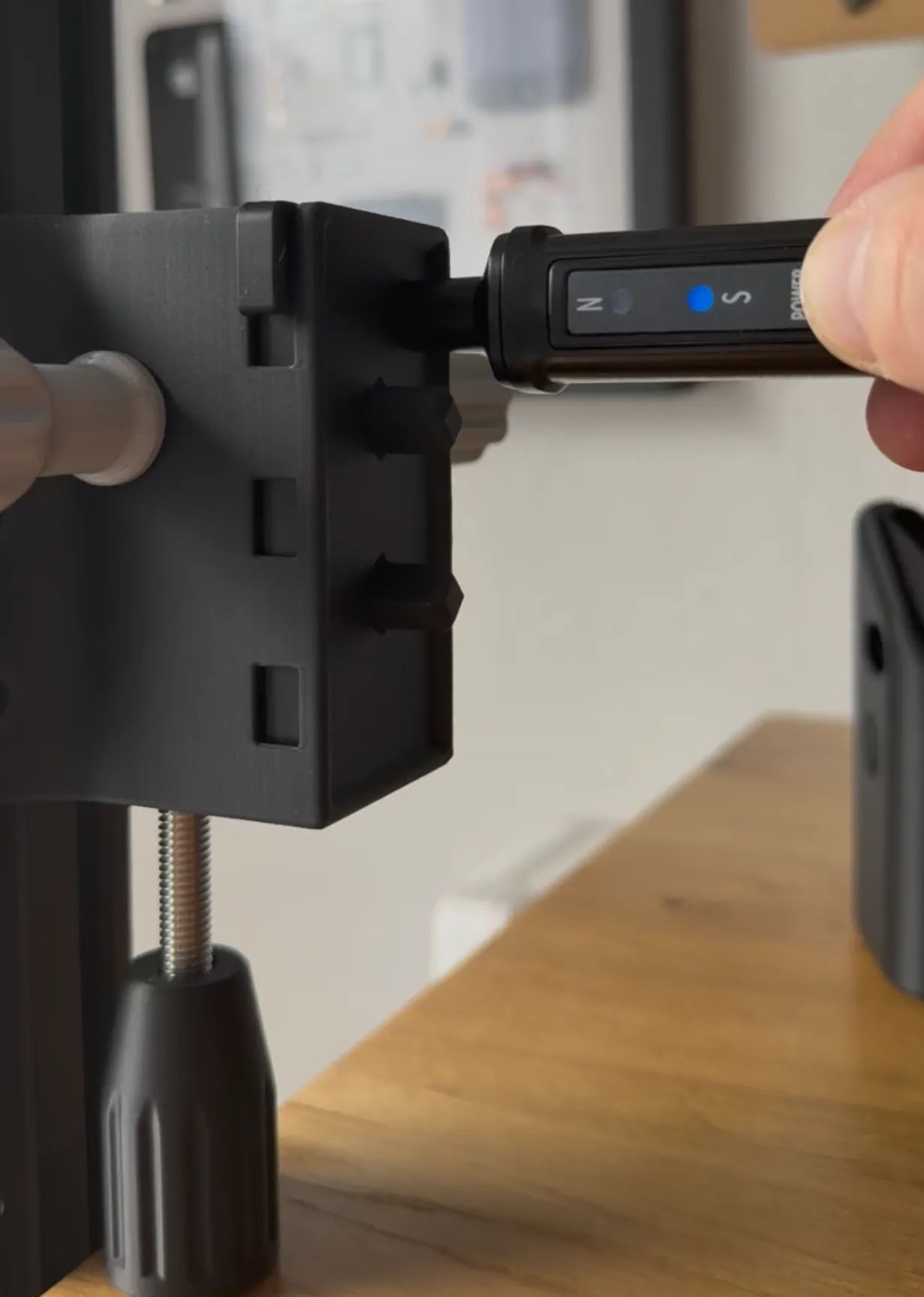

Magnet clip and orientation check:

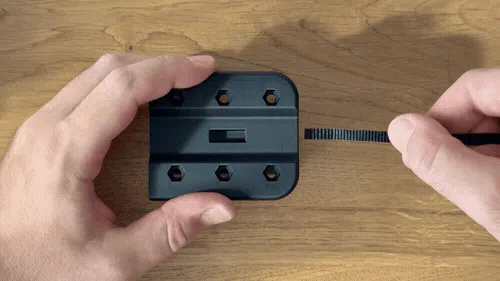

GT2 belt install with auto-lock:

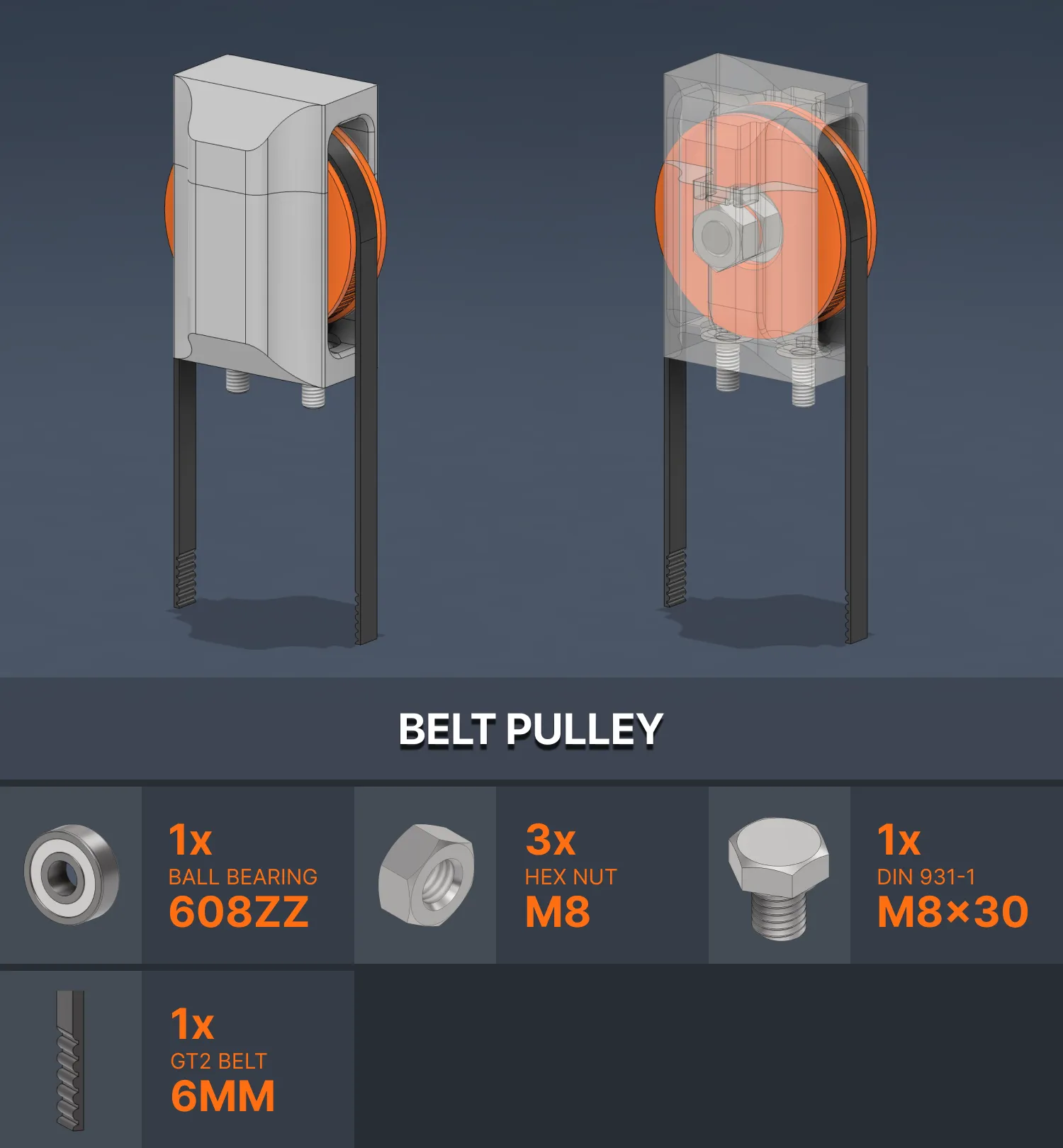

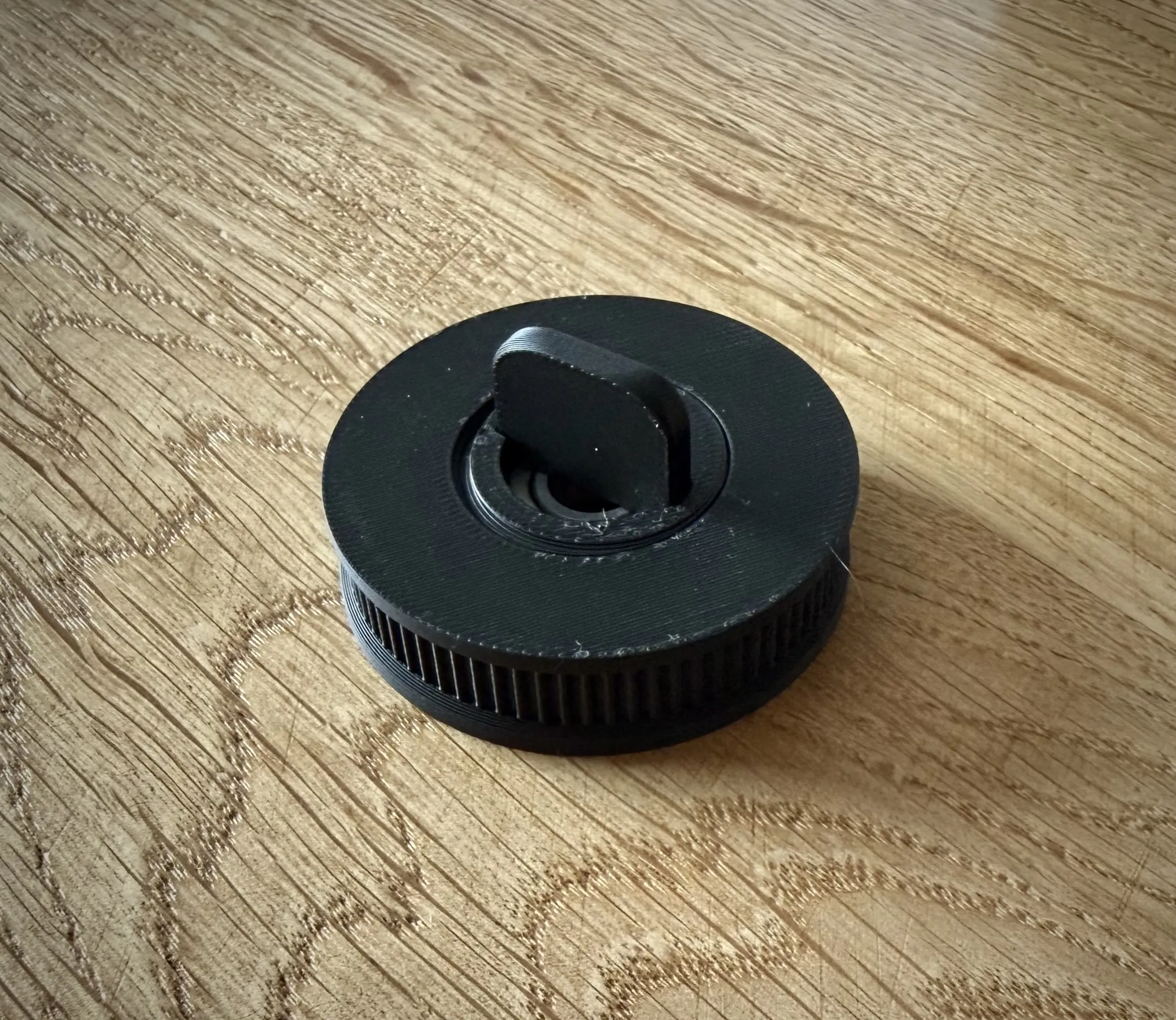

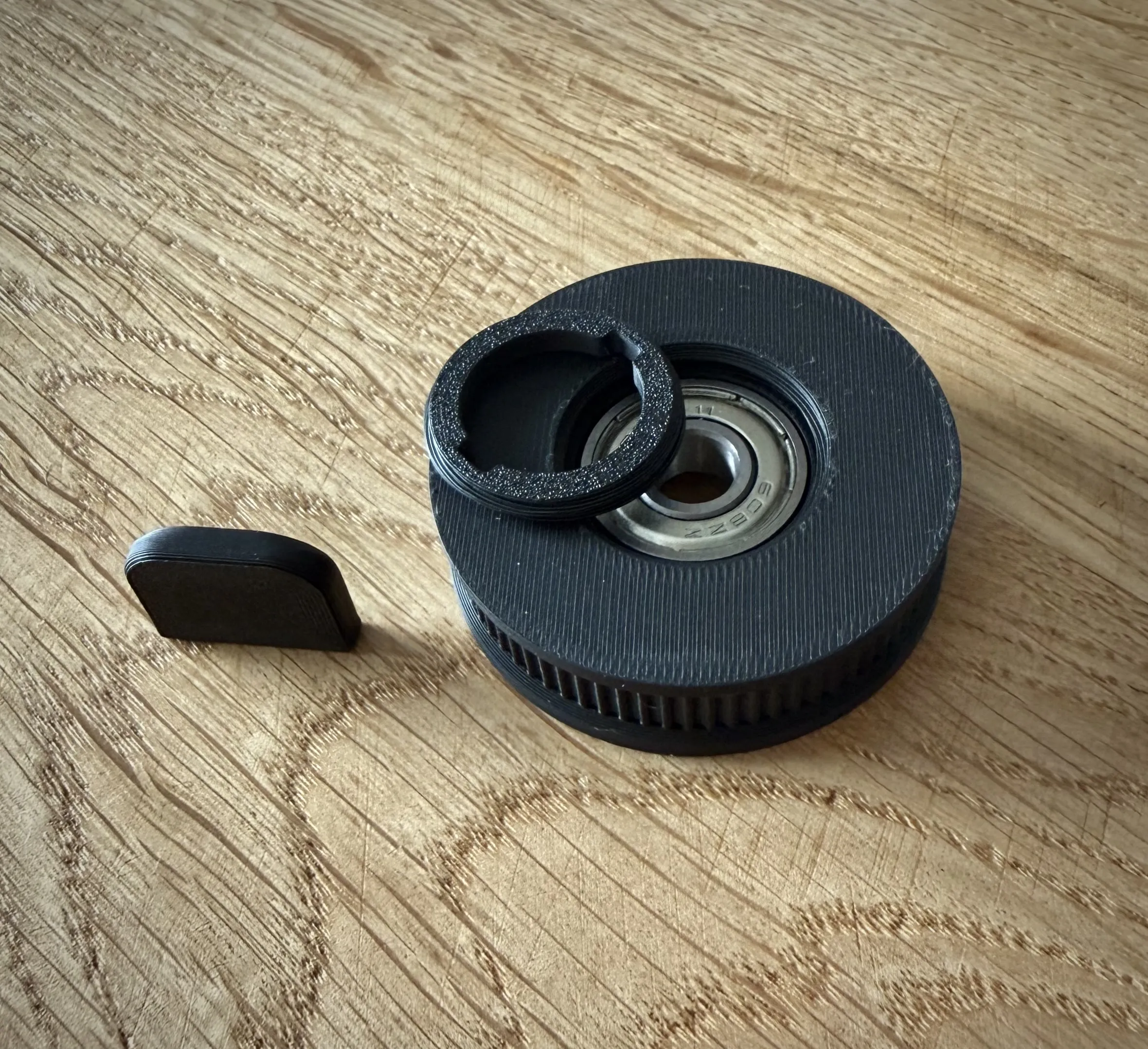

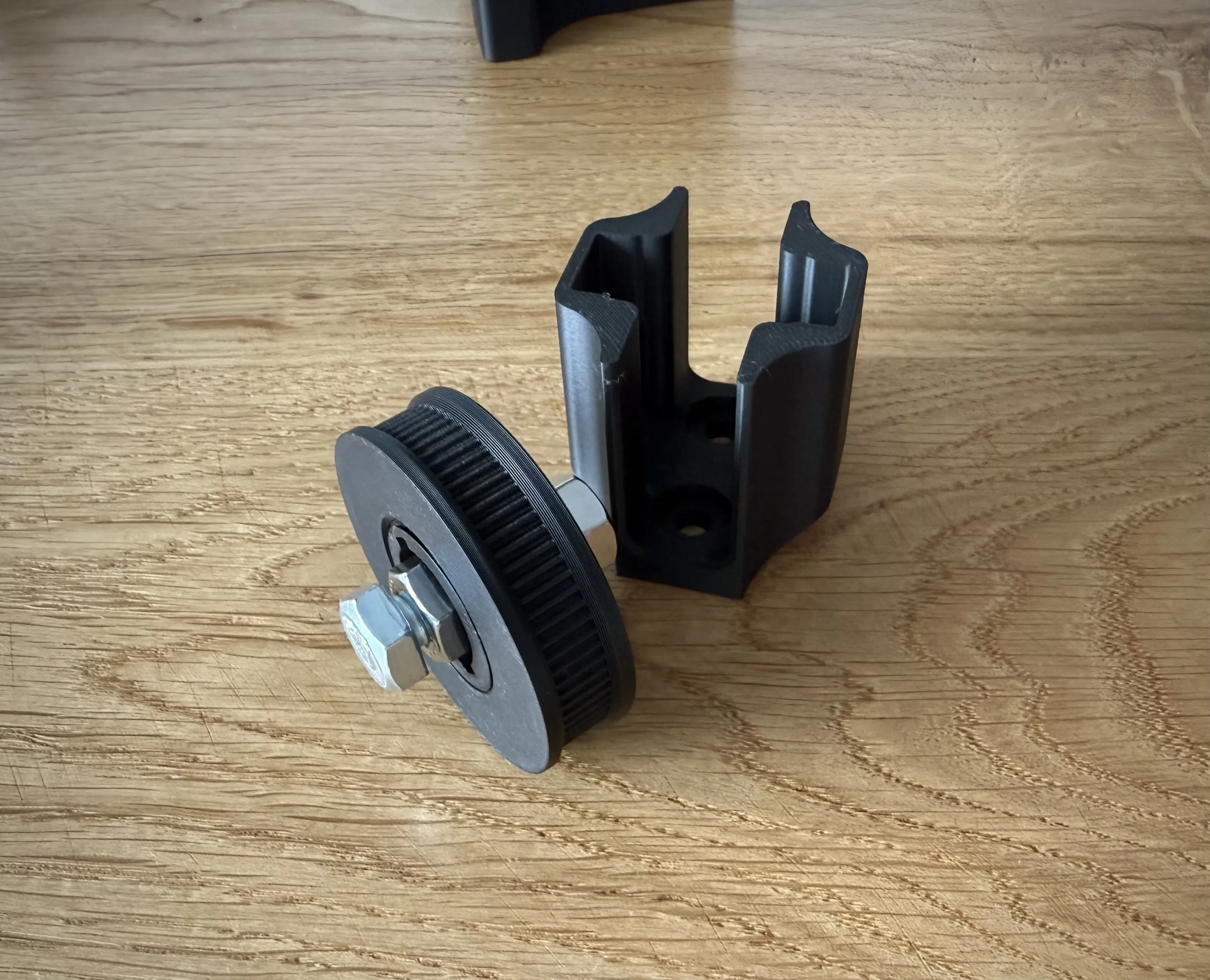

Pulley assembly:

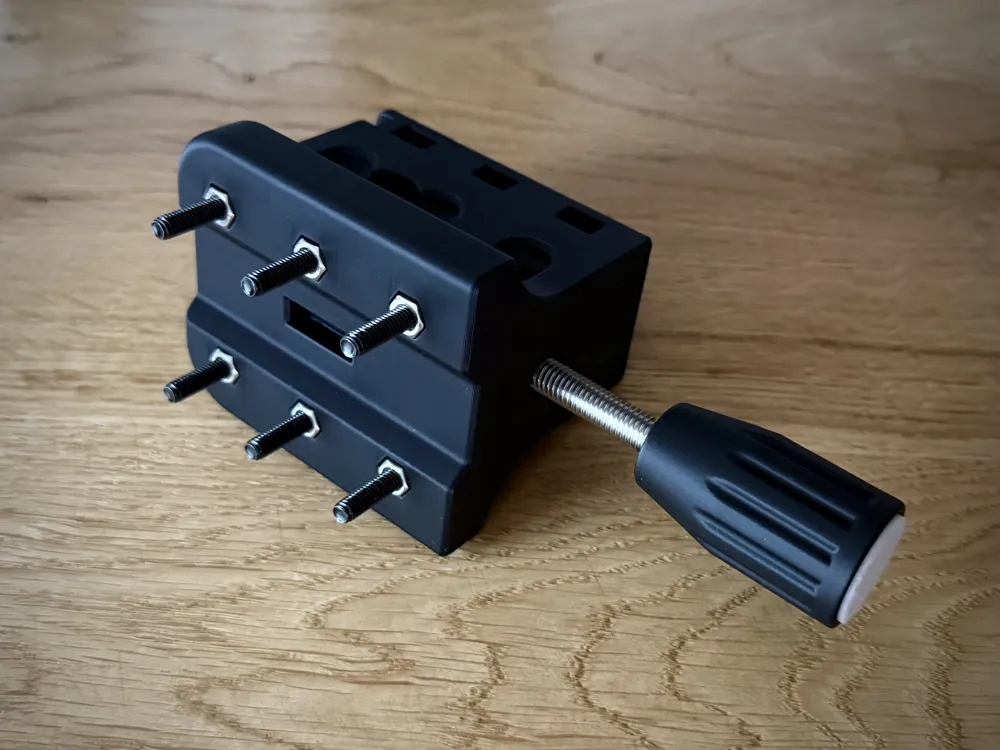

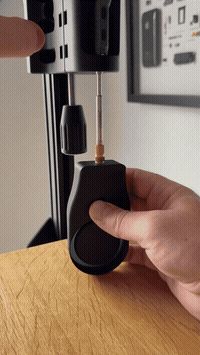

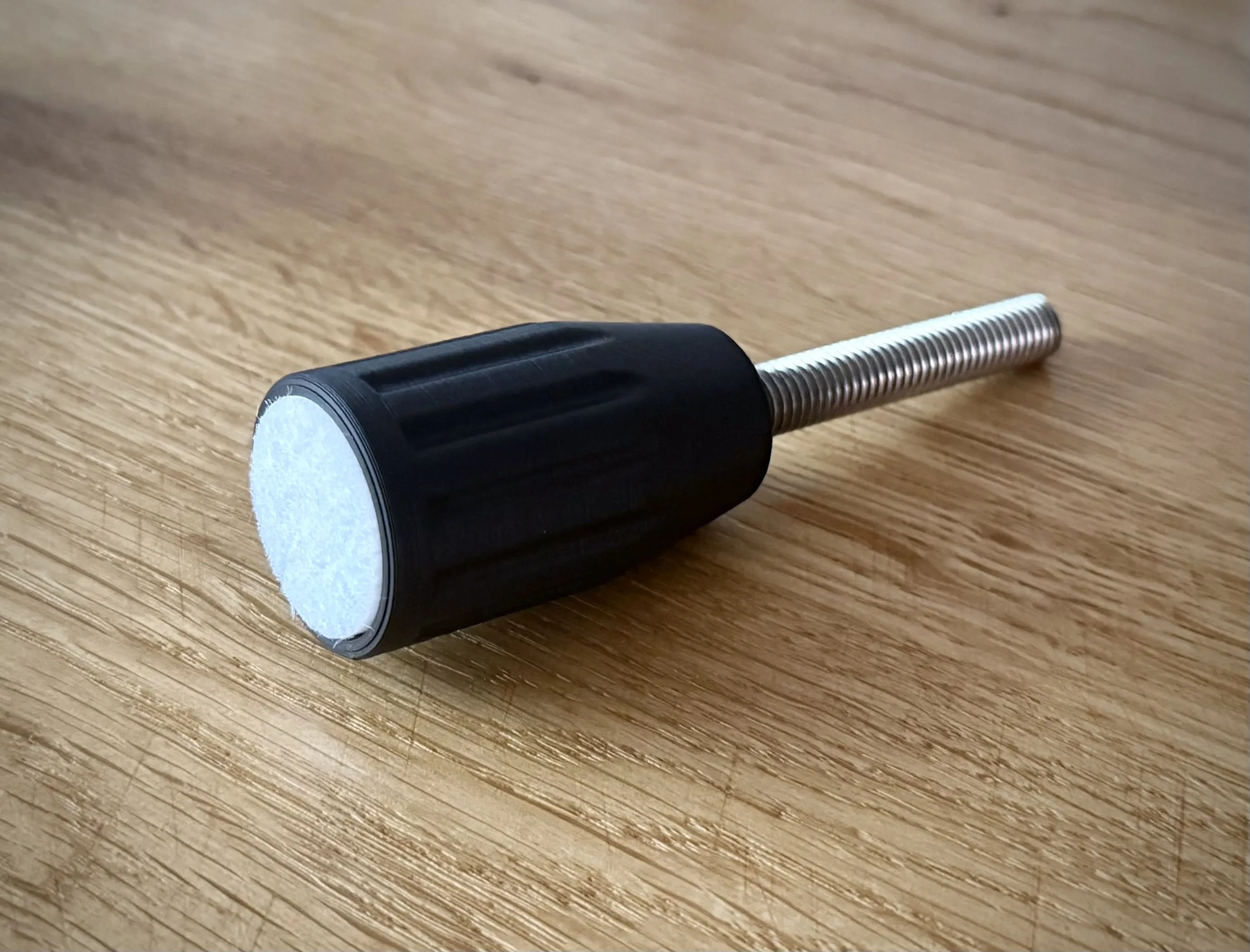

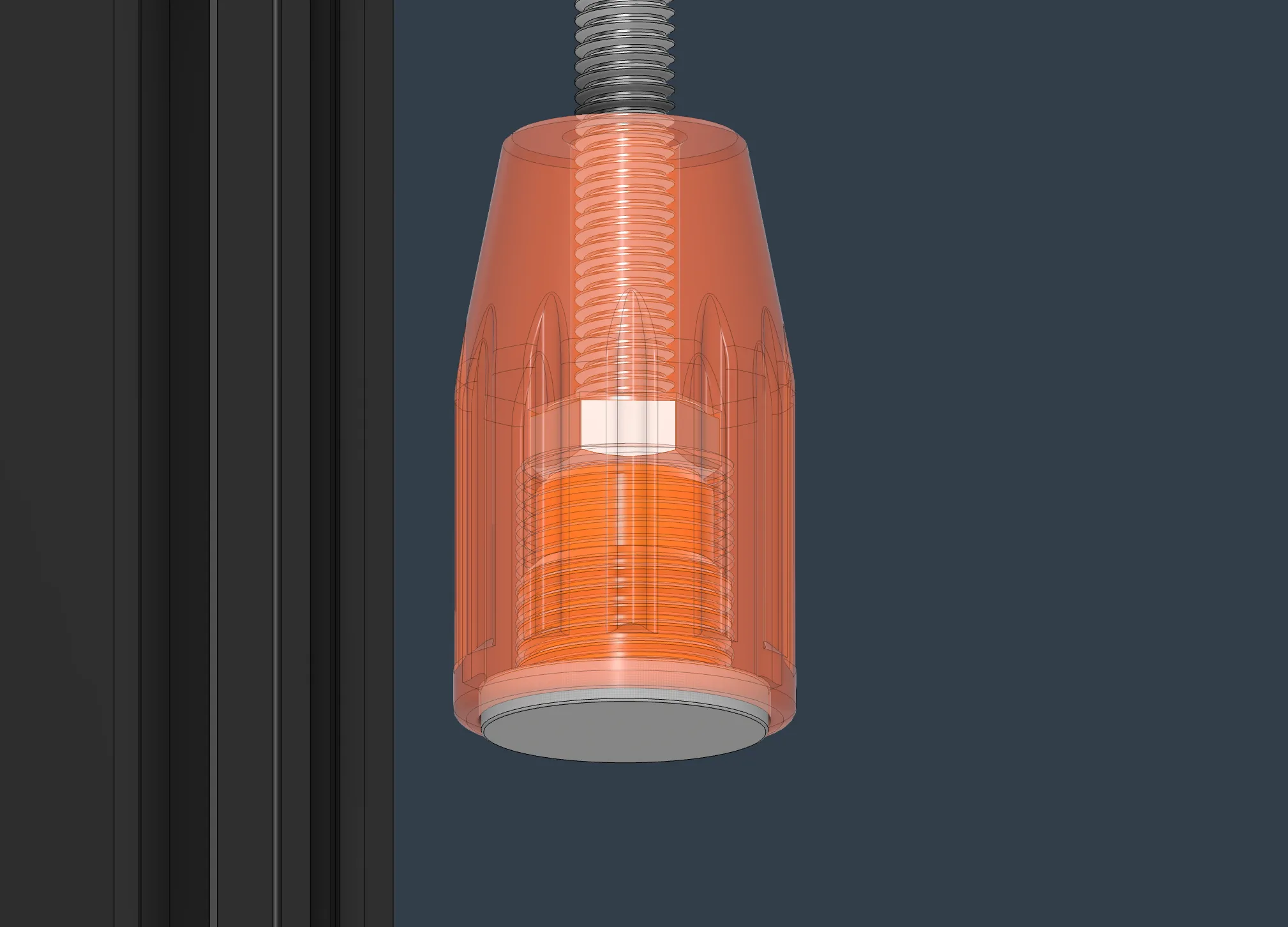

The toolhead stand uses a 3.5mm thick felt disc at the bottom:

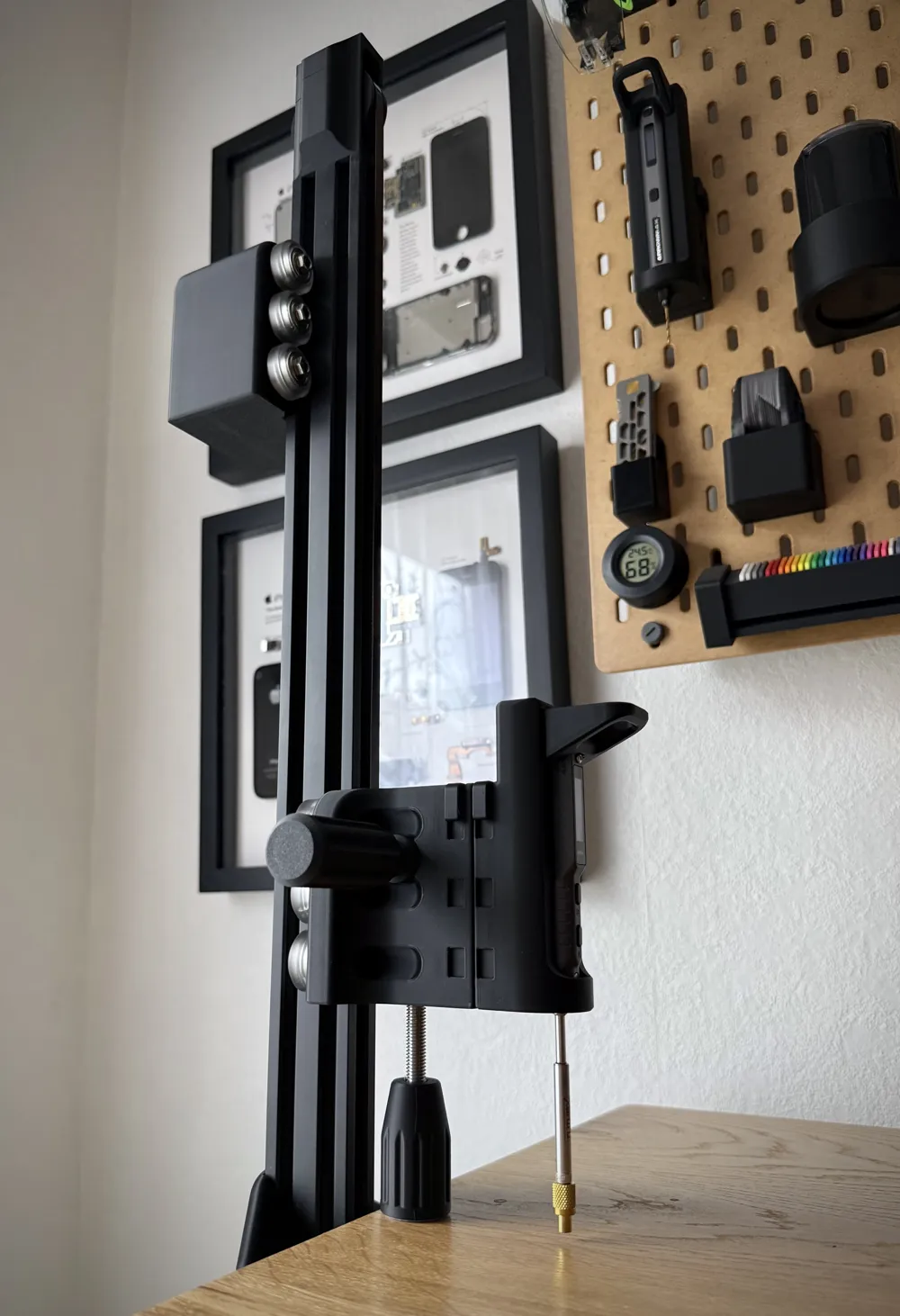

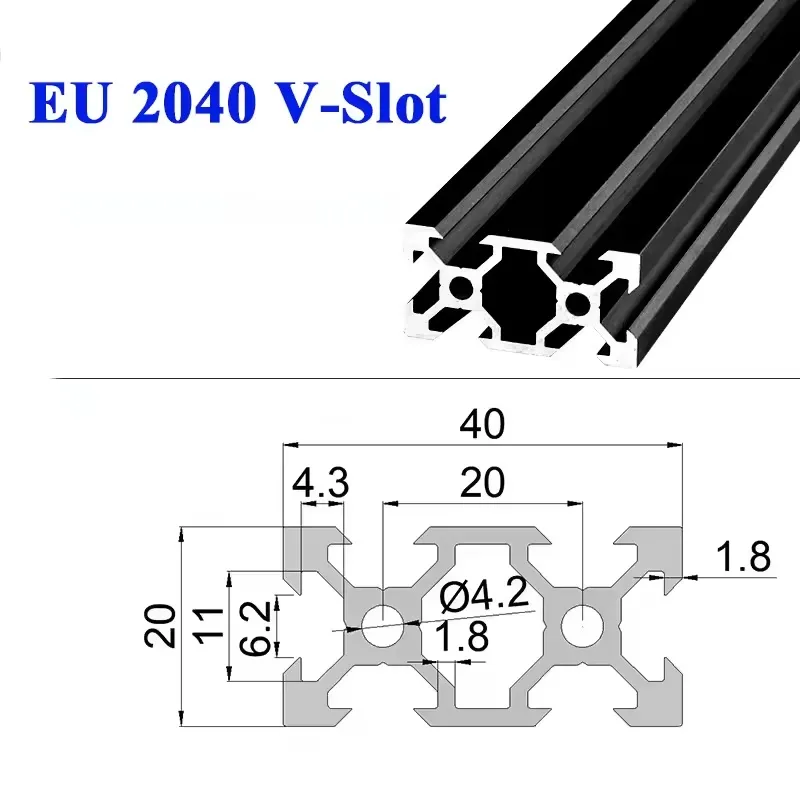

I used an old 2040 aluminum extrusion with v-profile that I had left over from an old 3D printer (around 500mm length) for the vertical beam:
