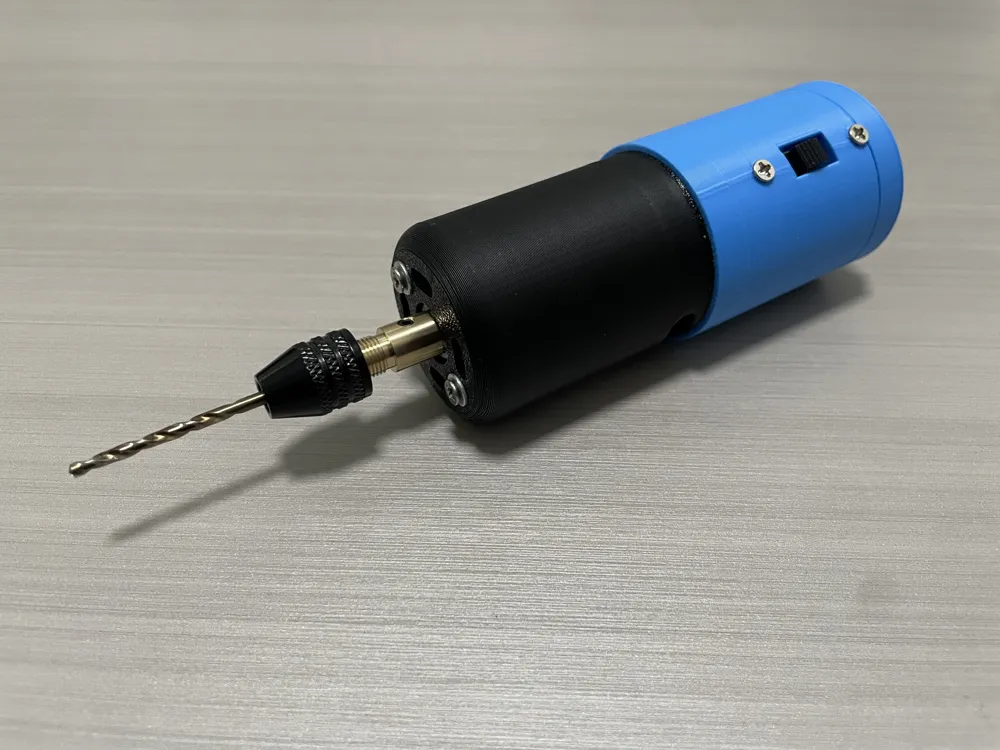

555 Motor Electric Grinder, Easy to Prototype
Print Profile(1)
Description
Suitable for 555 motors, with clear hole positions. According to the following configuration, it supports forward and reverse rotation, and speed regulation.
Other accessories (needs to be purchased separately, materials are readily available on various platforms):

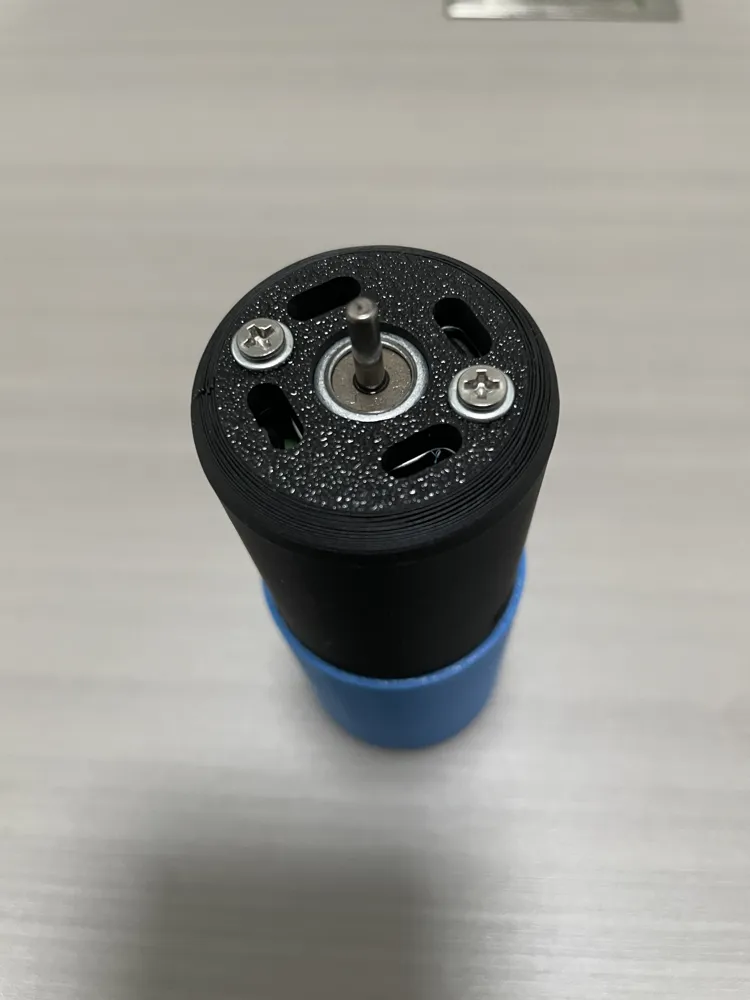

555 motor x1
3-24V DC adjustable power supply x1 (according to your needs)

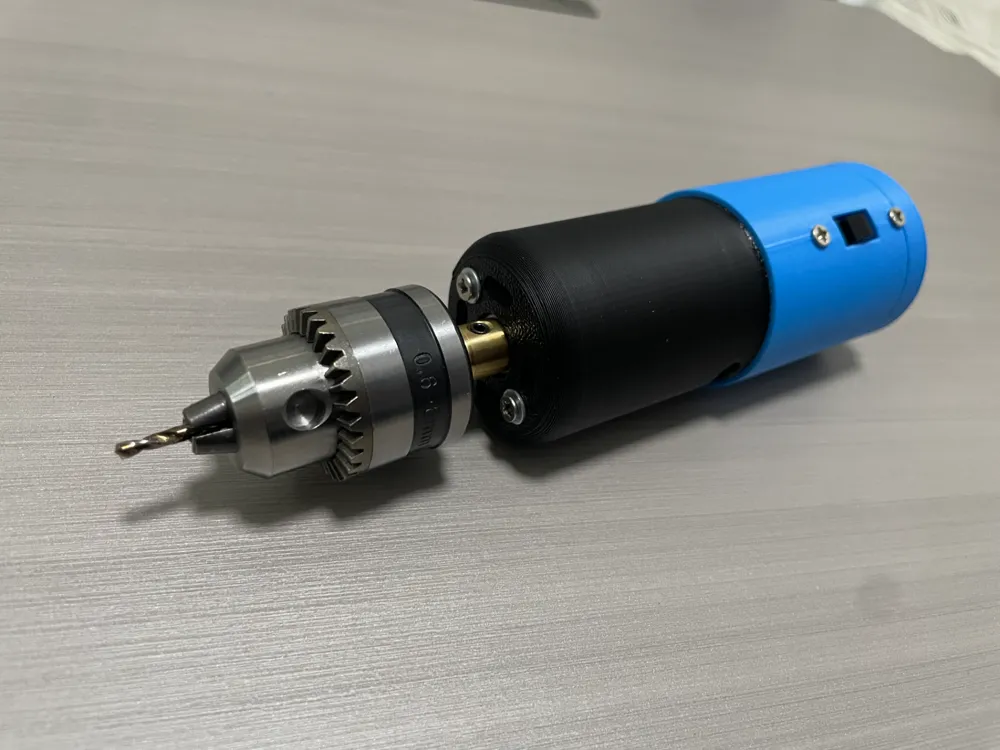

Collet x1 (JT0 or B10 collet recommended based on your needs)

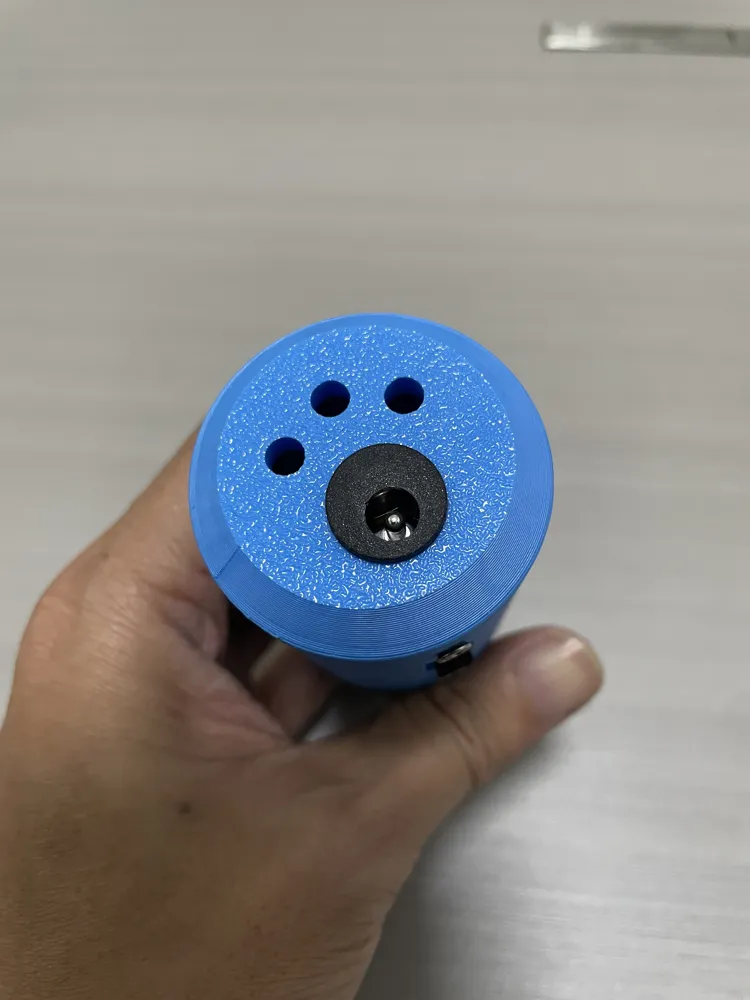

DC female socket x1 (select the corresponding model based on the power adapter's male plug)

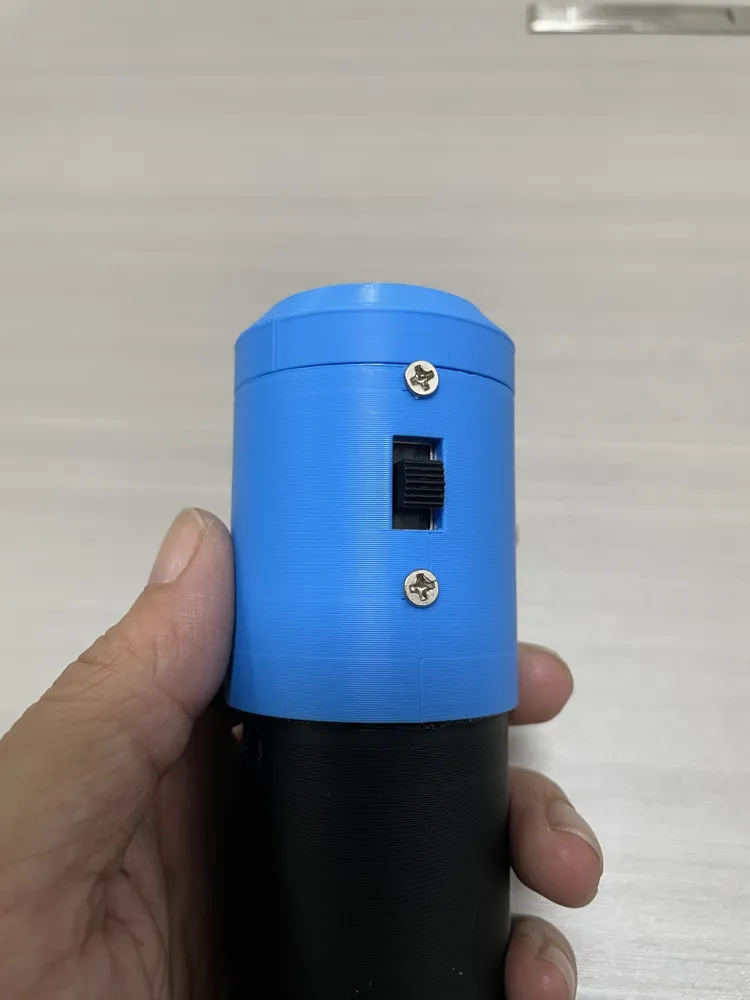

Hexagonal three-position switch (length 35mm, width 13mm, hole spacing 28mm)
M4 nut x2
Other tools needed: super glue, soldering iron, screwdriver.
