All Vise Sizes, 0.16mm layer, 3 walls, 15% infill

Designer

18.2 h

5 plates

4.9(8)

Large Size Vise, 0.16mm layer, 3 walls, 15% infill

Designer

5.7 h

1 plate

5.0(6)

Micro Size Vise, 0.16mm layer, 3 walls, 15% infill

Designer

1.9 h

1 plate

5.0(2)

Vise Pads, All Sizes, 0.16mm layer, 3 walls, 15% infill

Designer

3.6 h

5 plates

5.0(1)

Click to see more

Open in Bambu Studio

Boost

329

757

489

204

Released

Description

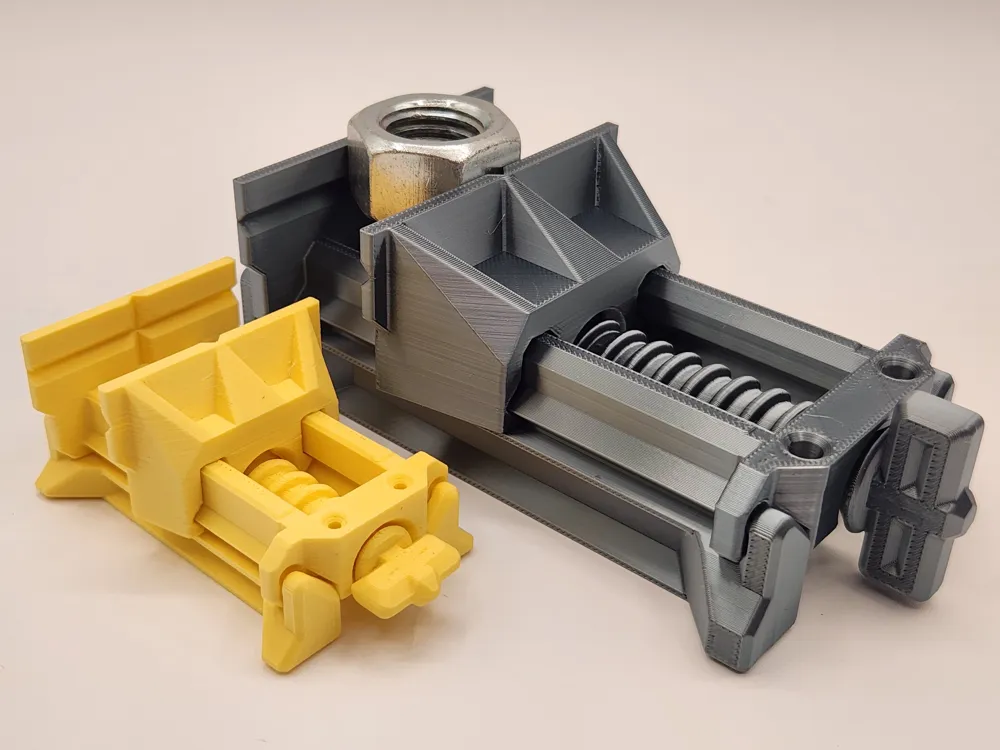

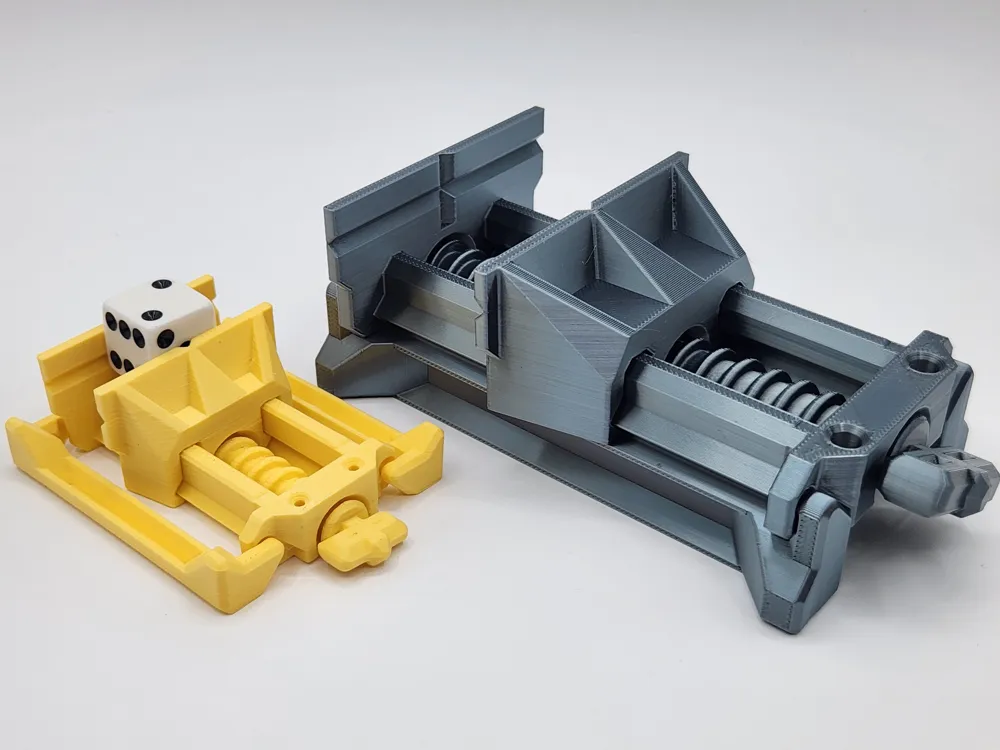

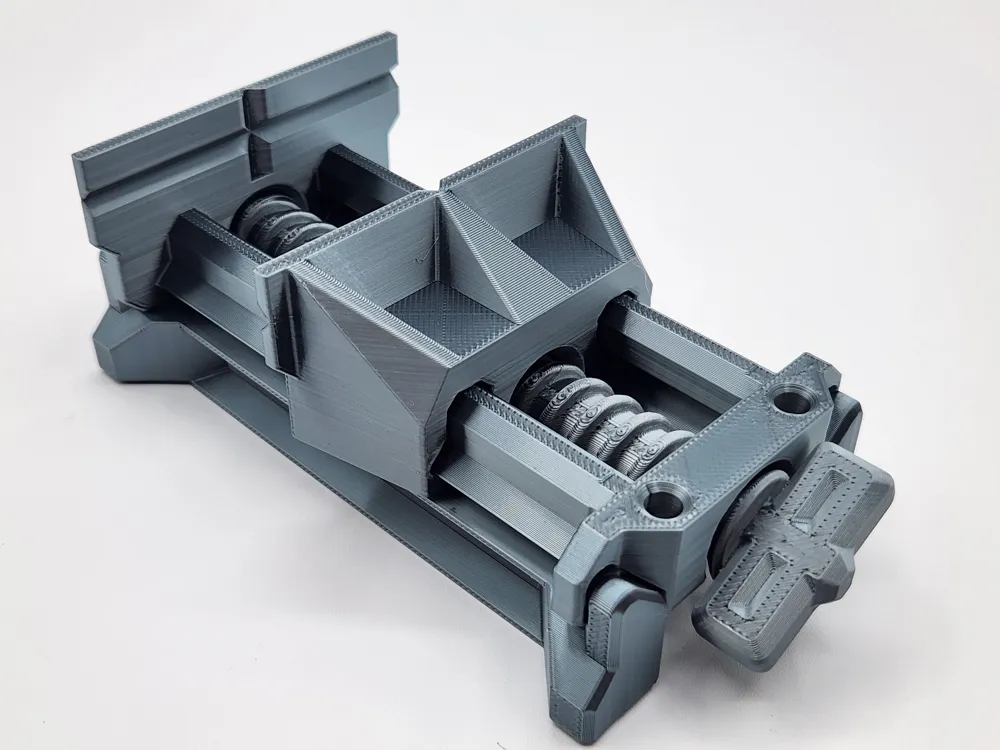

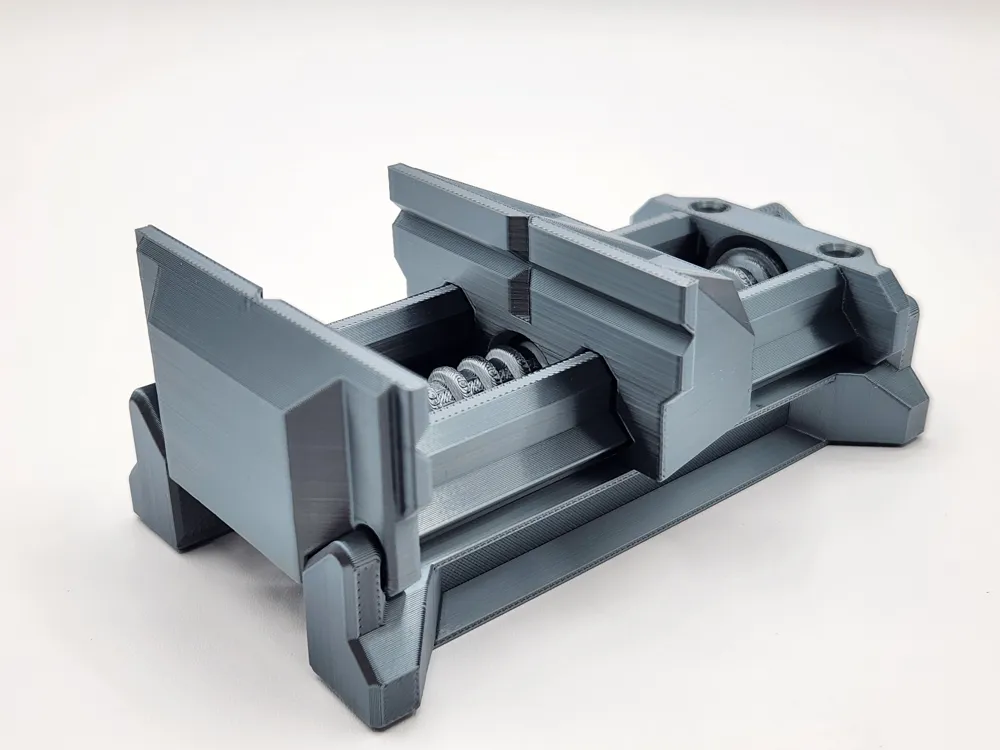

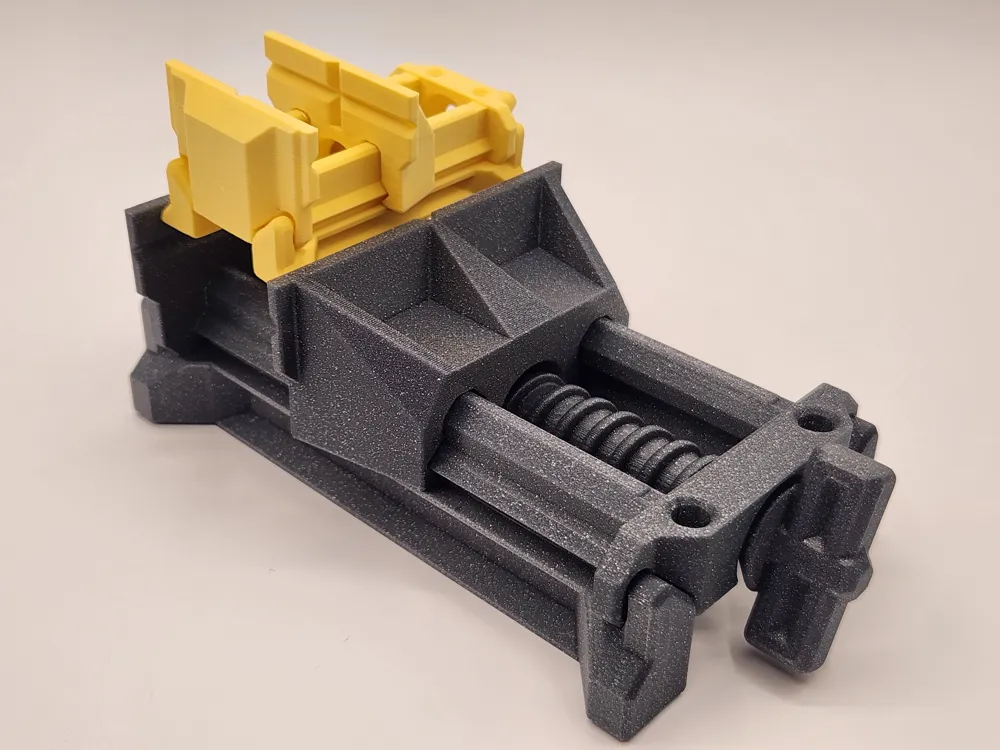

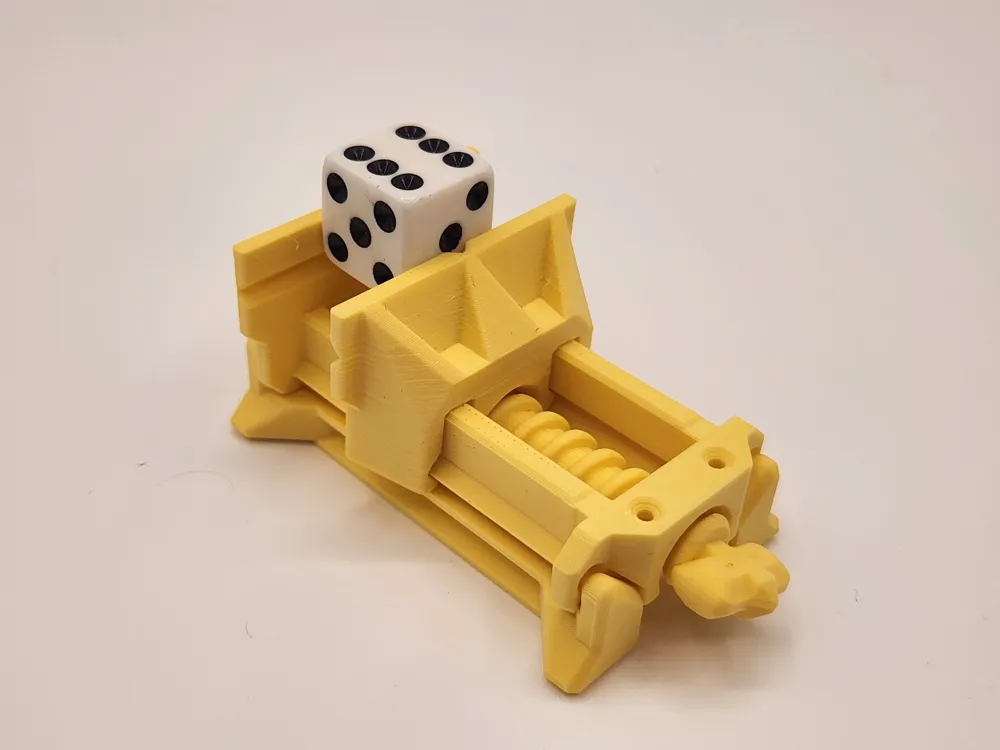

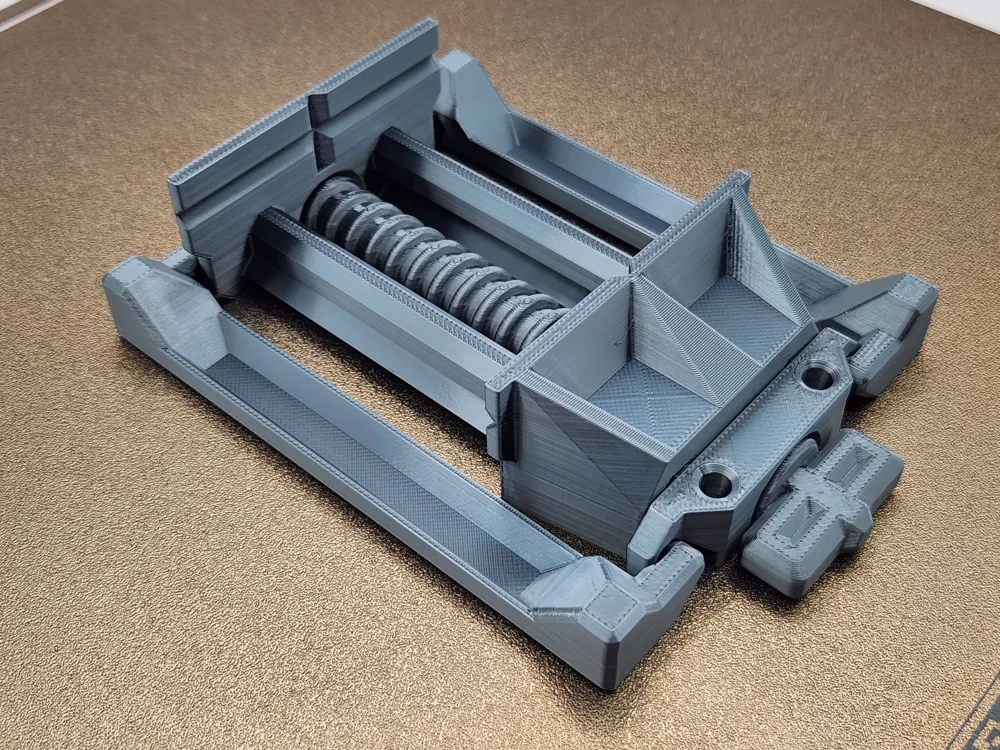

A fully print-in-place vise, no hardware needed, with a screw that prints flat for a strong functional clamping mechanism. After printing, the feet can be folded down and will snap in place underneath. Optionally, separate jaw pads are also provided, that work particularly nicely when printed in TPU.

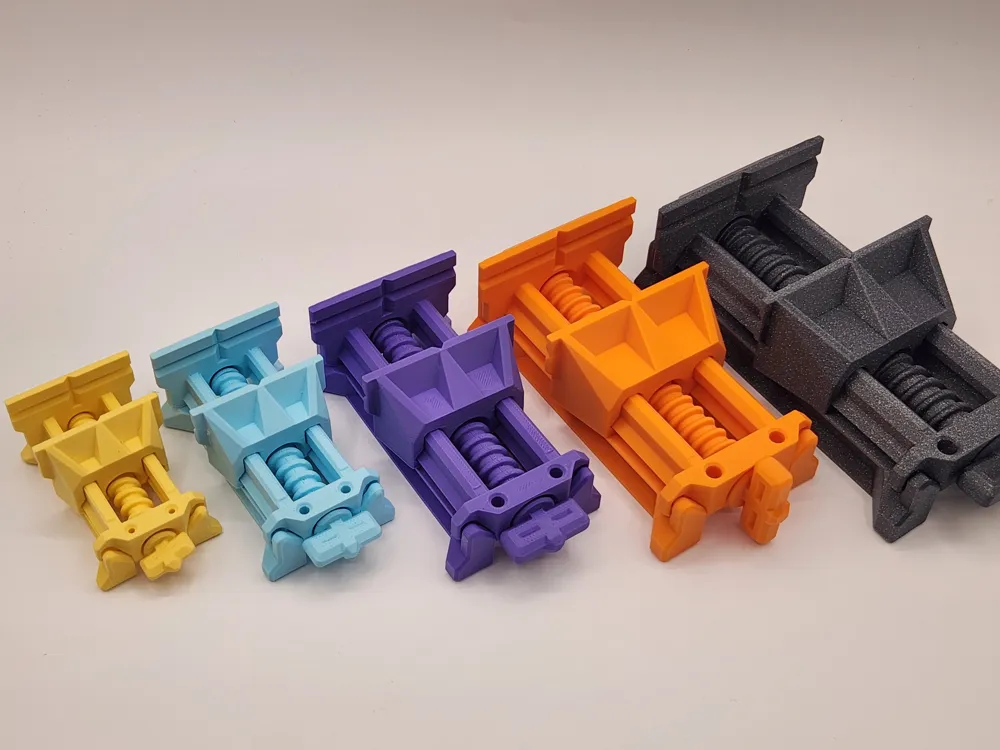

Five different optimized sizes are provided that can support different clamping distances (micro: 3.8 cm, mini: 4.3 cm, small: 6.1 cm, medium: 6.8 cm, large: 8.3 cm), and also included is a generator that can be used via the “Customize” button above to create vises of arbitrary sizes.
