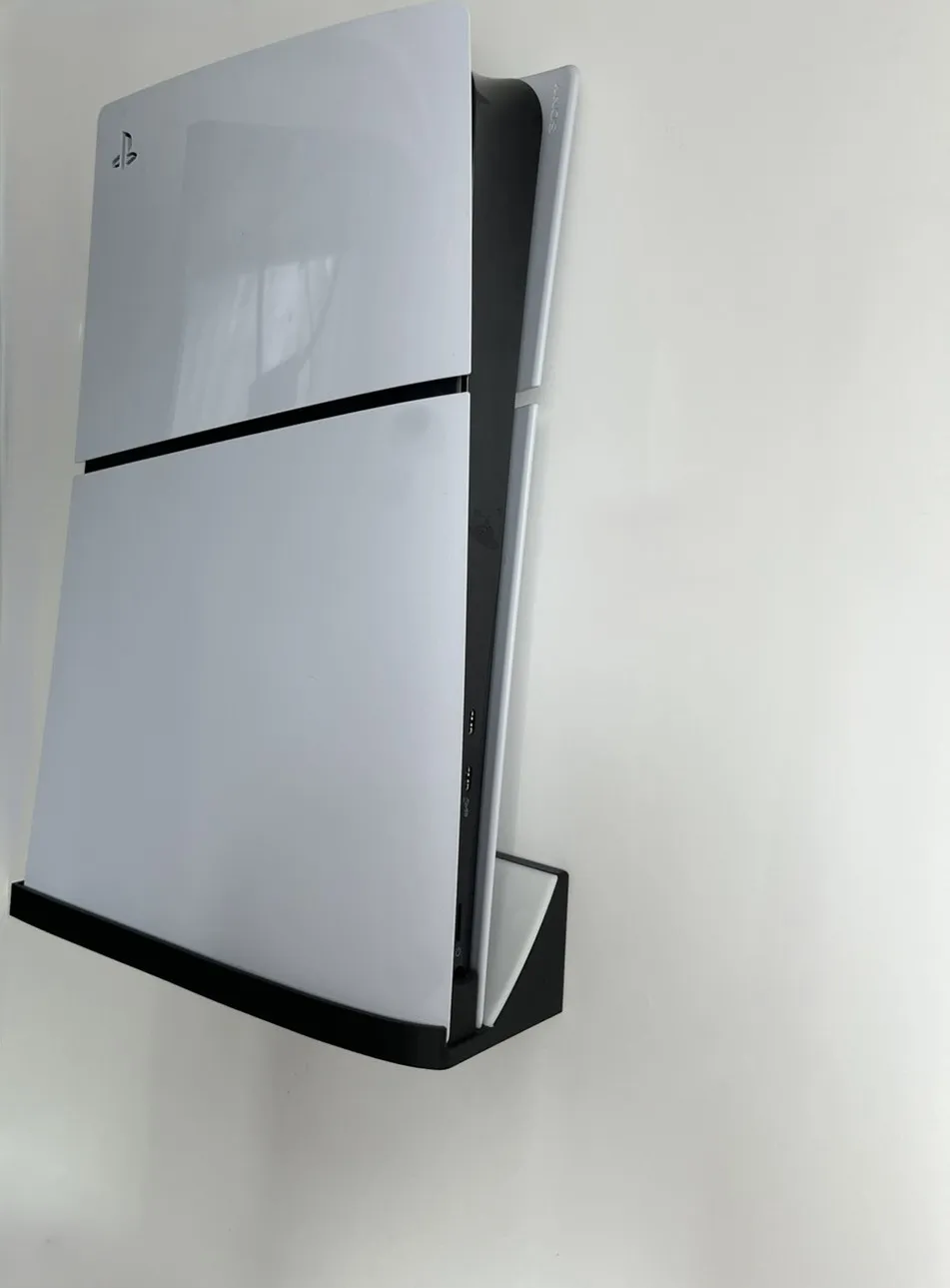

A strong and practical wall mount for the PlayStation 5. Designed for maximum stability, easy installation, and full access to all ports.
⸻

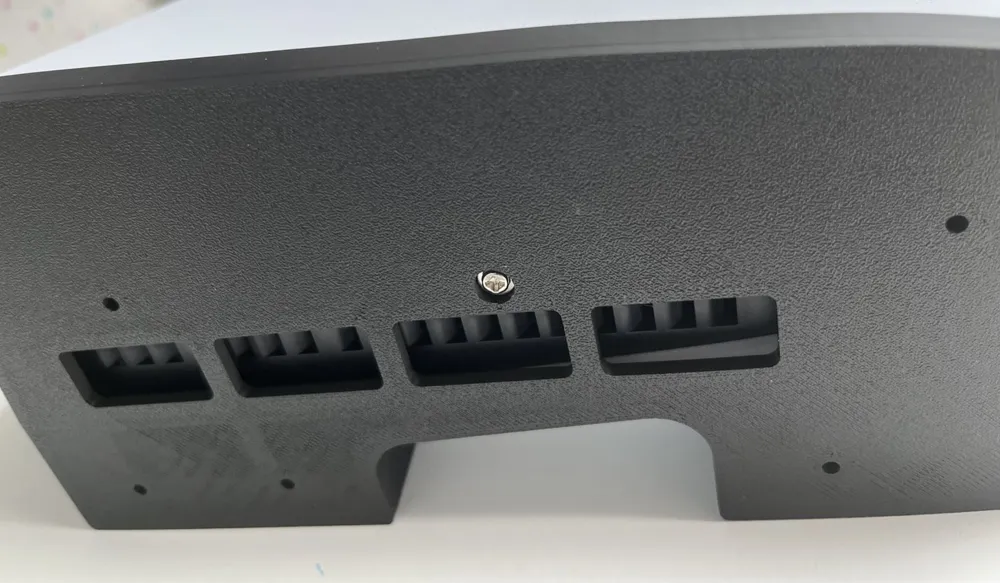

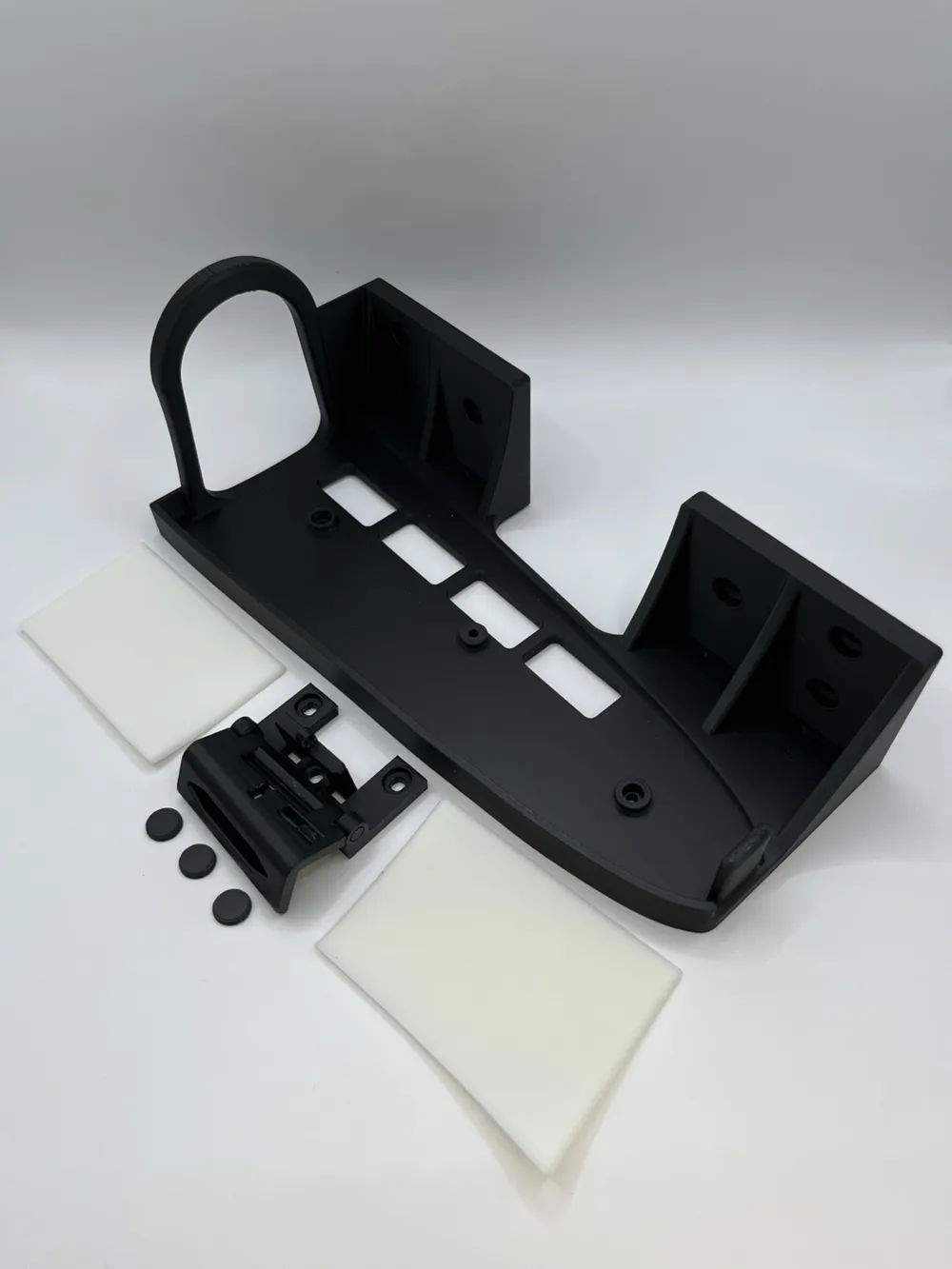

⚙️ Bottom Part
• The console is secured with an M3 bolt and washer.
• Includes 6 extra M3 holes for future projects (e.g., controller or headset mounts).
• Mounted to the wall with 6 screws with washers (hole Ø 4.2 mm, washer Ø 9.2 mm).
• After installation, cover plates can be glued on to hide the screw points.
⸻

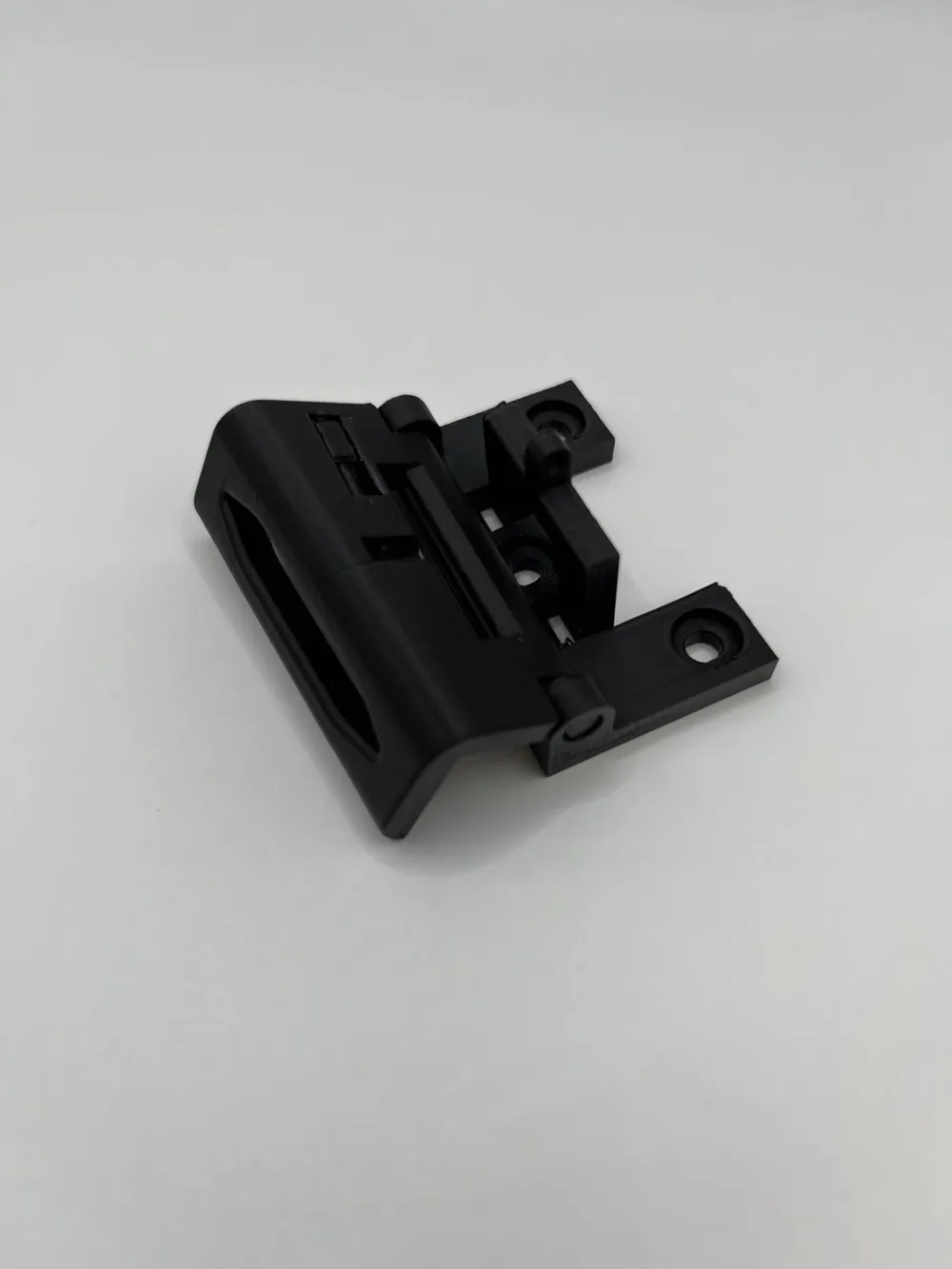

🔒 Top Part
• Uses the same type of screws (recommended without washers).

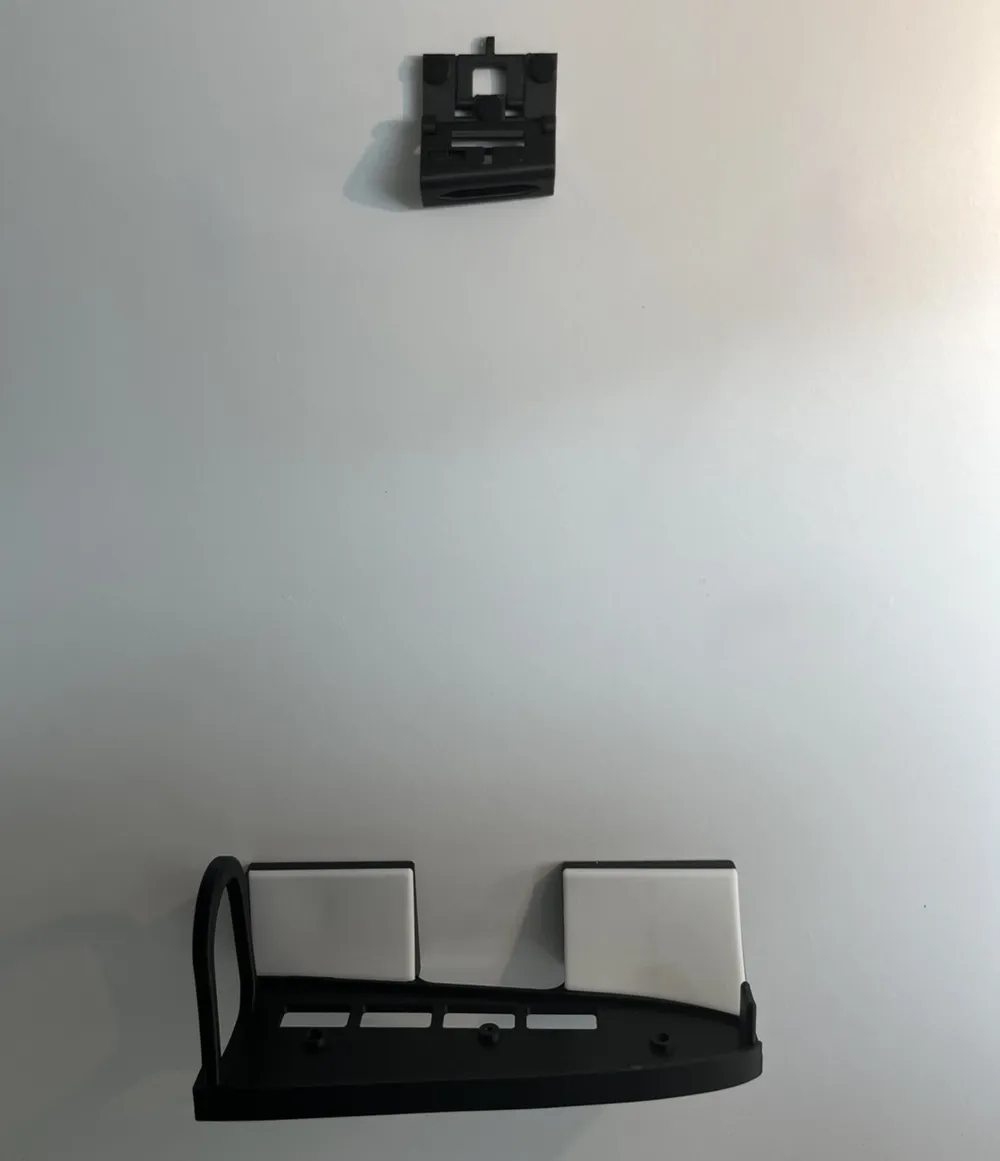

• First, install the bottom mount and fix the console, then position and install the top part (roughly centered).
• The top piece is printed as a single part with a lock mechanism for 100% secure holding.
• The lock can be opened or closed with a flat screwdriver or similar tool.
• Foam or soft pads are recommended to protect the console’s surface.
⸻
🧼 Additional Advantages

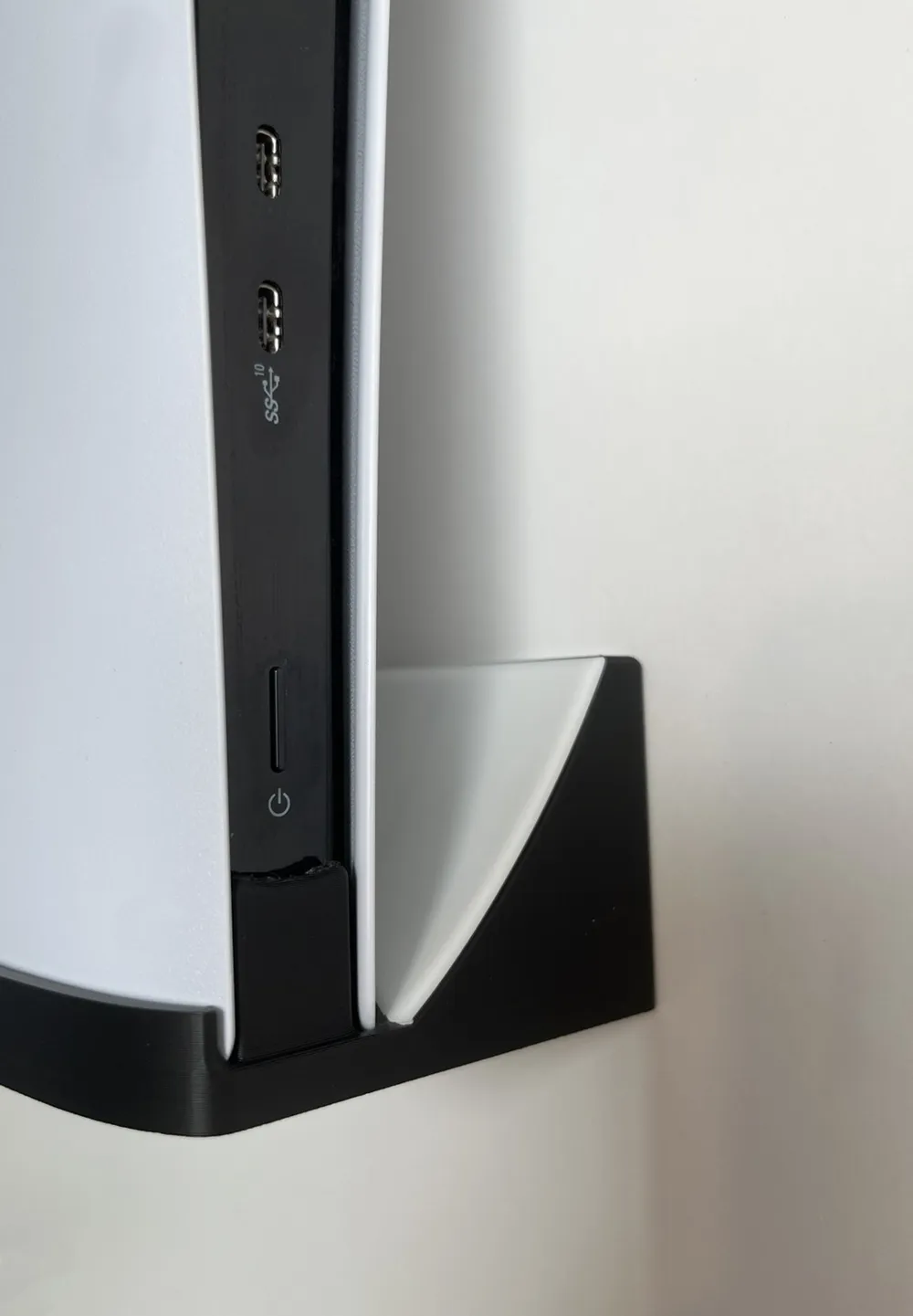

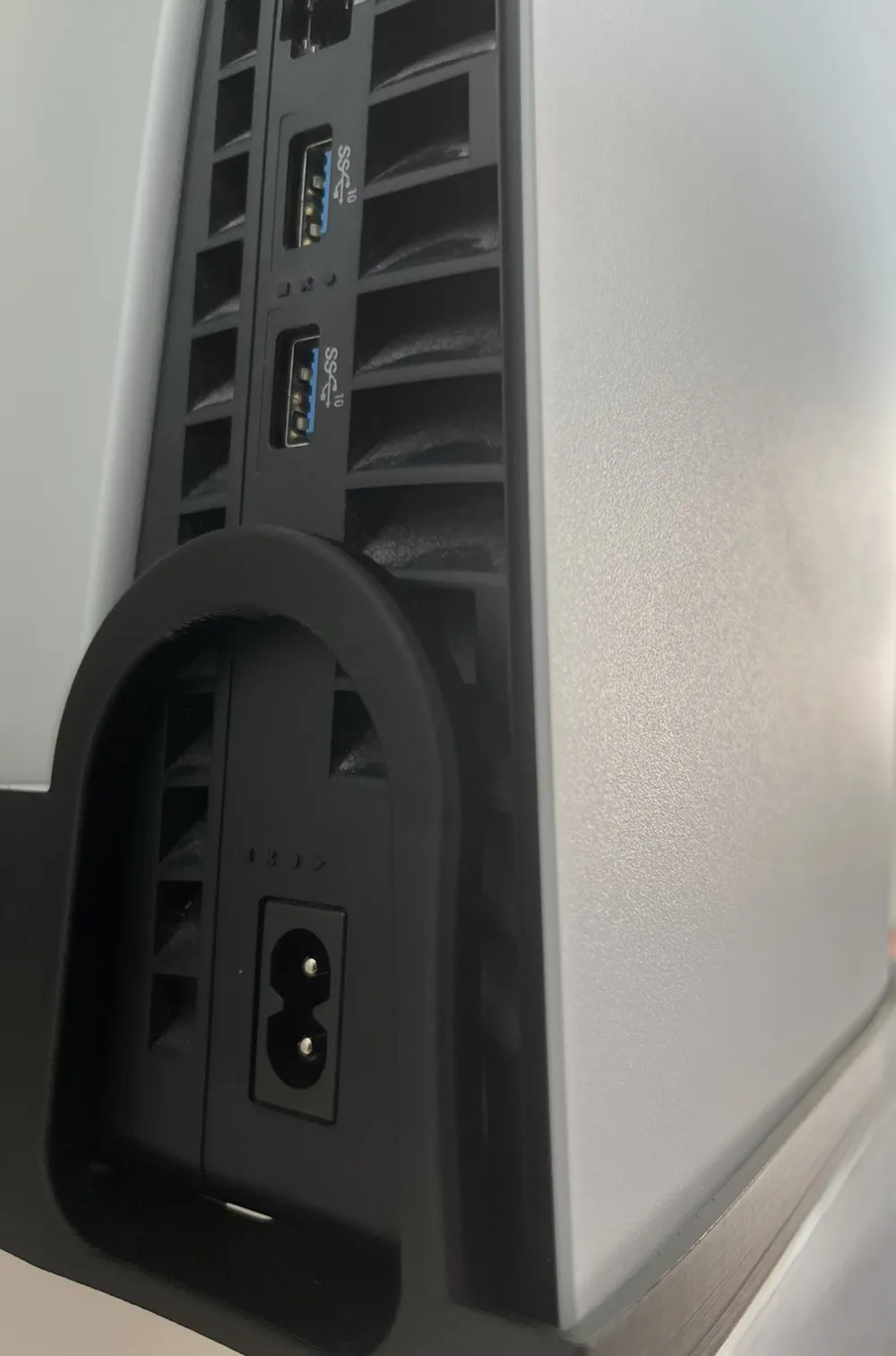

• Full access to all ports.
• The console can be removed easily — no need to unscrew the wall mount.
• Top screws can be hidden with round plastic caps (file included).
• Very sturdy and reliable. Personally tested.
Updates:
29.10.2025
I’ve updated the locking mechanism — it’s now easier to lock/unlock by hand (Watch the video where I showcase the same updates on the Left side mount.👇).
04.11.2025
The PS5 Wall Mount now features snap-on bolt covers — no glue required!
Simply click them into place for a clean, seamless look and easy installation (Watch the video where I showcase the same updates on the Left side mount👇).
01.01.2026
New print profile:

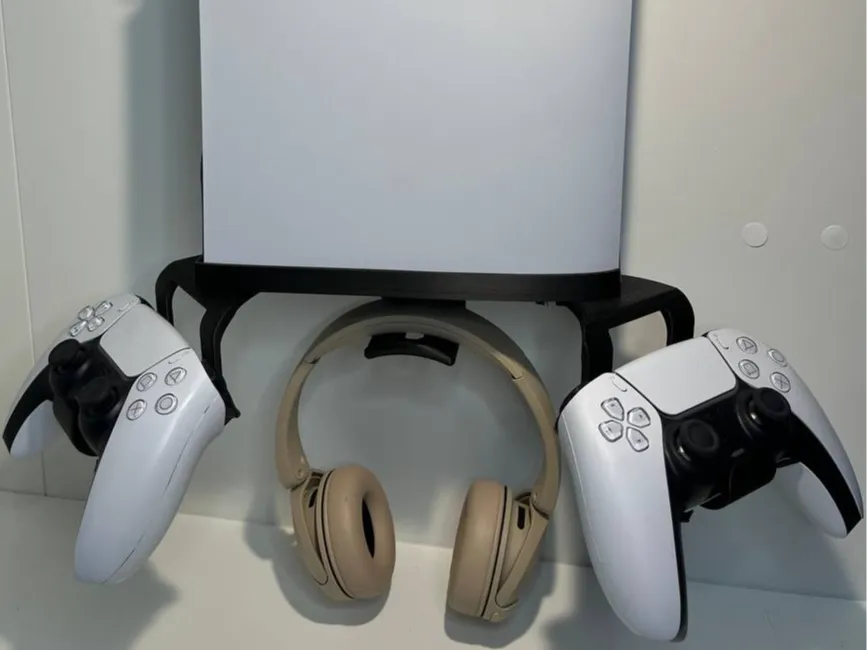

DualSense & Headset Holder – Wall Mount Add-On
Watch the video 👇
