HPA Universal Lower V3

Ver. 3

Lower universal gearbox v2 for AEG / ICS HPA conversion replicas

It may be necessary to enlarge the trigger hole as each manufacturer uses a different thickness. Also the hole for the safety part.

Tested on DBoys, AMOEBA, ICS this model is designed to print without supports, for now only needed on the base. The covers print without supports.

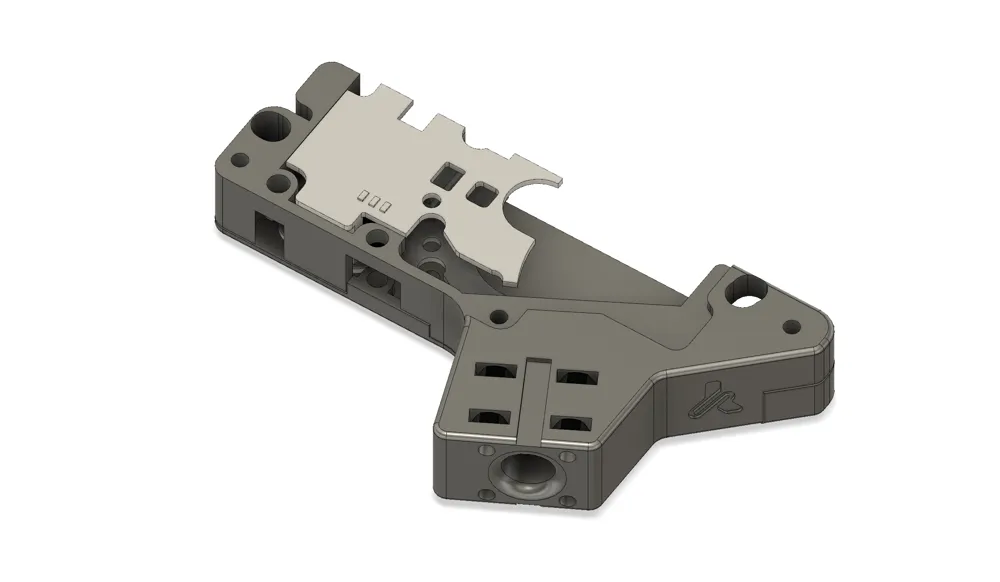

Uses OEM V2 gearbox selector plate

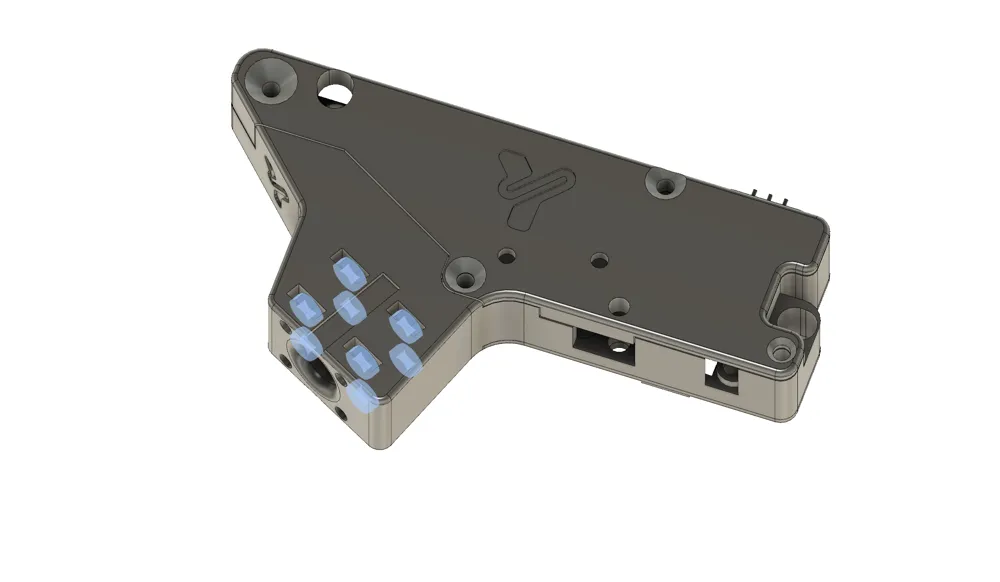

The same screws as a standard gearbox are used, threading directly into the body, achieving sufficient rigidity
The screws needed are (x6) short M3, (x3) long M3, one at the back and two to fix the grip. 4 to 8 M3 nuts are used at your discretion to fix the grip.

GATE TITAN 2 FCU
Only the version without magnetic pin support is compatible.

---

Of course, I implemented the support for a 3-pin magnetic connector with 2.54mm tabs, inserted from the inside by sliding.

https://a.aliexpress.com/_EzBZKtx

Compatible with ICS designs. It has the central slot and space for the upper tabs.

---
