Frame for Dummy 13, slightly shorter
Print Profile(1)
Description
I adjusted the frame because I wanted to create a height difference between the male and female versions of Dummy13 that I made

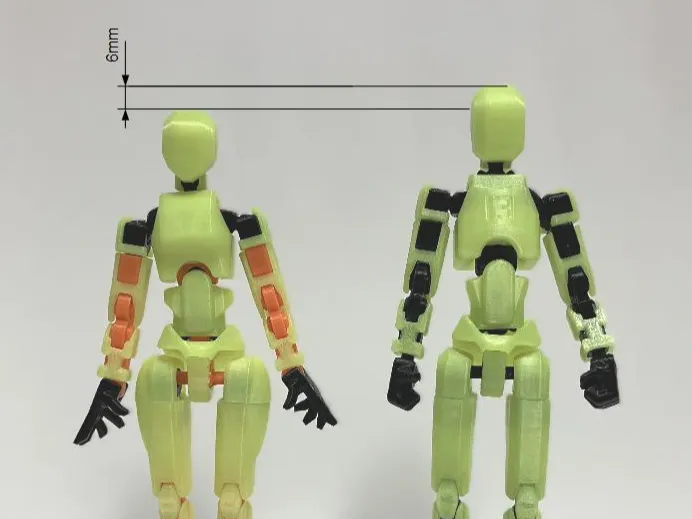

I aimed to make it about one head shorter (around 17mm) while keeping the original exterior usable, but to also maintain as much articulation as possible, the limit turned out to be about 6mm

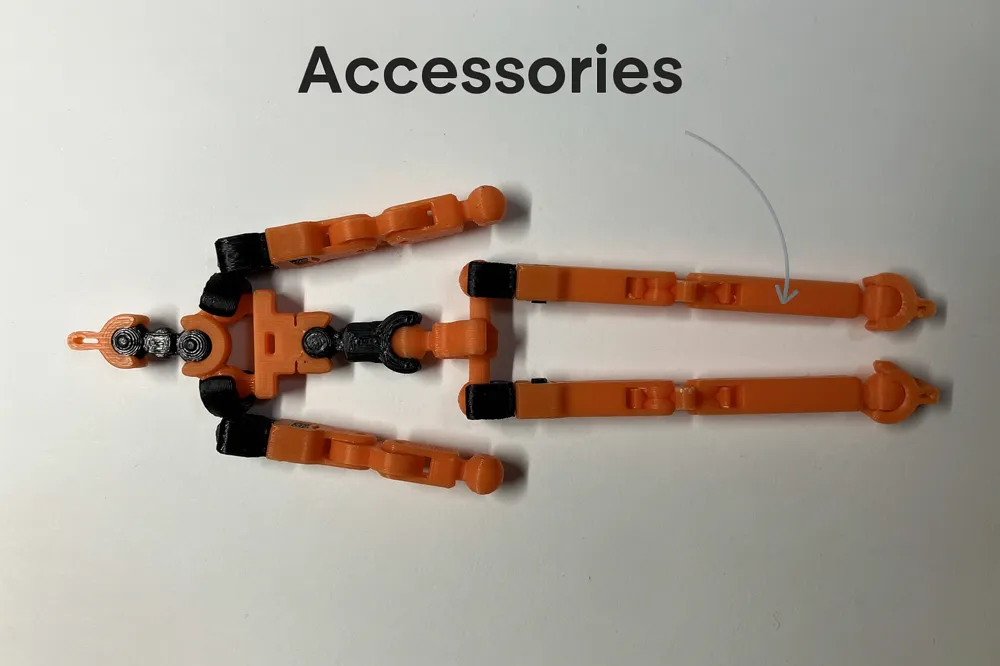

・The orange parts in the photo are the adjusted components
・Although I created them with PLA for color in the photo, given that they are moving parts, I recommend making them with ABS
・Details such as assembly follow the source model
As an insight from this design, I am also considering approaches to compensate for the remaining height difference
If there's interest, I might put in the effort
・A frame to make the male version slightly taller
・Neck-to-waist parts for a shorter female version
・Slender female thighs (should be able to raise the inseam by another 1-2mm)
