CyberBrick Mini-MSE-6 Mouse Droid

Description

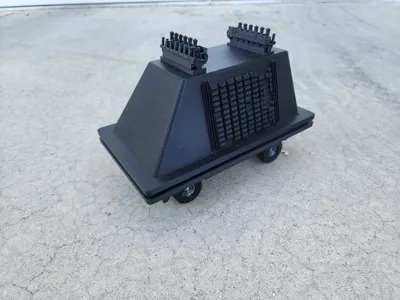

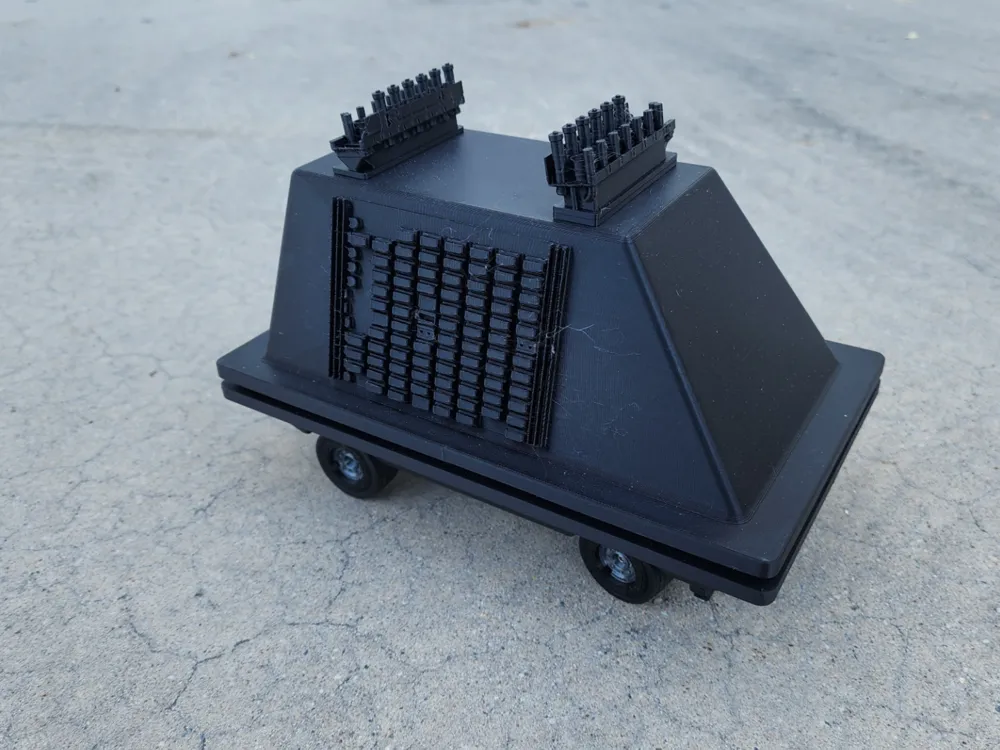

A compact, 3D-printed version of the iconic MSE-6 “Mouse Droid,” designed for the CyberBrick modular robotics system. This mini droid captures the classic look while keeping the build simple, functional, and fun.

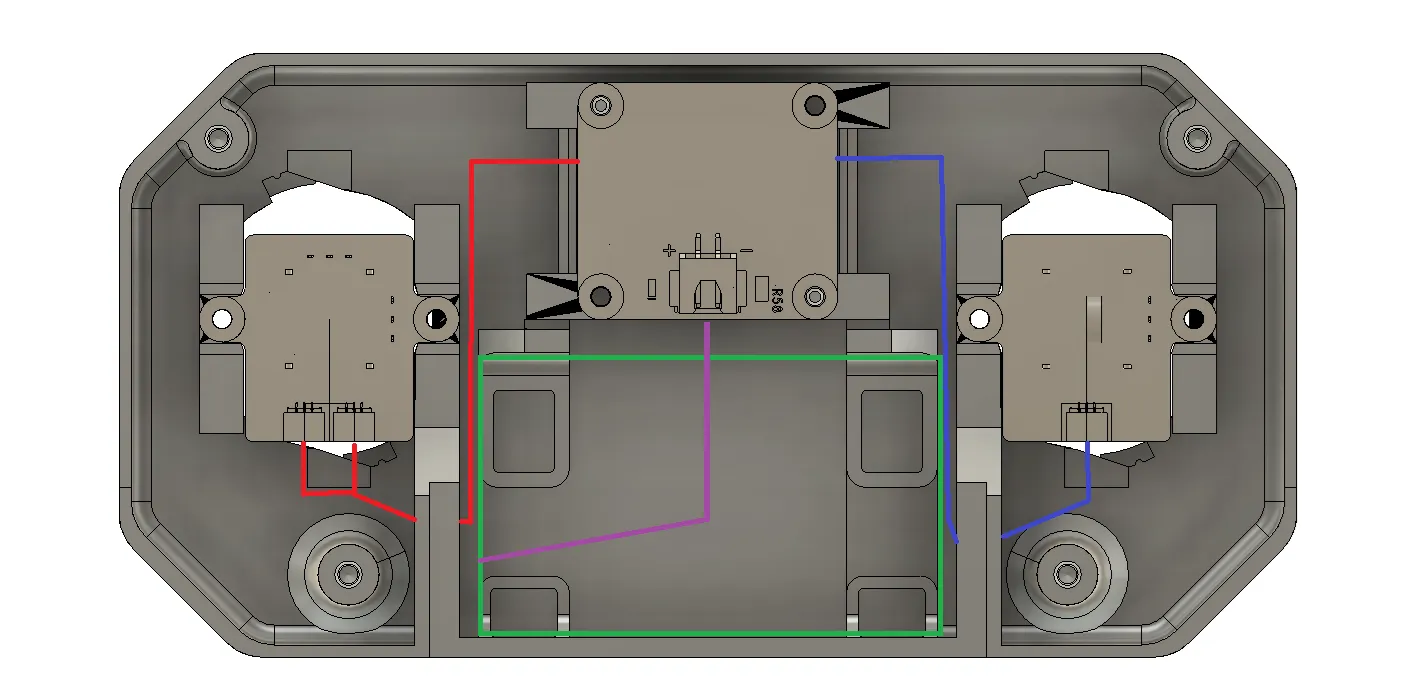

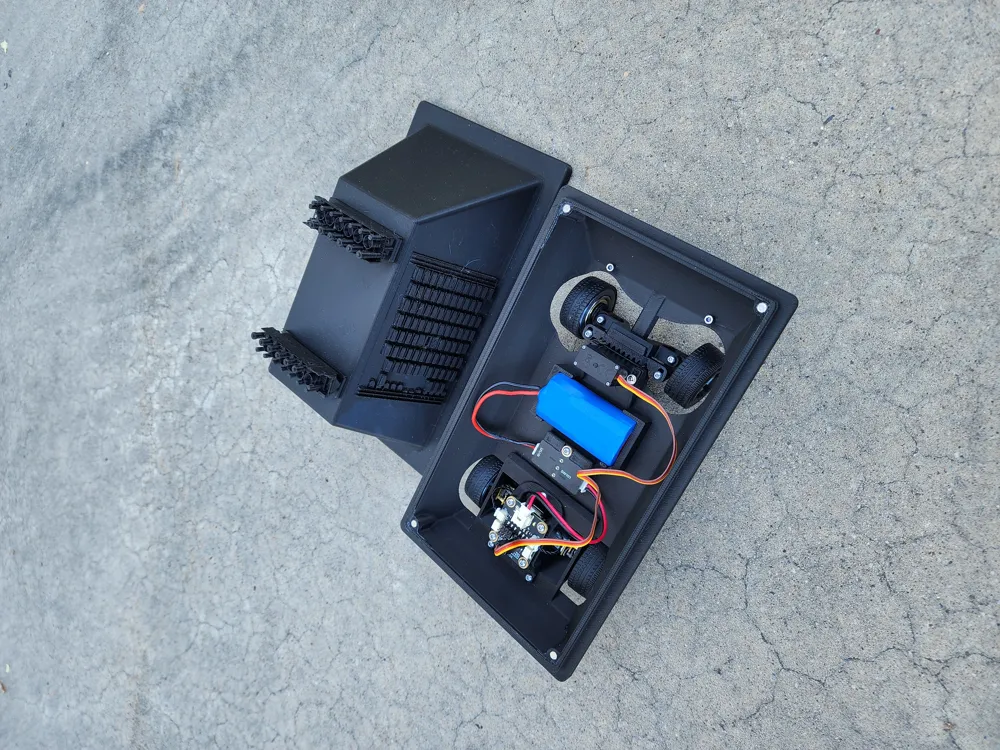

The chassis is designed to work with CyberBrick receiver and transmitter shields for RC control. Power comes from two N20 gearmotors with rubber tires, while steering is handled by a servo. The top shell attaches with eight 4 × 2 mm magnets, giving quick access to internals, while the main chassis is assembled with M2.5 × 6 mm screws.

Features

Compact, 3D-printed body and chassis.
Full CyberBrick integration using receiver and transmitter shields.
Authentic Mouse Droid look in miniature scale.
Quick assembly with magnetic top shell.

Bill of Materials (BOM)

Multi-Function Core Board (2 PCS)
CyberBrick receiver shield
CyberBrick transmitter shield
N20 gearmotor (2 PCS)
Power Switch Module with 2Pin XH2.54 Connector (1PCS)
9g Servo Motor with Clutch Protection
14500 7.4V 800mAh Li-ion battery
4 × 2 mm magnets
M2.5 × 6 mm screws
Ø33.7×13.85mm Rubber Tires

Recommended Print Settings

Material: PLA or PETG
Layer height: 0.2 mm
Infill: 15–20%

Assembly

Documentation (1)

Assembly Guide (1)

MSE-6 Cyber Brick.pdf

CyberBrick Files (1)

FAQ

Official RC Framework

MSE-6
