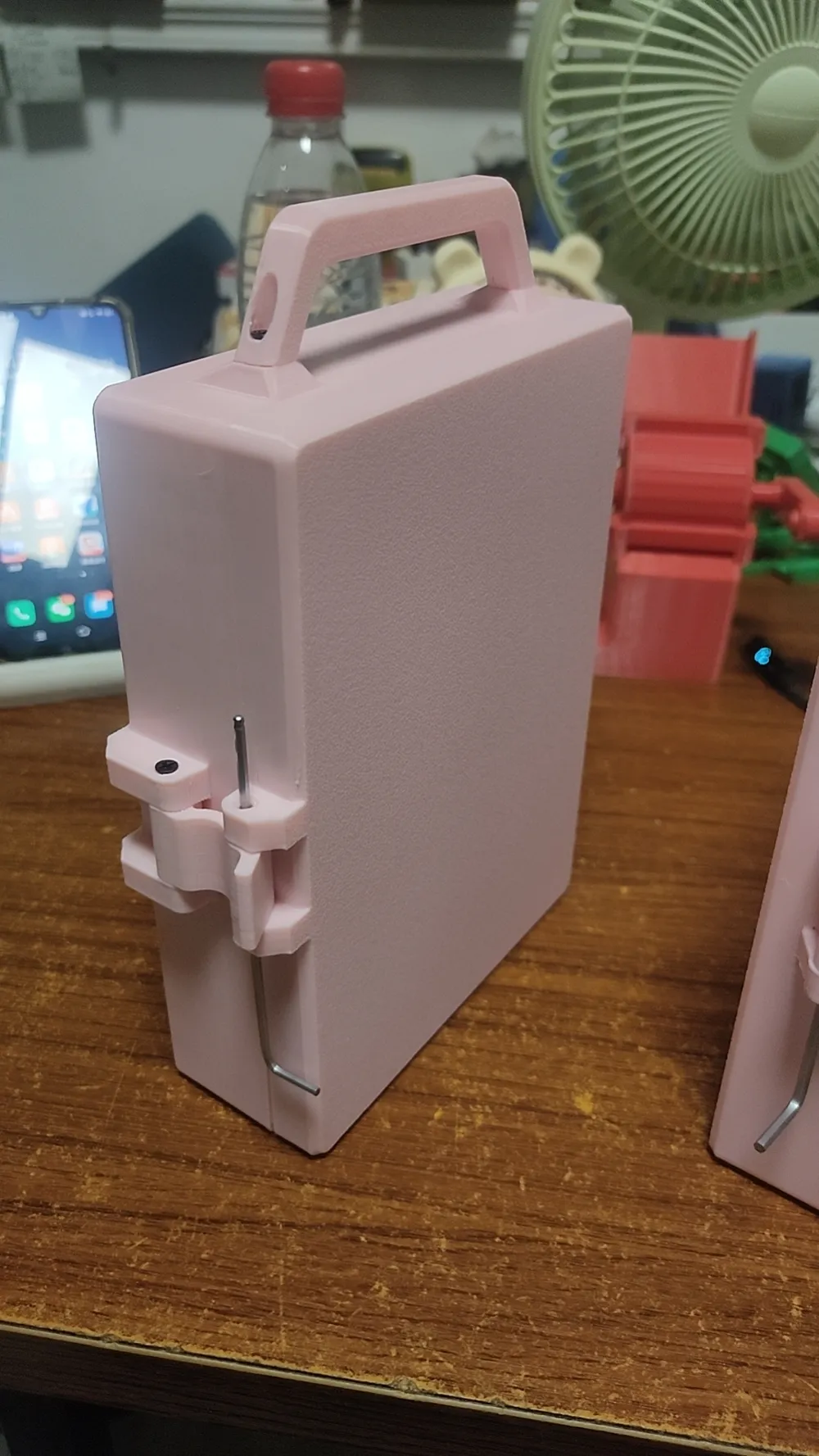

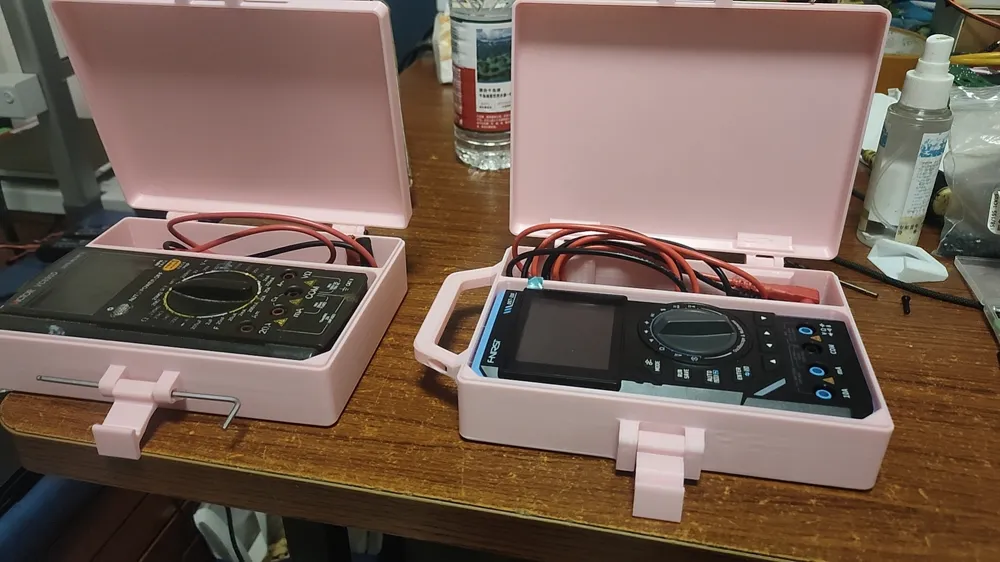

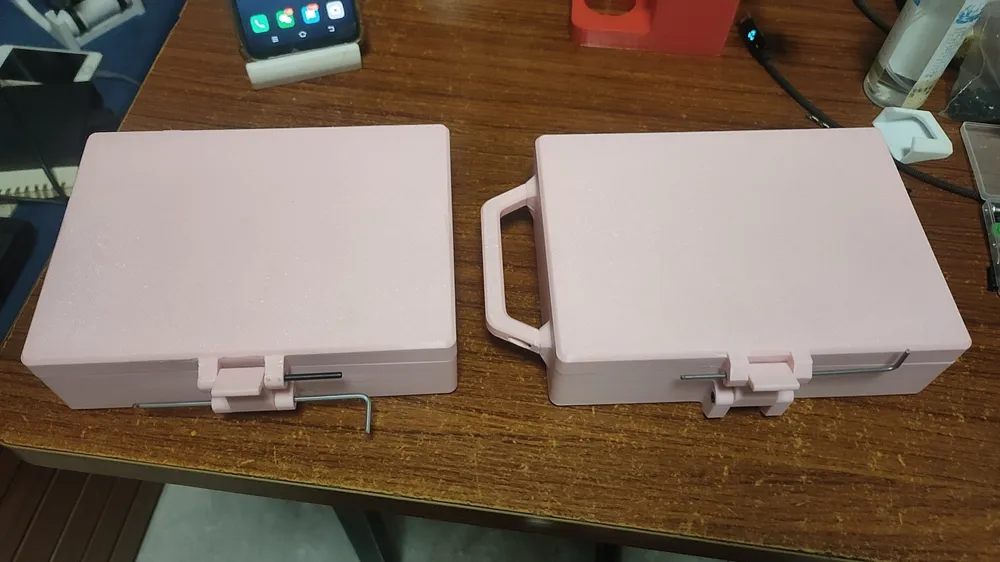

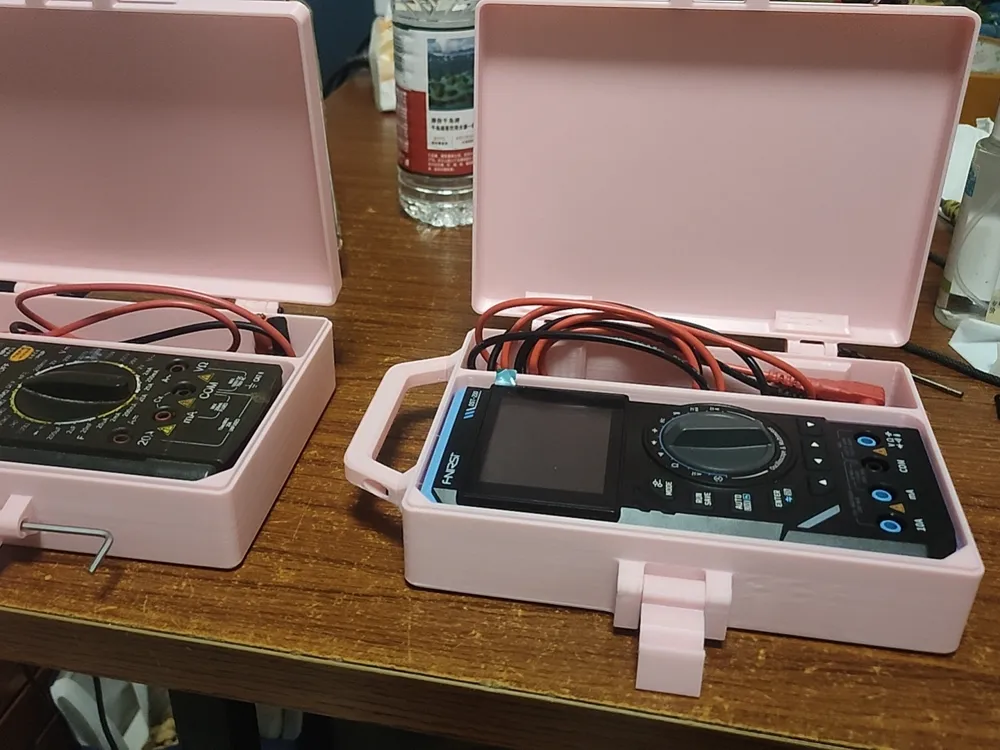

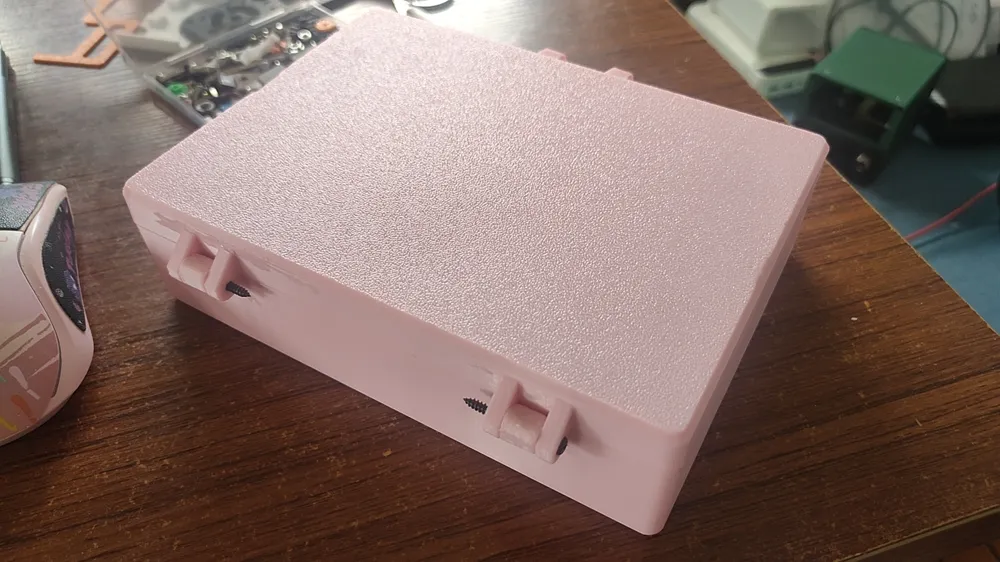

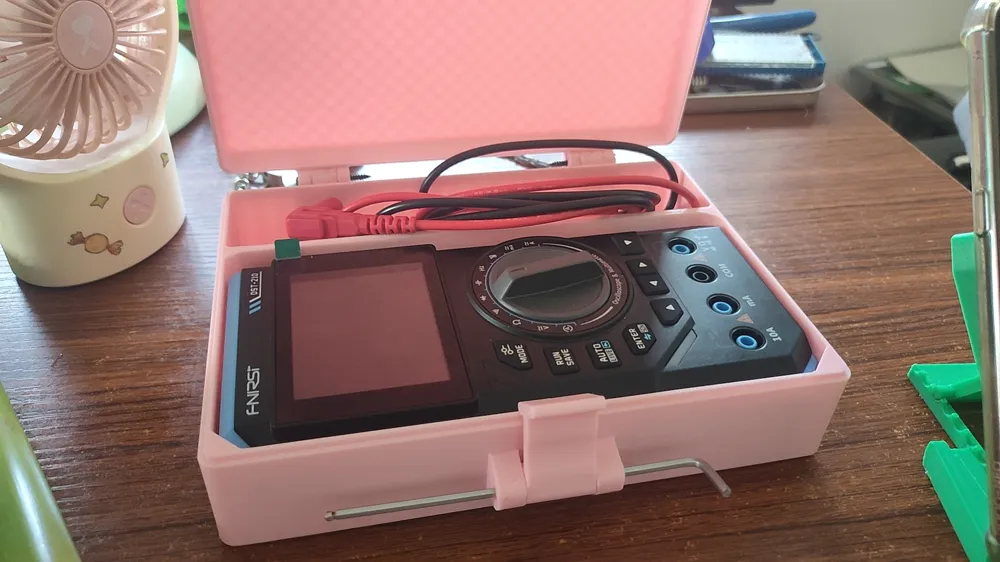

Multimeter storage box FNIRSI DST-201 DST-210 / Victor 890D

Multimeter storage box Model: FNIRSI DST-201 DST-210 / Victor 890D Other models unknown
The handle has a chamfered edge treatment, the reinforcing ribs are rounded, the external shape is beveled or elongated

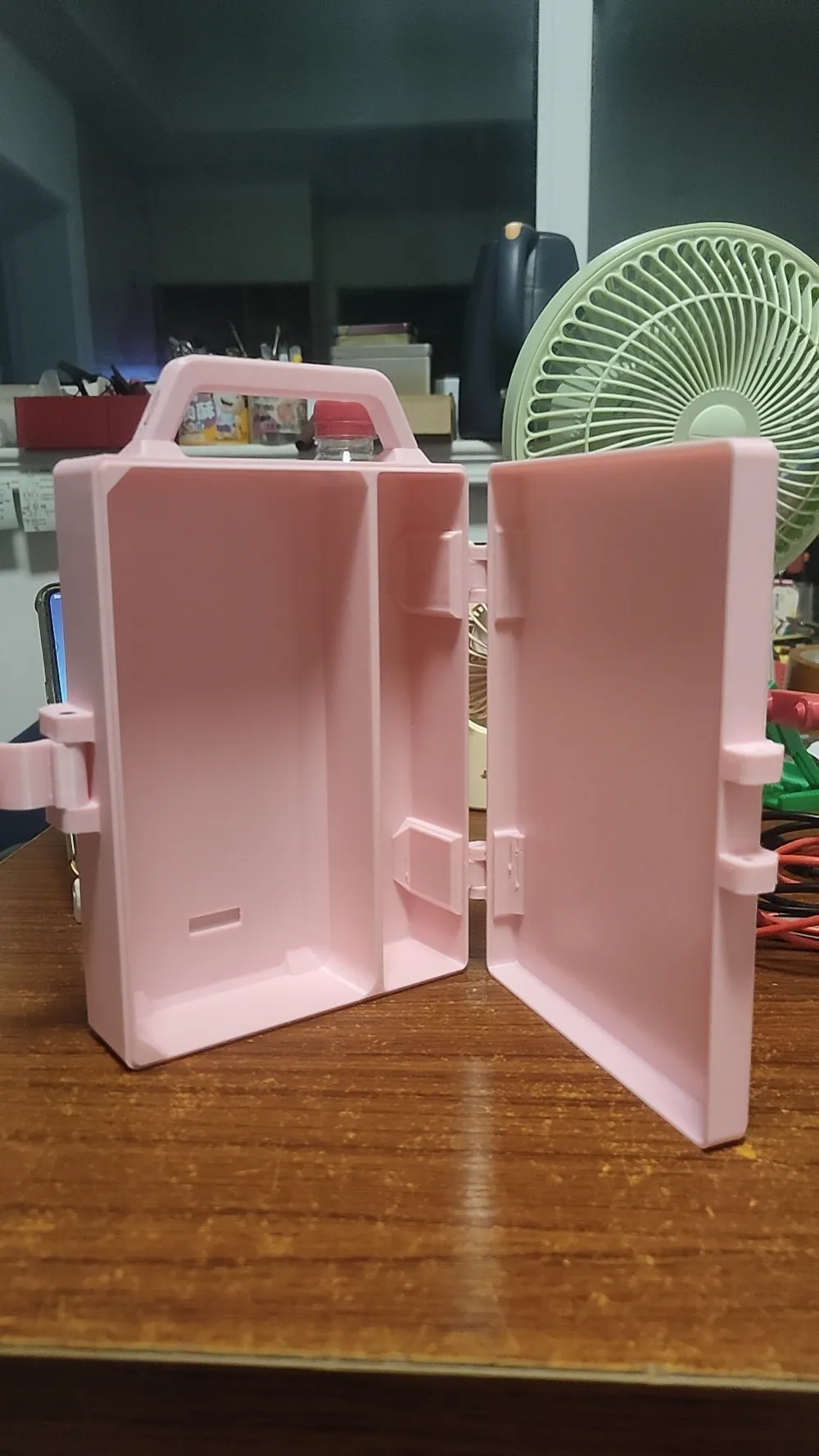

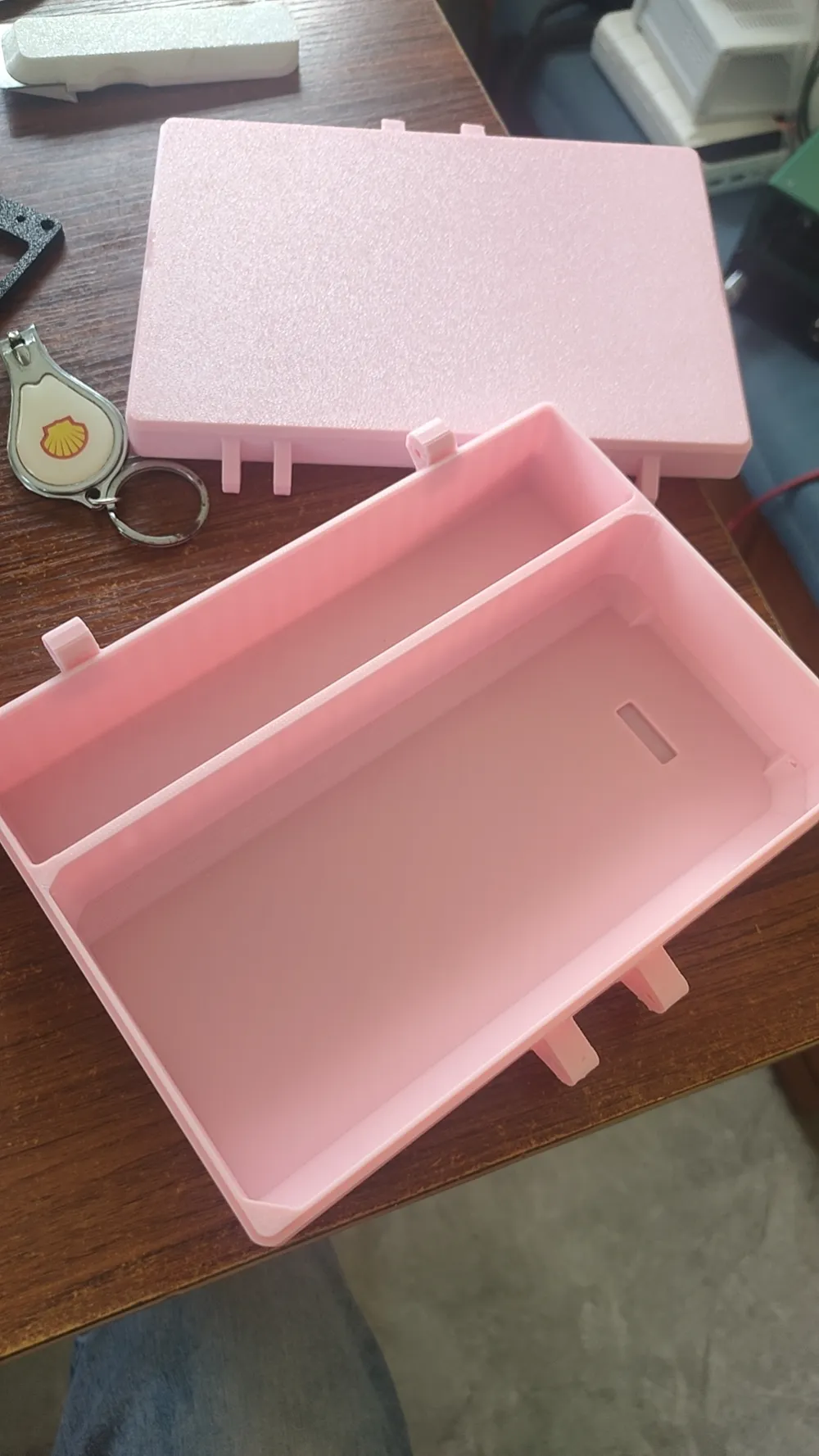

The internal stress-bearing parts are reinforced, the bottom is flat, it can be placed horizontally or vertically, making it convenient for neat storage of multimeters and probes
The model was drawn and printed with 2 improvements, taking one day, and is now quite perfect Please like, boost, and support, thank you

Accessories needed:
M3 self-tapping screws, M3*8 or M3*10 2 pieces (for handle installation) Handle can be optionally installed (depending on personal preference)
M3 threaded screws with nuts (nylon nuts or glued), M3*25 2 pieces (for rear hinge)
M3*40 2 pieces (for buckle) / or use 3MM round rod 35MM long (fixed with 502 super glue)

Buckle tightness adjustment: If the buckle is too tight, expand the round hole with a 3.2 drill bit You can also use a hairdryer to heat the buckle and bend or straighten it to adjust the tightness

Use a scraper to trim the mating surface of the top and bottom cover hinges flat, other areas are generally fine

Printing material and parameters:
PETG general purpose filament
nozzle 0.4
0.2 layer height
3 walls
10-15% infill
no supports
Heated bed temperature 85 degrees, clean a build plate before printing
Printed on 2 plates
Printing speed 166%
Printing time about 4.5-5 hours

There are videos and works published on Douyin: Uncle who repairs welding machines
