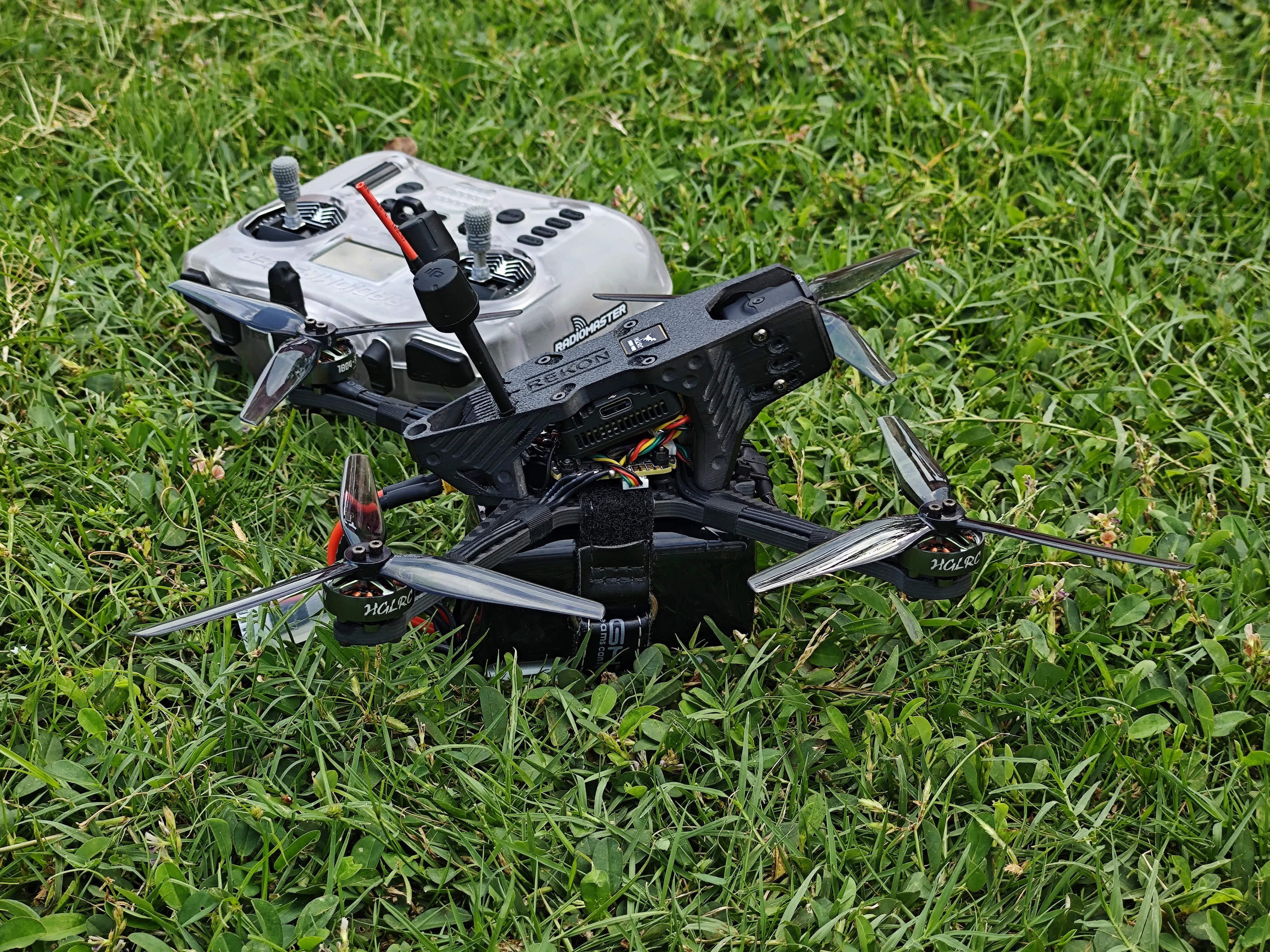

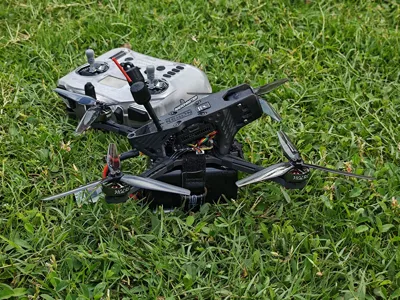

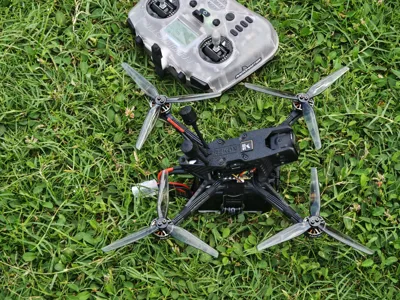

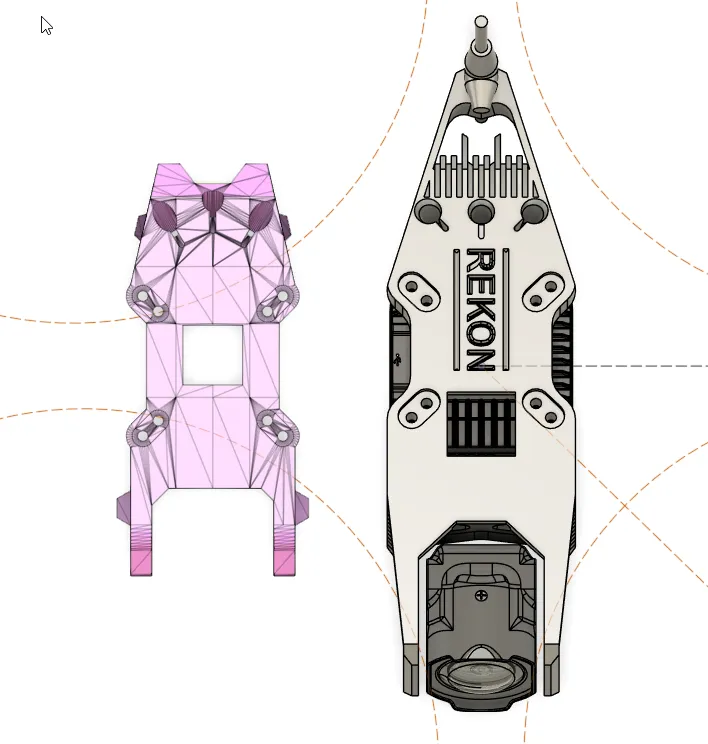

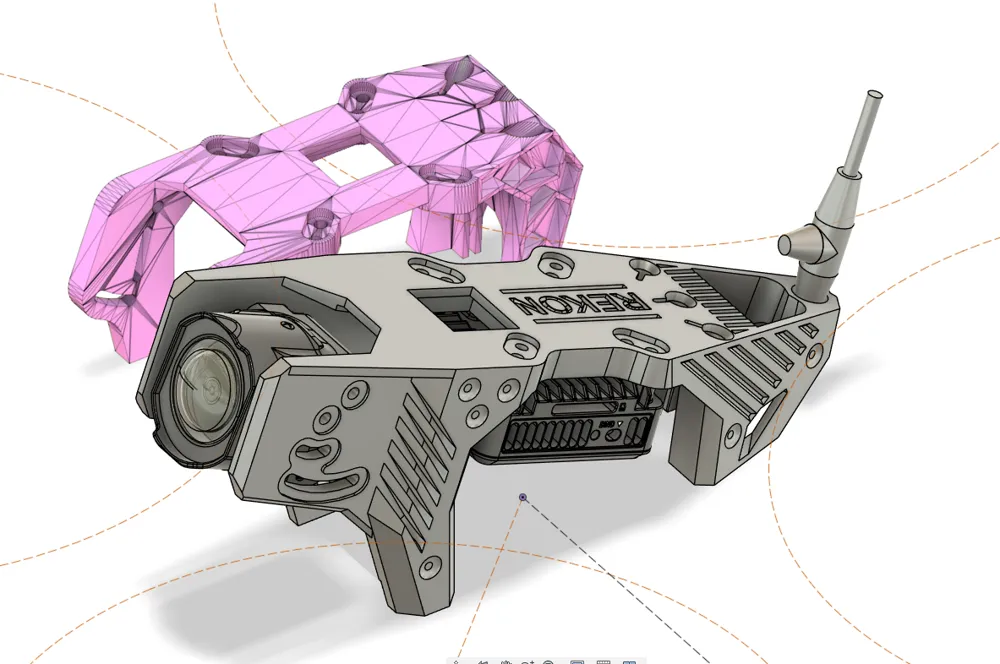

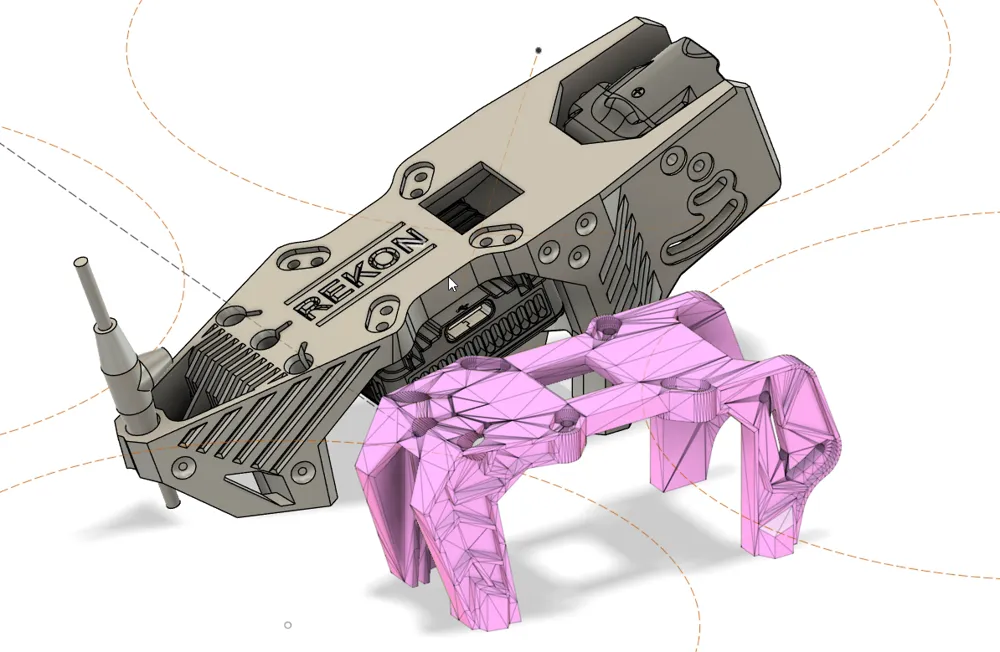

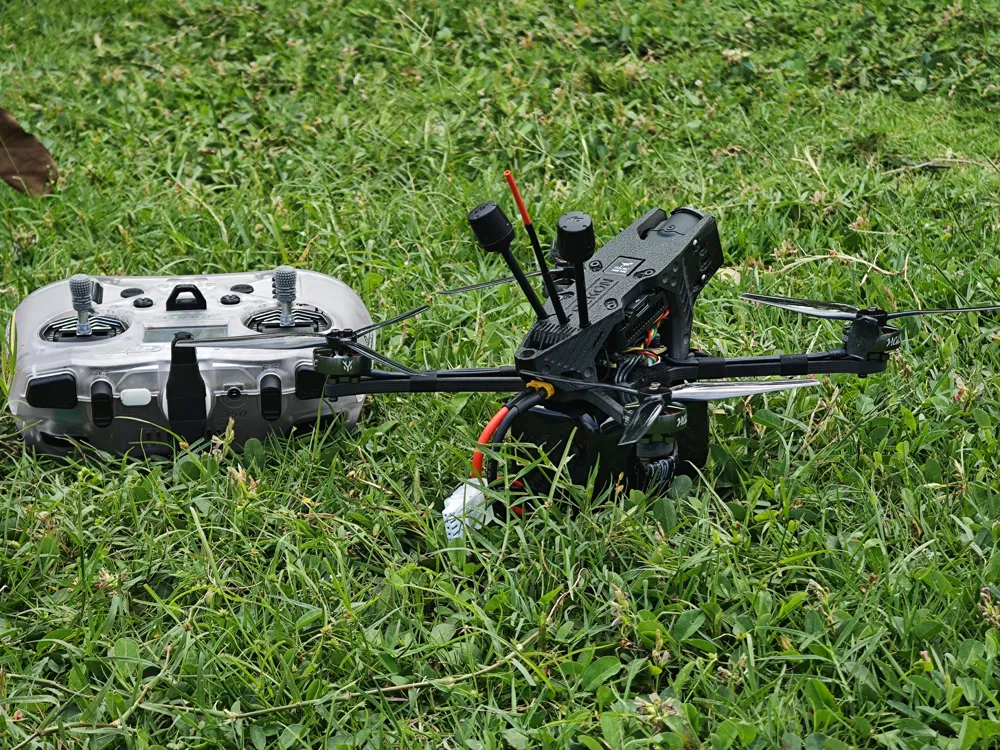

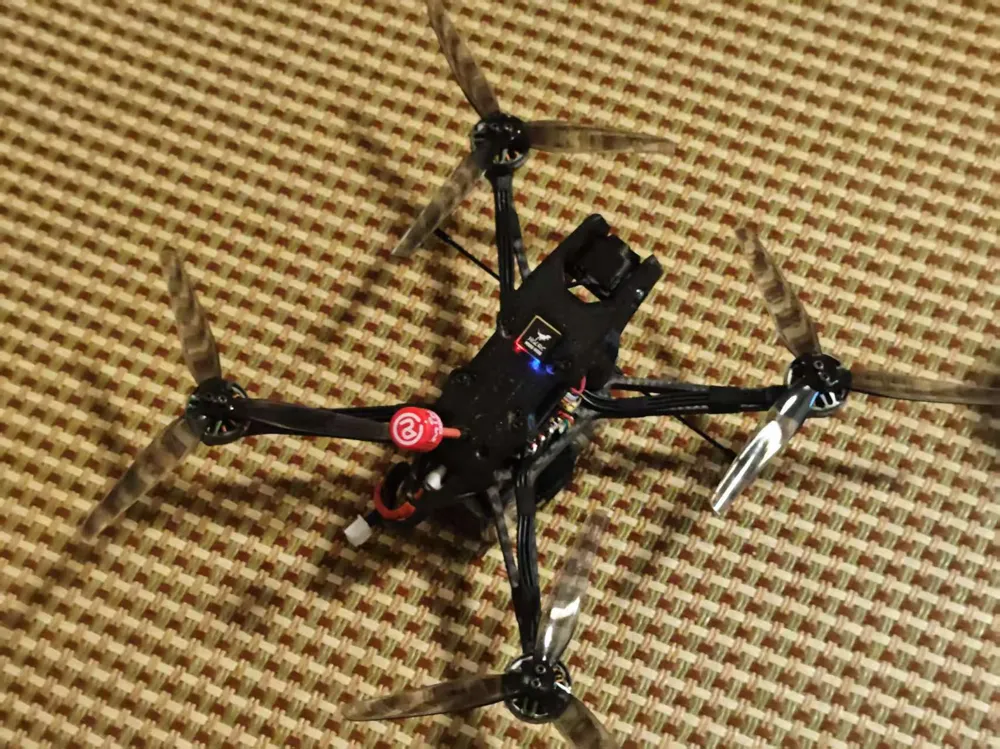

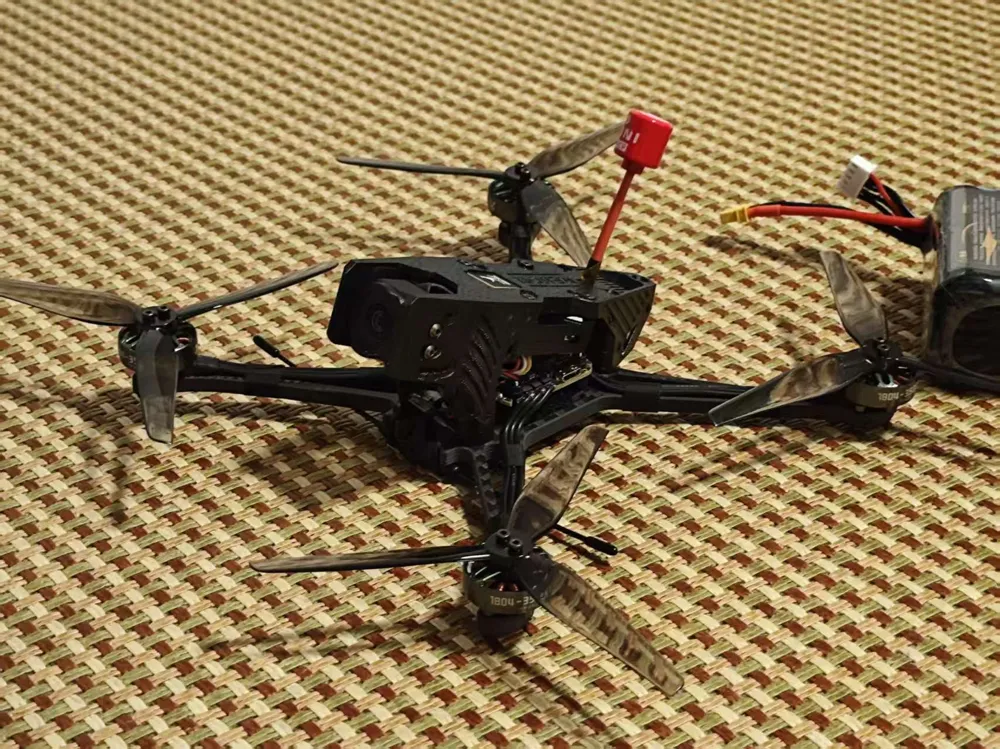

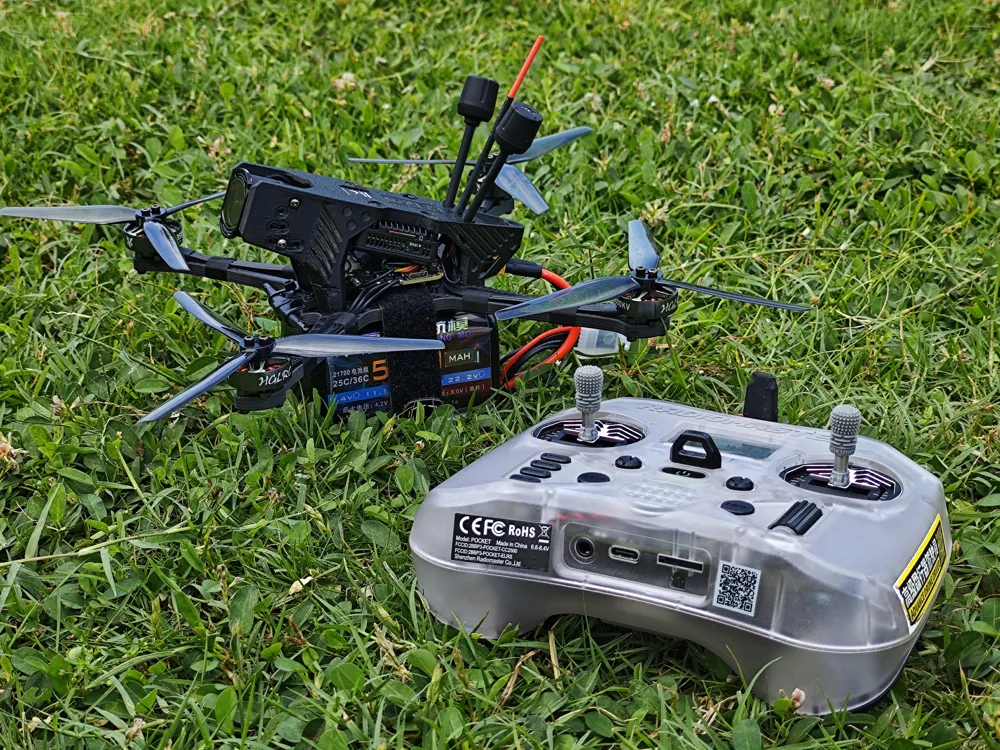

Rekon 5 Lite LPIV(Less Prop In View) Canopy

update:

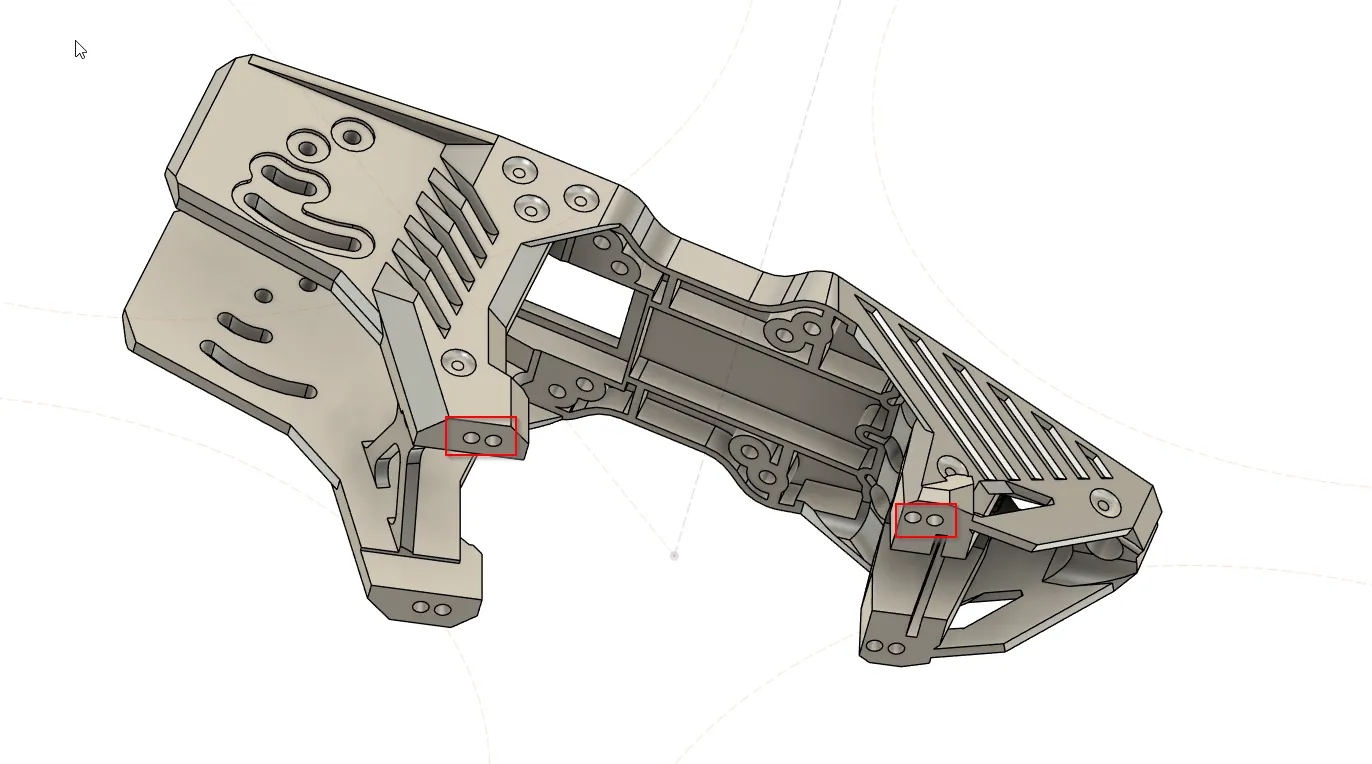

25-10-18: For O4pro user, the Air unit will be conflicting with the back 2 AIO stack screw, you can use shorter screw, or use the newly added shifted screw holes.

25-10-22：After testing higher camera uptilt,  30 degrees of uptilt can produce no prop in view result after Gyroflow stabilization.


This is my quick take on the rekon 5 lite prop in view problem.

Personally I do like a bit pro in view, the this craft have too much, So I came up with this Canopy to reduce the amount pro in view.

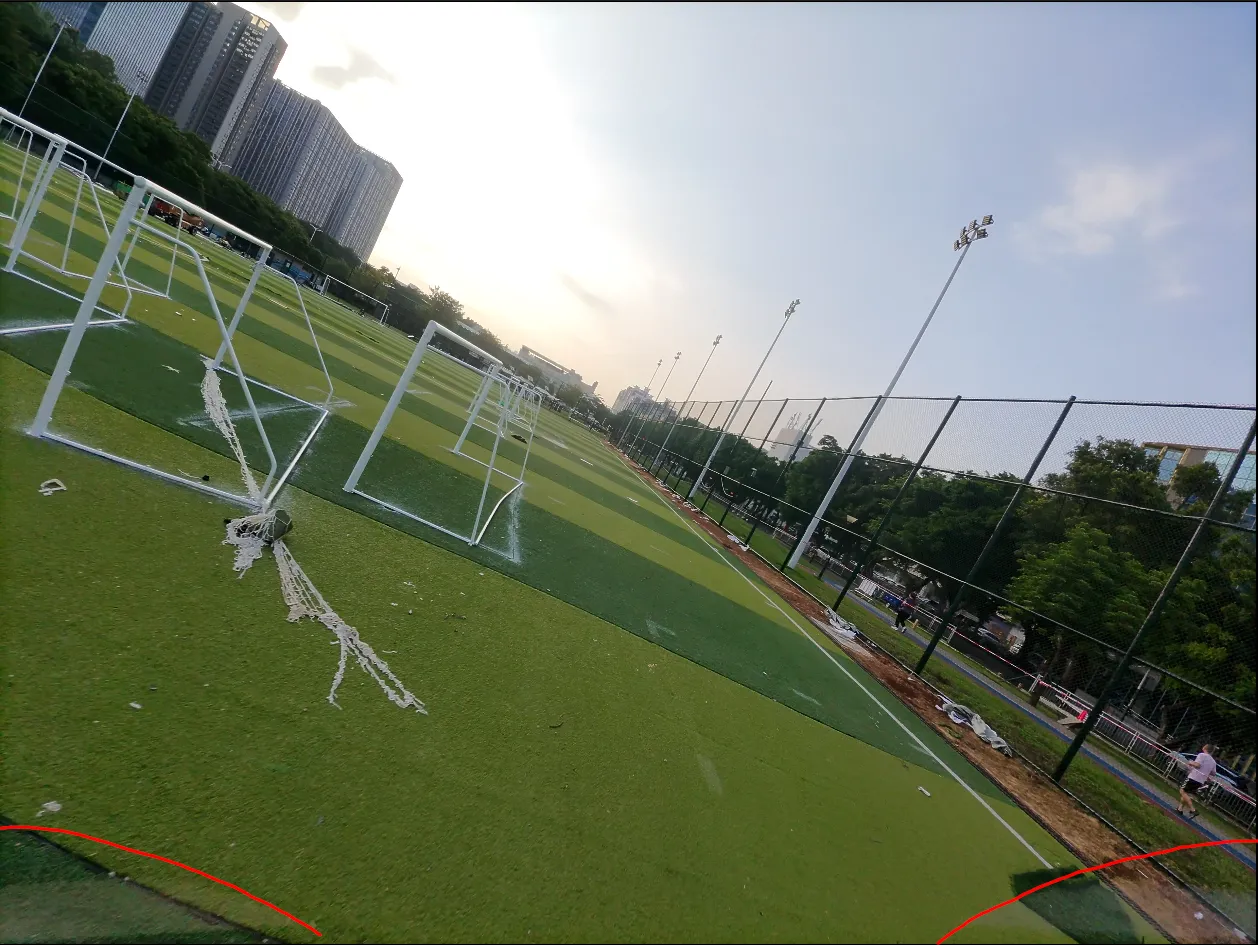

for O4lite the prop is almost out of view, No prop in view after stabilization.

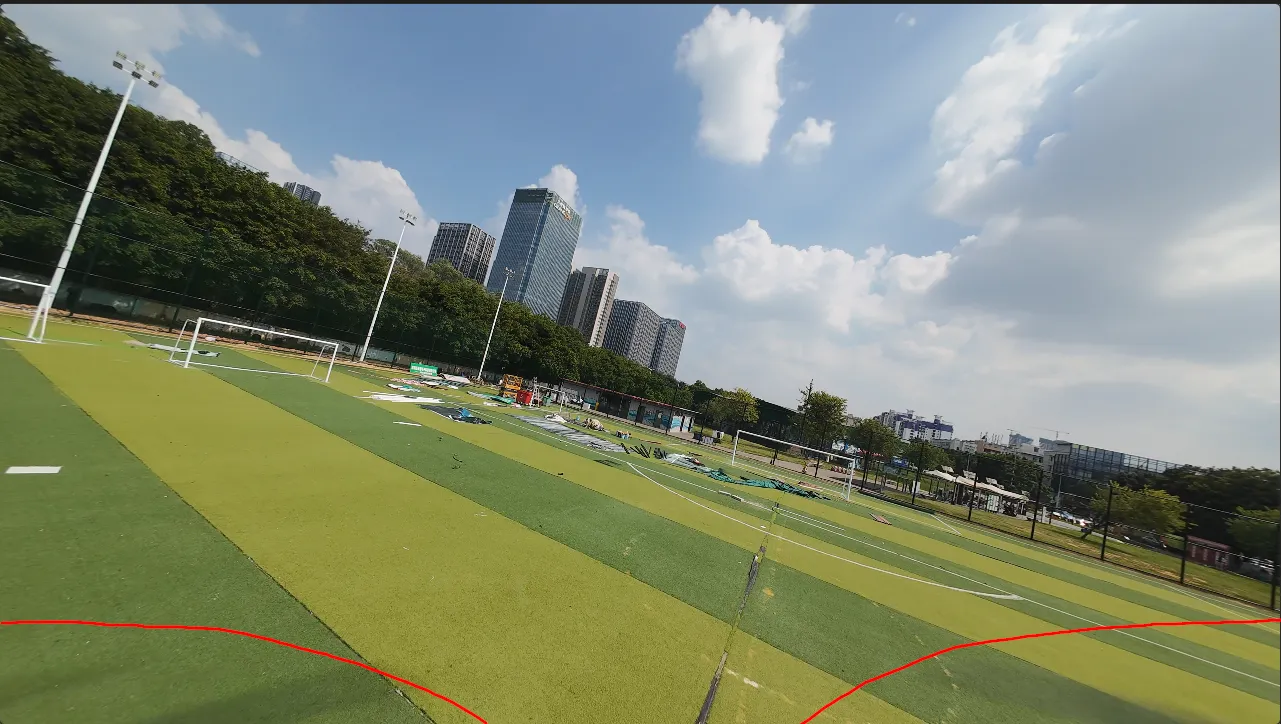

for O4Pro the prop still visible in view, after stabilization there is still bit in view.

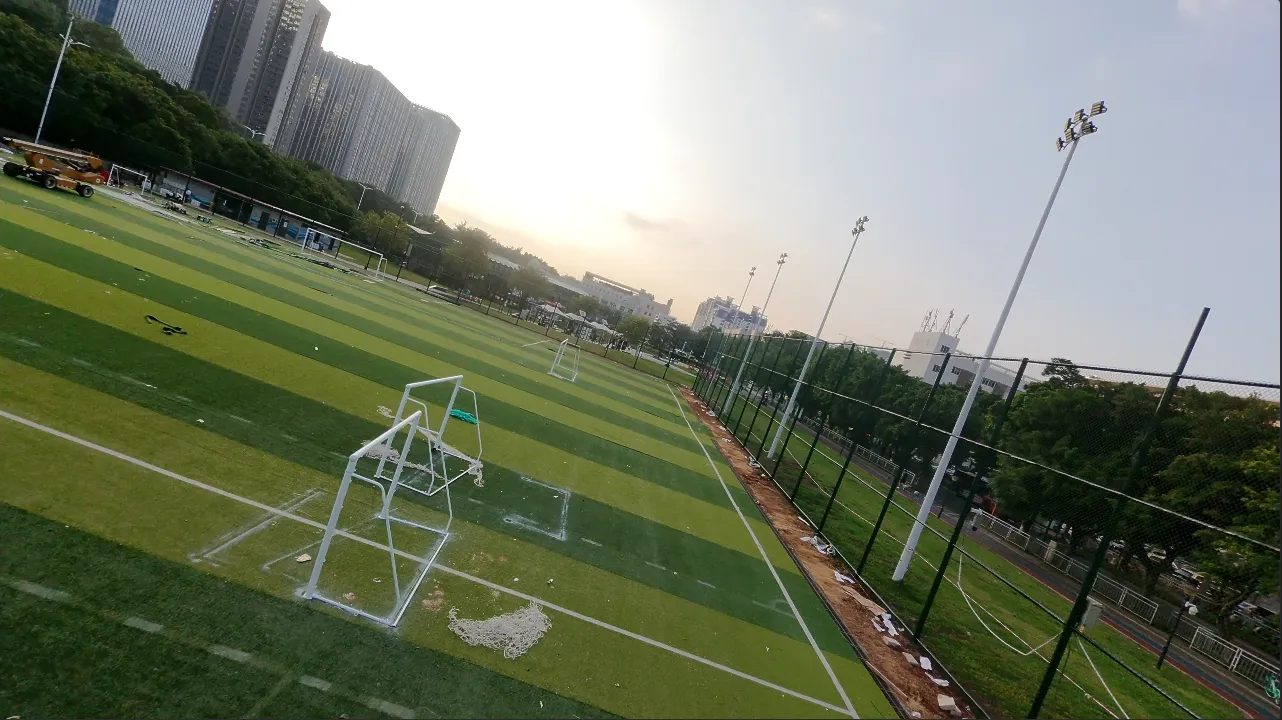

These tests are in 20degree of camera uptilt. recording at 4K 4:3 60fps, stabilized to 16:9, You can always use more uptilt to get the prop out of view

note:  this canopy need the silicone pads from the stock canopy to work properly

If you want get the prop completely out of view with less camera uptilt, try change the 2 front motor to push configuration
