SPEAKERS TangBang W3-2141 8ohm V1
Print Profile(1)
Description

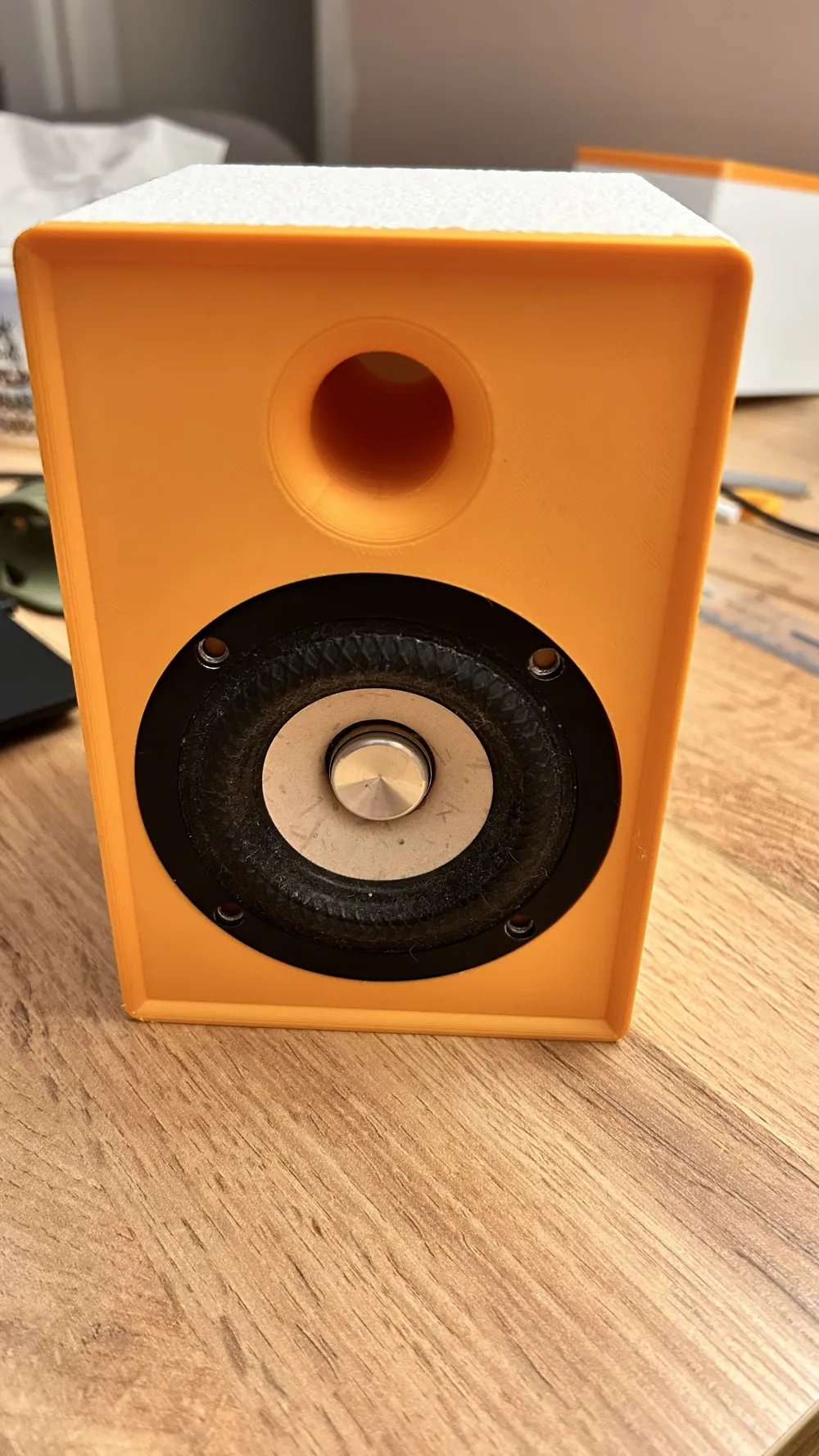

Small bass reflex port — "more full bass, compact" Goal: slightly more energy at low frequencies without excessive cabinet size. Volume (internal): 1.5 L (1500 cm³) Driver tuning (Fb): ~90 Hz (safe, close to the driver's Fs) Port: round, diameter 24 mm, port length ≈ 91 mm (calculated with correction of one end in the front panel). If using a rectangular port instead of a tube, maintain the same flow area (S) and equivalent length. Sample internal dimensions: 150 mm × 100 mm × 100 mm = 1500 cm³ Damping: moderate (fiber ballast) to avoid damping the port tuning. Result: more "initial" bass than in a sealed enclosure; below ~75 Hz it drops quickly.

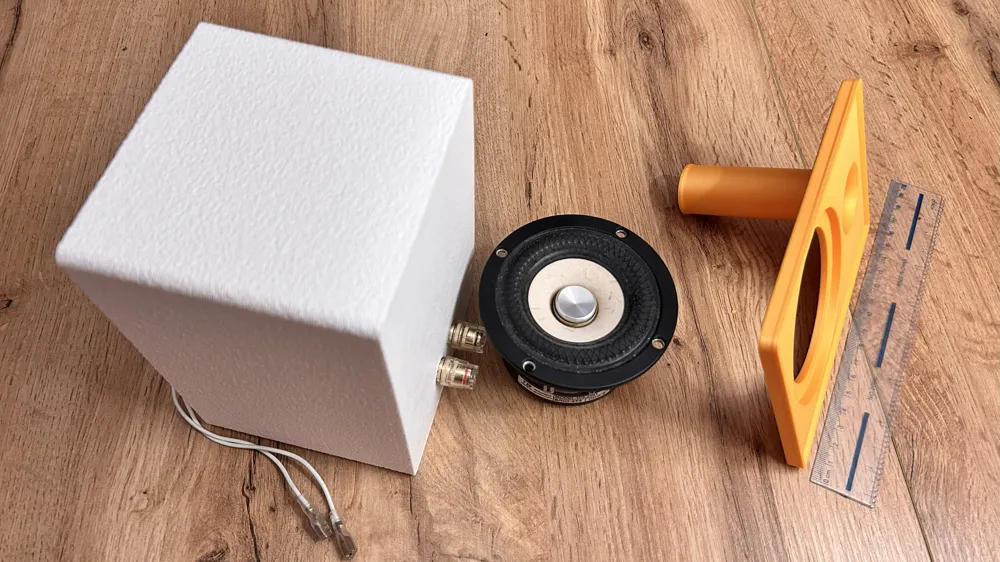

speaker terminals
https://www.amazon.com/gp/product/B07PFMD1N2/

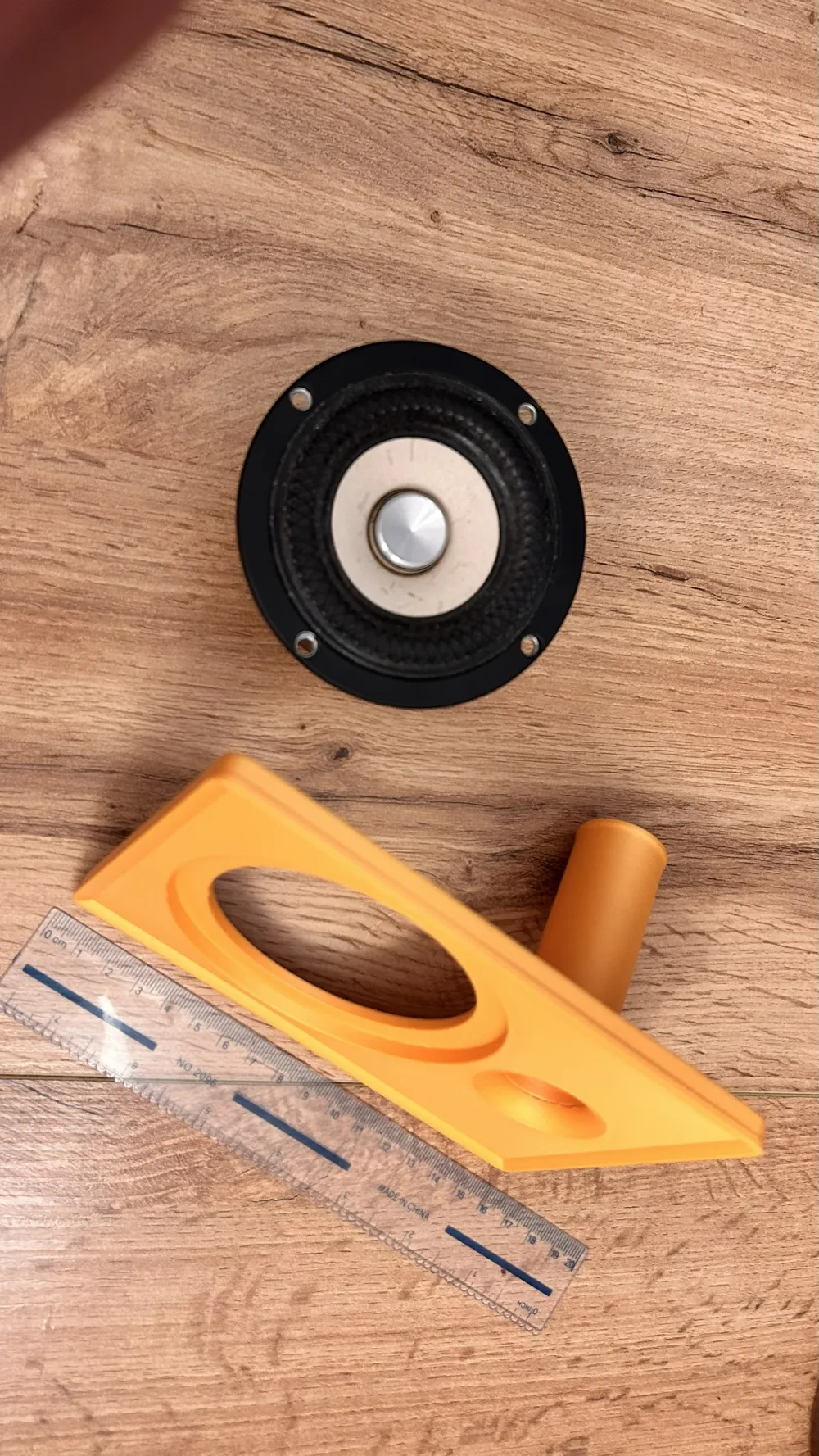

And a hole for the tweeter. The tweeter comes from an old iMac computer that was going to be thrown away.
https://www.amazon.com/dp/B0CS6VZYL8
One front panel has holes for Heat-Set Threaded Inserts, M3 Heat Set Insert for 3D
Boost Me (for free)

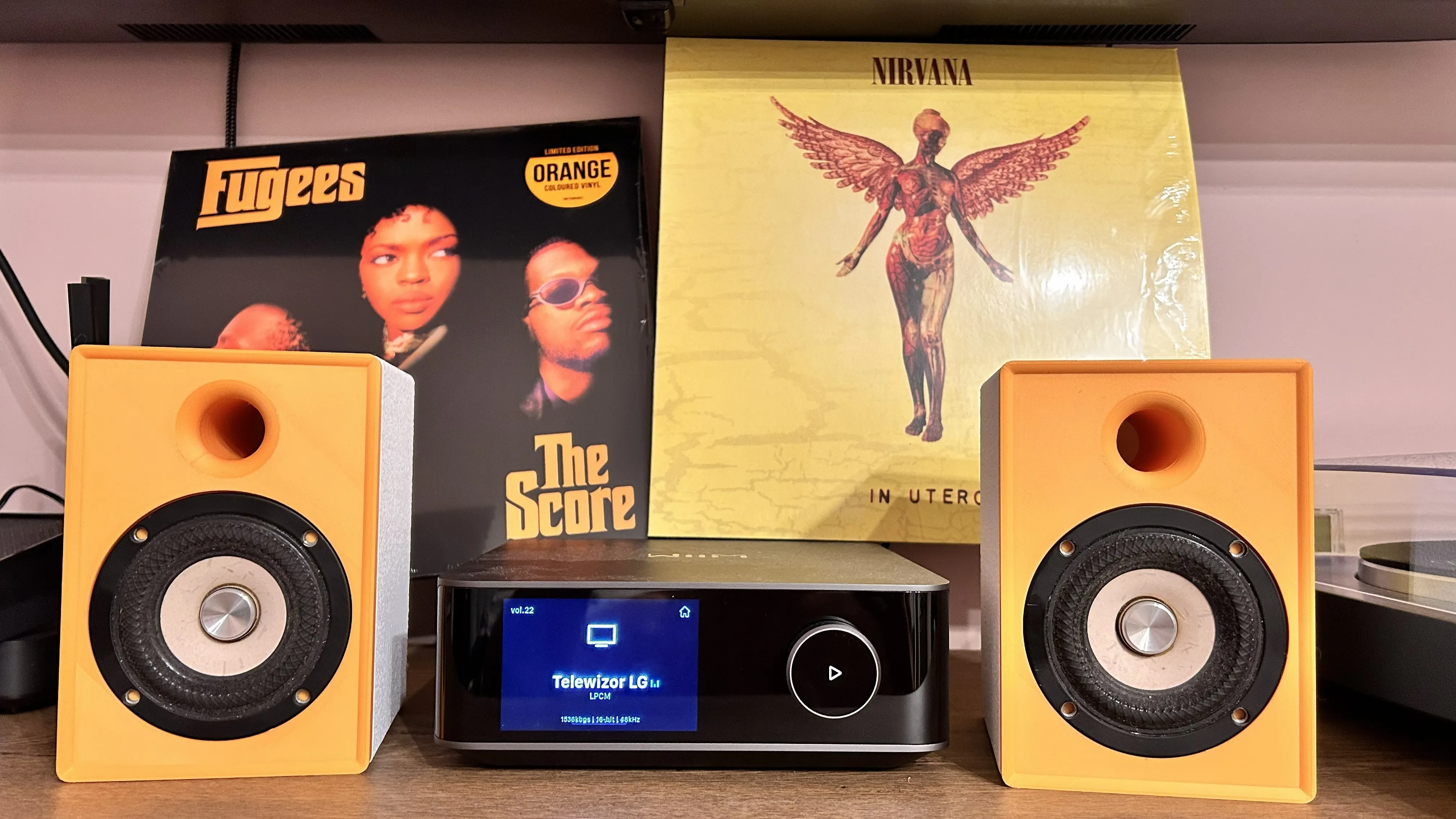

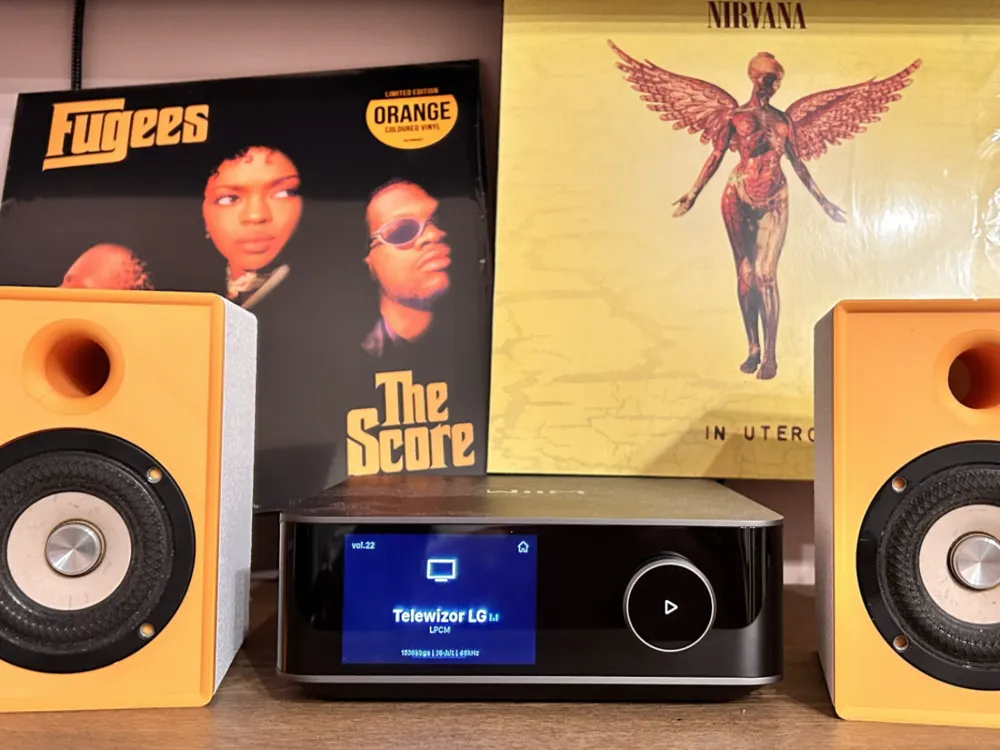

I'd like to present a speaker based on TangBang W3-2141 drivers. The bass won't be amazing, but for such a small driver, the sound detail surprised me.
