Case for LCR-T4 Component Tester

Case for Component Tester LCR-T4

Updates

11/26/25 Slightly modified geometry for the recess of the test pad for better printing Print profile V2.1 has been updated

12/02/25 More space for the button Battery cover thicker, test pad refined

Introduction and Features

I needed a case for my very useful component tester (from AliExpress) It should have the following features:

• Access to all test points
• Screw-less battery compartment
• Everyday-suitable design

Unfortunately, I couldn't find a finished model in my search, so I designed this case

It meets my requirements and additionally offers:

• Quick and easy screw-less assembly
• Low filament consumption
• Marking of the Textool socket

I omitted a switch because the power consumption of the LCR-T4 is lower than the self-discharge of the battery I use

For the design, I first created models of the tester itself and a 9V block battery This significantly simplified the case design and reduced the number of failed attempts

This design is, so to speak, my journeyman's piece in FreeCAD It turned out to be much more complex than expected, so I welcome any feedback and, of course, every boost:

Assembly

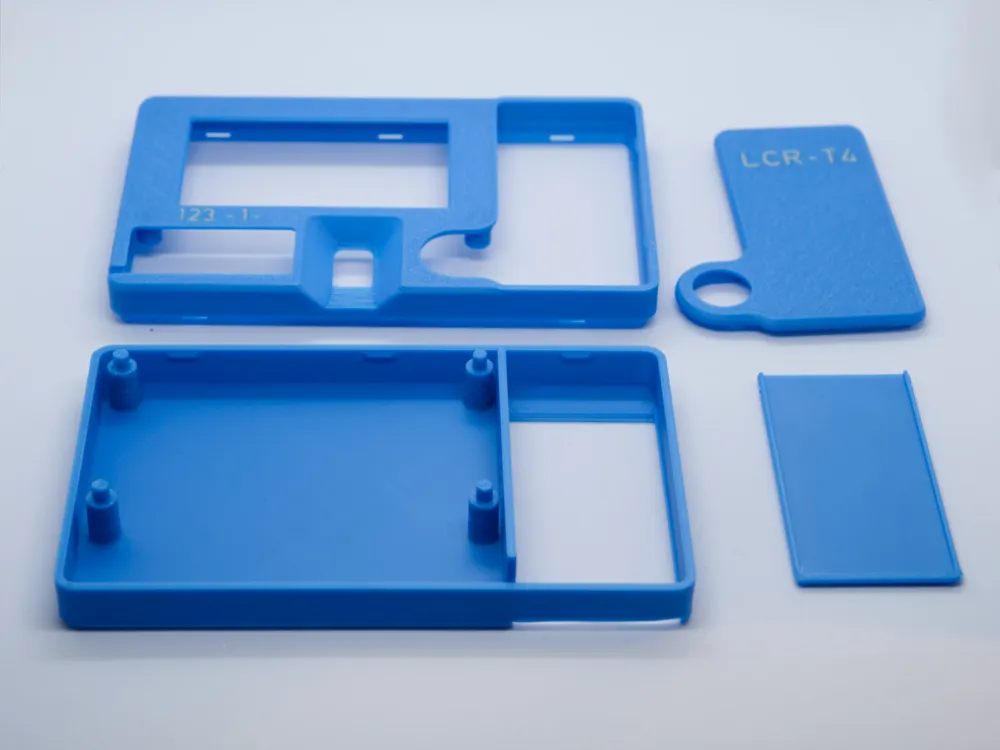

After the individual parts have cooled on the print bed, the parts are removed from the print bed Then remove the supports

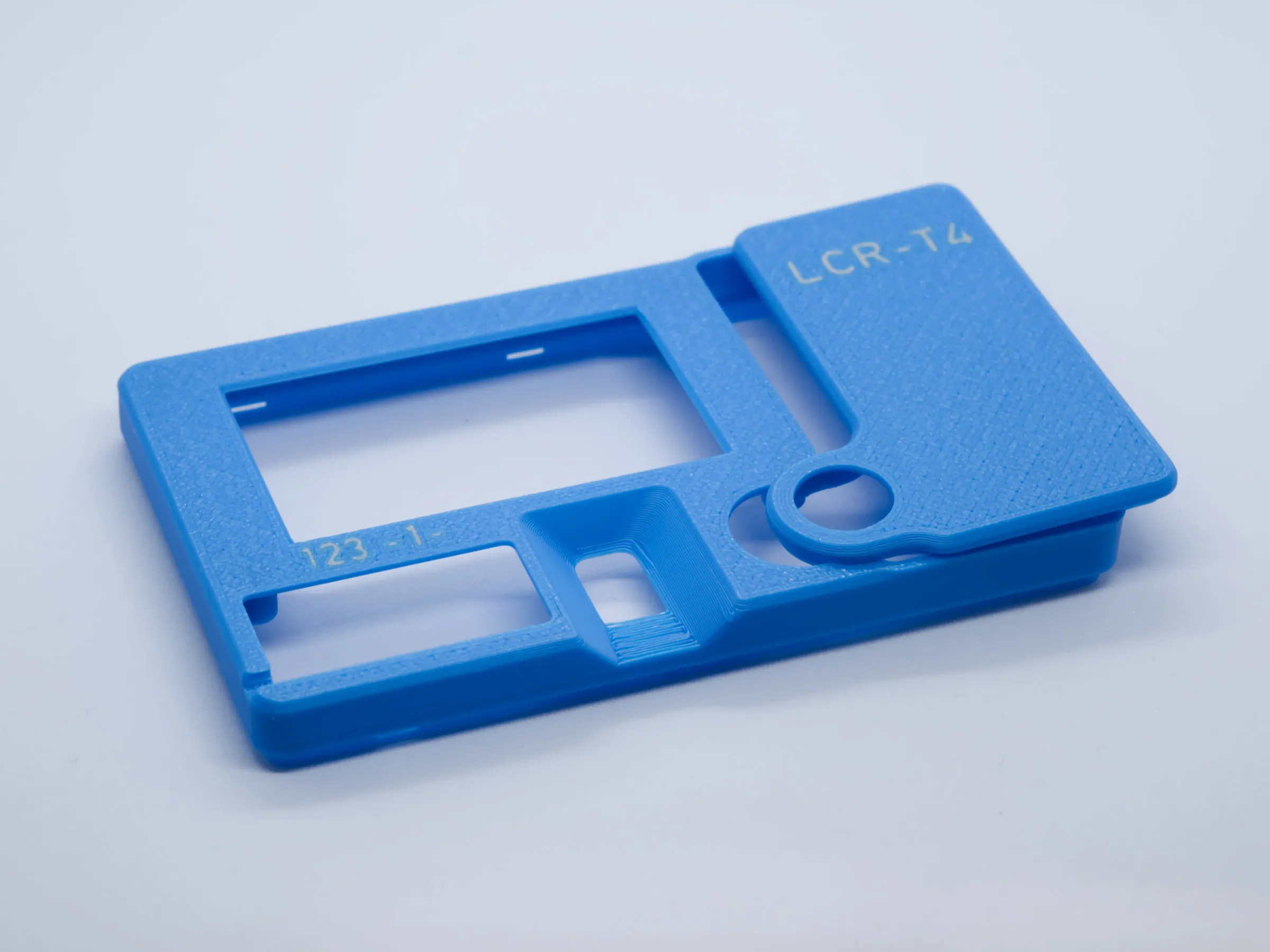

First, slide the attachment onto the top shell from the right, so that the curve with the hole for the test button sits in the top shell

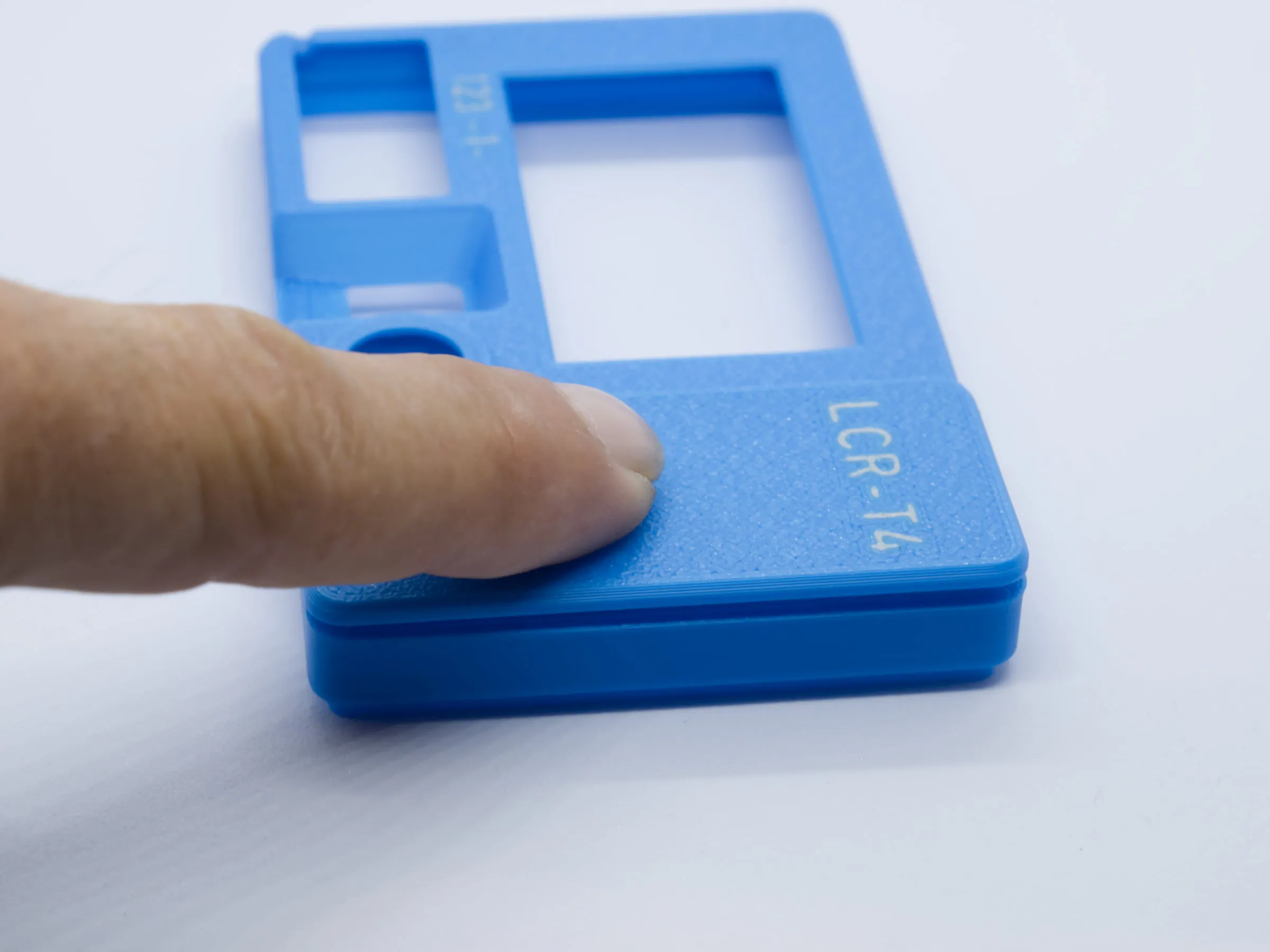

Now press down on the outer right edge until the attachment snaps into place

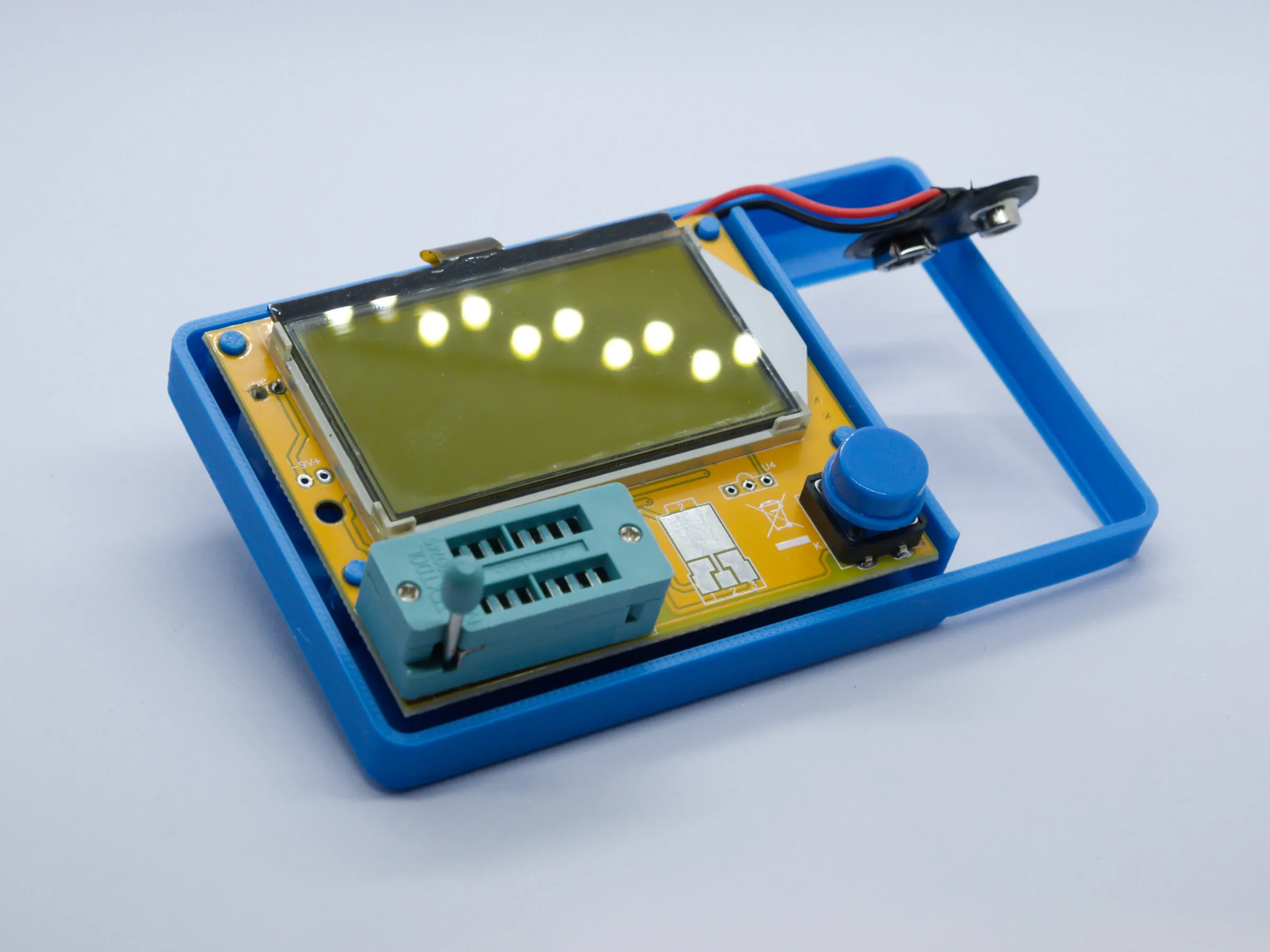

Now the component tester can be inserted into the bottom shell Pay attention to the battery cable and route it under the board as shown

Now place the top shell onto the bottom shell and let all tabs snap into place as well

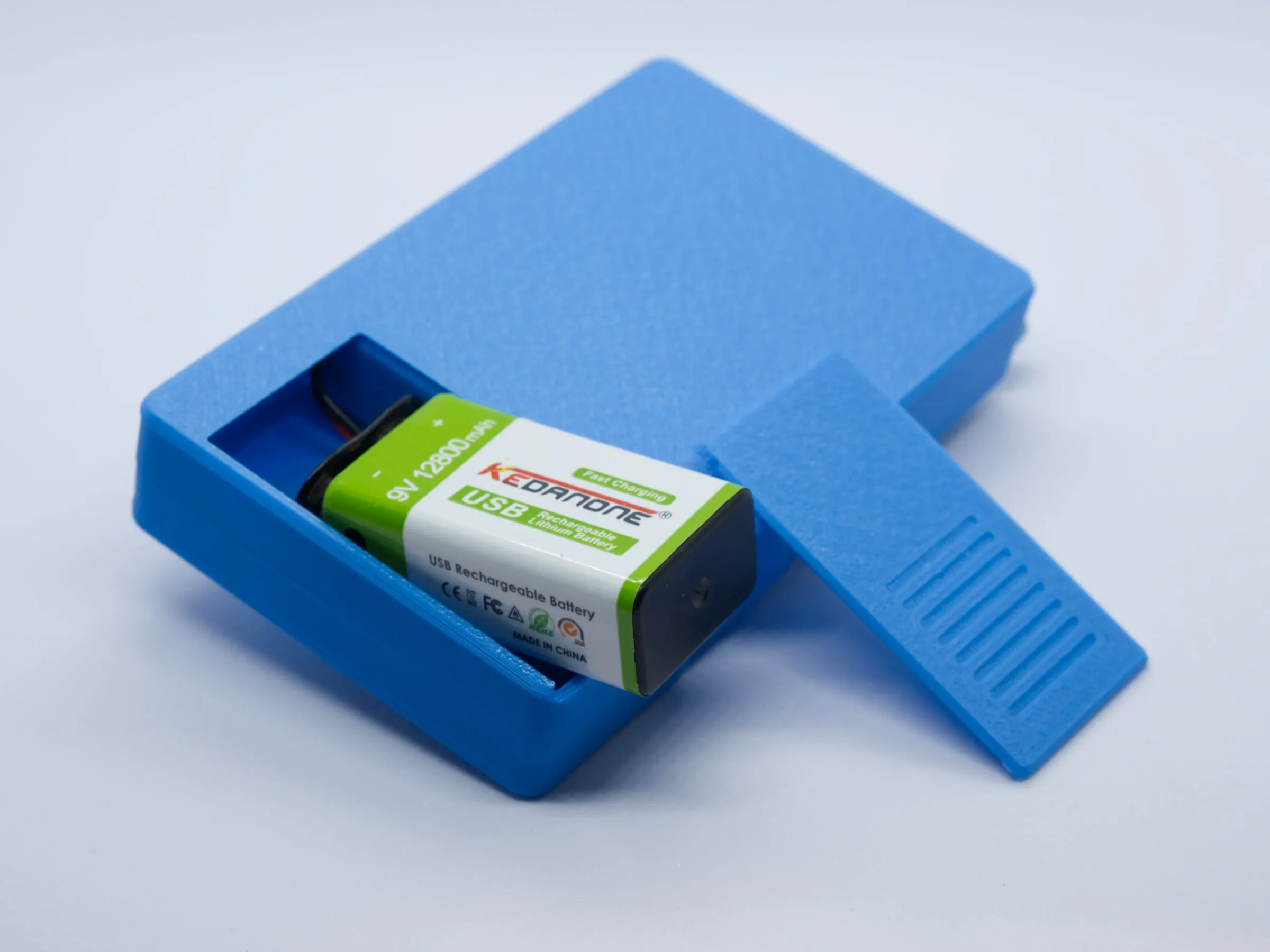

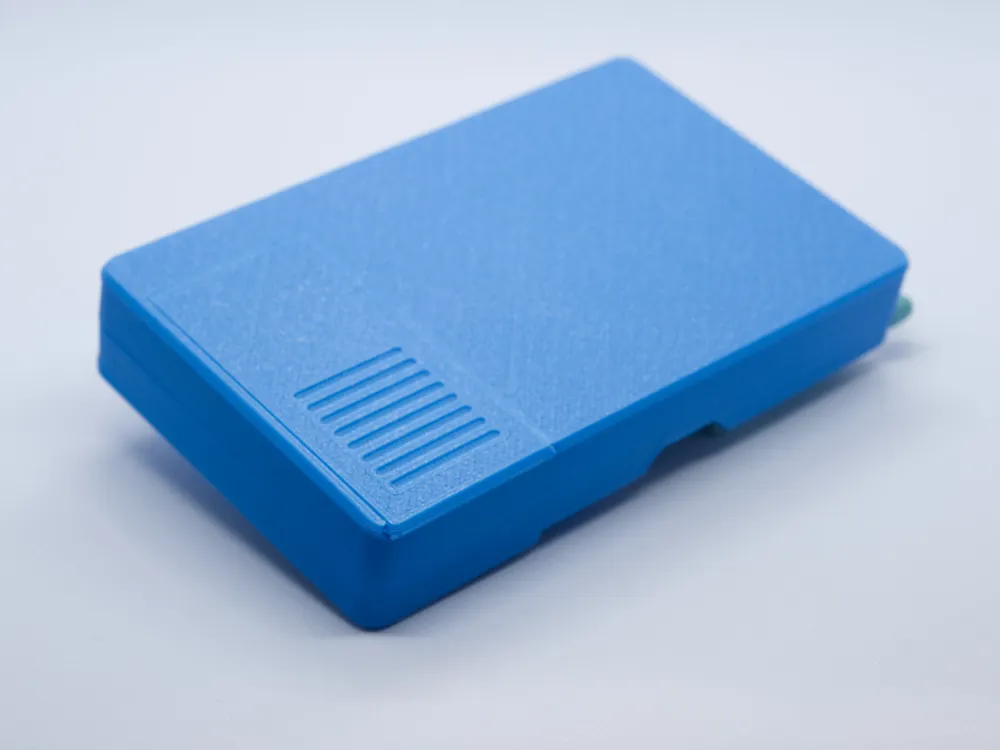

Finally, insert the battery and close the battery compartment by sliding in the battery cover until it snaps into place The beveled side is inserted first

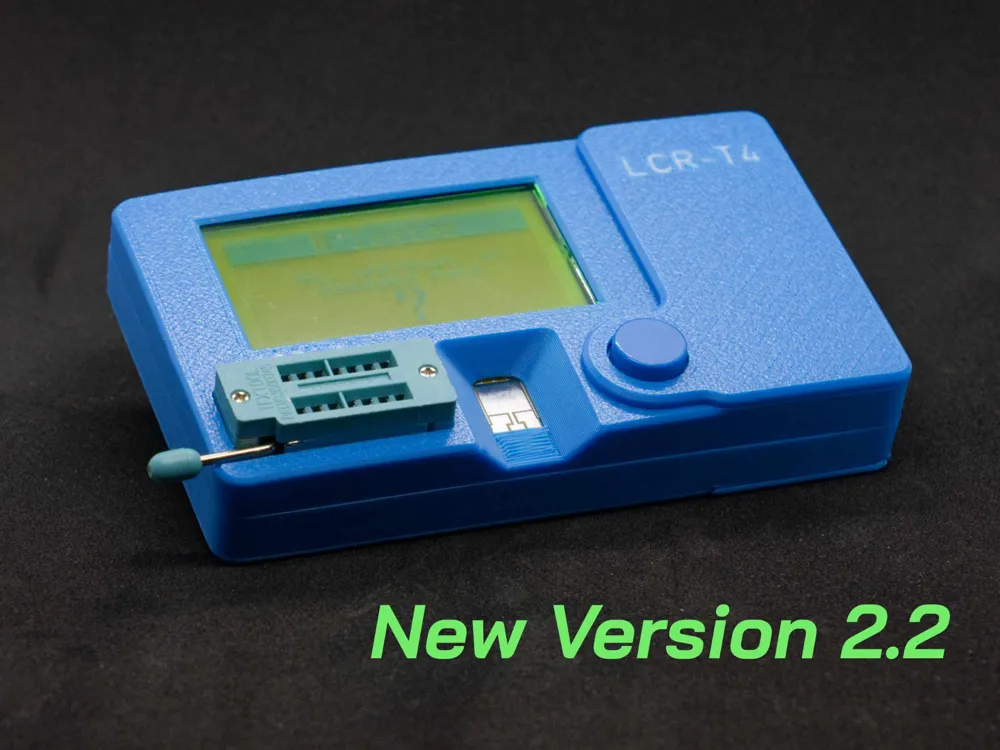

Done! The device is ready for operation

Have fun printing and crafting!

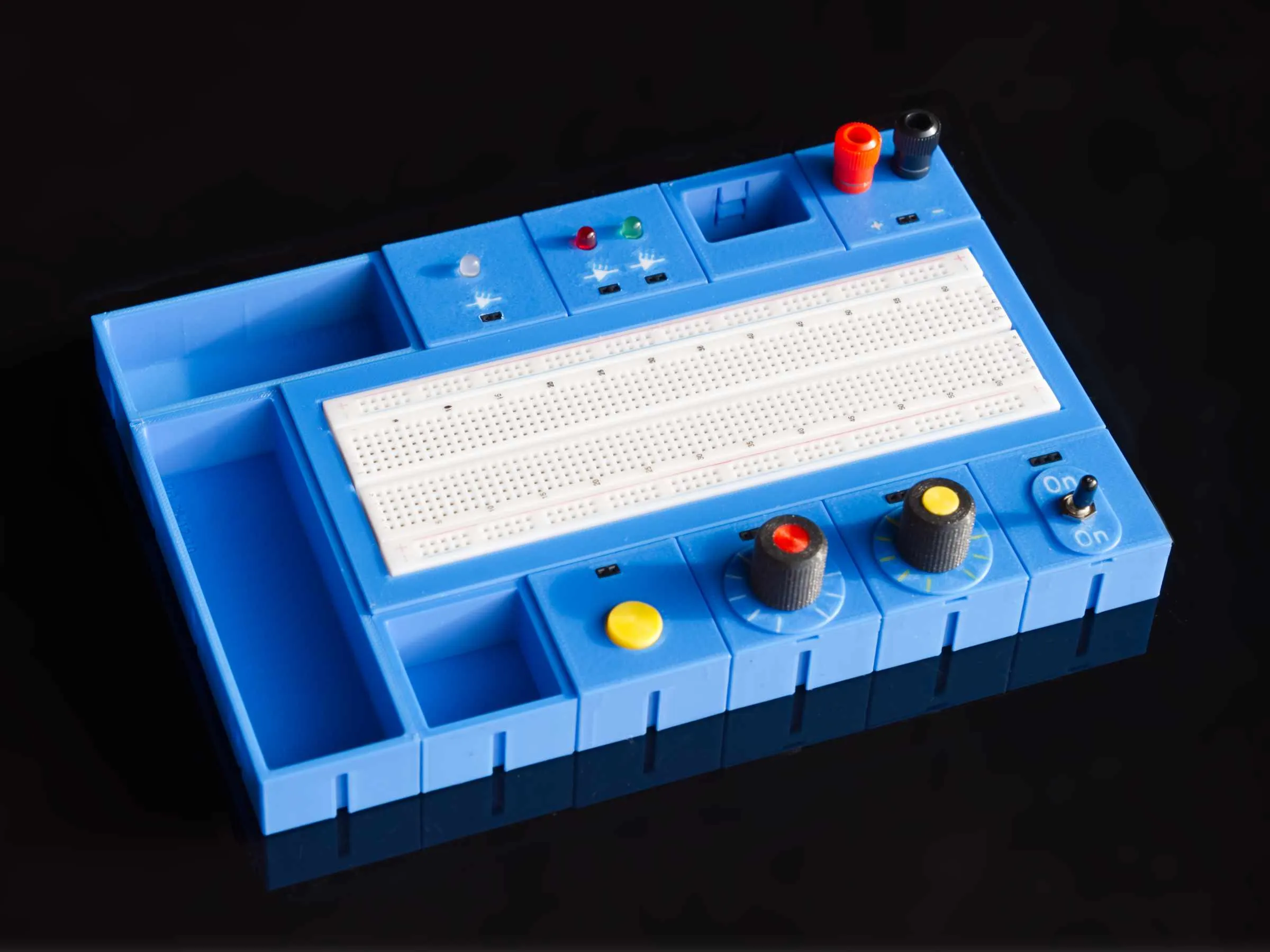

You might also like the modular Building Block Trainer Board:
