Ultimate Mini Z Car Stand for 1:28 Scale RC

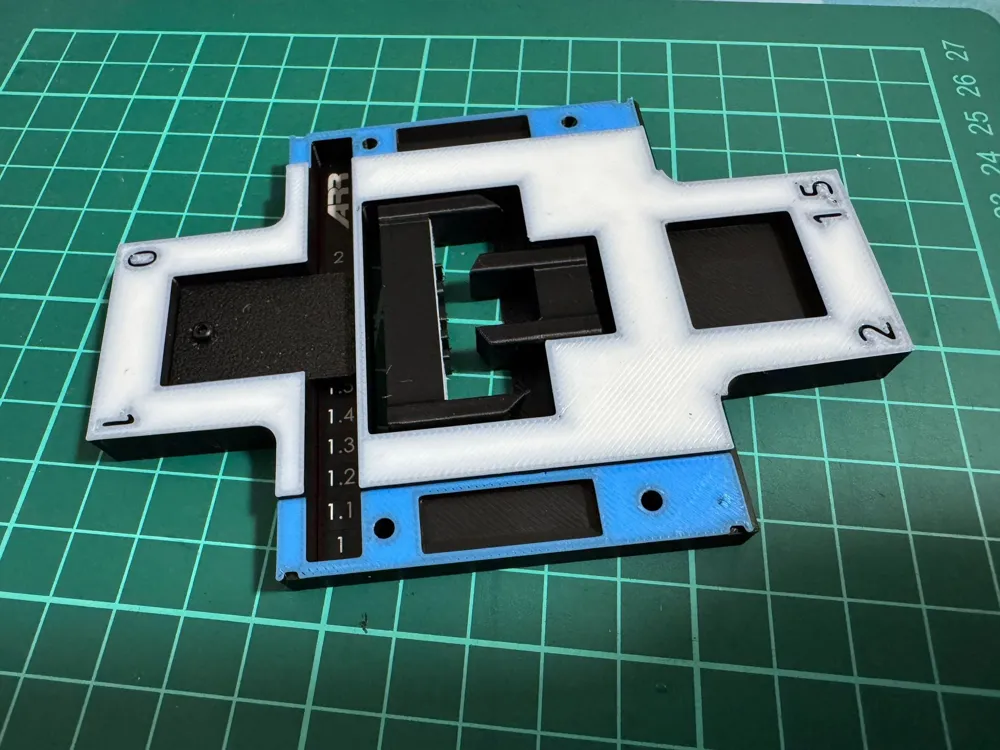

I present to you the Ultimate 1:28 Scale Car Stand

Fully packed with features!

2 Versions (Separated into print profiles)

AMS Required for the full detail as shown in picture.

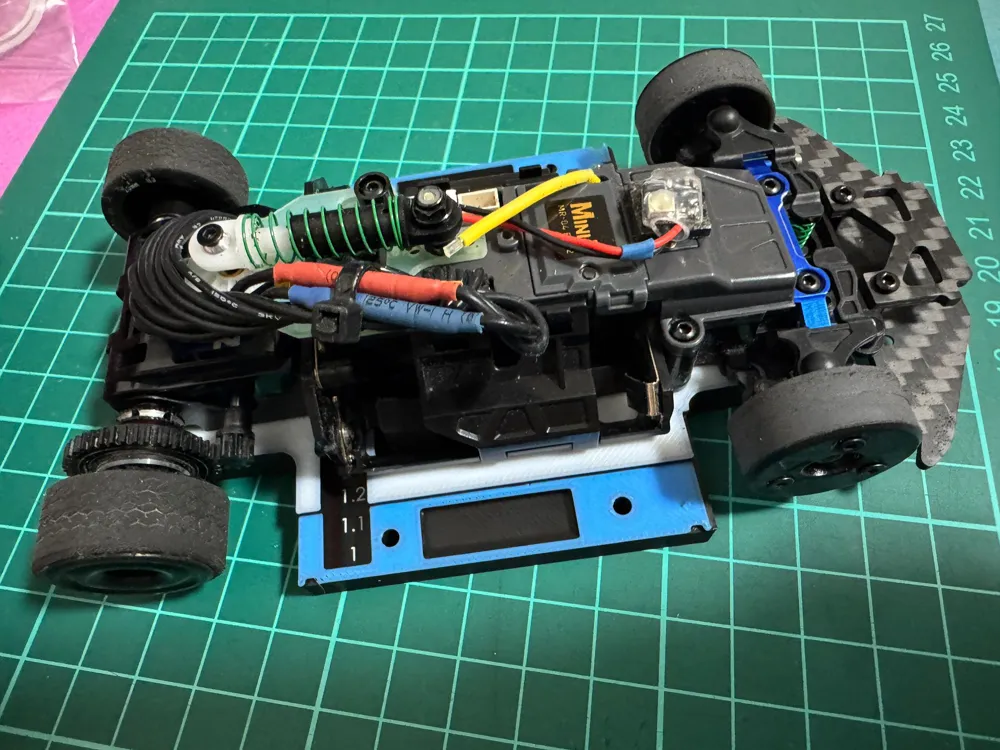

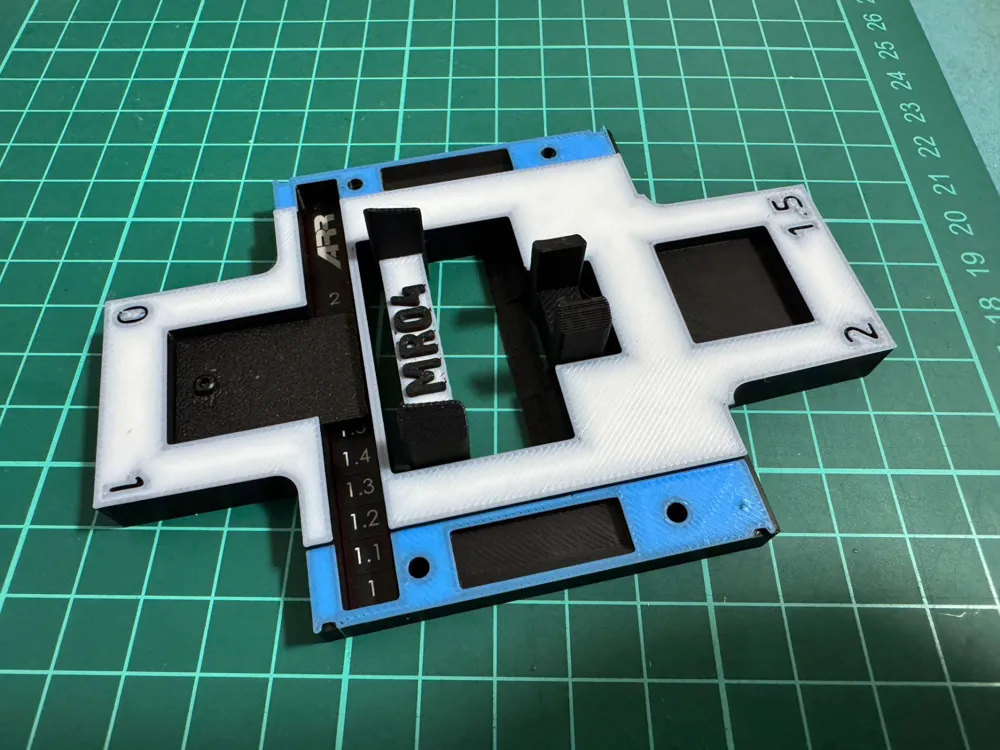

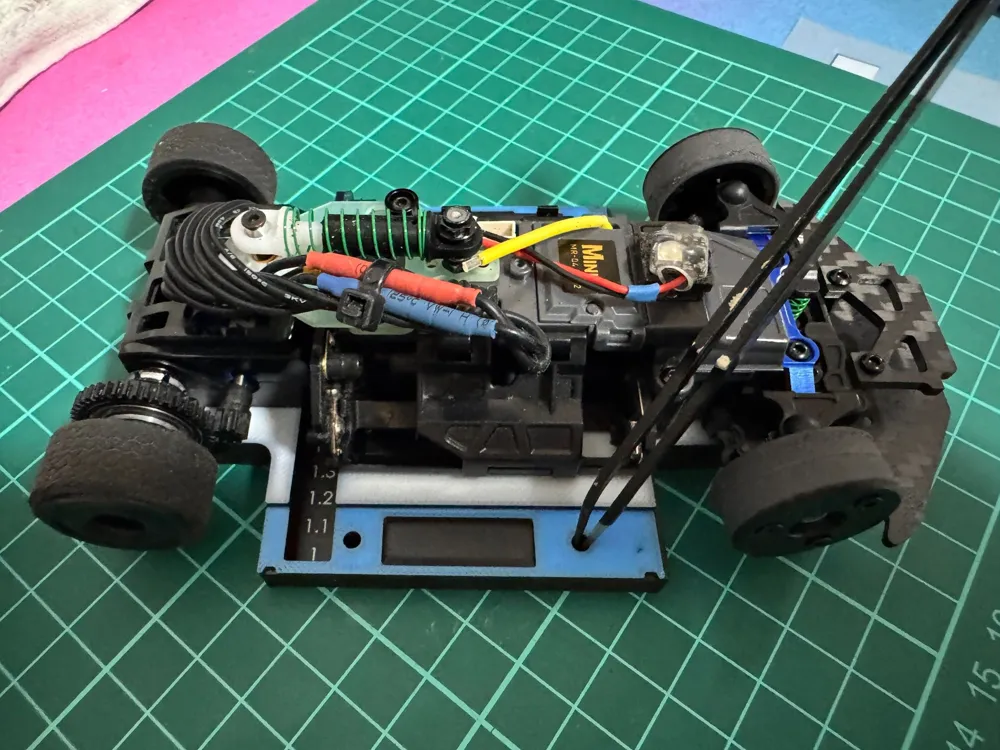

Version 1: Suitable for Kyosho MR04 and Open Chassis

Features:

• Kyosho MR04 Foldable Battery Removal/Holder built into the car stand
• 20mm x 20mm x 3mmH x 2 pieces, cut out for you to place your own foam (Optional)
• Tire tape cutting guide on the sides of the car stand (8.5mm and 11mm)
• 3mm diameter slots to service differential

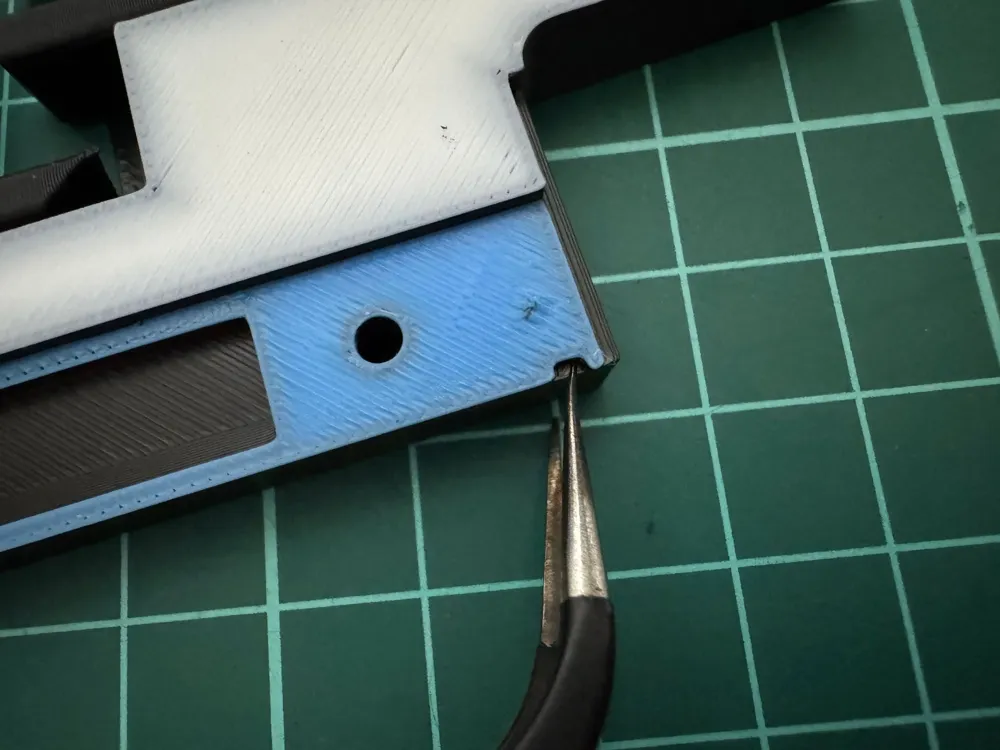

• 3mm diameter slots to hold tweezers
• Small pocket to hold differential balls/gears, C-clip or other small parts during servicing

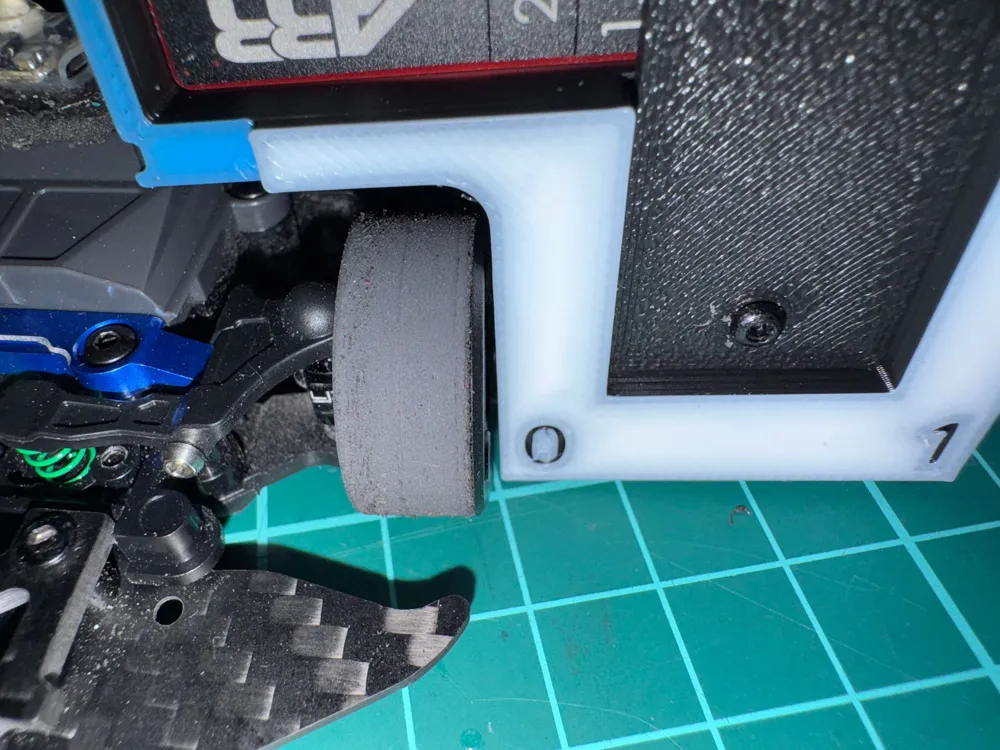

• 4 edges of the car stand as camber gauges (0, 1, 1.5 and 2 degrees)
• 1 slot to store ARR ride height gauge (Requires hardware)
• Additional cover plate to hold the ARR ride height gauge in place (Included in the print profile)

Requires:

• 1 x M2 x 4mm (min) to 6mm (max) button head screw

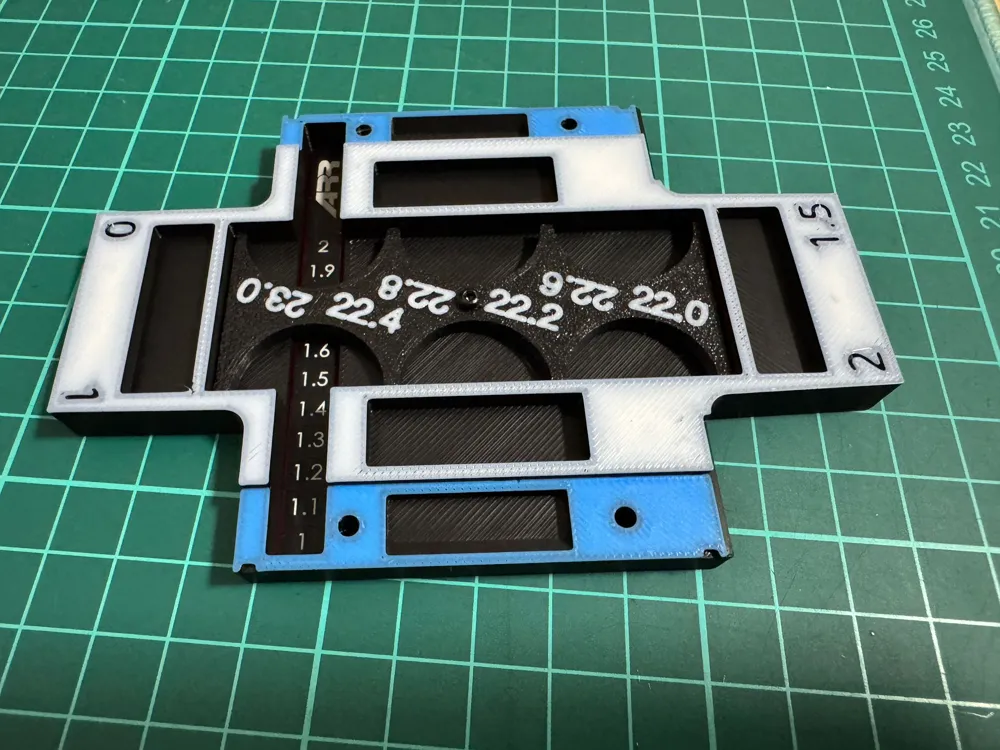

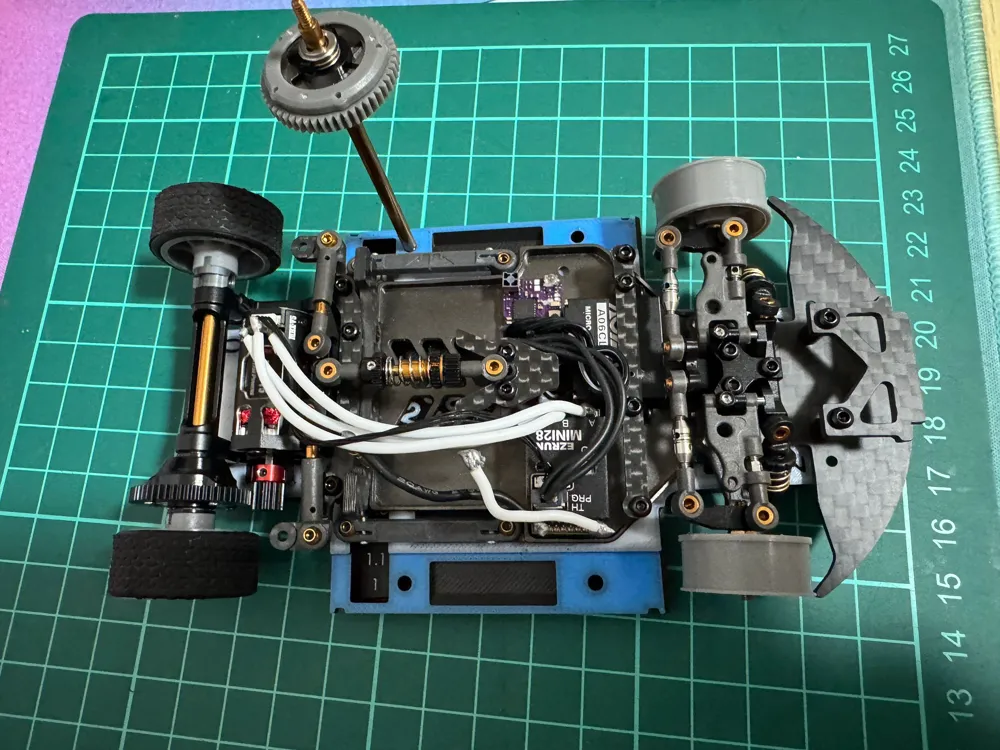

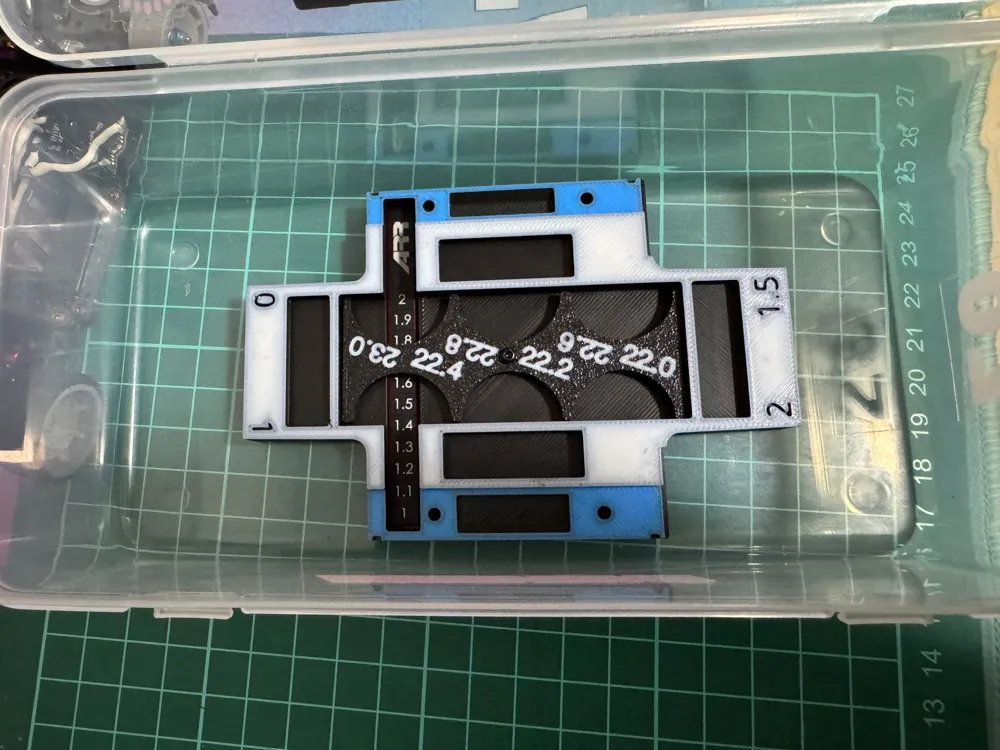

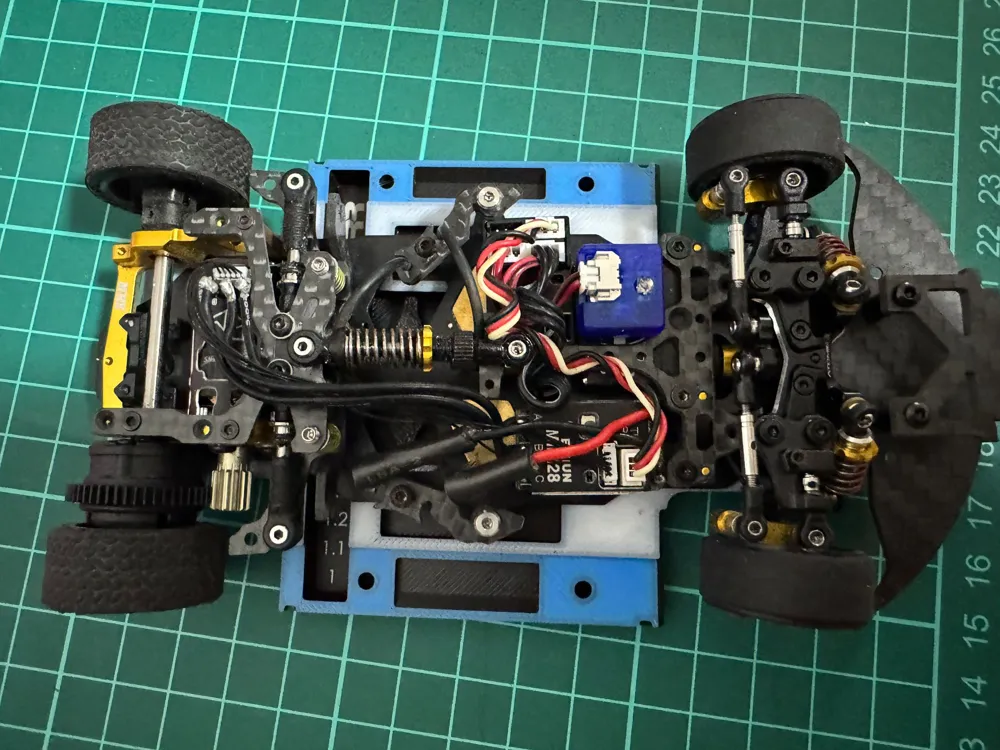

Version 2: Suitable for Open Chassis Only

Features:

• 10mm x 30mm x 3mmH x 4 pieces, cut out for you to place your own foam (Optional)
• Tire tape cutting guide on the sides of the car stand (8.5mm and 11mm)
• 3mm diameter slots to service differential
• 3mm diameter slots to hold tweezers
• Small pocket to hold differential balls/gears, C-clip or other small parts during servicing
• 4 edges of the car stand as camber gauges (0, 1, 1.5 and 2 degrees)
• 1 slot to store ARR ride height gauge (Requires Tire Diameter Gauge to lock in place)

Requires:

• Tire Diameter Gauge (To lock the ride height gauge in place, not required if not used)
• 1 x M2 x 4mm (min) to 6mm (max) button head screw
