Right Angle Clamp

LipToX1988
Tools>Gadgets
IP Report

Print Profile(1)

All
X1 Carbon
X1E
P1S
H2S
H2D Pro
P1P
X1
H2D
A1
P2S
H2C
X2D
A2L
0.2mm layer, 4 walls, 25% infill
0.2mm layer, 4 walls, 25% infill
Designer
4.4 h
1 plate
5.0(5)
Open in Bambu Studio
Boost
31
110
6
2
77
31
Released

Description

Content has been automatically translated.
Show original

Hello everyone,

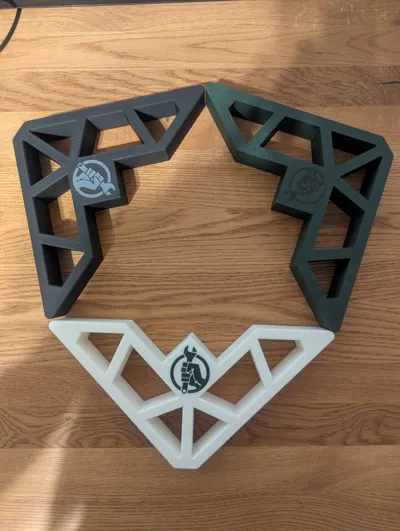

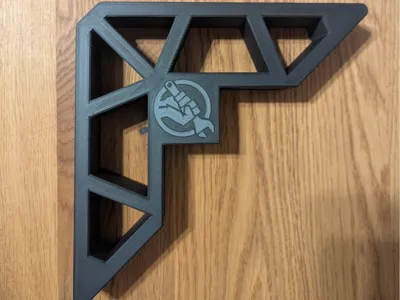

I designed this clamping angle for my brother. I find the "Right-To-Repair" logo quite fitting in this context. The edges are approximately 200 mm x 200 mm and the height is 35 mm.



Please feel free to provide suggestions and improvements.



I printed the angles in PLA with 4 wall layers and 25% infill. It makes a stable impression on me for now, but I haven't had time to test the angles yet.

Comment & Rating (6)

(0/1000)
@Kayhtee
Print Profile
0.2mm layer, 4 walls, 25% infill
Unlike some other corner profiles, quite right-angled and good to use
