Push In Circular Soffit Vent - 70mm, 75mm, 100mm
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
2.8 h
3 plates
Open in Bambu Studio
Boost
30
108
17
4
174
109
Released
Description

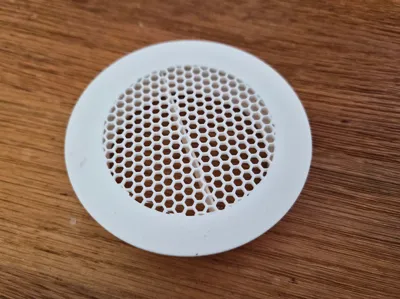

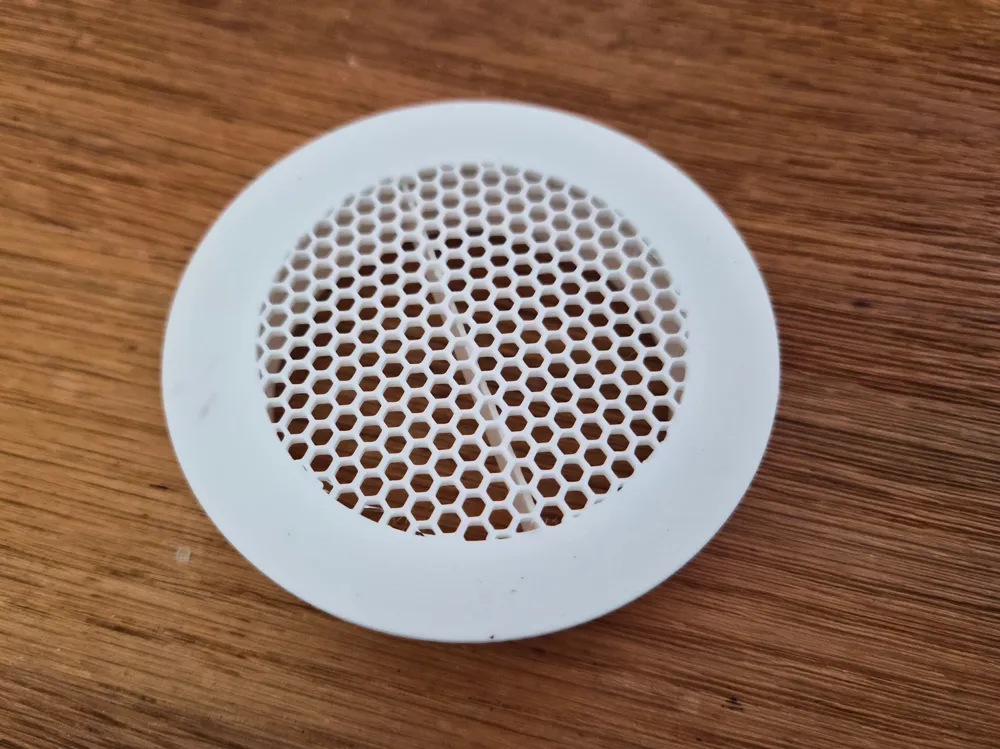

Soffit Vents in a variety of common sizes - suitable for hole sizes of 70mm, 75mm and 100mm. Each vent is just over 2cm high.

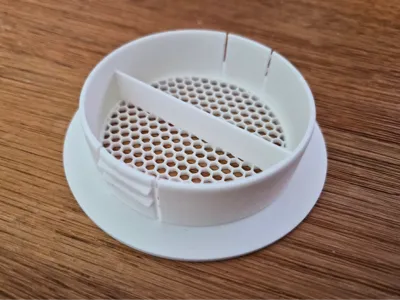

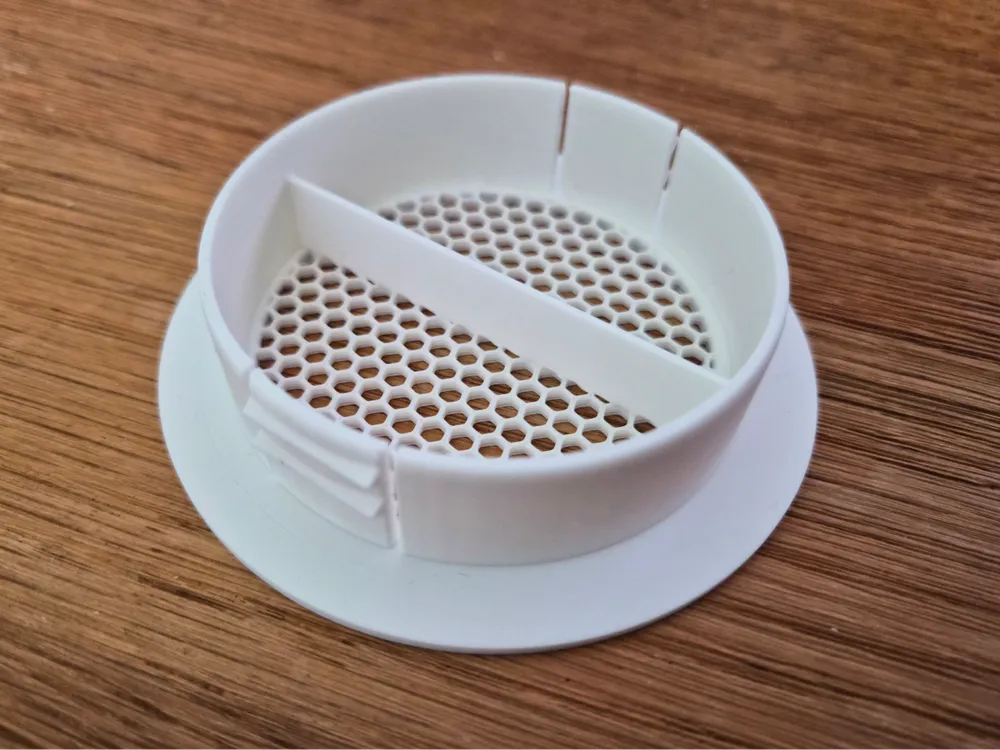

Featuring a grid ventilation to stop insects, as well as side grippers for a push fit mechanism. There is a side brim around, which I also used to add sealant for a better long term fit.
The grid itself is achieved via a modifier on the model, thus you can change its density or pattern (currently honeycomb) with ease.
It is suggested to be printed in PETG due to external use.
