Qidi Q2 Riser

QIDI Q2 Riser

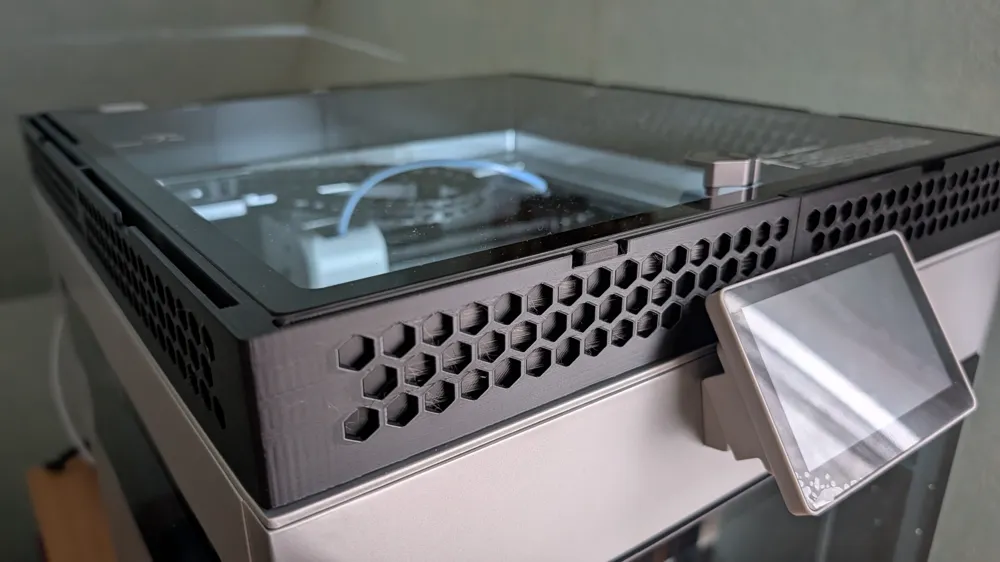

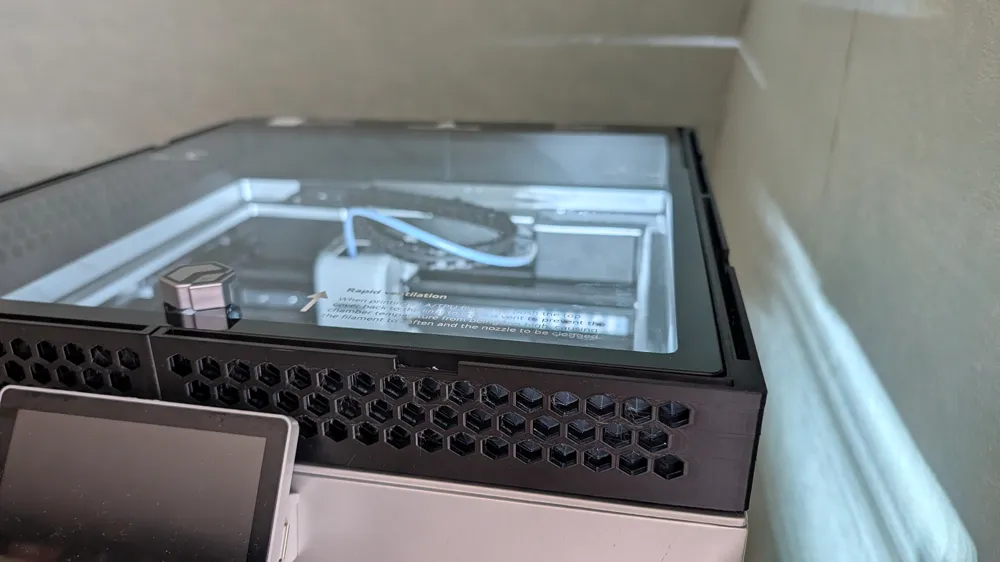

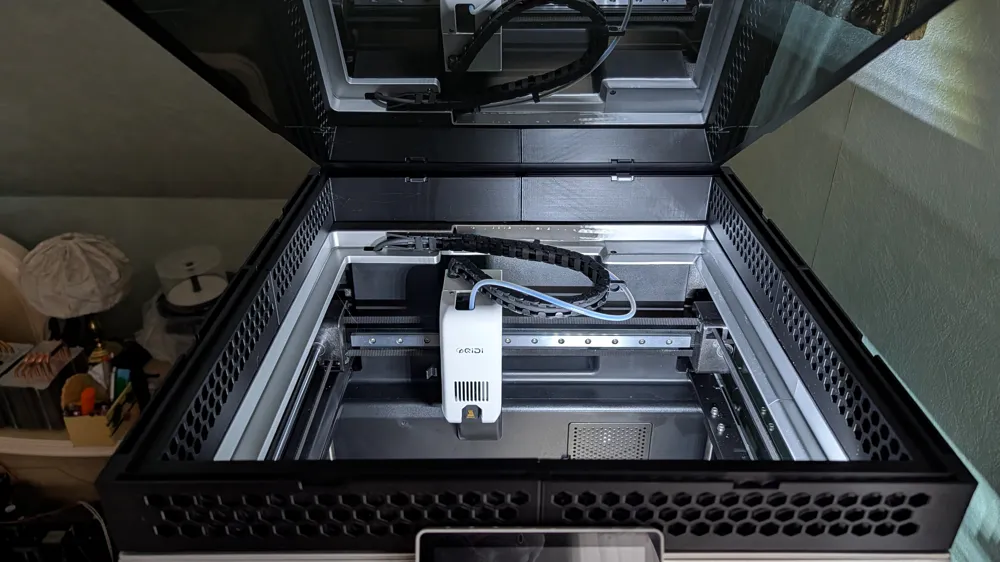

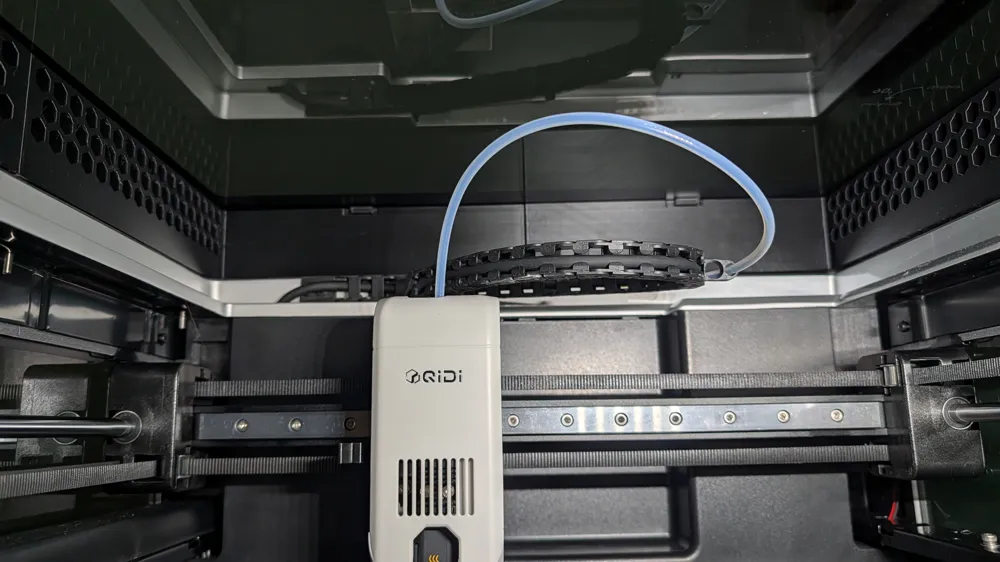

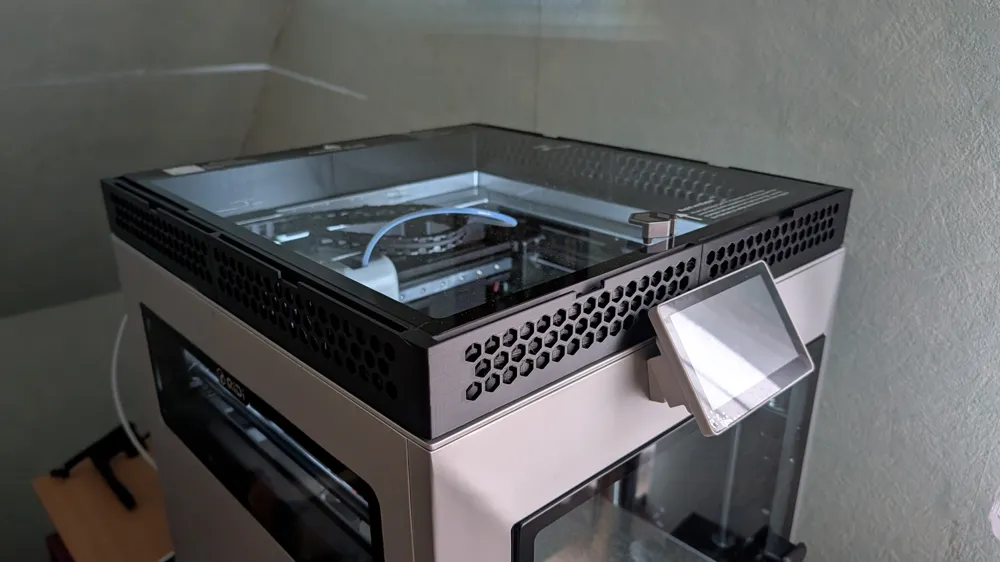

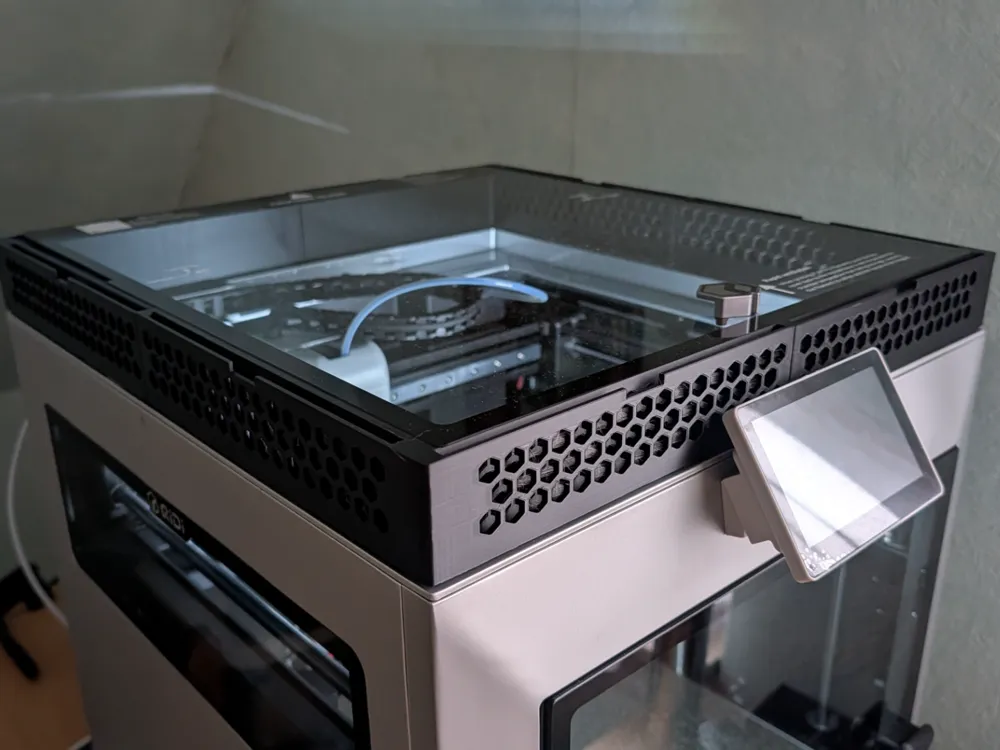

I redesigned the original H3D-Himon riser because the top glass wasn’t lifted high enough — the PTFE tube was still scraping against the glass.
This version increases the height by about 45 mm, giving the tube enough clearance and improving overall movement.

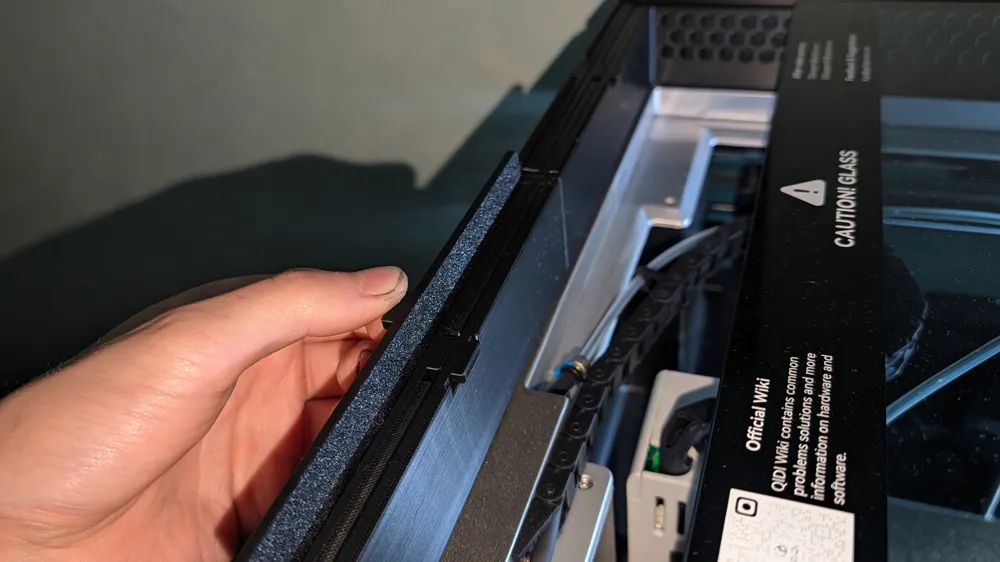

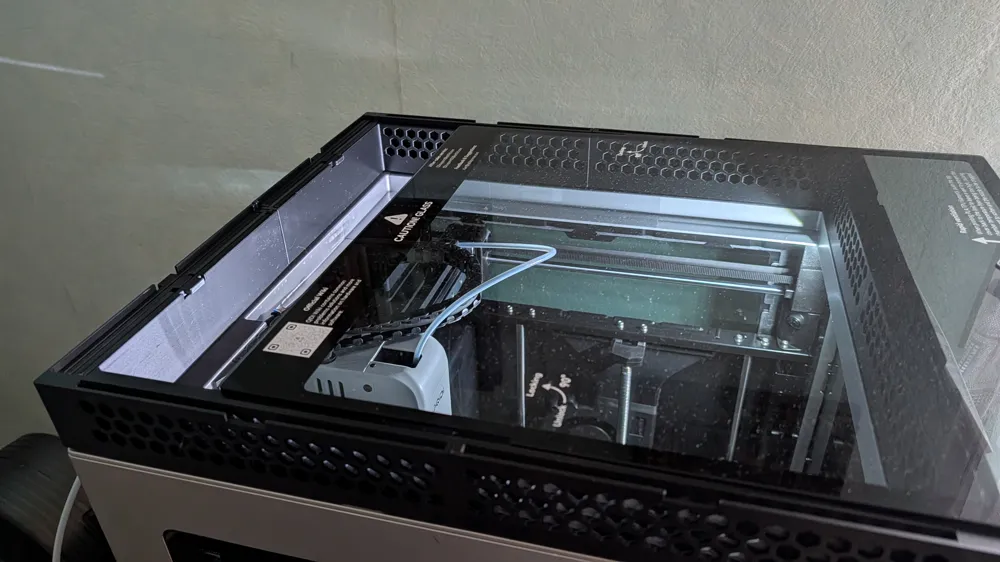

The design also includes six removable trays that can be taken out to improve airflow without removing the top cover.

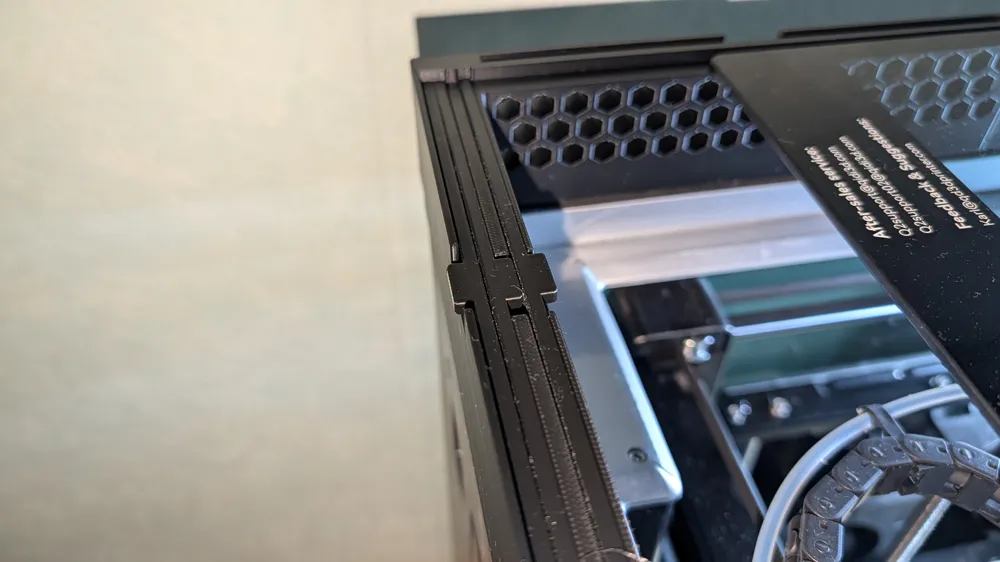

When the trays are not needed, they can be stored neatly at the back of the riser.

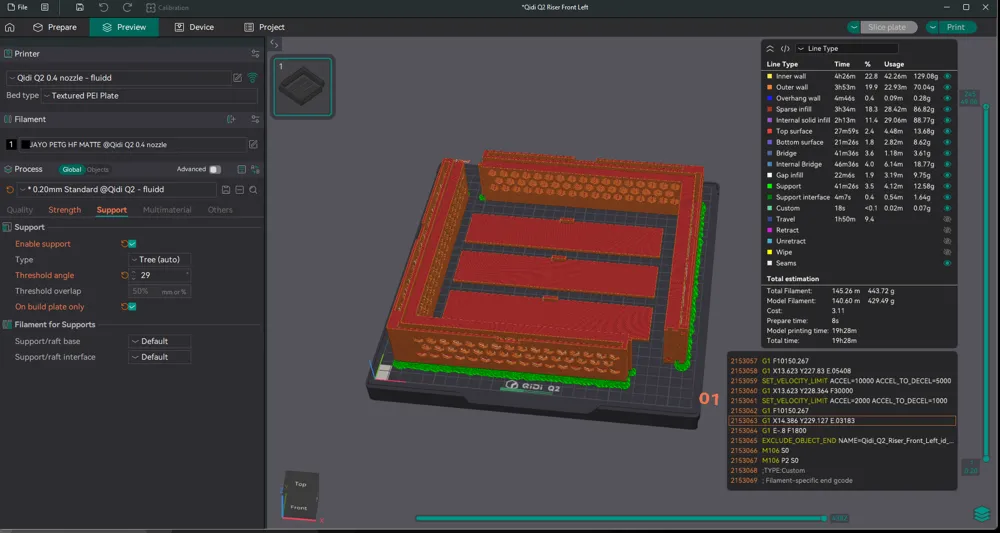

📏 Print Details

Adds ~45 mm of height

Printed in PETG

3 walls

30% infill

Tree supports enabled

Support on build plate only

Support overhang angle: 29°

Print orientation: flat on the bed

No post-processing needed

If you like this remix, please give it a boost so others can find it too!
And feel free to share your makes — I’d love to see how it works with your setup.
