Modular Helicopter Rotor with Swash Plate
Print Profile(1)
Description
Boost Me (for free)
I'm a student, and I don't actually own a 3D printer yet. Every design I post here is made and tested through slicer previews and careful modeling, not real prints — because right now, an actual printer is out of reach for me. Every boost this design gets brings me a little closer to changing that. A printer of my own would mean I could actually test and refine these mechanisms in real life, catch fit issues before you do, and put out better files a lot faster. Thanks a lot for the support. 🫶🫶

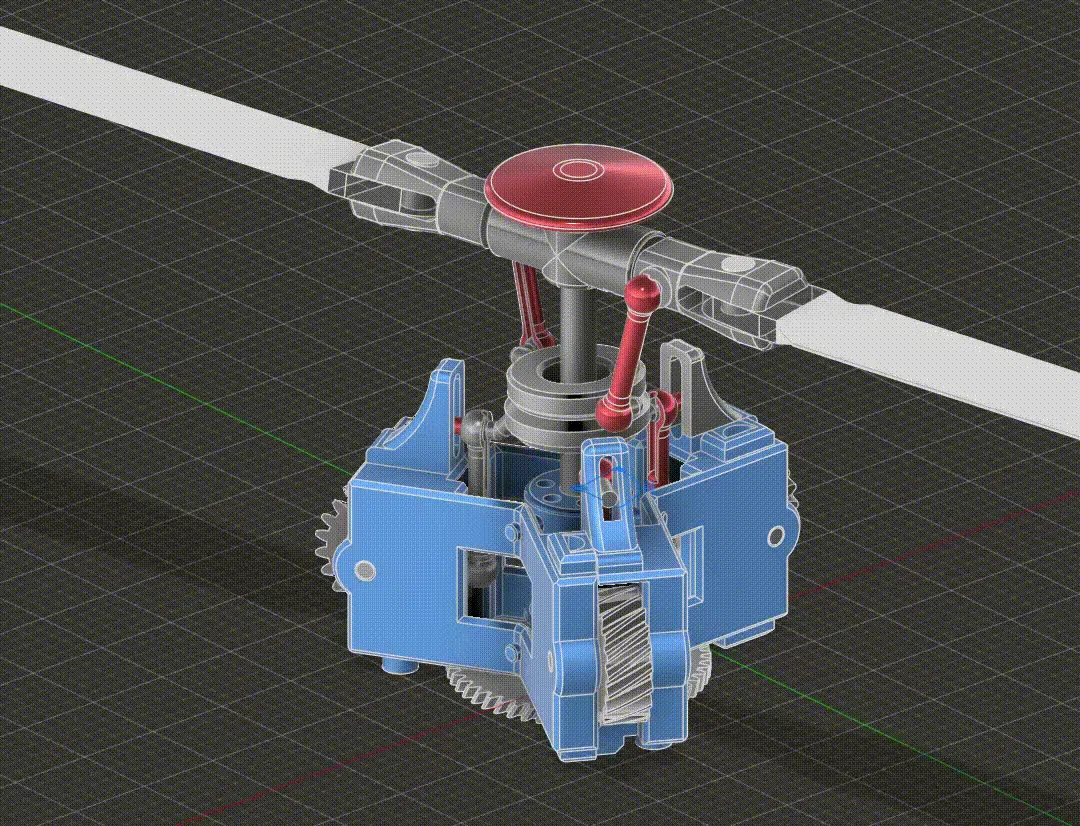

Modular Rotor with Swash Plate and also Fidget Toy This is a highly detailed 3D printable assembly designed for compatibility with helicopter modular systems. Inspired by functional aerospace aesthetics, this rotor/propeller features a NACA 23015 profile and a swash plate, making it perfect for hobbyists as both a functional design and a fidget toy.
I have removed all the other files, there is only one, in bambu studio right click, divide and then scale and organise for printing.
Key Features
- Scale: for standard helicopter modular systems (scalable in your slicer for custom sizes)
- Detail Level: High, with precise geometries for seamless integration and smooth operation
- Assembly: Multiple-piece design for straightforward printing
- Design Source: Original design inspired by coaxial helicopter engineering principles
Note This is a static part designed for helicopter modular systems, not intended for functional mechanical use. Ensure compatibility with your system before printing.
