ONE 40 Foot Container H0 & TT scale (1:87 / 1:120)

Remixed by

Print Profile(6)

All
H2D
X1E
X1 Carbon
H2D Pro
P1P
X1
A1 mini
P1S
A1
H2S

H0 PINK - 0.2mm nozzle, 0.12mm layer, 4 walls, 10% infill
H0 PINK - 0.2mm nozzle, 0.12mm layer, 4 walls, 10% infill
Designer
8.2 h
1 plate
5.0(6)

H0 WHITE - 0.2mm nozzle, 0.12mm layer, 4 walls, 10% infill
H0 WHITE - 0.2mm nozzle, 0.12mm layer, 4 walls, 10% infill
Designer
8.2 h
1 plate
5.0(2)

TT WHITE - 0.2mm nozzle, 0.12mm layer, 4 walls, 10% infill
TT WHITE - 0.2mm nozzle, 0.12mm layer, 4 walls, 10% infill
Designer
4.6 h
1 plate

TT PINK - 0.2mm nozzle, 0.12mm layer, 4 walls, 10% infill
TT PINK - 0.2mm nozzle, 0.12mm layer, 4 walls, 10% infill
Designer
4.6 h
1 plate
Click to see more

Open in Bambu Studio
Boost
58
193
10
5
200
65
Released

Bill of Materials

Bambu Filaments
Select all
Jade White (10100) / Refill / 1kg
Hot Pink (10204) / Refill / 1kg
Matte Ivory White (11100) / Refill / 1kg

Description

Since I haven't been able to find any print files for the ONE (Ocean Network Express) containers yet, I created this remix.

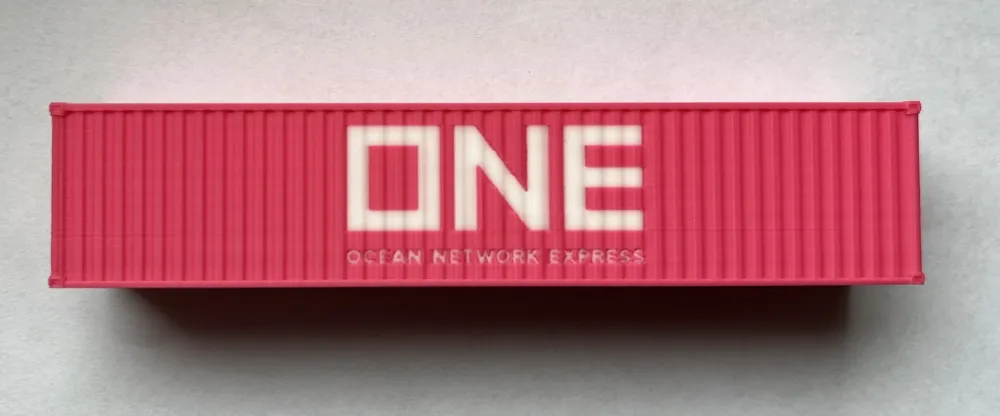

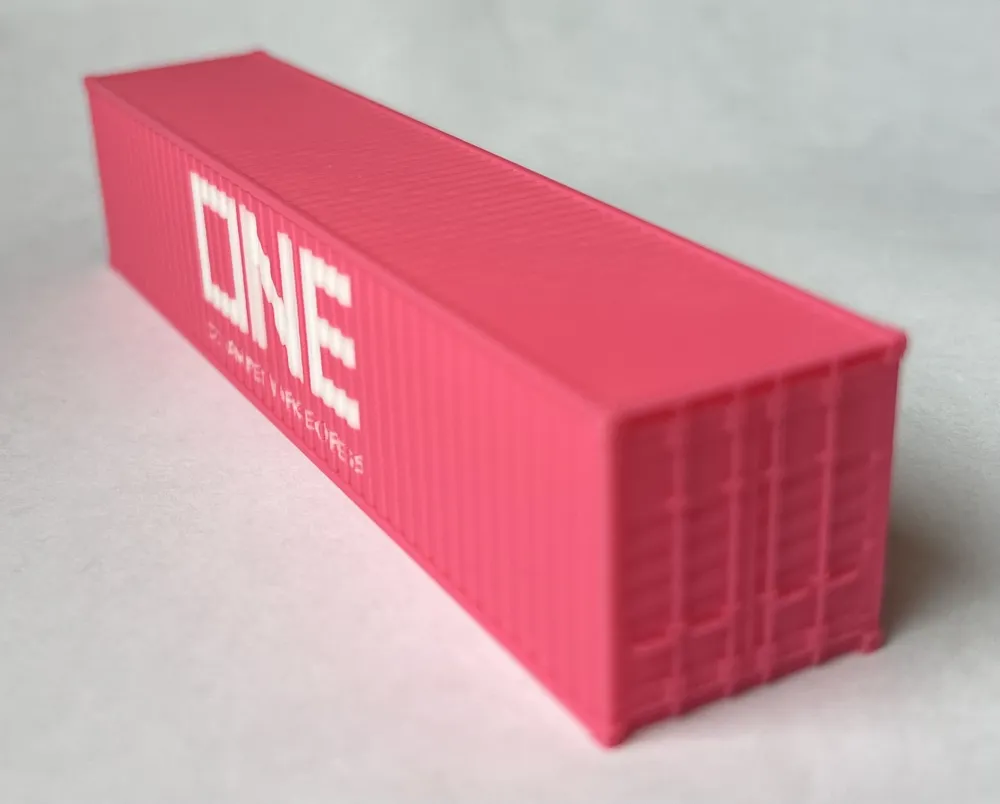

As is well known, they are usually pink, but sometimes also have inverted colors (refrigerated containers, as far as I know).

The model was initially designed for TT (1:120), but I also scaled the profiles for H0 due to its popularity.



Conversion factors
H0 to TT - 72.5%
TT to H0 - 137.93%



In addition, I am providing the blank models so that you can create containers from other brands. Feel free to share them with the community. :-) Also, many thanks go out to user techbit for sharing the basis for all of this.



The printing time is quite long, but you can significantly reduce the average time per container by printing two or three at the same time. An H2D is highly recommended!

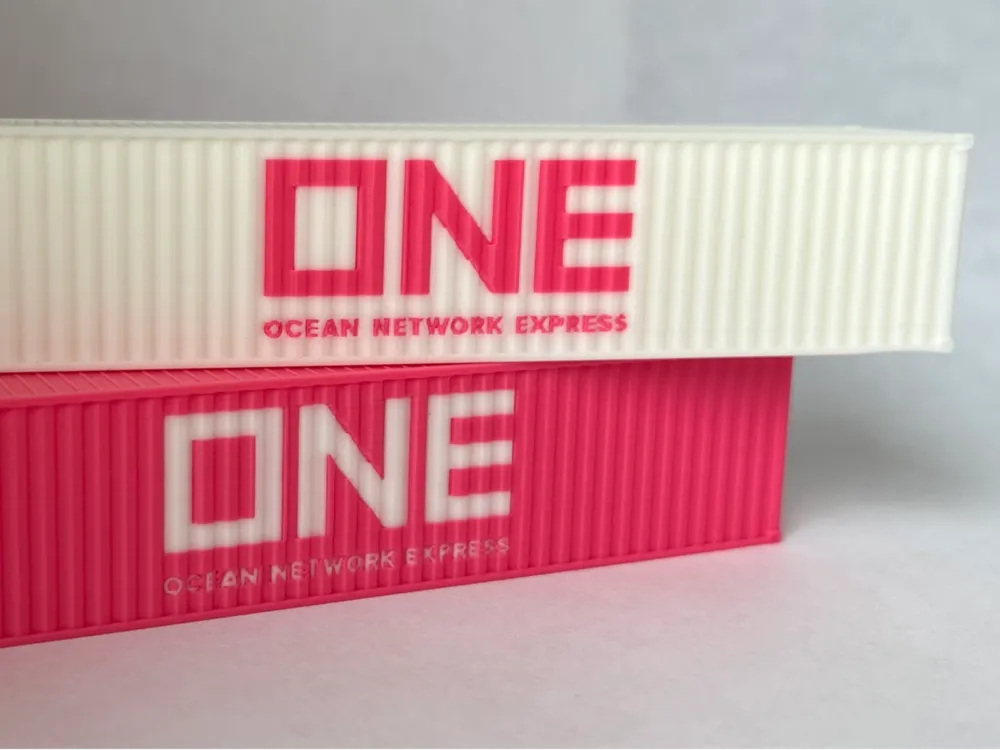

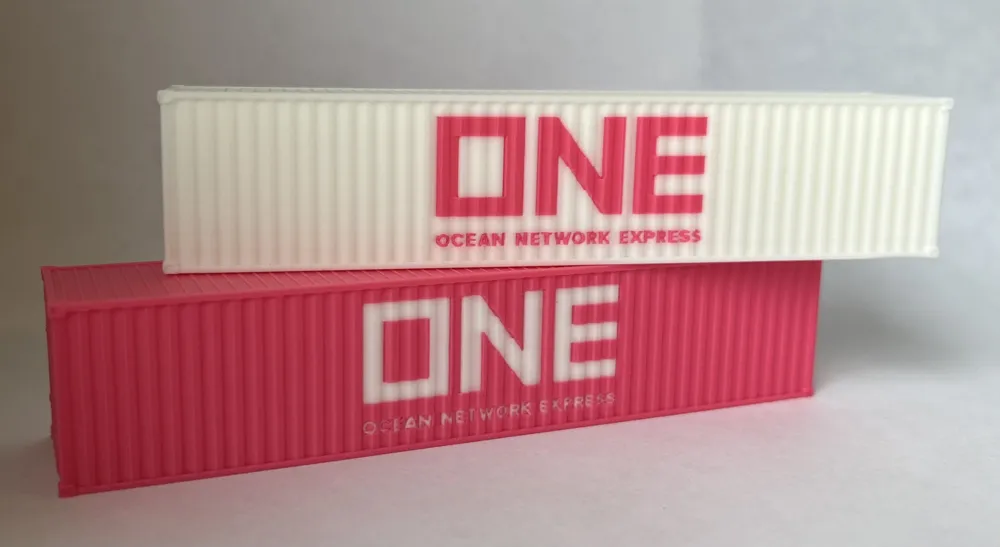

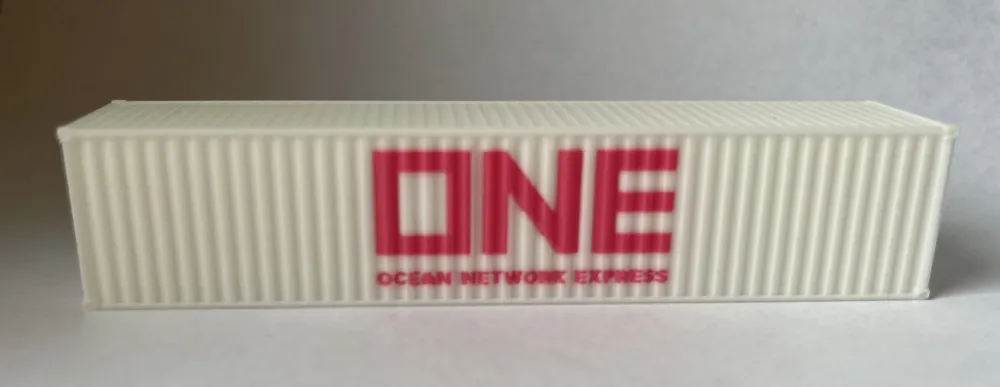

In the pictures, I used Jade White PLA (10100), but it is slightly translucent. Matte Ivory White PLA (11100) produced better results on another container.

It is essential for TT scale to print with a 0.2 mm nozzle, otherwise the details of the doors will not print correctly. For H0, this might work with a 0.4 mm nozzle too (feedback is welcome as I haven't tested it myself). I also used a smooth build plate.



Be aware that the logo is only visible if you open/edit the 3mf file directly in Bambu Studio. It won't be there if you first download the zipped file to your computer.
