HL01 LED Strip Profile Set (V2 Parametric)
Print Profile(1)
Description
Added New Customizable V2 Version (Parametric):
- Straight profile length adjustable to maximize for your print bed
- width adjustable to adapt to any LED strip width

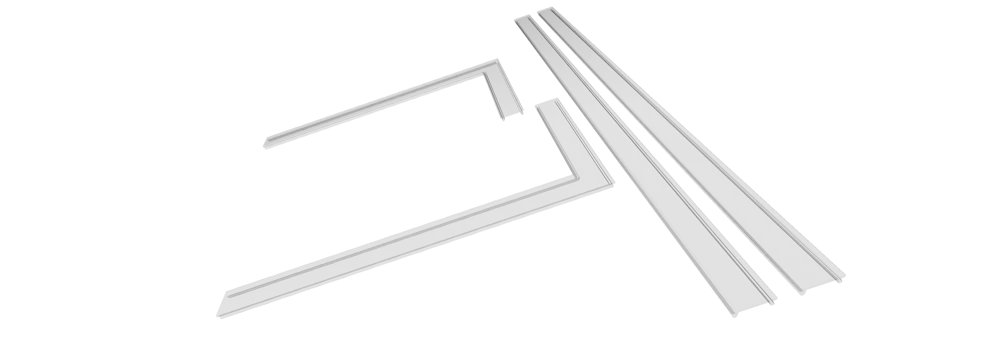

- Corner profile length adjustable to perfectly fit your project
- Automatically adjusts diffuser covers to the chosen length and width
- Automatically adjusts all accessories (fixing clip, profile end cap) to the chosen width for your LED strip

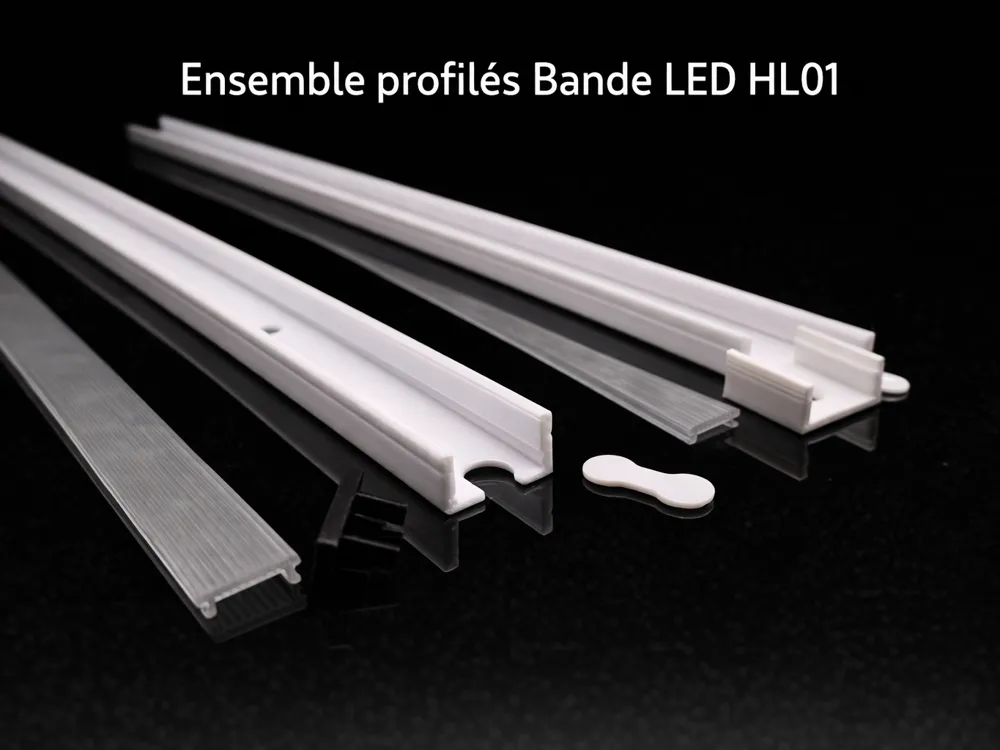

Reproduction of a profile set for LED strips up to 11mm.

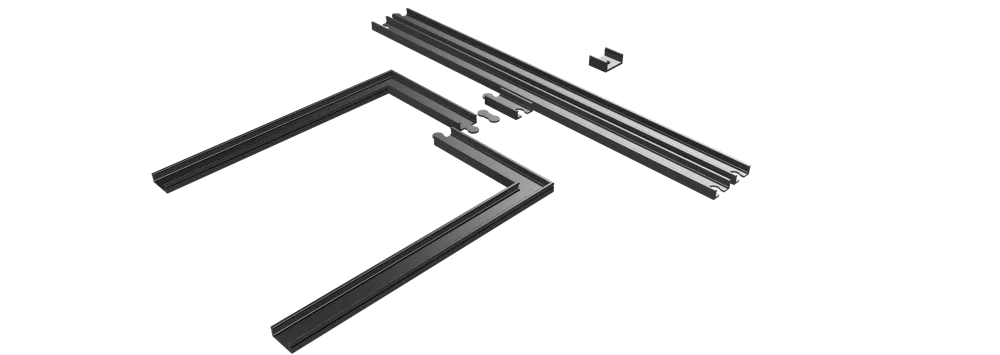

This model includes:
- support
- diffuser
- Solid or drilled end cap for cable routing

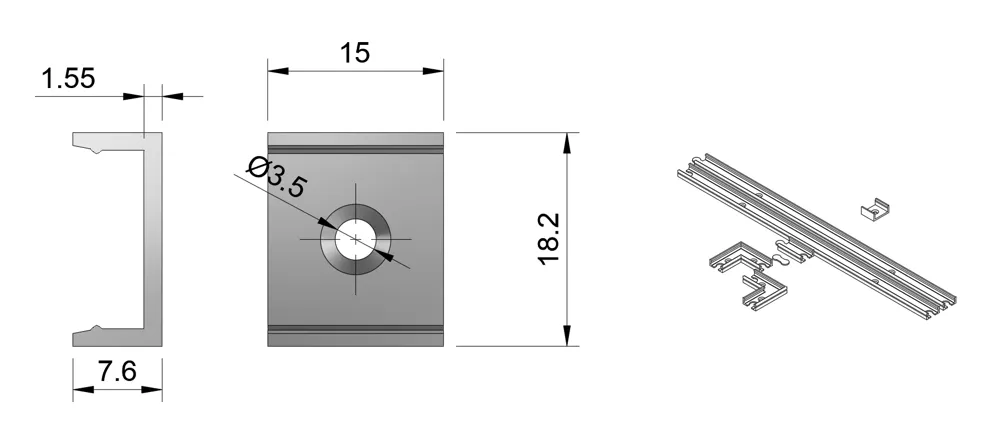

- Fixing clip
- attachment for each element

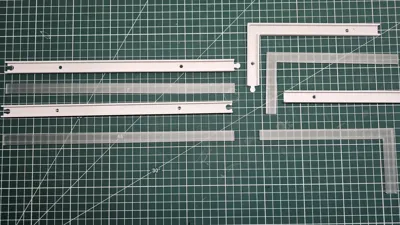

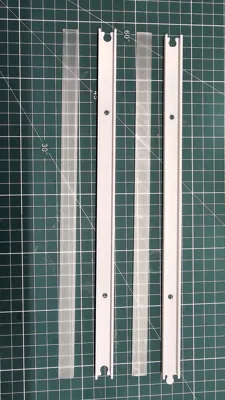

The straight profiles are 30 cm long to take advantage of the print bed's diagonal (X1C)

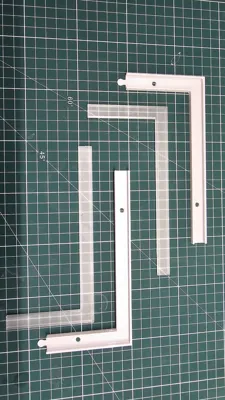

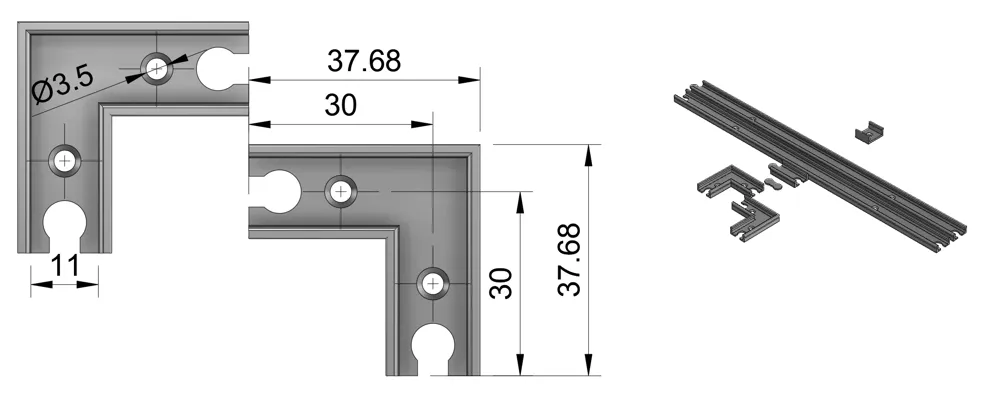

The right-angle profiles (3.5 cm per side)
It is advisable to print in PETG to withstand the heat of the LED strip, but PLA works very well.

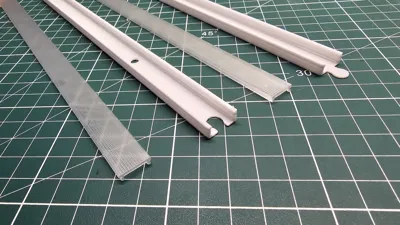

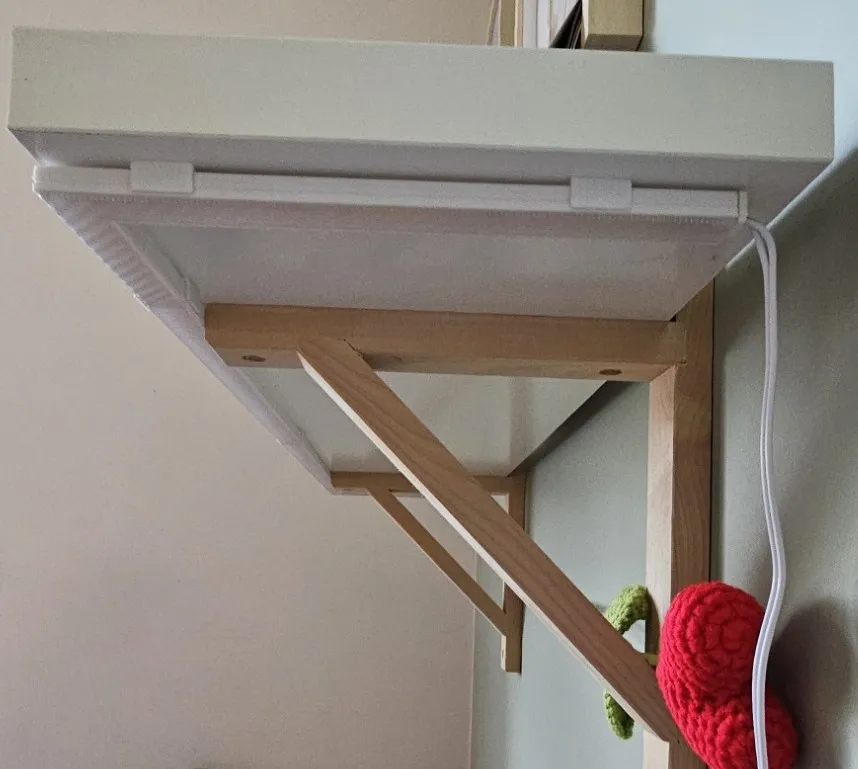

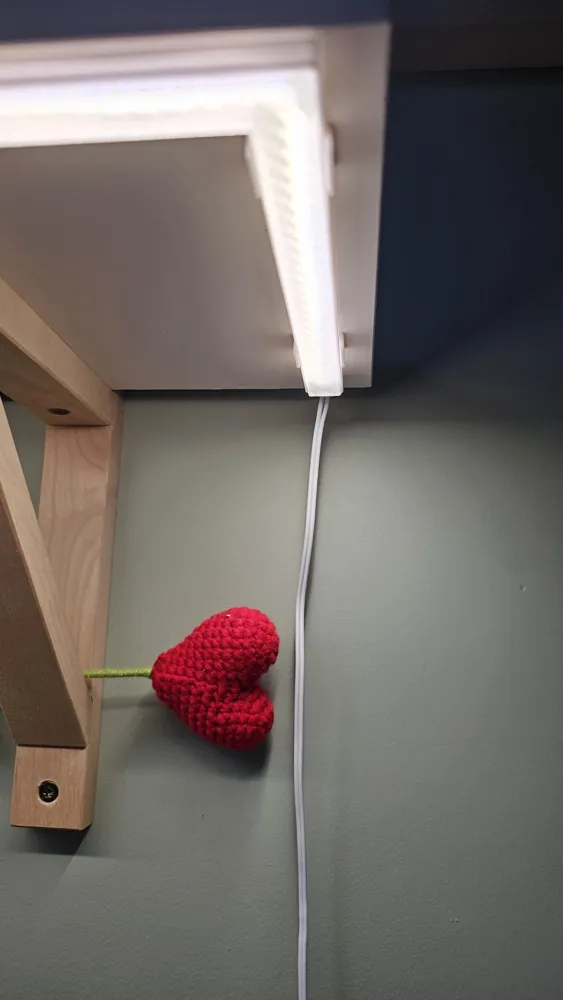

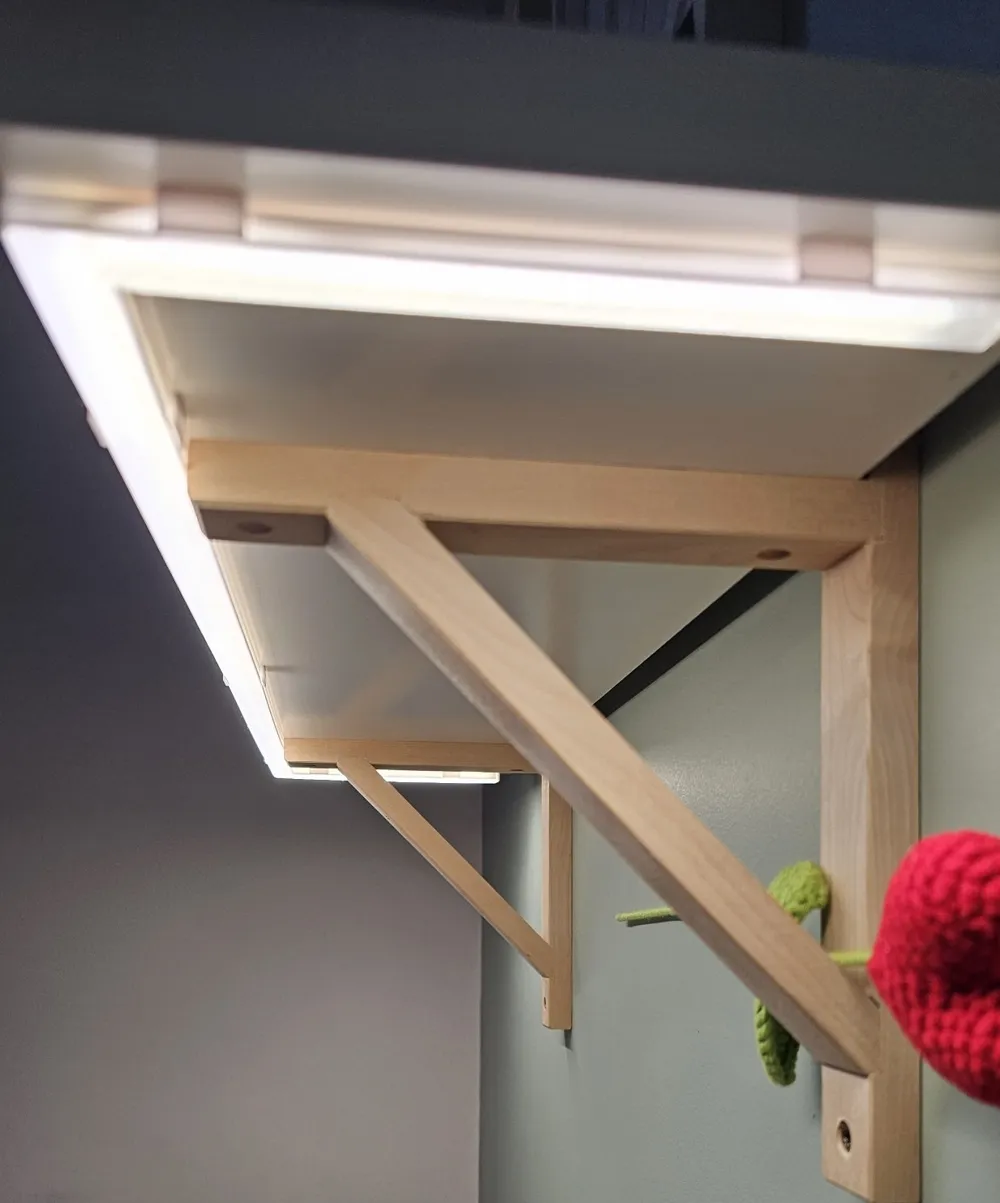

It is advisable to use matte materials for the support to avoid light diffusion through it (see photos)
For the diffusers, I printed with ROSA3D transparent PETG filament by applying Bambu Lab's setup tips for the most translucent effect possible. (Better Temp/Speed settings)
