Makita LED Tube
Print Profile(1)
0.24mm layer, 3 walls, 10% infill
Designer
33.8 h
10 plates
Open in Bambu Studio
Boost
11
30
0
0
20
3
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Bambu Filaments
Select all
List other parts
- 0,8-1mm sheet metal plates x 2: can be cut from a sheetmetal plate
- M4x20 countersunk Screws x 2:
- M3x20 countersunk Screws x 2:
- M3x8 countersunk Screws x 2:
- LED Controller x 1: https://de.aliexpress.com/item/32910959719.html?spm=a2g0o.order_list.order_list_main.5.25701802jBels2&gatewayAdapt=glo2deu
- Standard RGBW LED Strip x 1: https://de.aliexpress.com/item/1005009639852693.html?spm=a2g0o.order_list.order_list_main.23.25701802jBels2&gatewayAdapt=glo2deu
- IFM LED Strip (only for IFM Version) x 1: https://www.ifm.com/at/de/product/DV1104
- IFM Profile (only for IFM Version) x 1: https://www.ifm.com/at/de/product/E89034
- IRF4905 (only for IFM Version) x 4: https://de.aliexpress.com/item/1005009248346790.html?spm=a2g0o.order_list.order_list_main.40.25701802jBels2&gatewayAdapt=glo2deu
- 2mm x ~30mm Pins x 9: can be cut from a 2mm welding wire

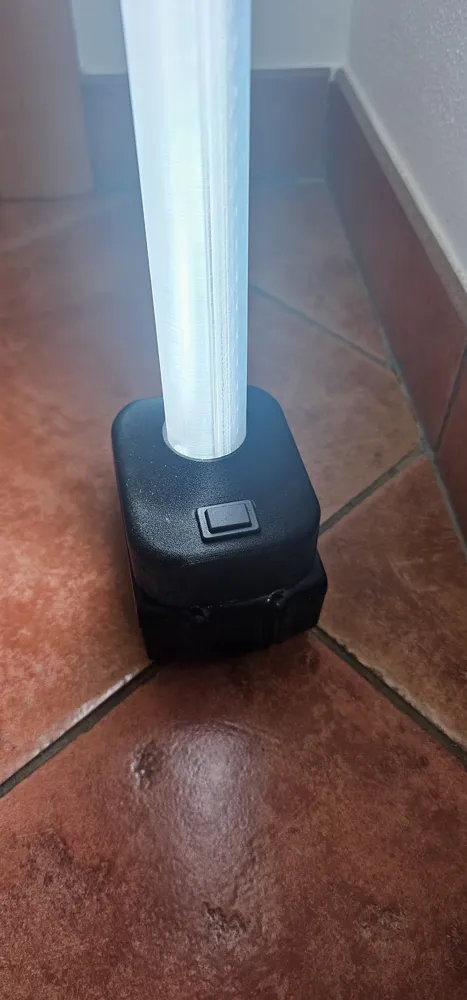

- Power Switch x 1: https://a.aliexpress.com/_EI207qM
Description

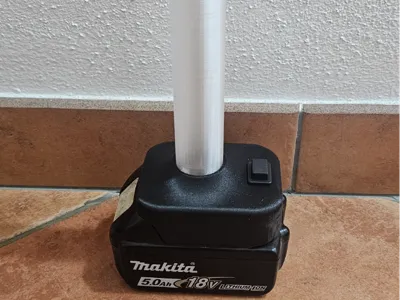

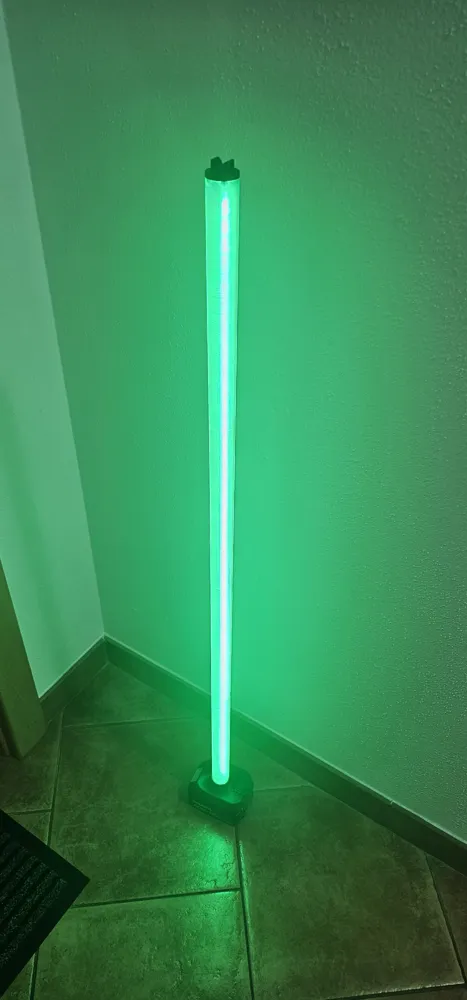

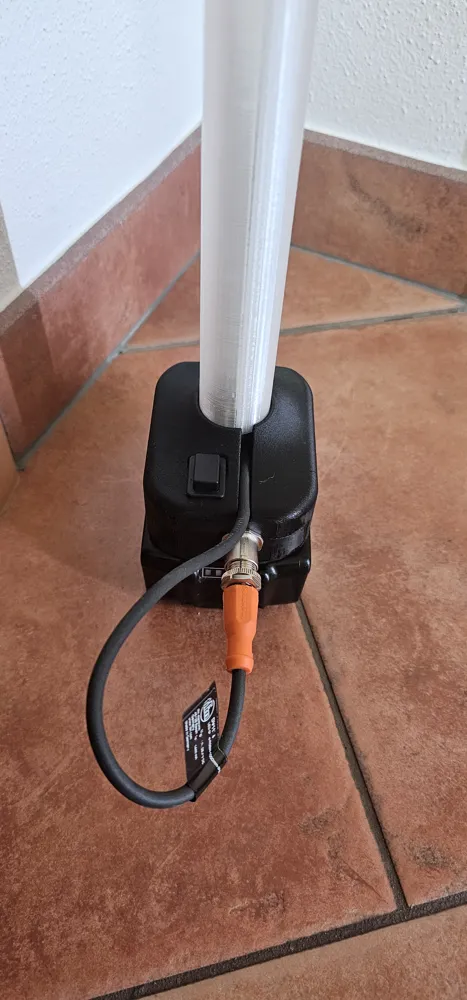

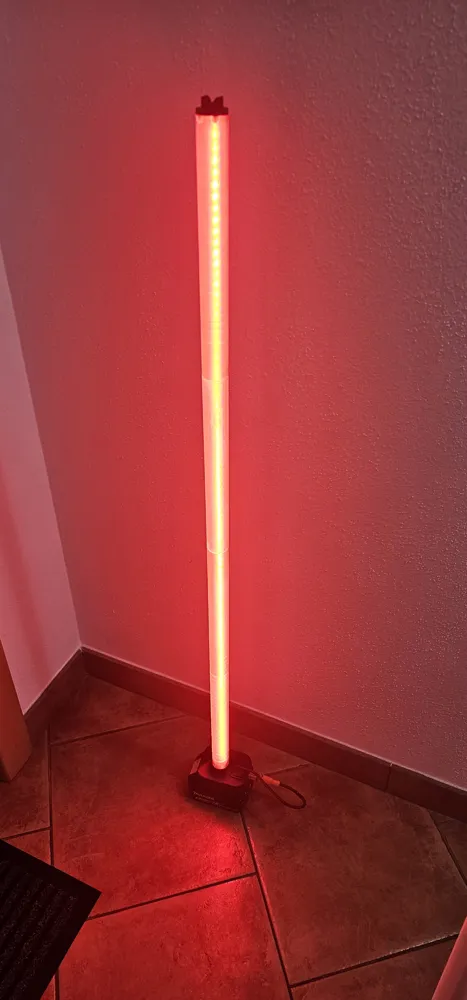

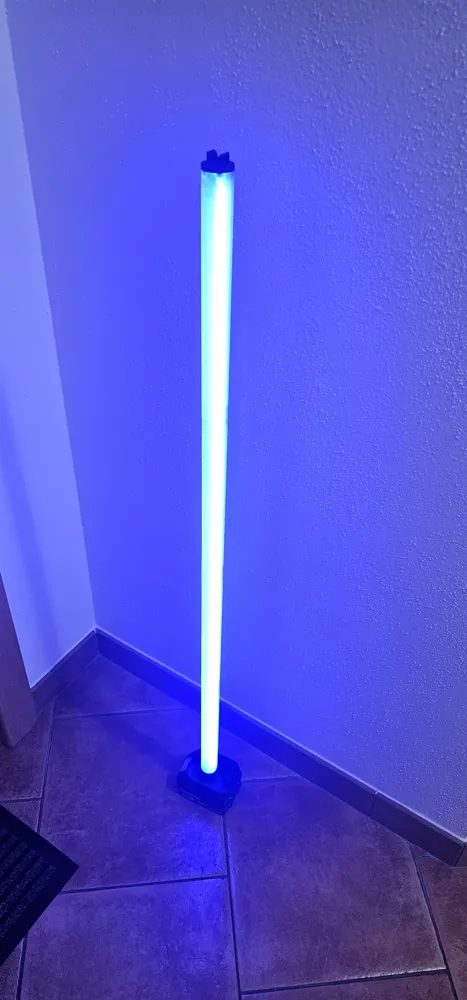

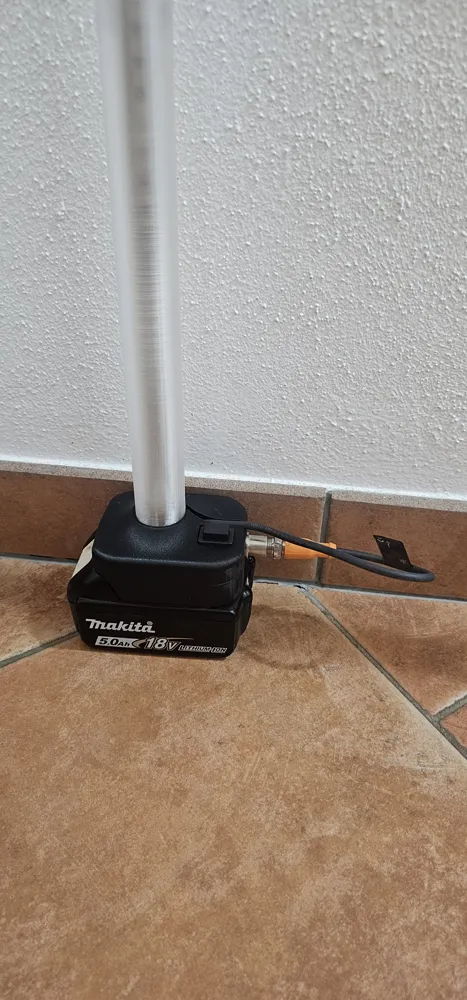

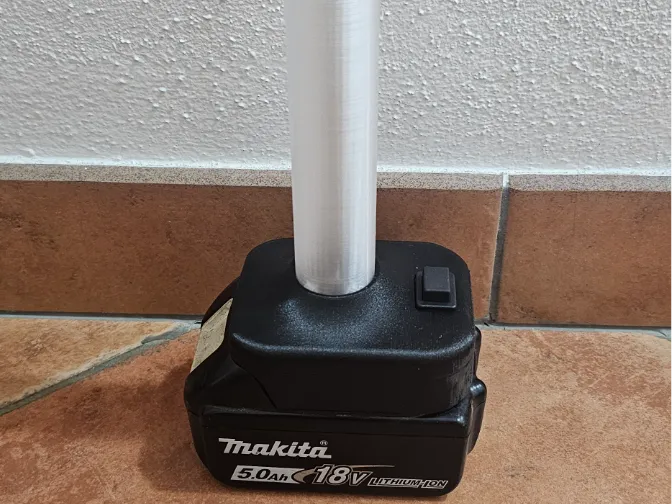

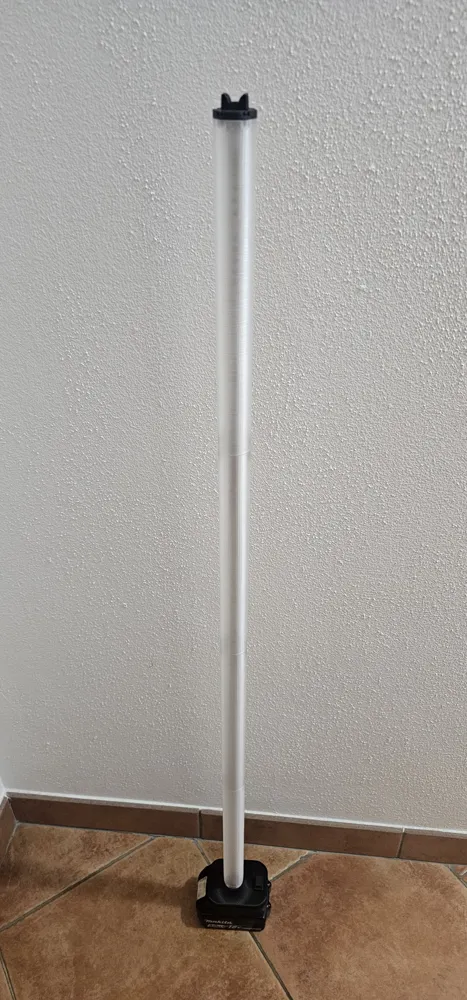

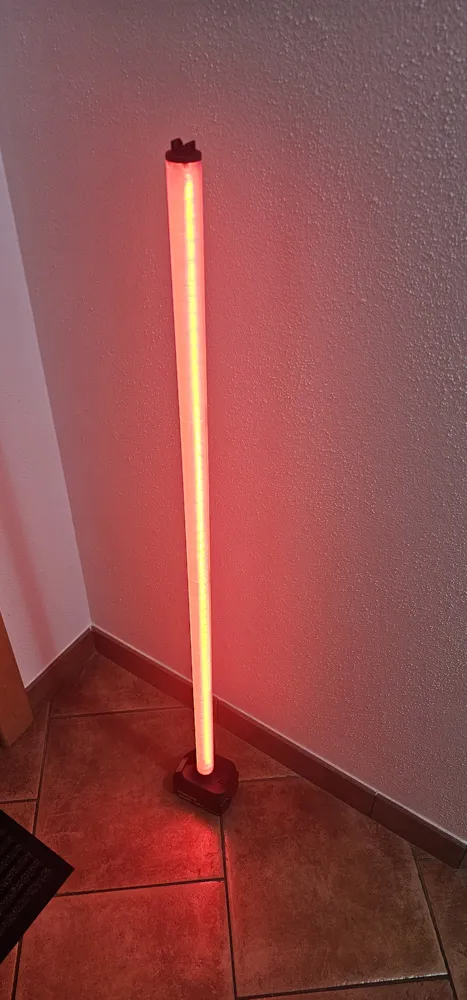

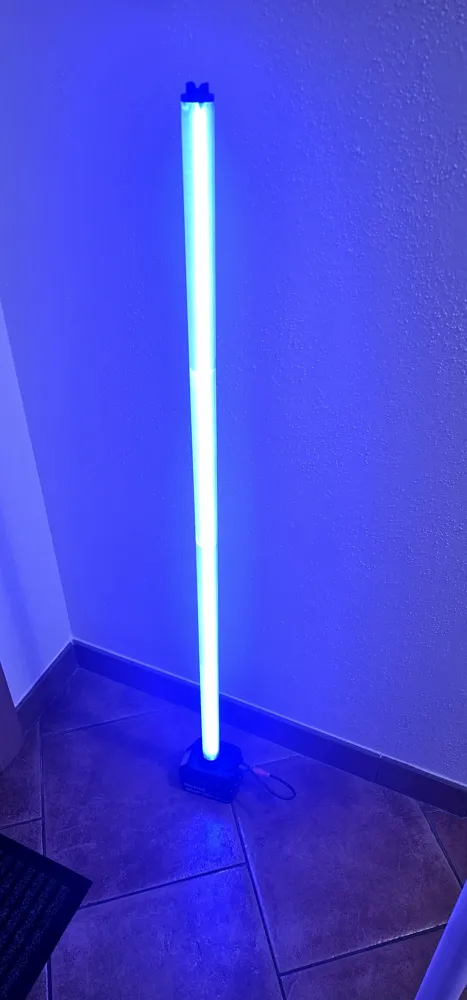

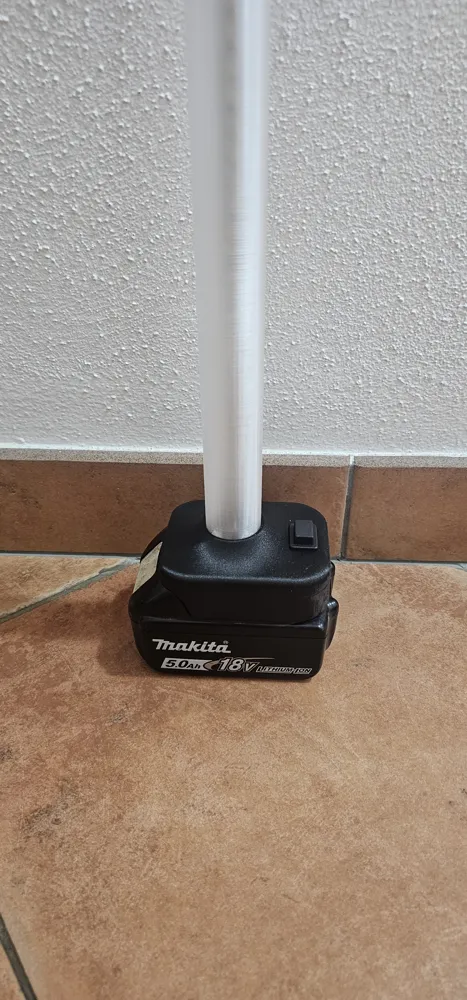

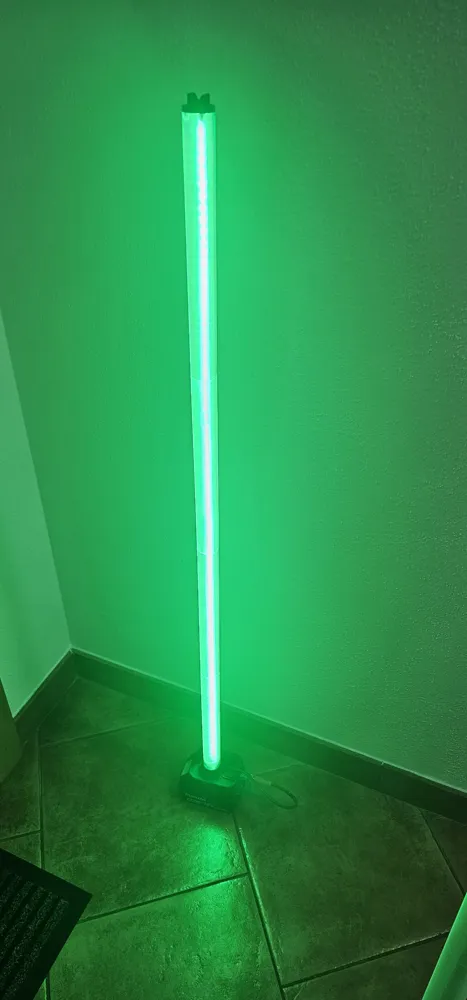

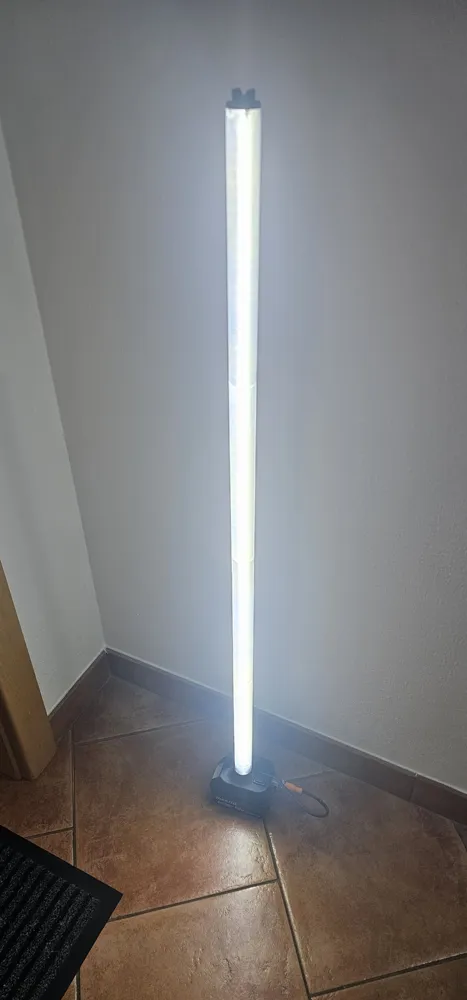

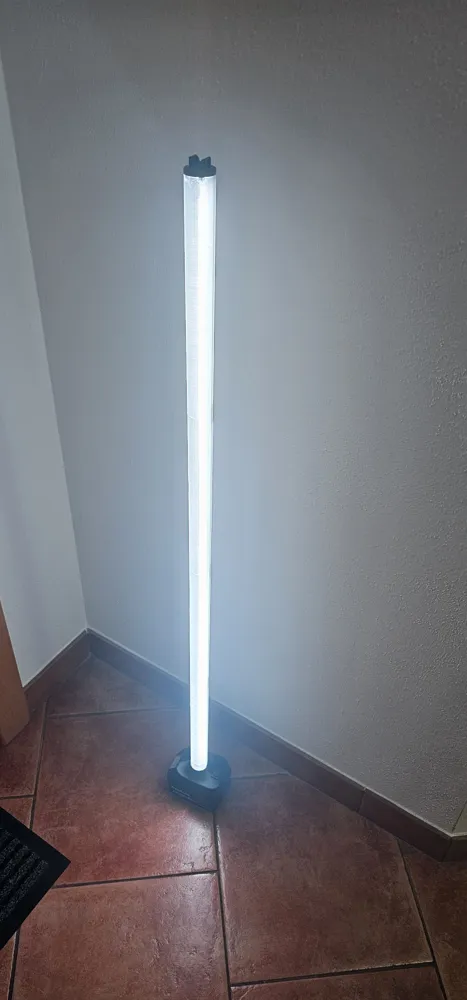

This is a LED Tube for Makita batteries. There is a version for standard 10 - 12mm led strips and one for the IFM Led Strip.

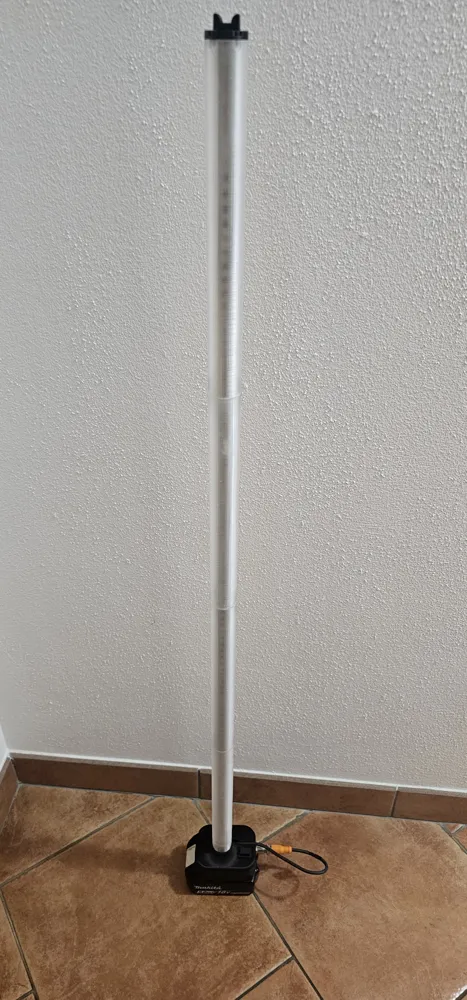

The length of the Tube can be adjusted by printing more or less middle Tubes.
The tubes hold together by 3x 2mm metal pins with press fit or CA Glue.
