Skateboard shelf - Easy assembly

3D support to convert a skateboard into a shelf (easy assembly)

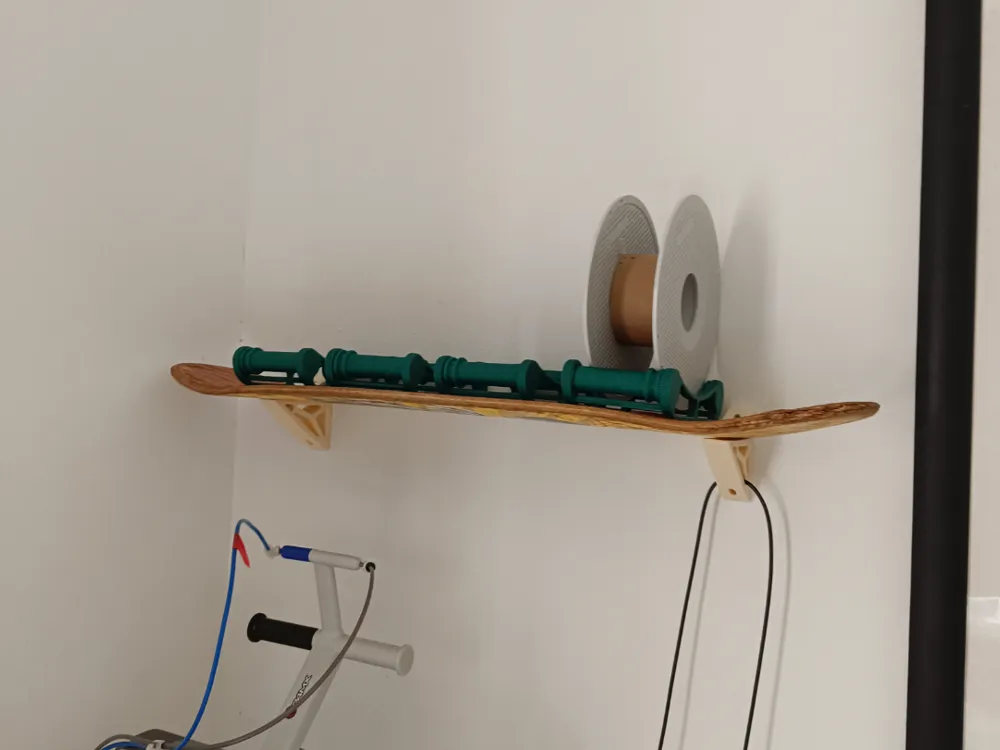

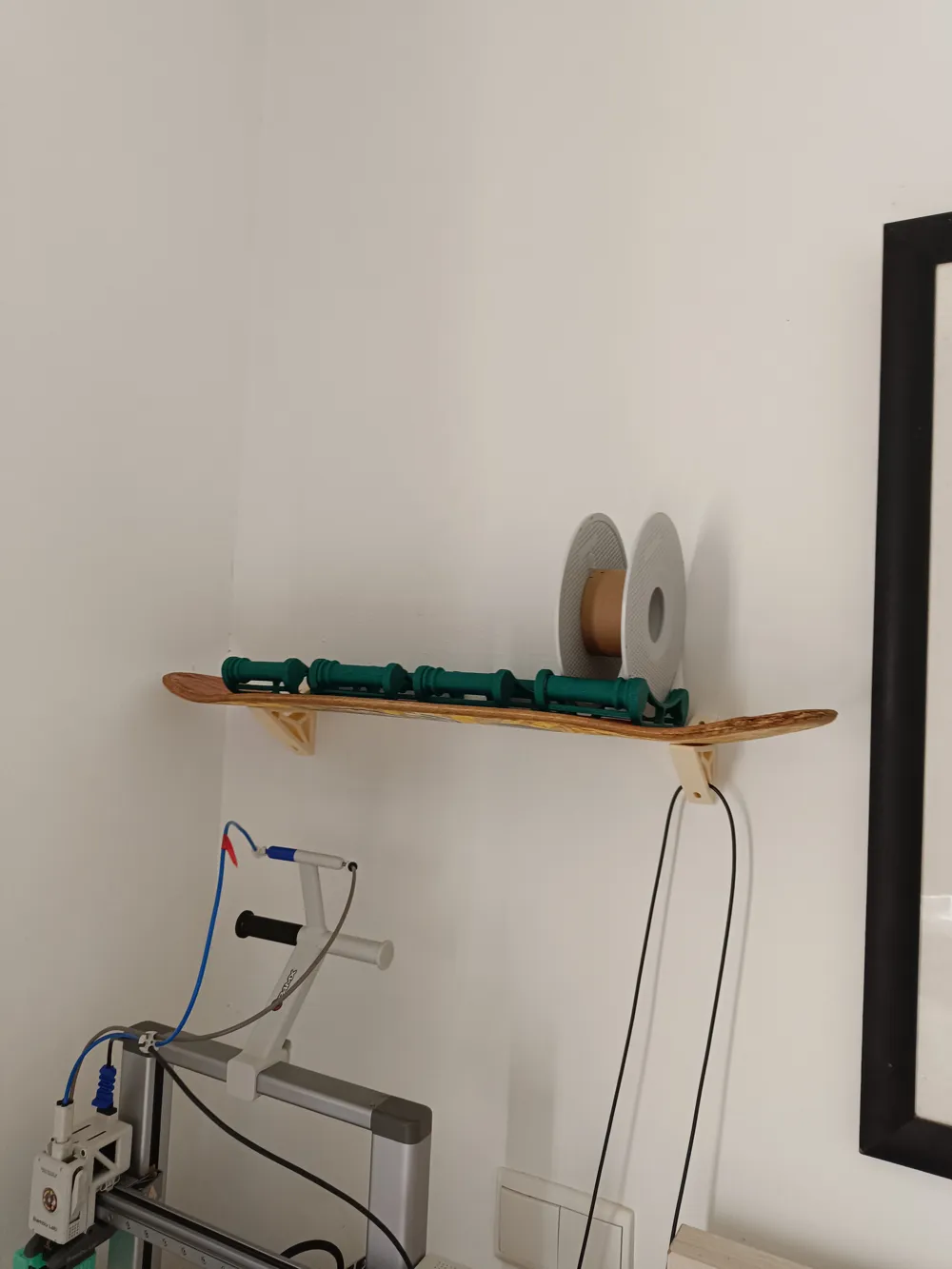

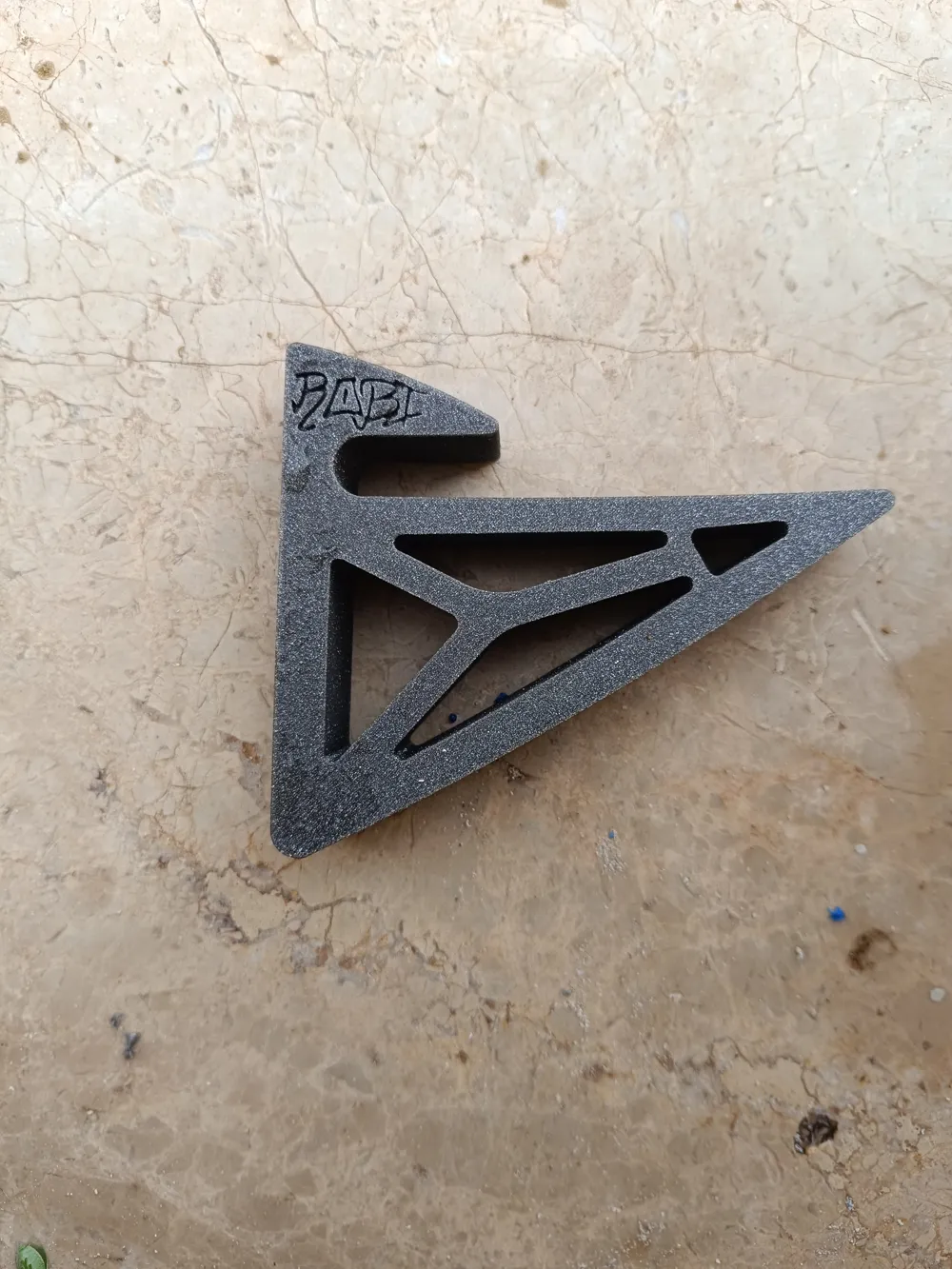

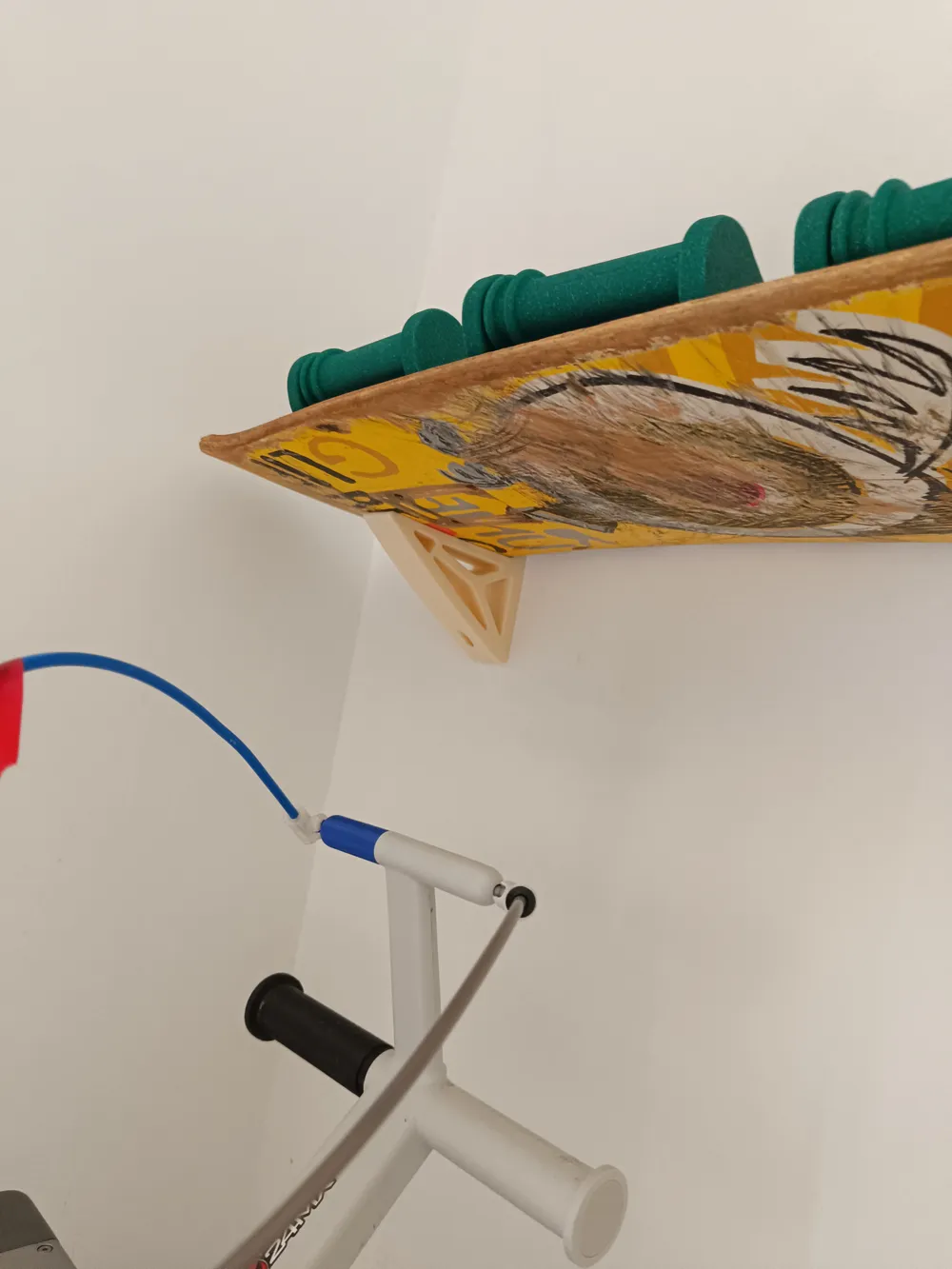

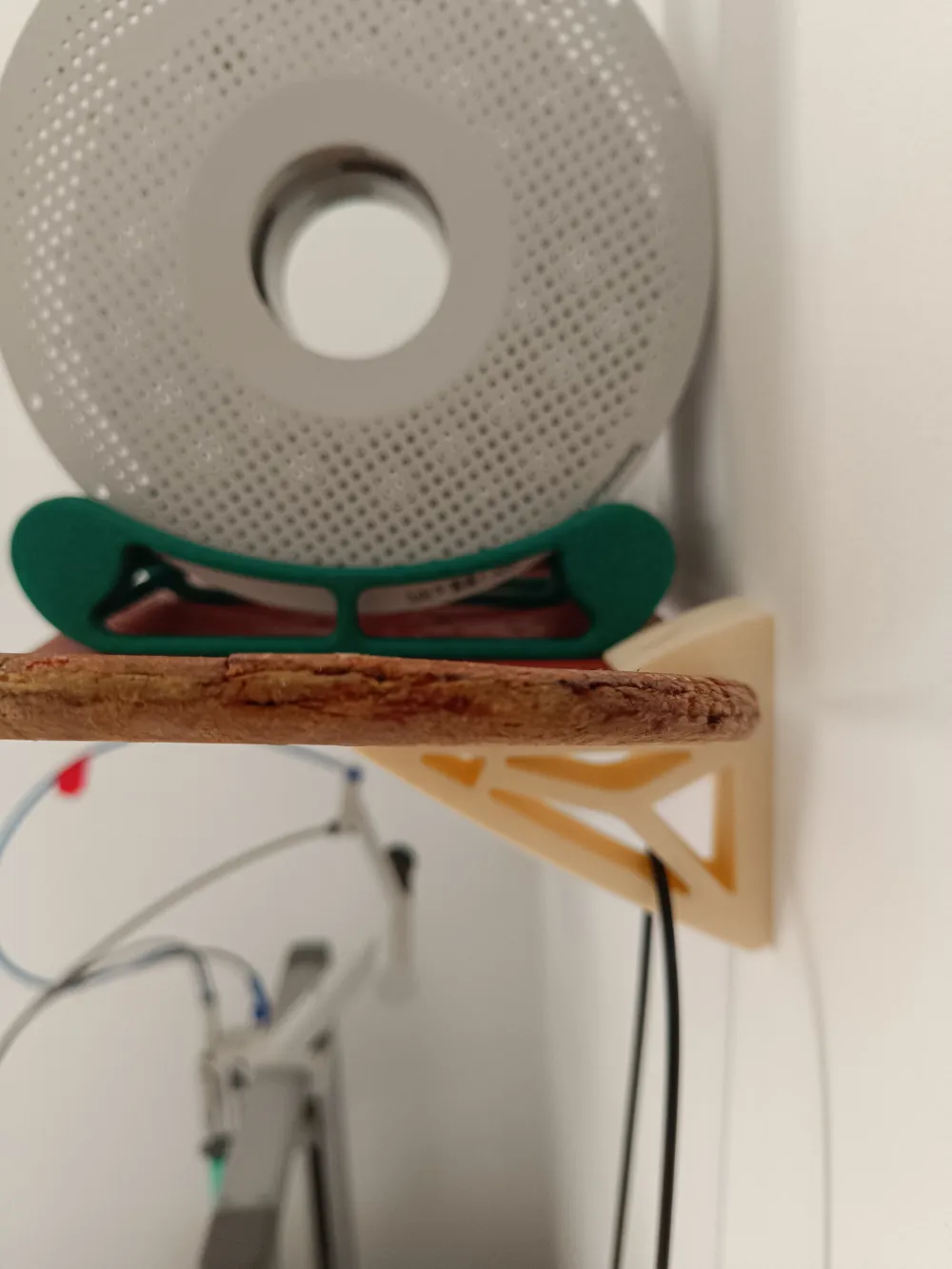

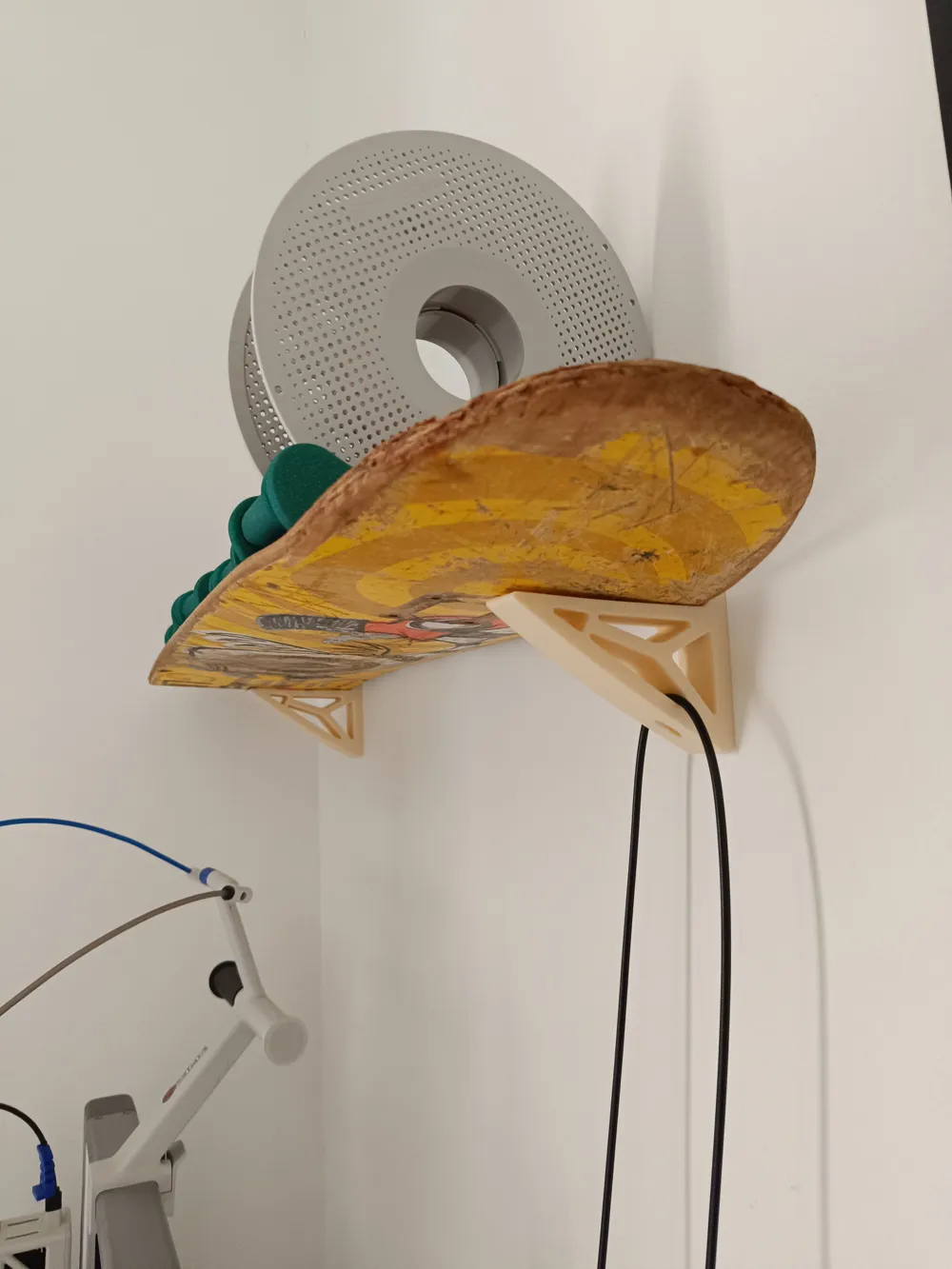

Convert any skateboard into a practical and stylish shelf. This 3D support (the black piece in the photos) attaches to the wall and "hugs" the edge of the board with a front tab, while the reinforced triangular body provides rigidity. With two supports (left and right) you can mount the board horizontally and use it as a shelf for filaments, books, or decoration.

Features

• Structural design: triangular geometry with internal reinforcements for high rigidity and low weight
• Secure fit: upper lip/tab that holds the board's edge and prevents slipping
• Simple assembly: screw to the wall and rest the board; no special hardware needed
• Clean aesthetic: minimalist lines that let the skateboard be the centerpiece

Printing recommendations

• Material: PETG (recommended) or PLA+ if not exposed to direct heat
• Layers: 0.2–0.28 mm | Perimeters: 4–5 | Infill: 25–35% (cubic/gyroid)
• Orientation: flat face to base; no supports or minimal supports (depending on printer)
• Quantity: print 2 units (left/right) for one board

Installation

1. Position each support on the wall (separation ≈ the board length minus 4–6 cm)
2. Mark and drill; use 6–8 mm wall plugs and 4–5 mm screws
3. Screw in the supports
4. Rest the board: the upper lip holds it by the edge
5. Check level and distribute the load

Capacity and use

• Domestic use: filament spools, light books, small plants, etc
• Distribute the weight close to the wall. For safety, avoid overloading; if you need more capacity, add a third central support

Download the file and print your supports to transform a simple skateboard into a robust and characterful shelf in minutes.
