Ring Door Contact Riser 20mm
Print Profile(2)
Description
Boost Me (for free)
Hey everyone,

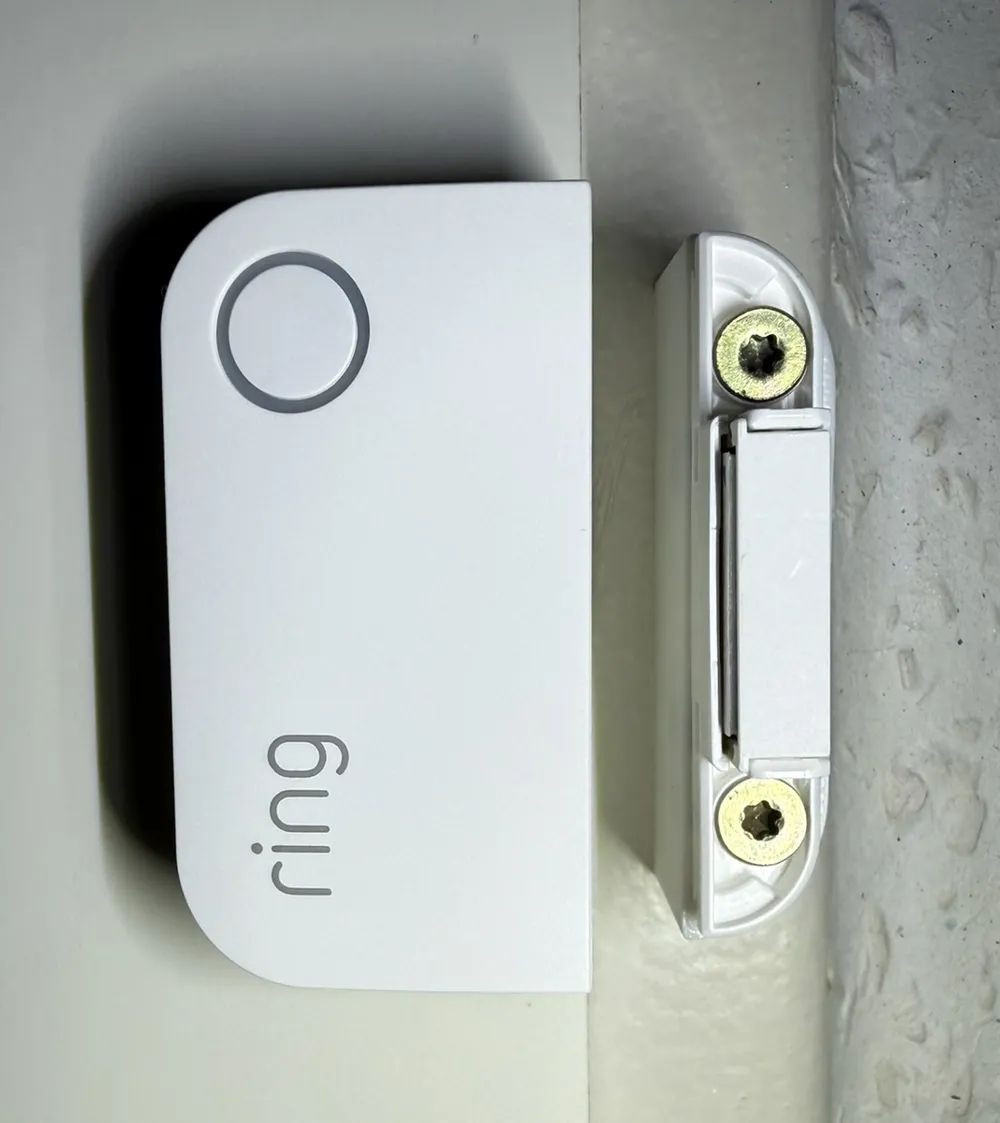

I had the problem that my Ring Door/Window Contact wasn't triggering correctly because the distance to the door frame was too large.

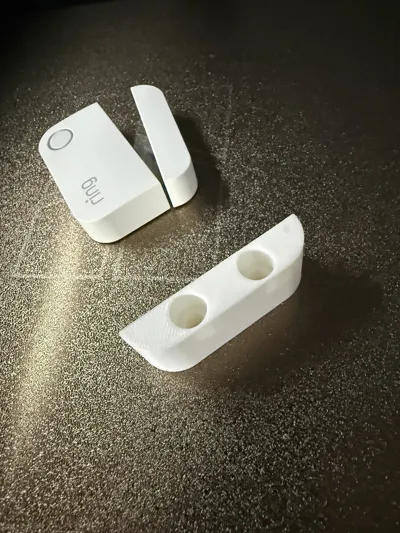

That's why I built a small riser using 3D printing (PLA) so that the magnet is correctly detected.
The part is 20.3 mm high, 11 mm wide, and 53 mm long.

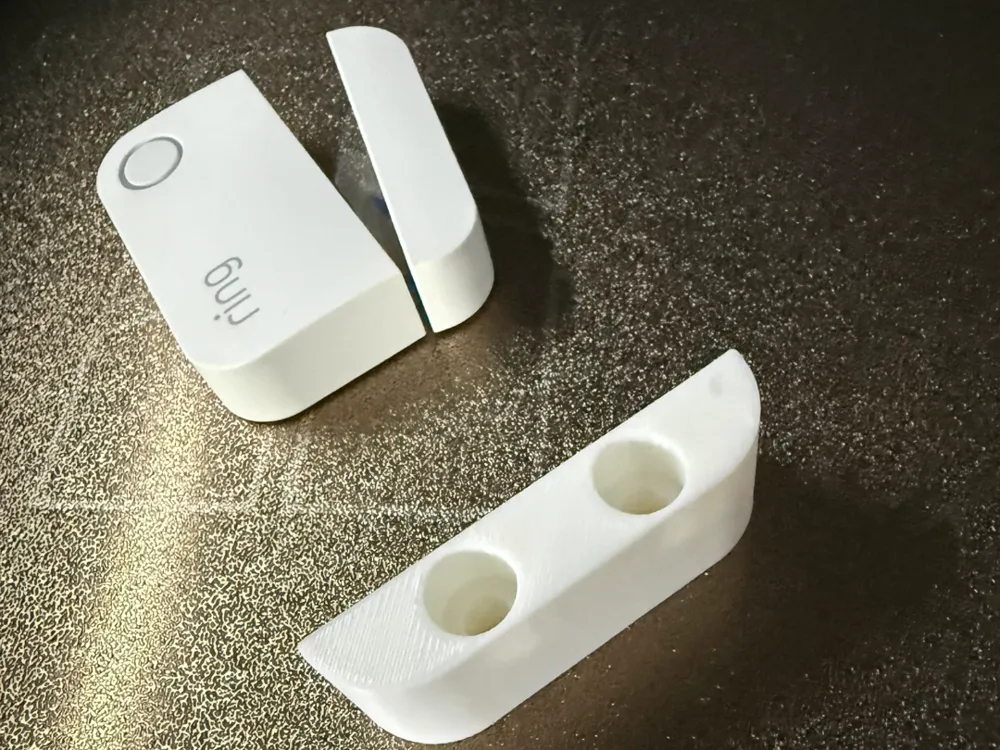

Two sides are rounded, and it has two countersunk holes (8.5 mm deep) for M5 screws, with a hole spacing of 20 mm.

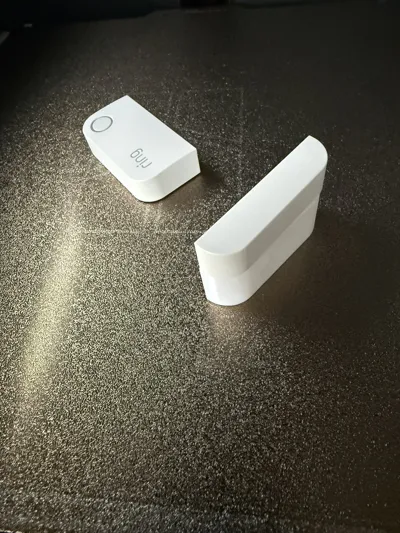

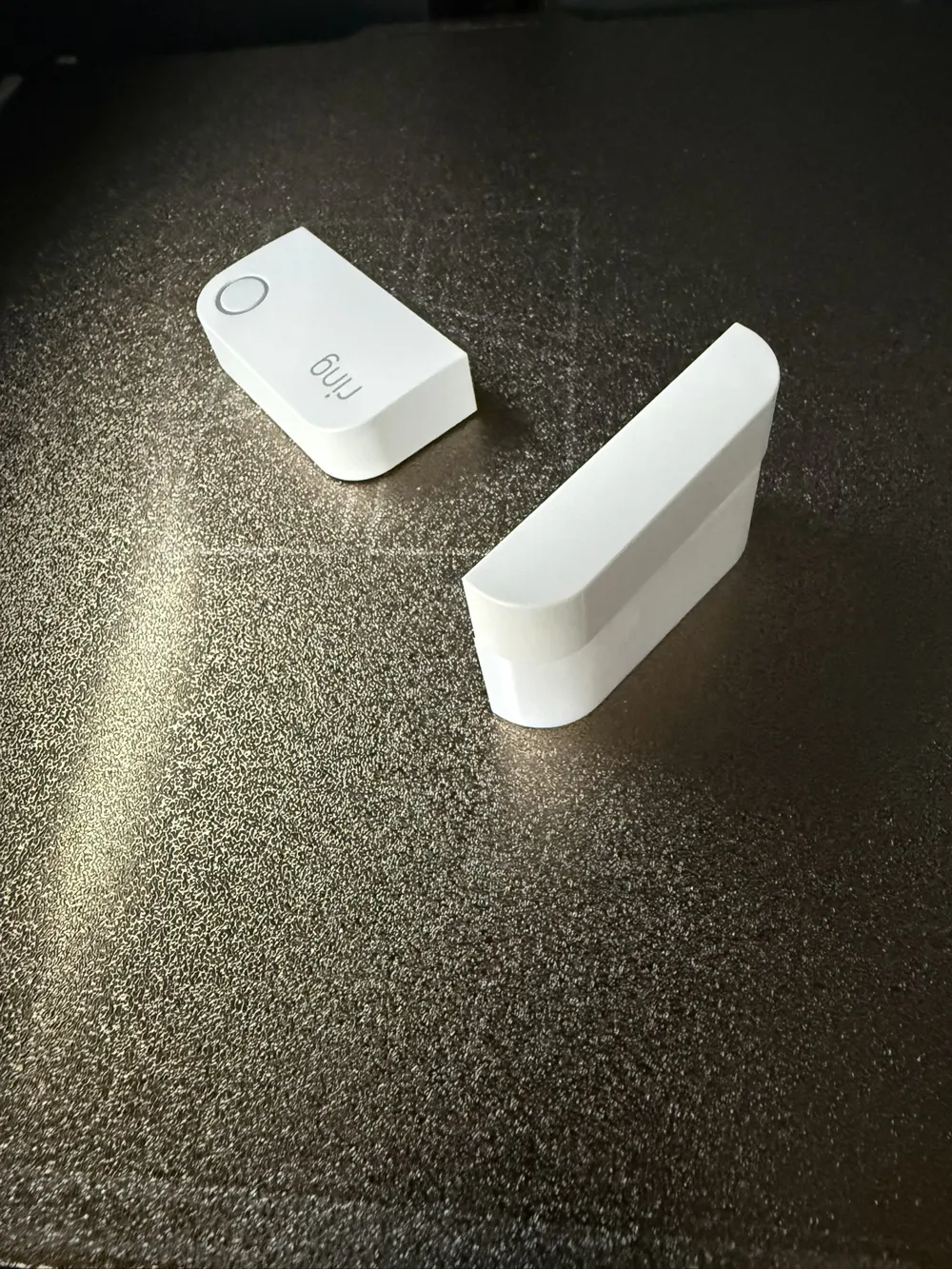

Since then, the sensor sits perfectly – no more false alarms!
