X2 Lidar standard STEP file and 3D printed intermediate structural plate
Print Profile(3)
Description
Project description: Prepared for the X2 Lidar project, see link for details

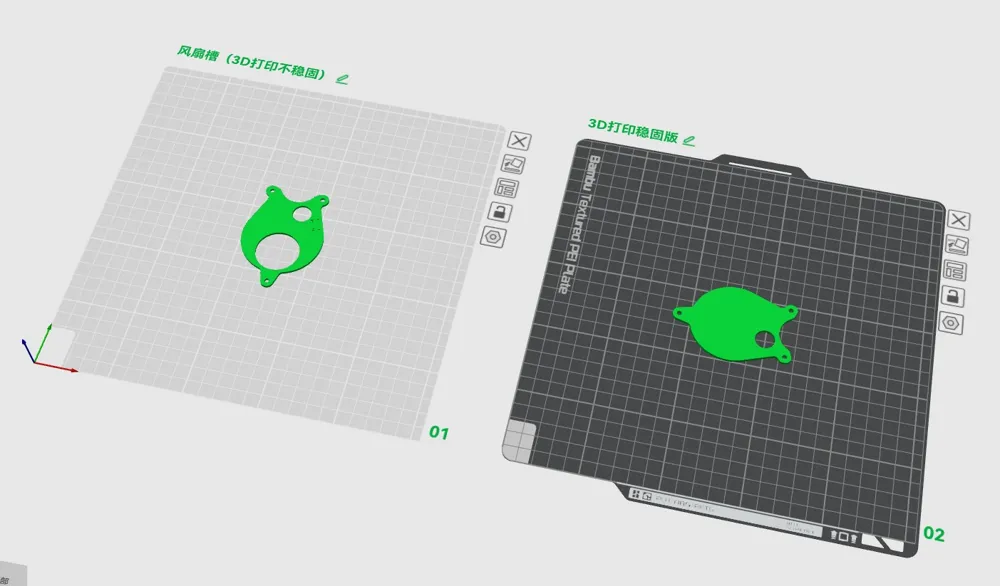

A few notes: 1. Different profiles correspond to different downloadable files

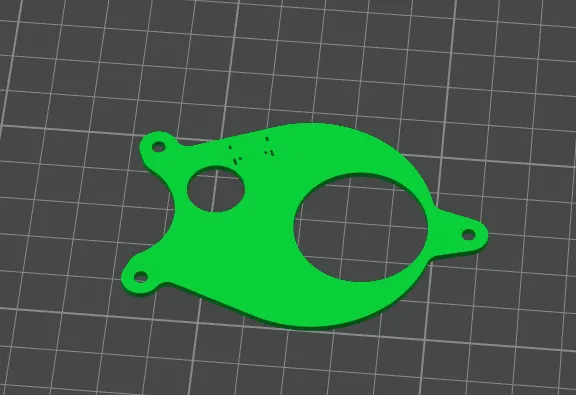

（1）Intermediate part, 3D printed with fan holes (the perforated version has a relatively softer texture and also supports mobile slicing and printing)
（2）Intermediate part, 3D printed without holes (supports mobile slicing and printing)

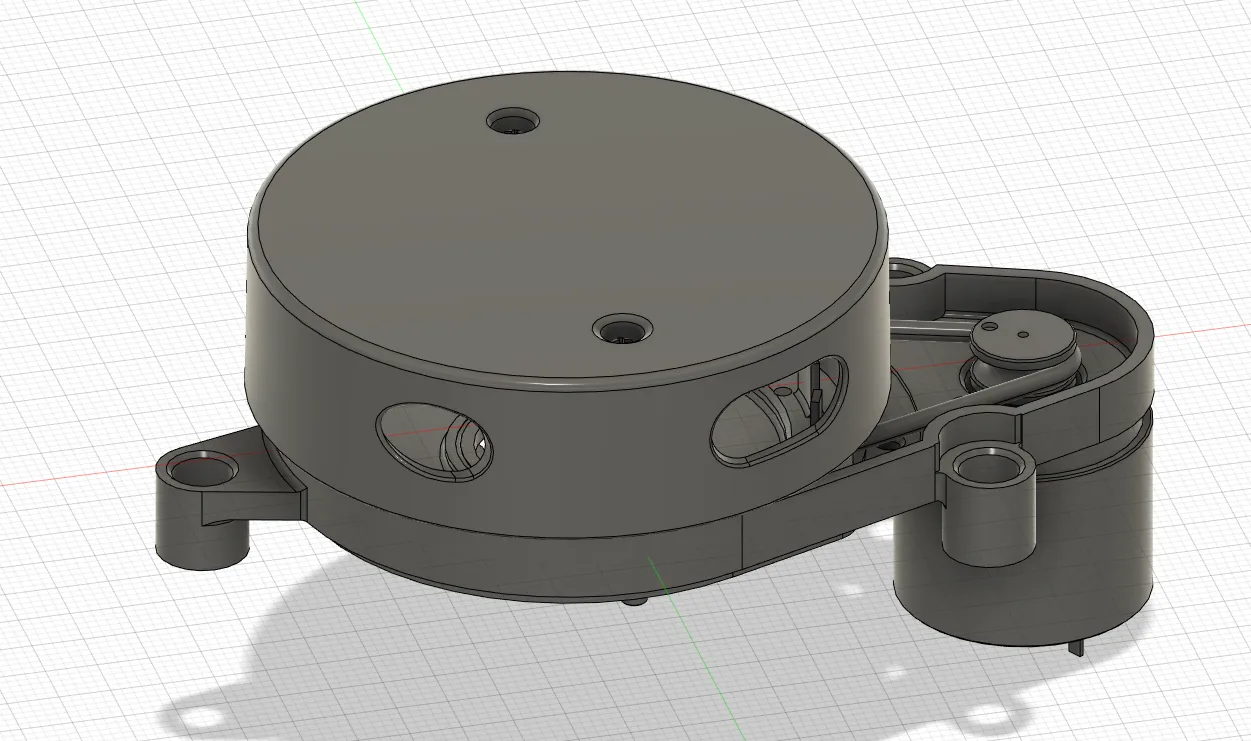

（3）X2 Lidar standard STEP, simply download the source file (supports mobile slicing and printing, but printing is useless)

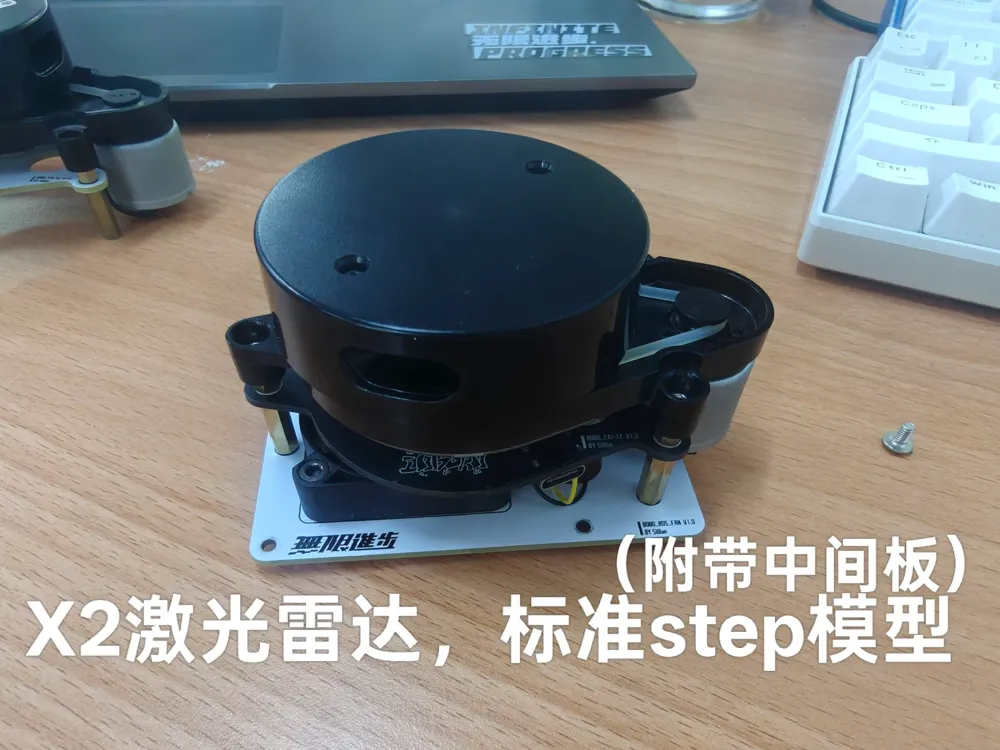

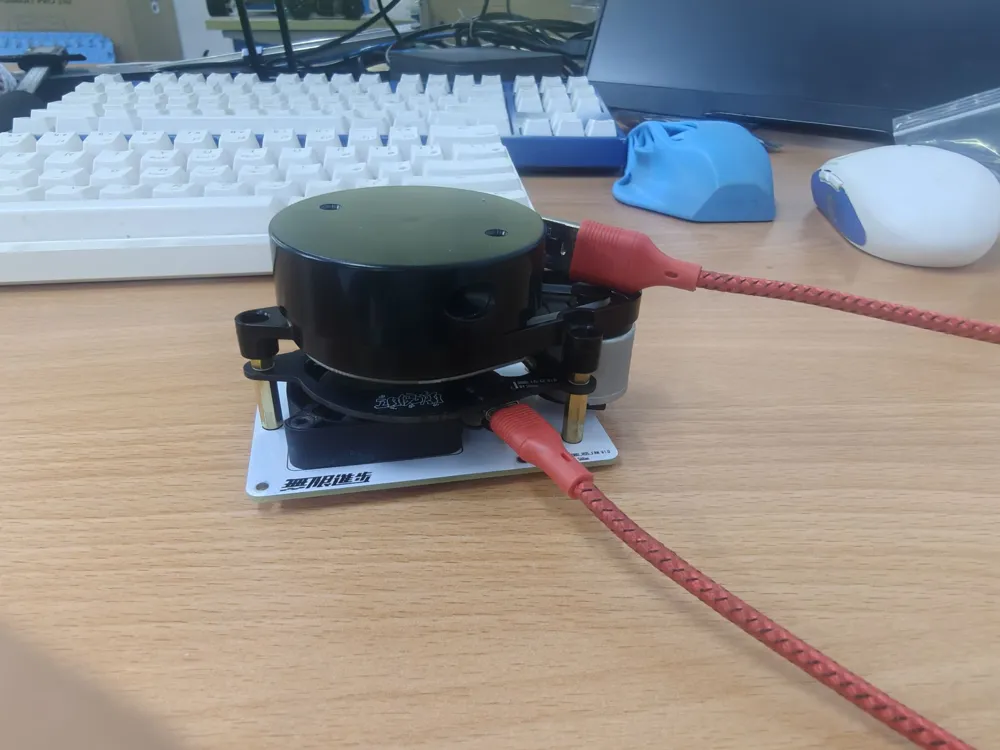

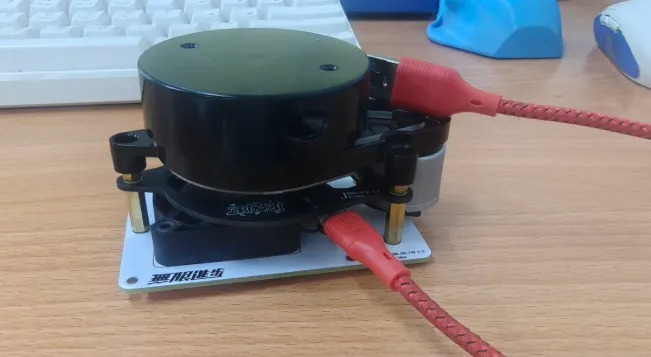

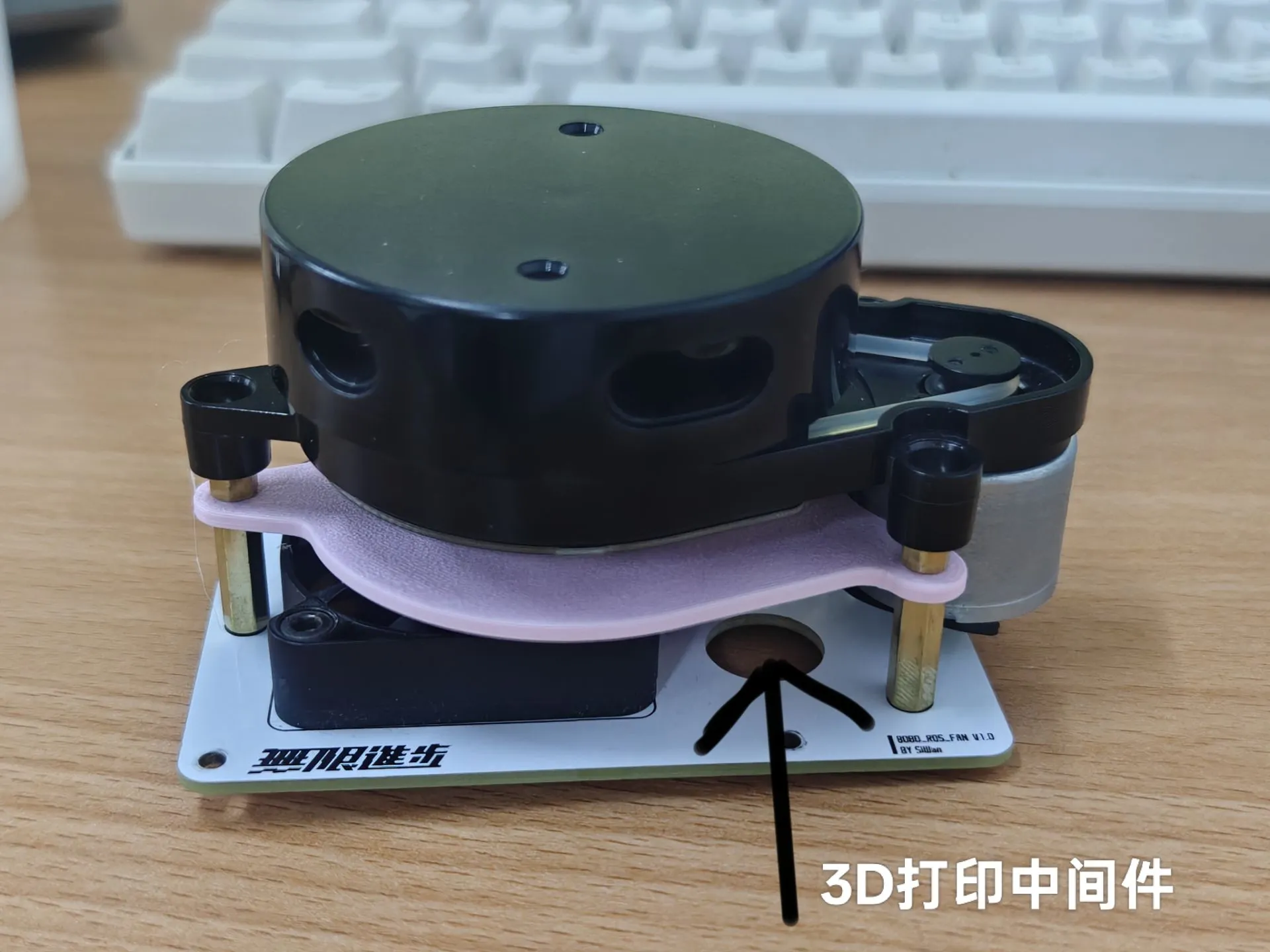

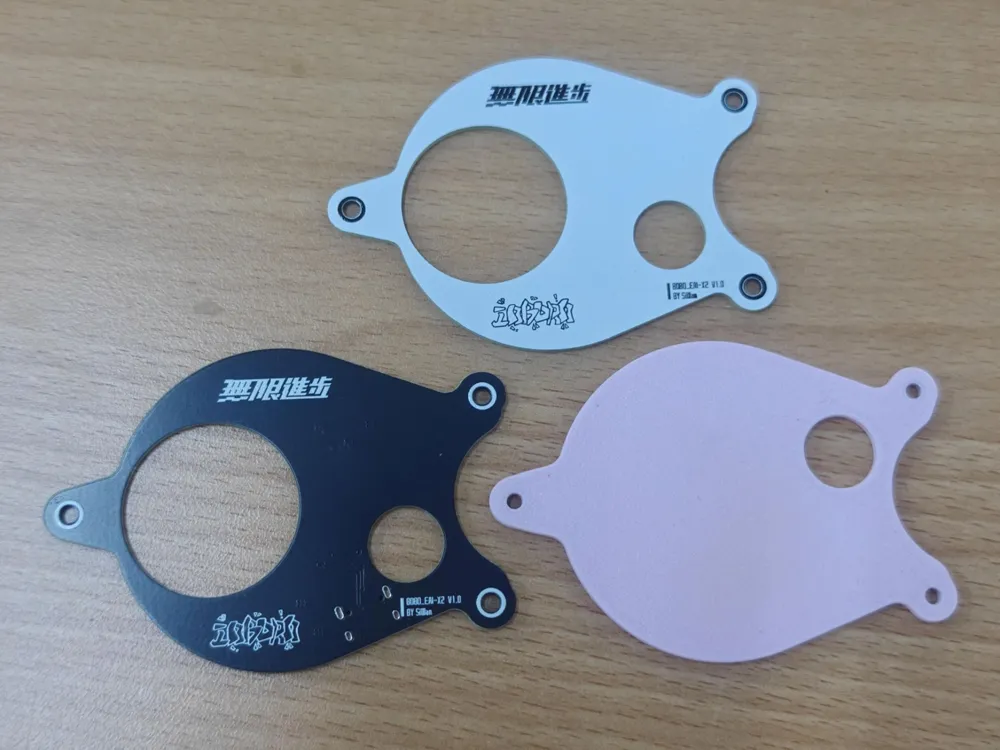

2. Refer to the image; using this printed part and the corresponding configuration can make the Lidar base flush, preventing tilt and rotational interference
Recommended copper pillars to buy
M3 * 15mm * 3
M3 * 6+6mm * 3

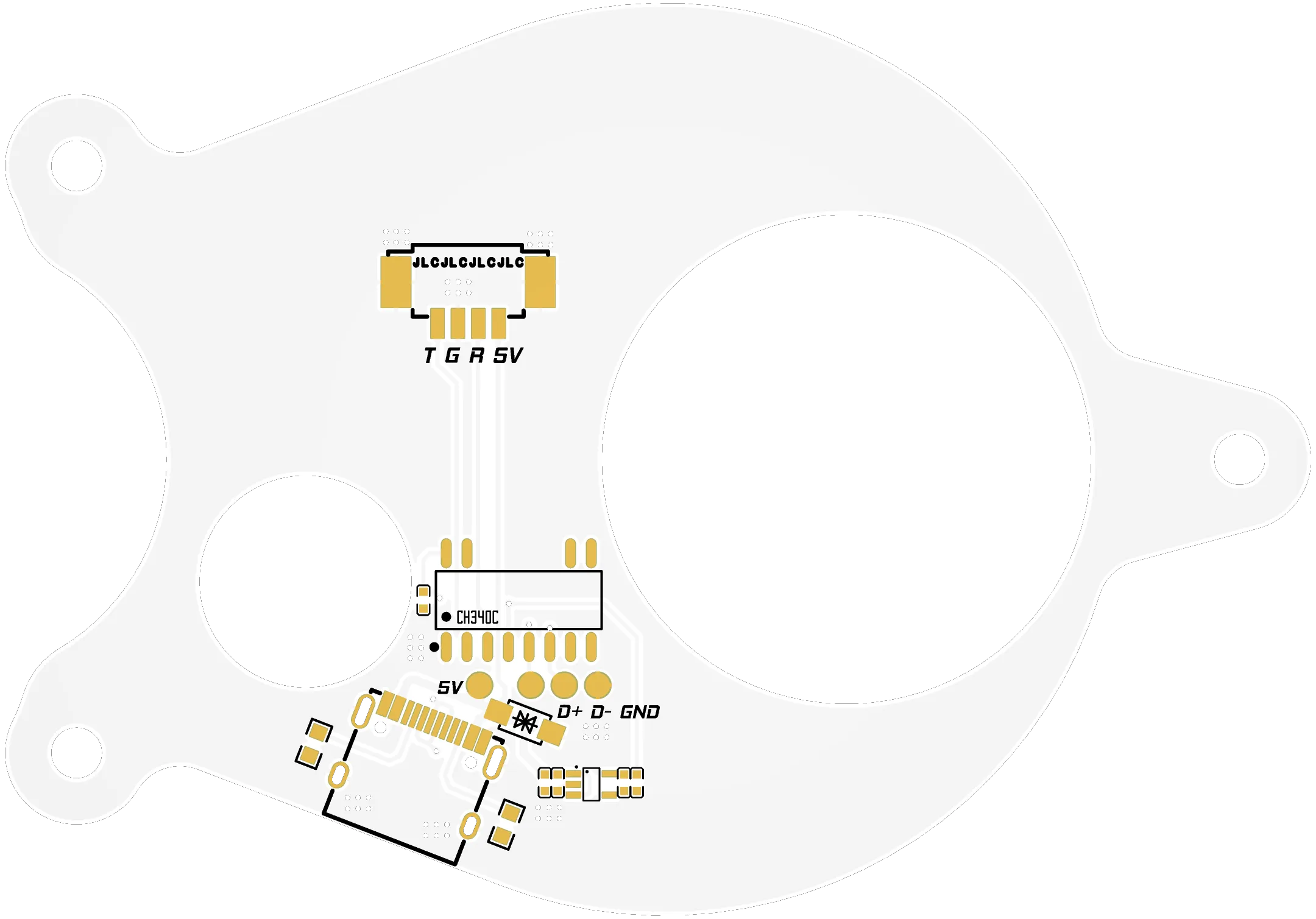

3. Actually, I still recommend my PCB version, which has a hard texture and comes with TTL
Applicable to ROS2 X2 Lidar driver configuration, see Q_Group for more details
