Cobra 5 HV ESC Mount+2535 mount-Losi DBXL-E 2.0
Print Profile(2)
Description

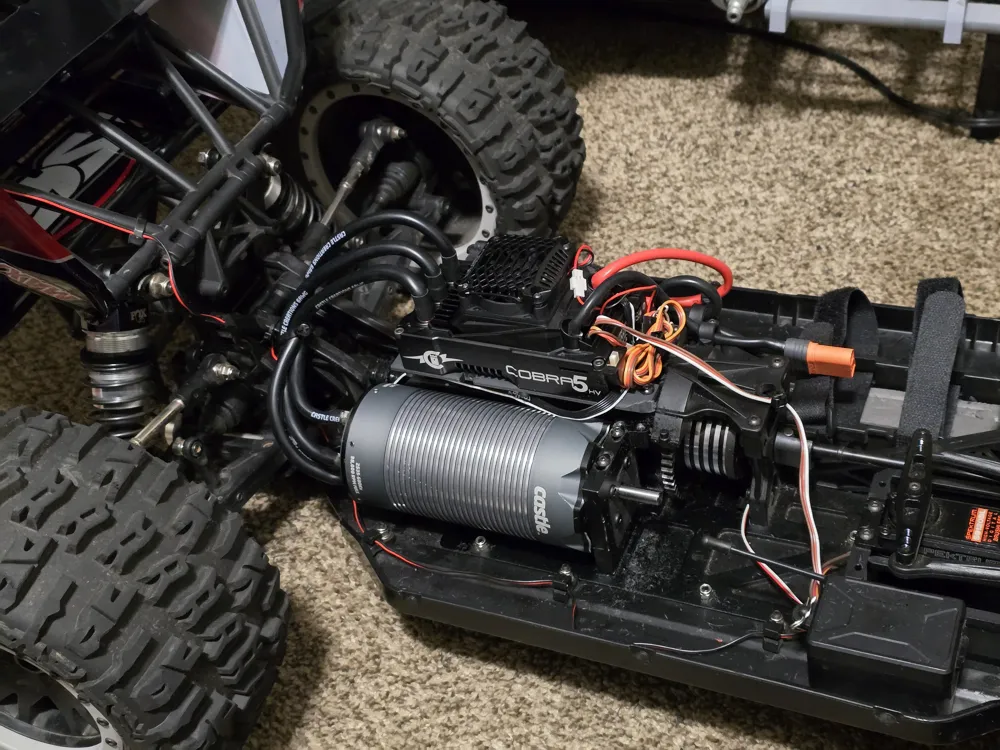

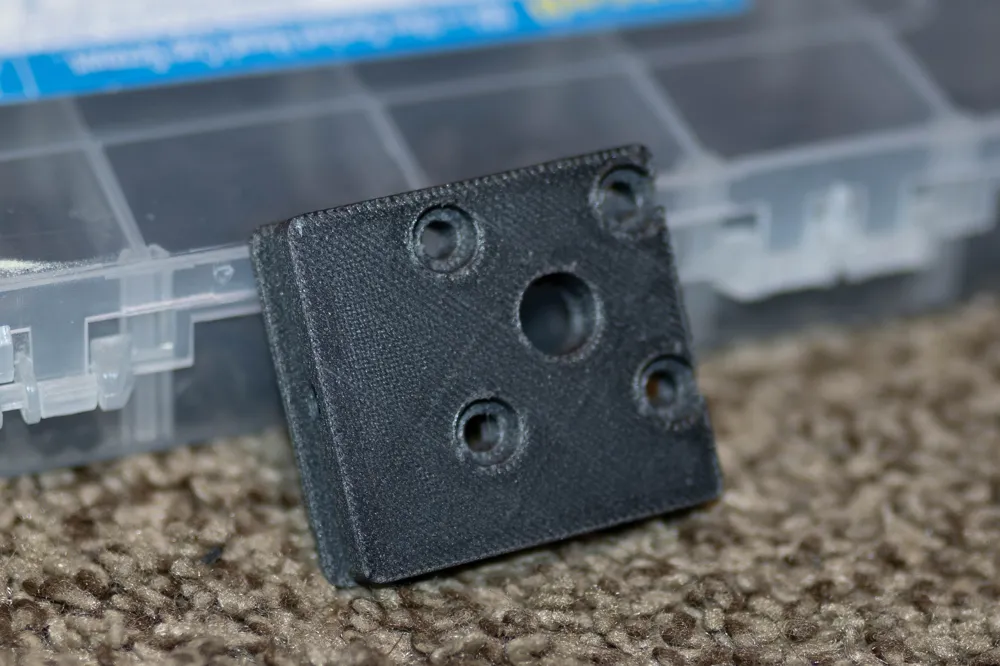

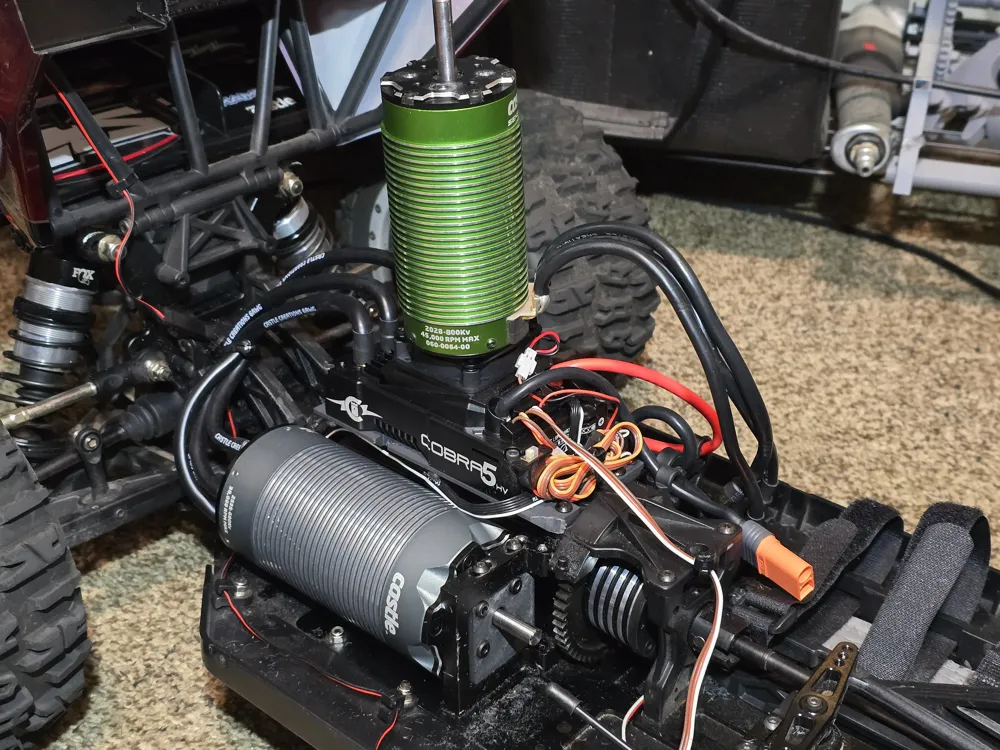

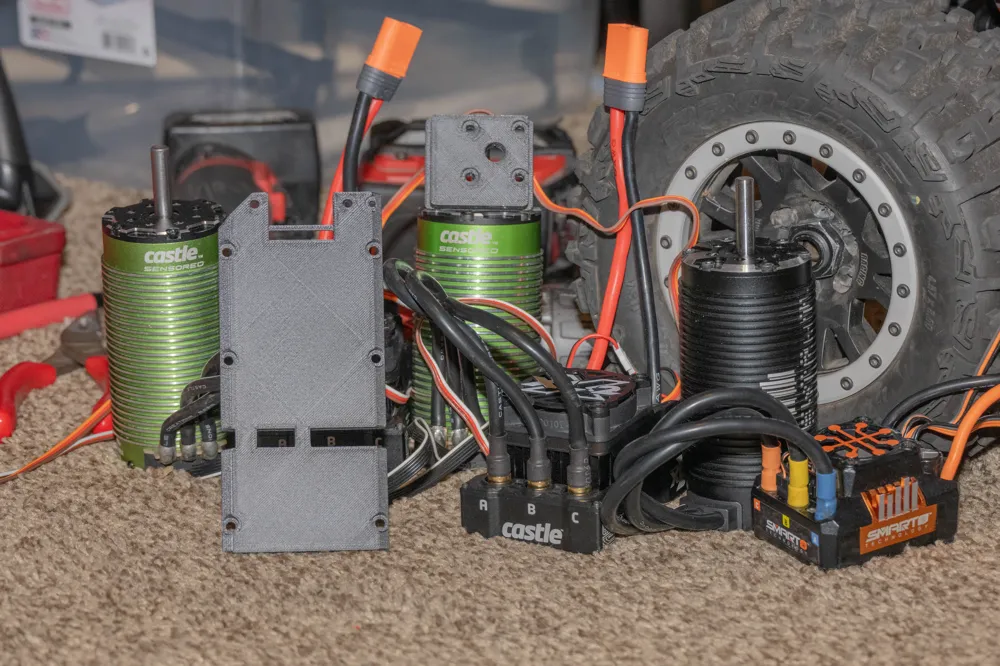

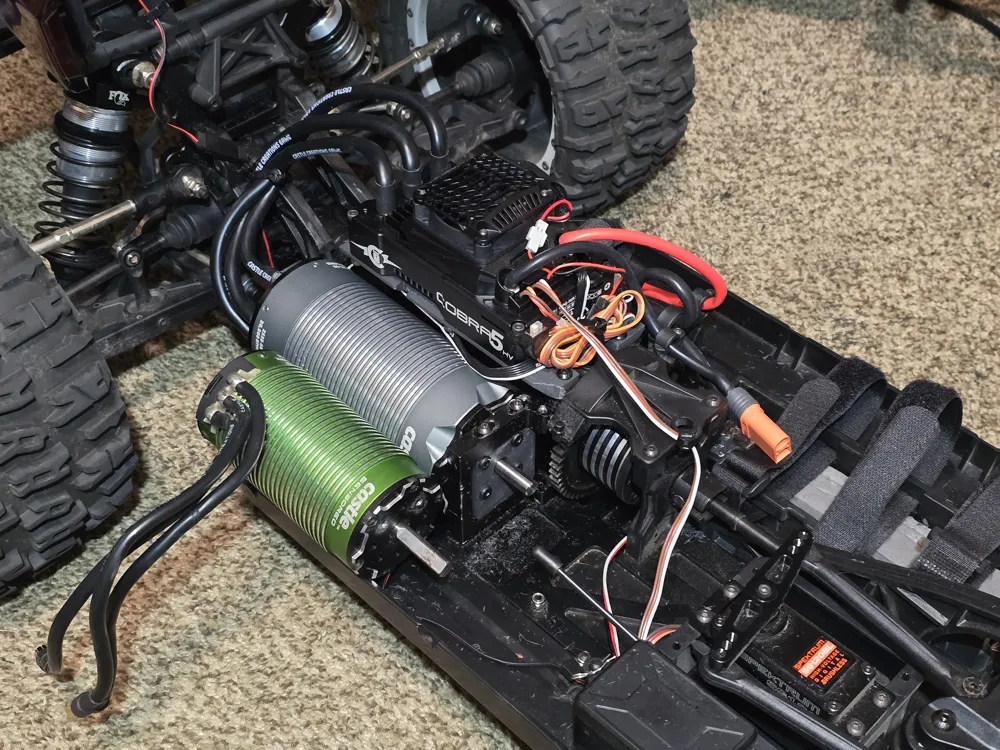

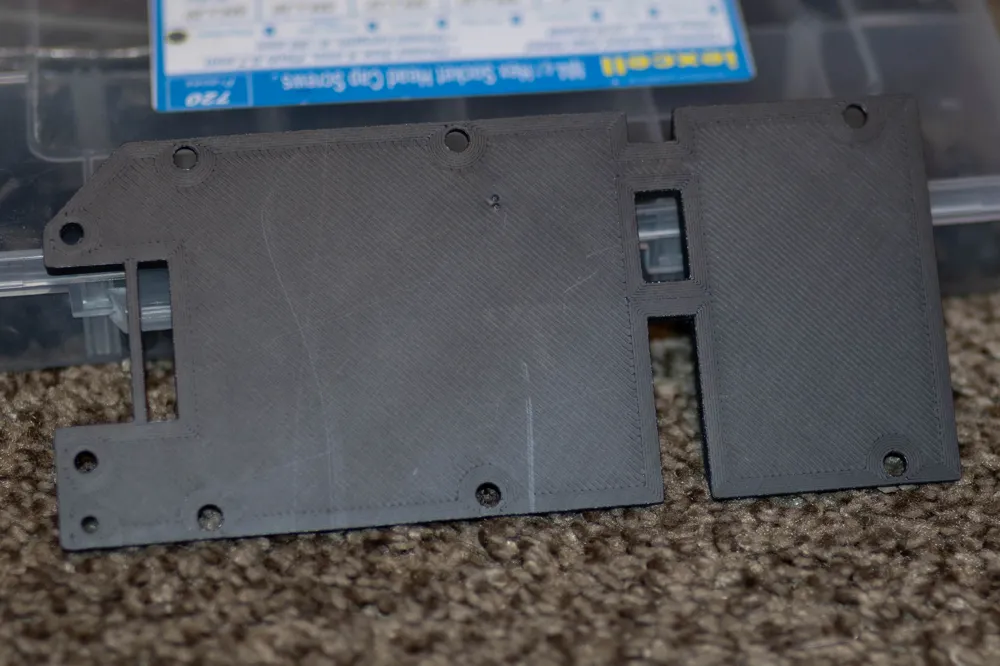

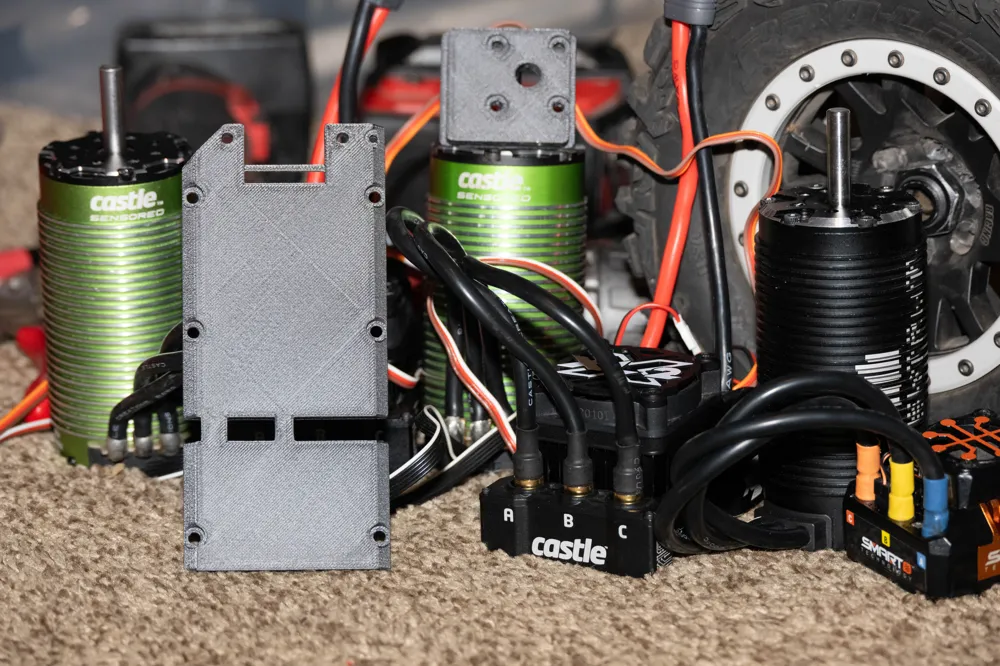

Since nobody's done it yet, here's an ESC mount for the Castle Cobra 5 HV for the Losi DBXL-E 2.0. It also comes with a mount model for the 2535 motor and 17T pinion, but I really do not recommend running a plastic motor mount, no matter what material you print it with.
Both are modeled here in PPA-CF but the ESC mount will perform fine in ABS/ASA or other 60C+ temperature resistant materials.

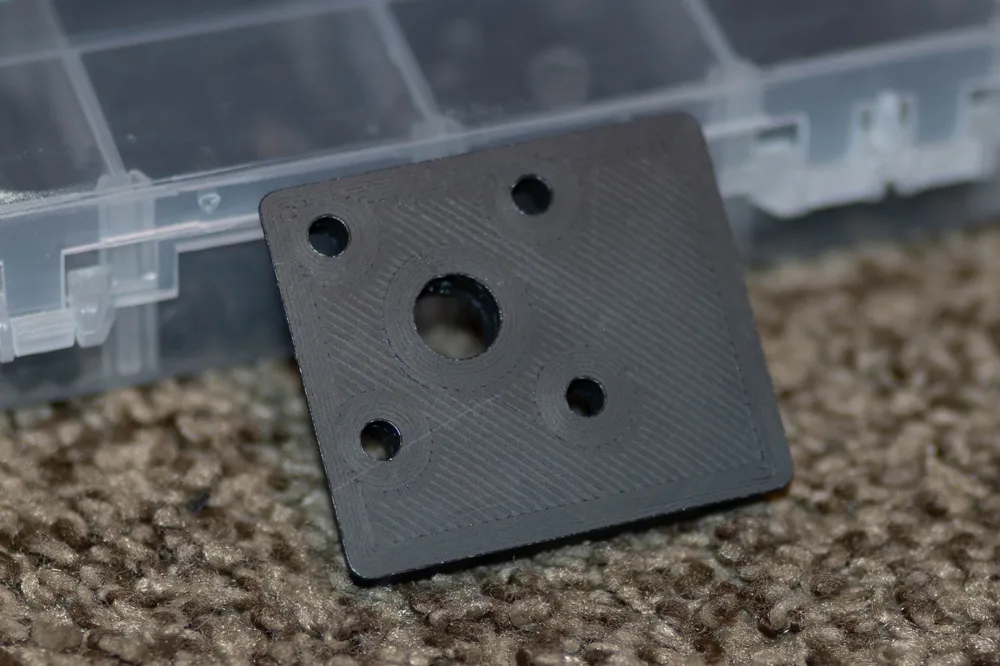

The motor mount will need the threads cleaned out with a M4x0.7 tap if you are testing fitment to ensure no swelling when screwing into the bracket.

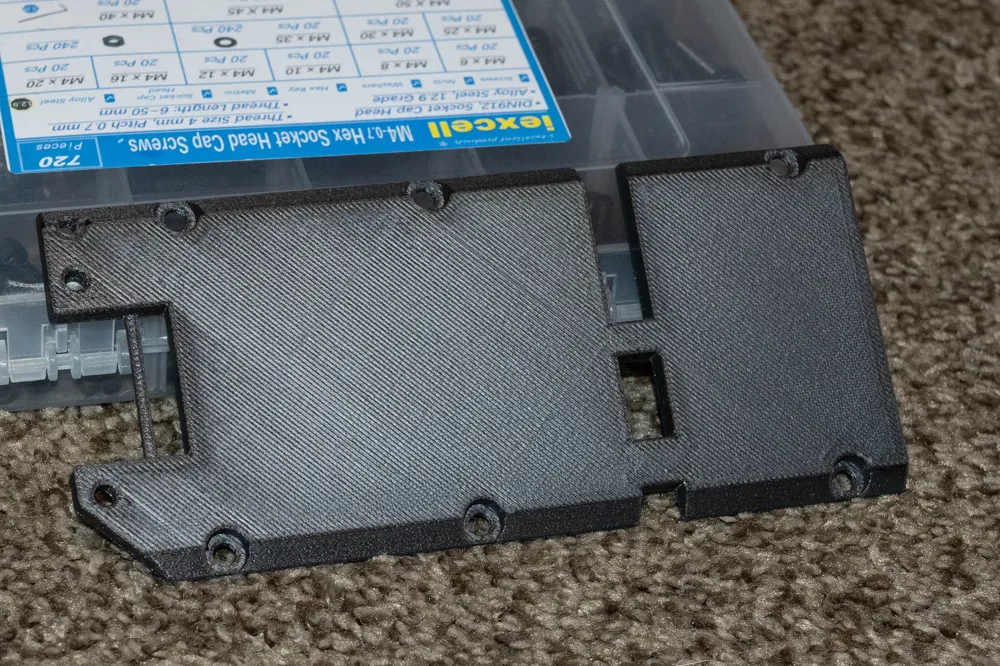

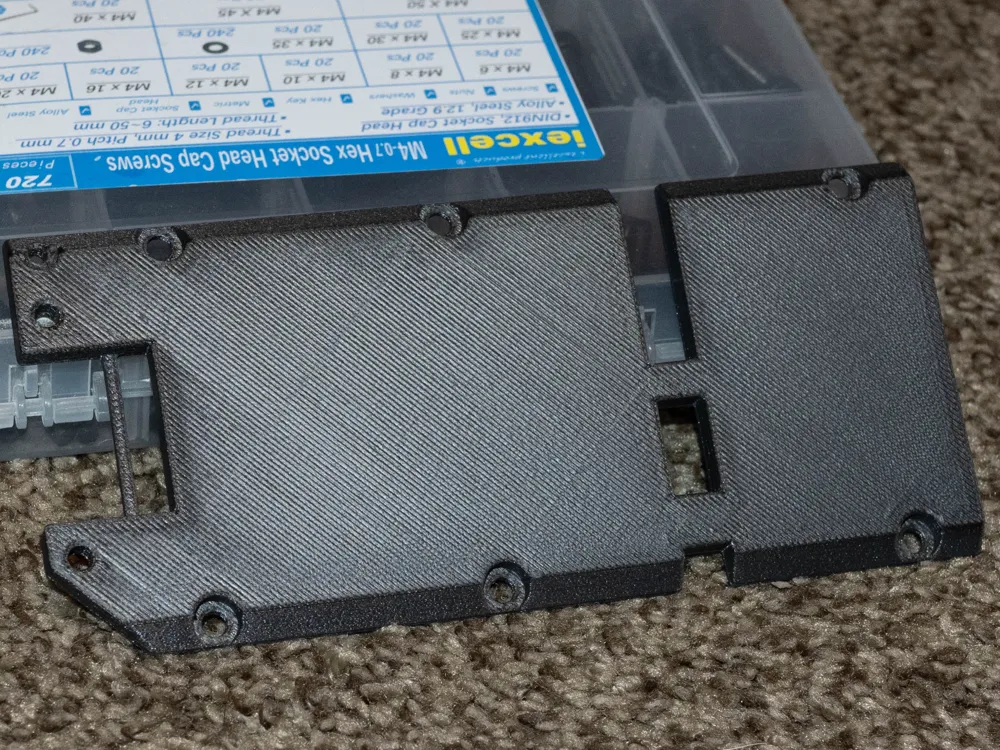

The ESC mount will need a 3mm and 2.7mm hole drilled in the gap where the ESC mount strut comes up from the body and mounts to the stock ESC bracket. I have decided not to model these holes to try and maintain strength of this part.
***2nd profile has added these holes in the mount.***
This also needs (provided) the 5mm spacer on the bottom of that ESC strut between it and the body and a longer (countersink M4x0.7 25mm) screw to account for the height difference between this ESC mount and the chassis of the car.
Boost Me (for free)
If I helped boost your Losi to 12S power, consider the boost for this ESC mount! I appreciate the support.
