Slot Car Wheel Balancer
Print Profile(1)
Description
Hi guys,

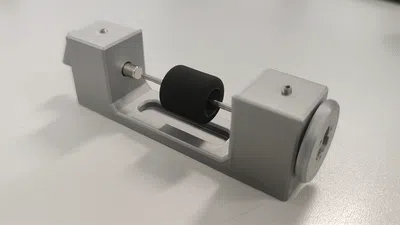

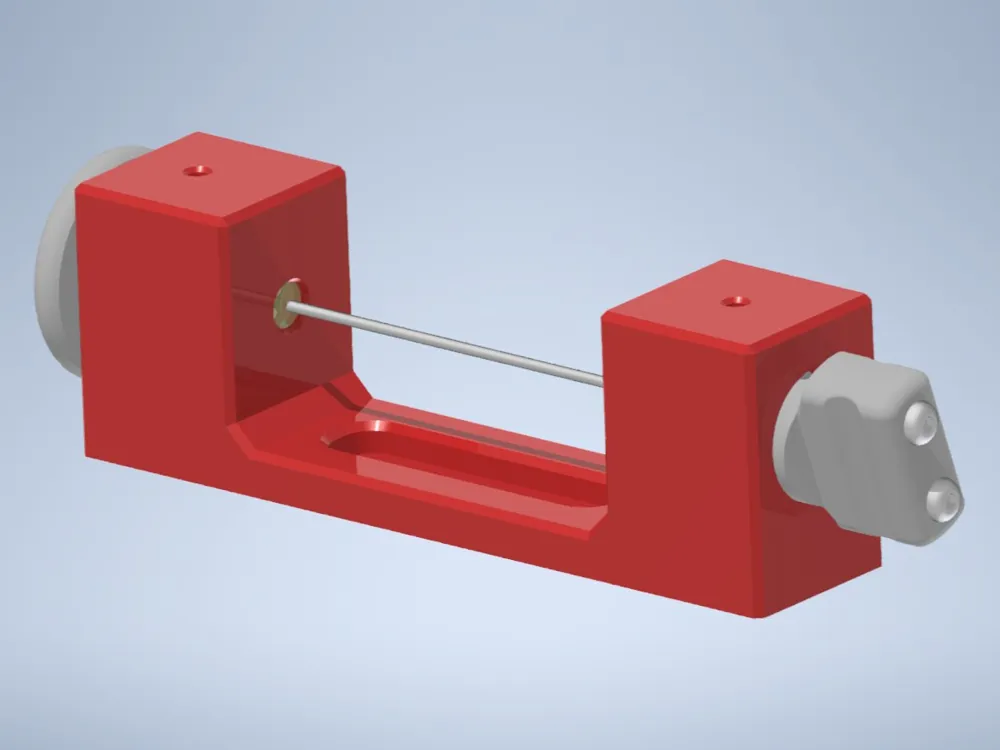

this is my tire/rim balancer for stock cars.
For this, you need to buy additional parts such as:
x1 spindle with 55mm and sharp tips
x2 M3x20 screws with button head
x4 6x20 strong magnets
You will also need a small glass (diameter =17mm and thichness = 2 or 3mm) to place between the spindle and the 3 magnets.
You can also add 2 M3 setscrews if you want to lock the moving parts (not mandatory)
NOTE:

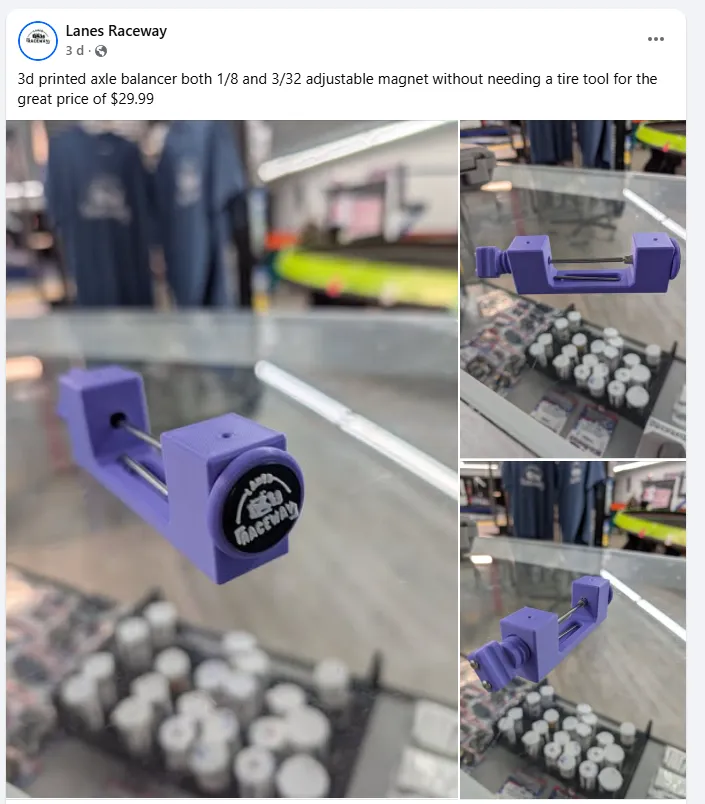

I was brought to my attention that this guy is selling my design on their page.
Just to make things clear, this is my original design which was posted before here on makerworld for free.
Have fun
