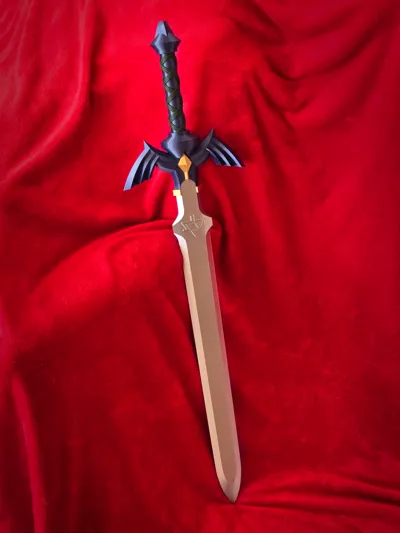

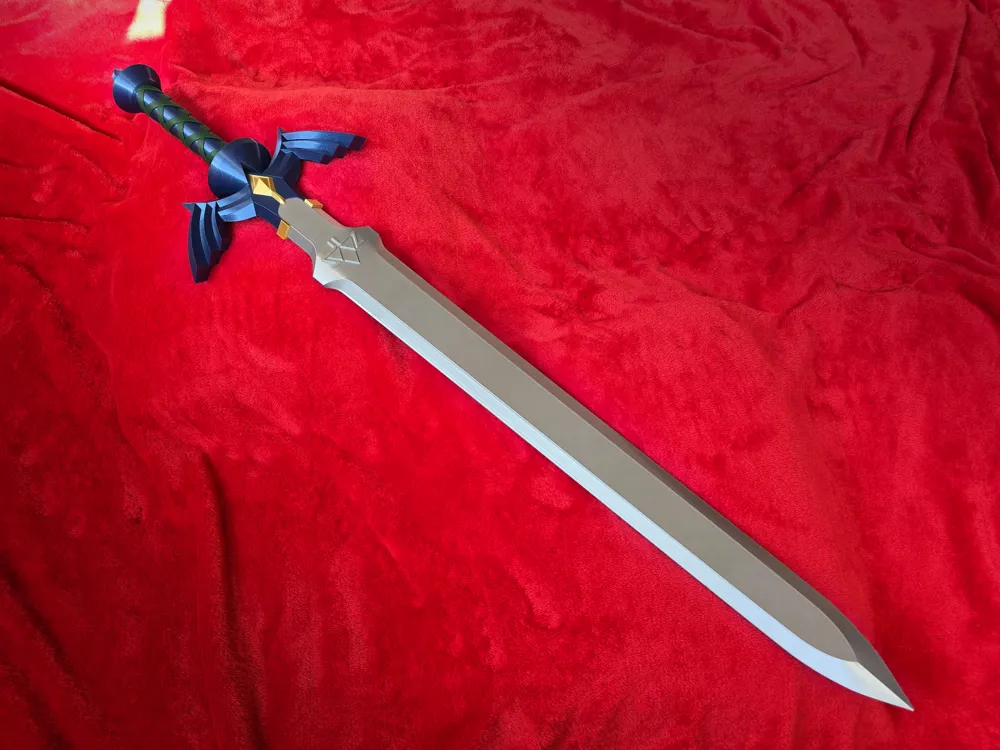

Since I couldn't find a game-accurate the Legend of Zelda Breath of the Wild (BOTW) Master Sword, I decided to design one myself based on images from the game. The sword has a total length of 105 cm.

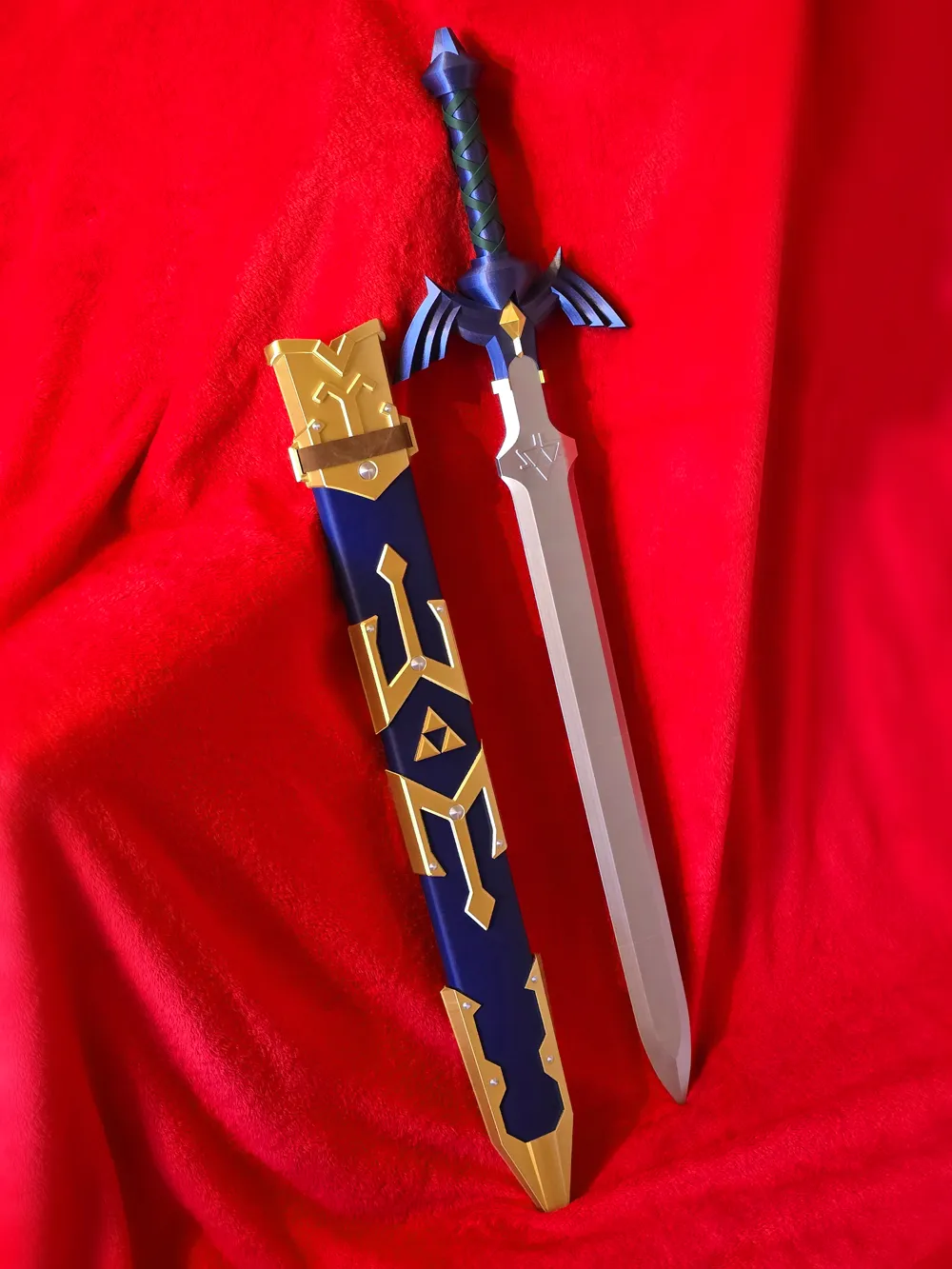

You can find the matching scabbard here: https://makerworld.com/de/models/1986250-legend-of-zelda-botw-master-sword-scabbard

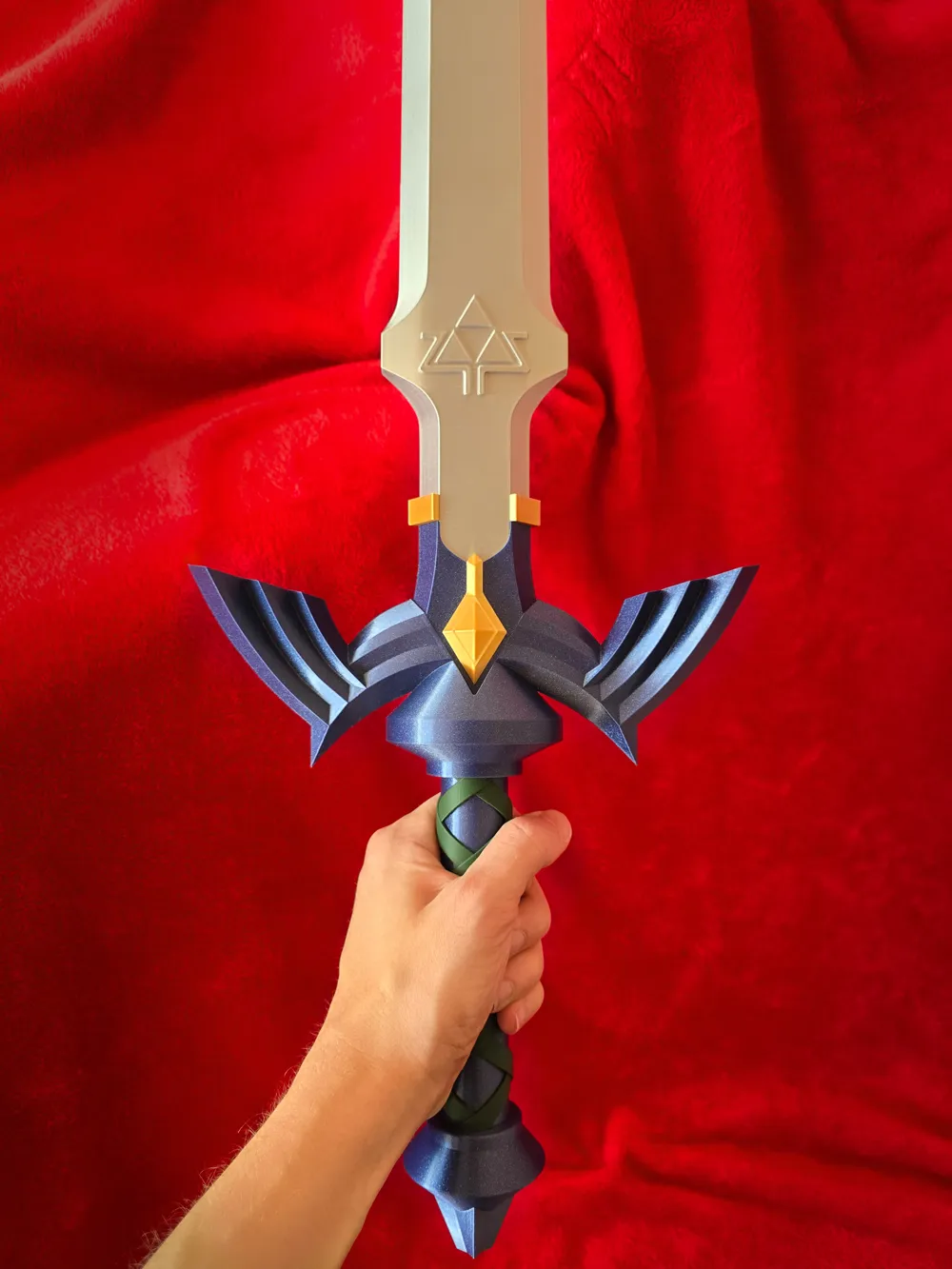

The construction consists of a 10 mm outer diameter and 95 cm long carbon fiber tube (cut to length with a saw) and several 3 mm outer diameter steel rods to prevent the individual parts from twisting. The remaining parts (golden diamond and clamps, green leather strips) as well as the first and last parts are attached with glue.
The first build plate has a test disc to check the size of the holes. If the tolerances do not fit, this can be changed in Bambu Studio using XY Hole Compensation (https://wiki.bambulab.com/en/software/bambu-studio/xy-hole-contour-compensation).

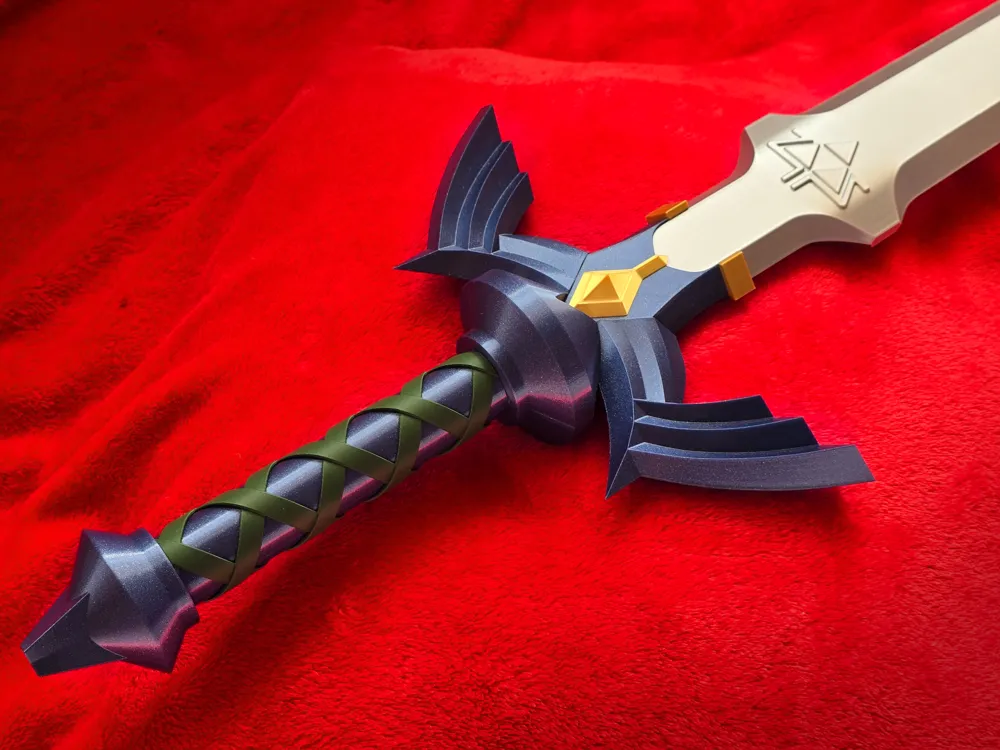

The green leather strips have a little more slack so that they can be slid onto the handle without scratching it. I compensated for the excess slack by adding small strips of masking tape to the inside of the green leather strips. To prevent them from twisting, I secured them in place with a few dots of glue on the inside. The seam of the handle can be used to align the leather strips.

The parts were printed on a smooth PEI plate.

The handle was printed in Geeetech PLA Sparkly Blue, the green leather strap in Geeetech PLA Matte Olive Green, the brackets and diamonds in Geeetech PLA Silk Gold and the blade in Geeetech PLA Silk Silver.

Update:

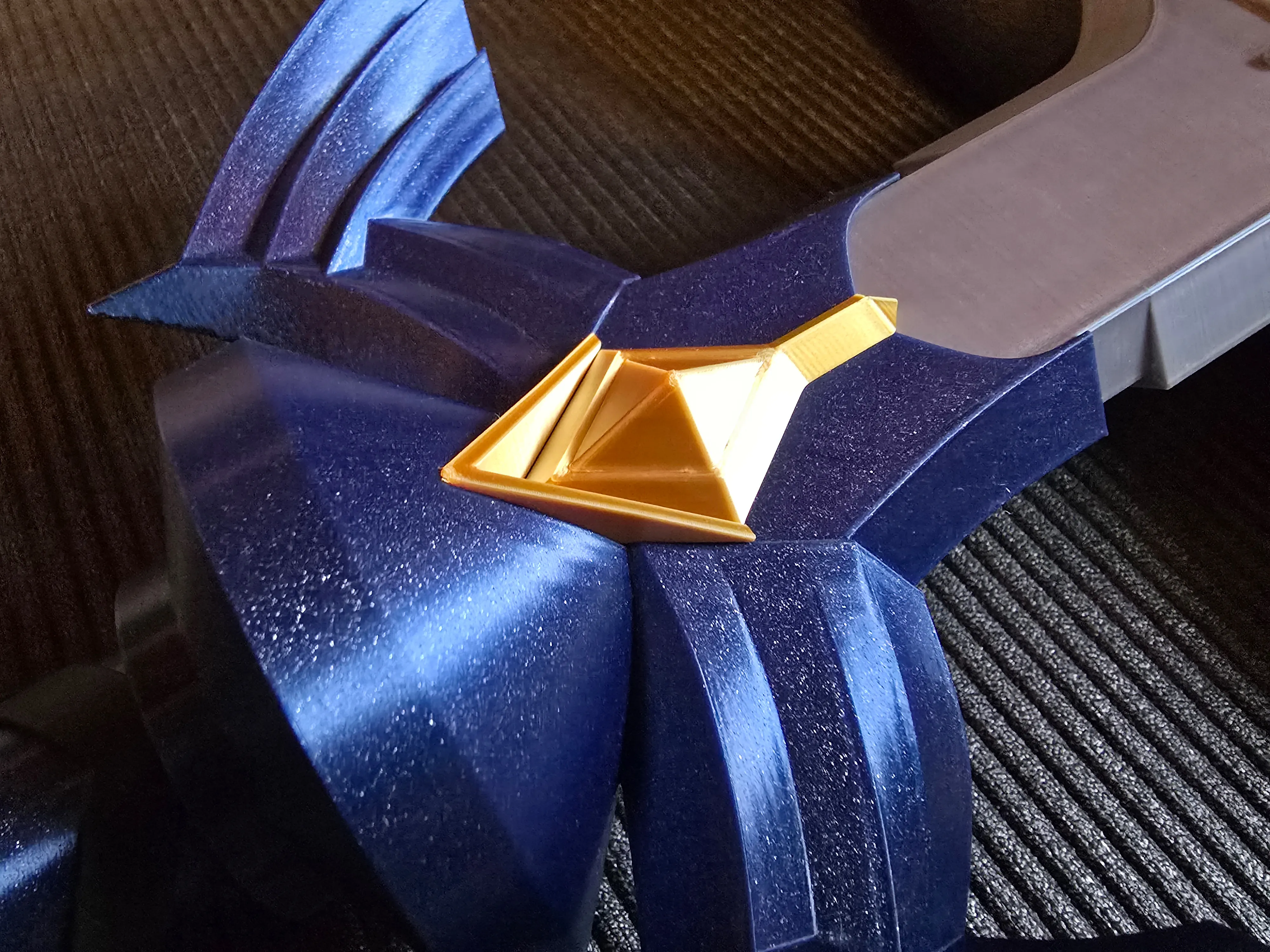

I added an alignment tool to plate 5, which can be used to align the gold diamond when gluing. In addition, I rotated the gold diamonds to better hide the seam.
