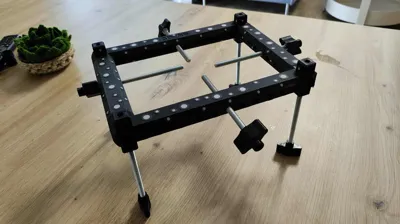

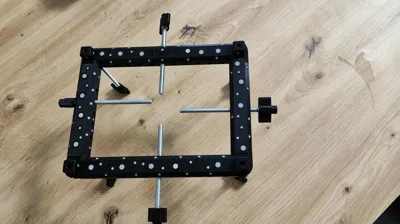

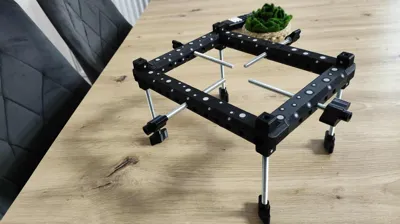

Scanning frame - modular
IP Report
Print Profile(1)
0.12mm layer, 2 walls, 15% infill
Designer
8.9 h

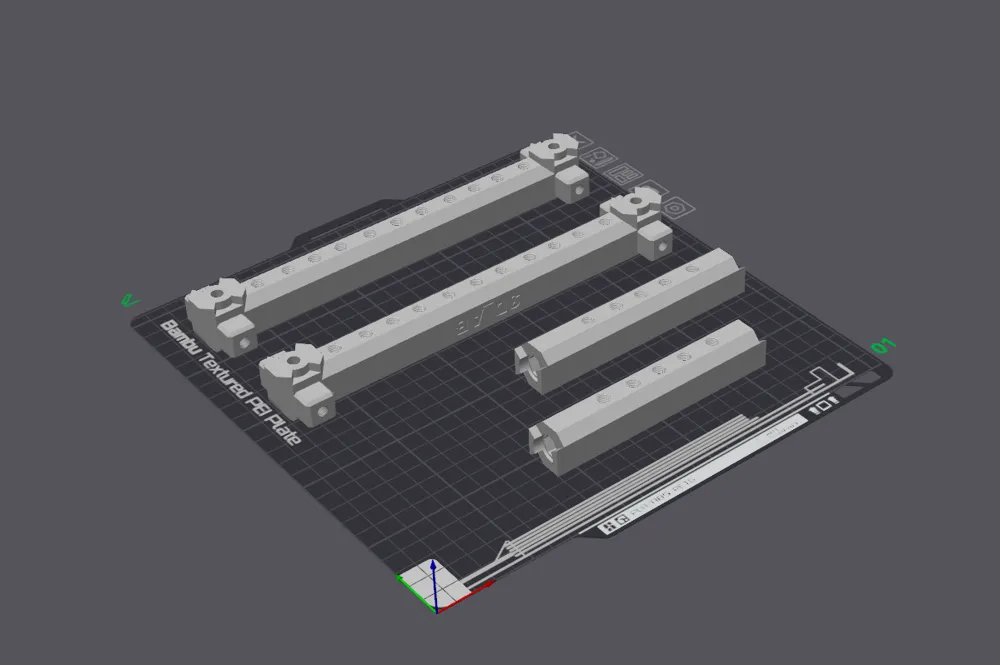

1 plate
Open in Bambu Studio
Boost
28
89
2
2
62
17
Released
Description
Inspiration: https://makerworld.com/pl/models/964891-360deg-large-3d-scanning-frame-marker-based-scanne#profileId-957709
Screw head: https://makerworld.com/pl/models/809700-butterfly-knob-for-hexagonal-screws-m4-m5-m6-m8#profileId-750783
----
BOM
12x M6x100 screw (foots&screw holders) - u can make it more
4x M6 Nut
- or u can use normal m6 but u have to glue it.
4x M6x30
--
Be sure to print at a low layer depth, e.g., 0.16 or, preferably, 0.12. Because the threads are printed, high precision is required.
You can use any material.
If you need any changes to the design, please let me know in the comments or use the .step files for editing.
Boost Me (for free)
If u like my project let me know about it :)
