Modular Pulley System Block and Tackle
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 30% infill
Designer
4.2 h
2 plates
Open in Bambu Studio
Boost
33
105
0
2
25
5
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- M8 Screw - 80mm or longer x 2:
- M8 Nuts x 2:
Description

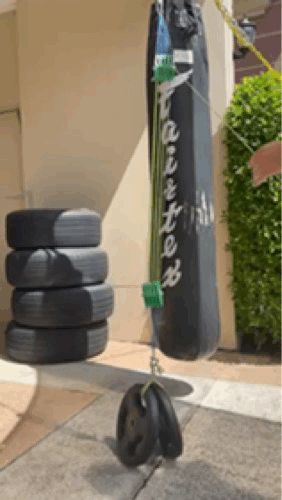

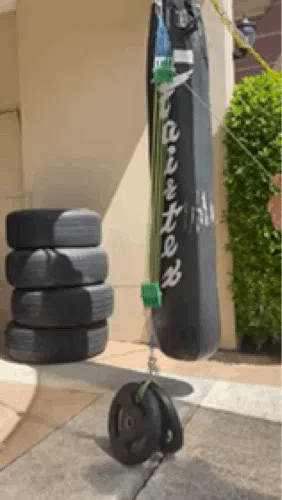

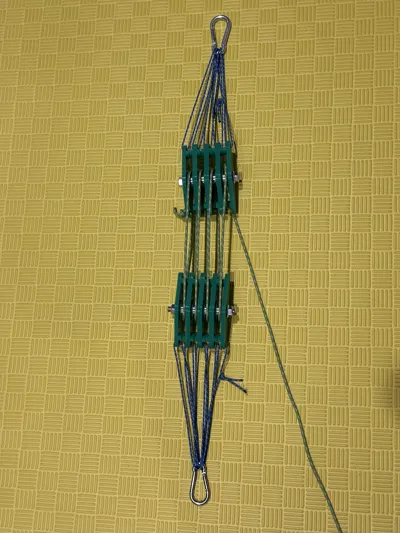

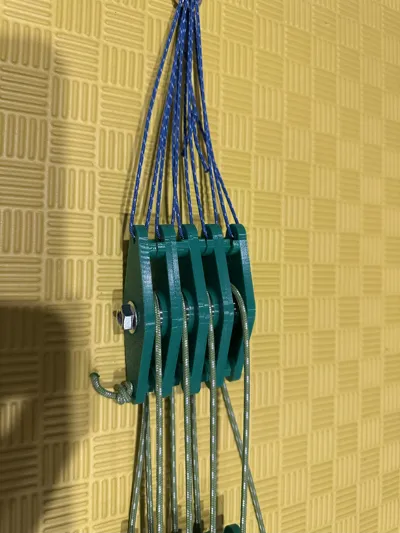

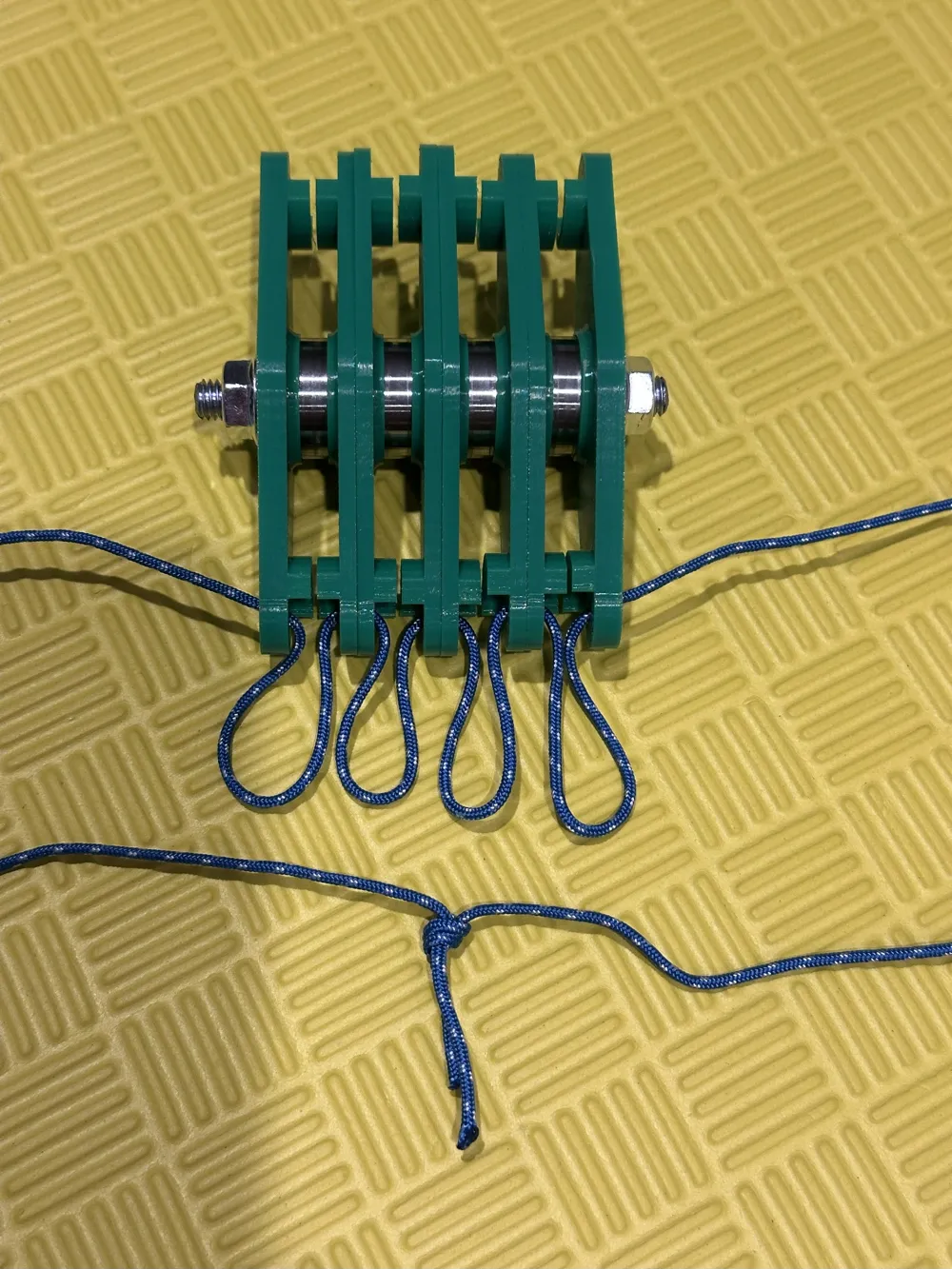

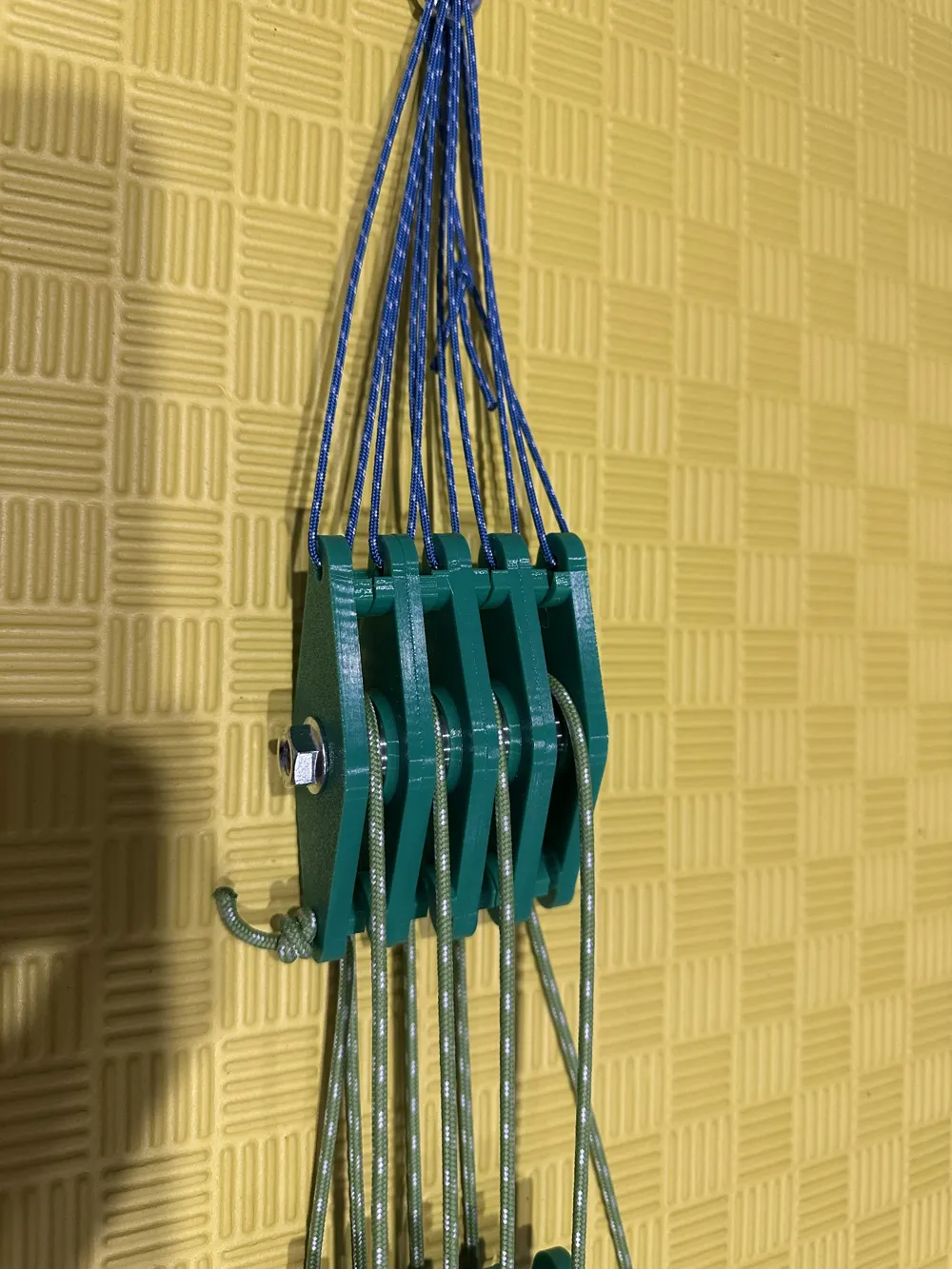

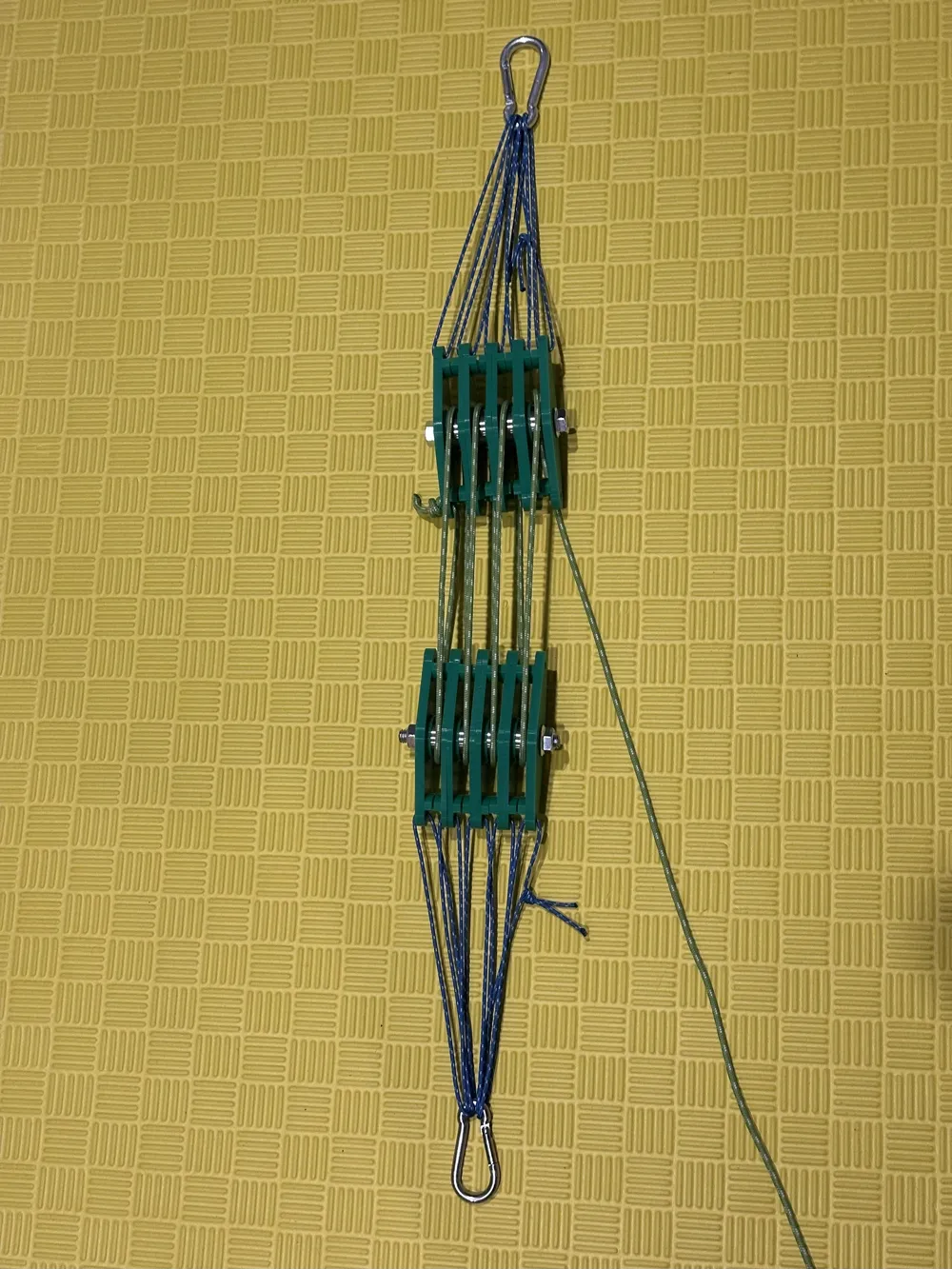

Simple Modular Pulley System Block and Tackle.

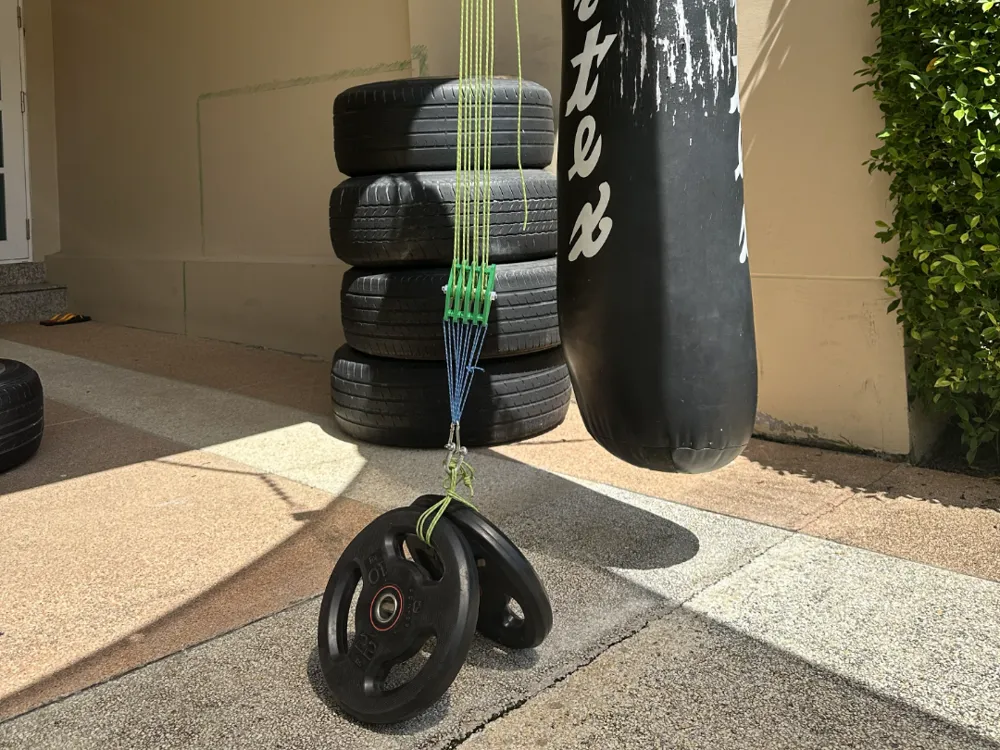

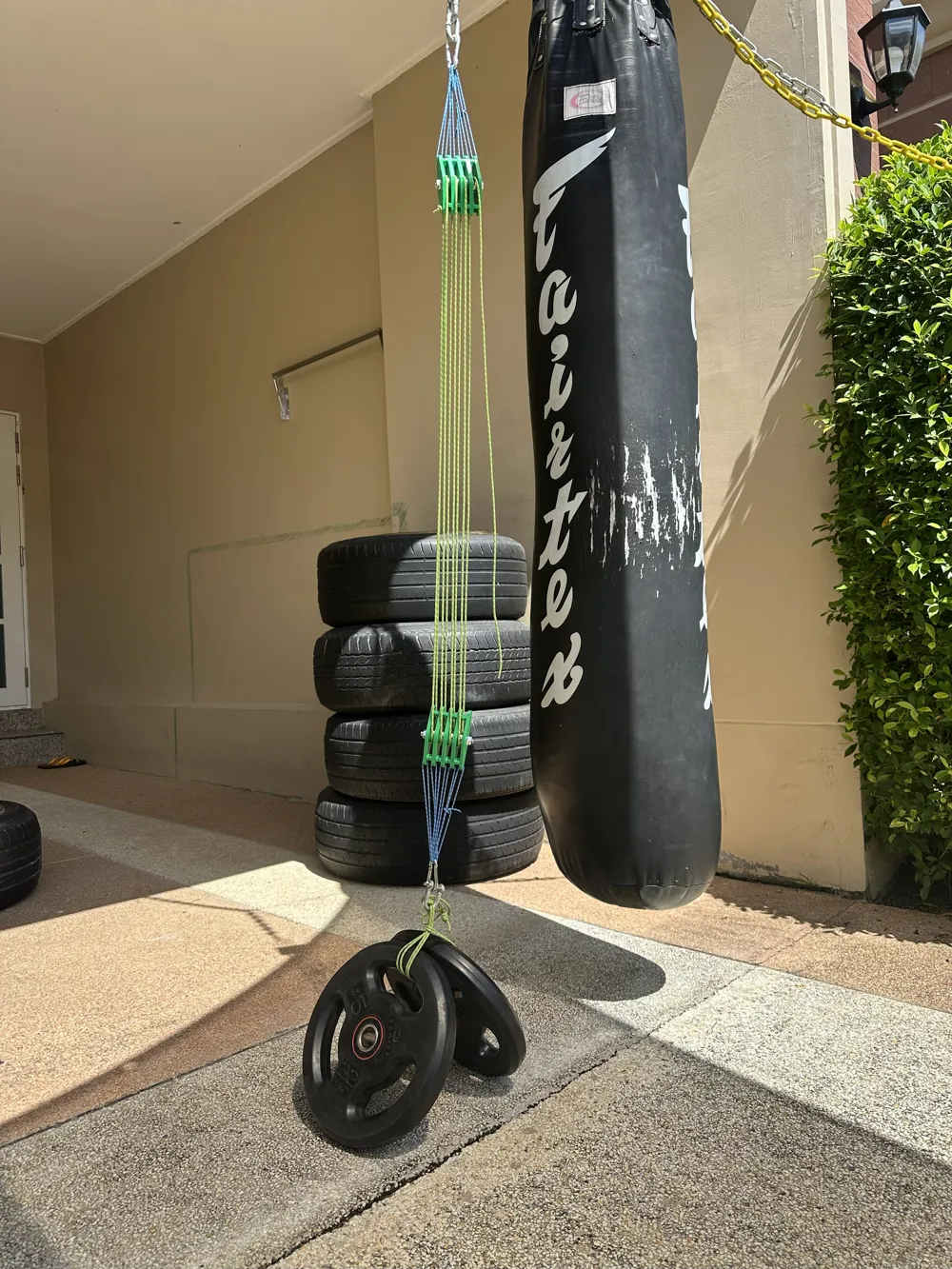

I pulled 20kg but I haven't tested it to find the breaking point, yet. If you manage to pull more please share a comment, thanks!

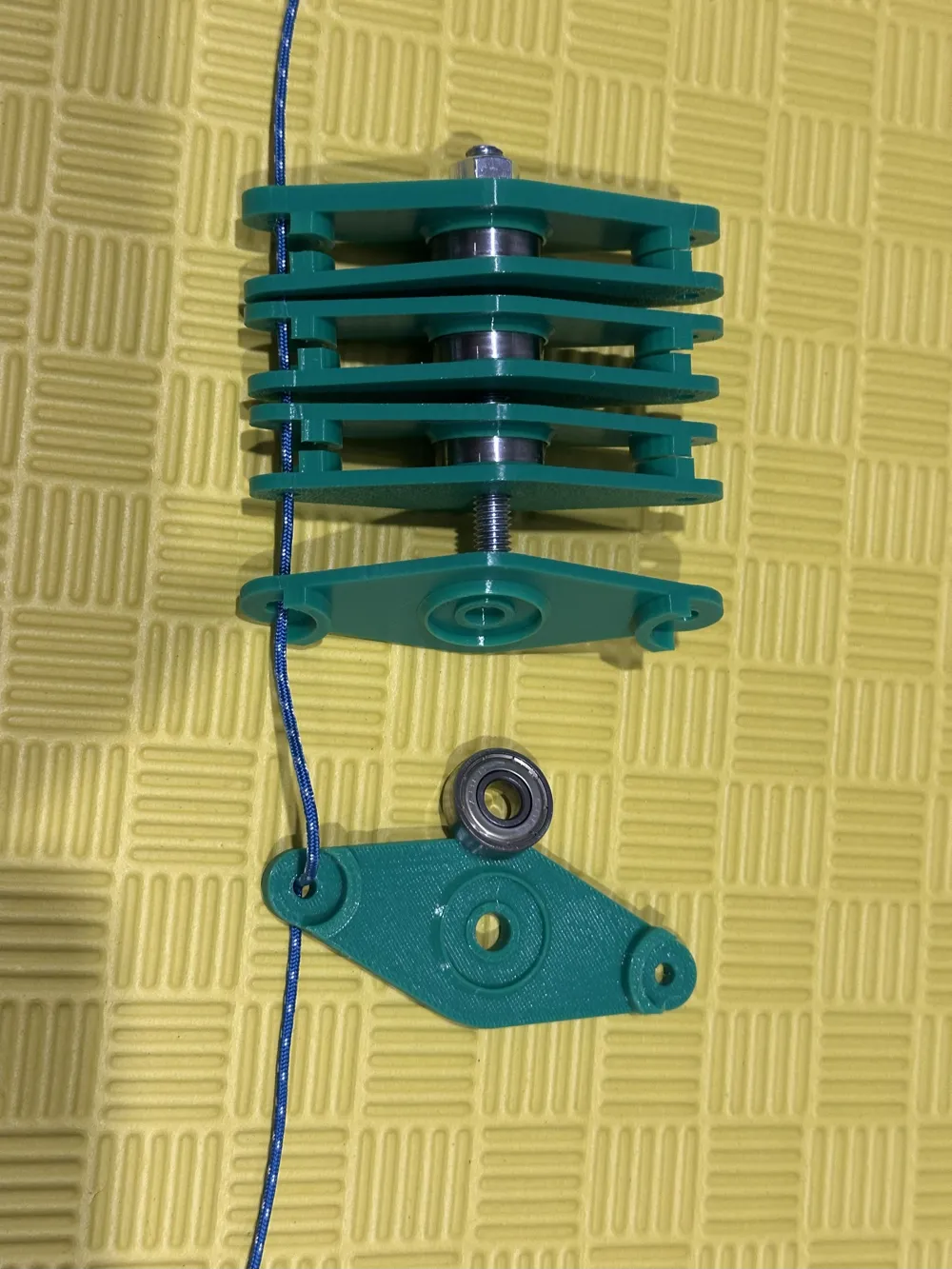

The end and middle plate are almost identical. The middle plate is just thinner as it is doubled to hold bearings on both sides.
Materials:
Skateboard bearings 22mm, 8mm axle
8mm axle (80mm long for quadruple pulley like in pictures)
8mm nuts
