Playseat Challenge Rolling Storage Platform

This accessory was designed to make the Playseat Challenge chair easier to move and more stable when folded.
After several tests, it has proven to be a solid and reliable upgrade for your setup.

🧱 Material Recommendation

For best results, print with PETG or another strong and slightly flexible filament.
The model is durable enough for everyday use and can even roll smoothly on carpeted floors.

⚙️ Additional Functionality

The accessory can also serve as a small electronics holder — ideal for storing power supplies, USB hubs, or similar components.

It is recommended to use it together with this lock system, which automatically centers and secures the pedal mount — so you don’t have to realign it every time.

🔩 Hardware Required

You will need the following parts, available at any hardware store, Amazon, or screw supplier:

• 6 × M5 Socket head screw, 10 mm long
• 6 × M5 nuts
• 4 × M6 Socket head screw, 25 mm long
• 4 × M6 nuts

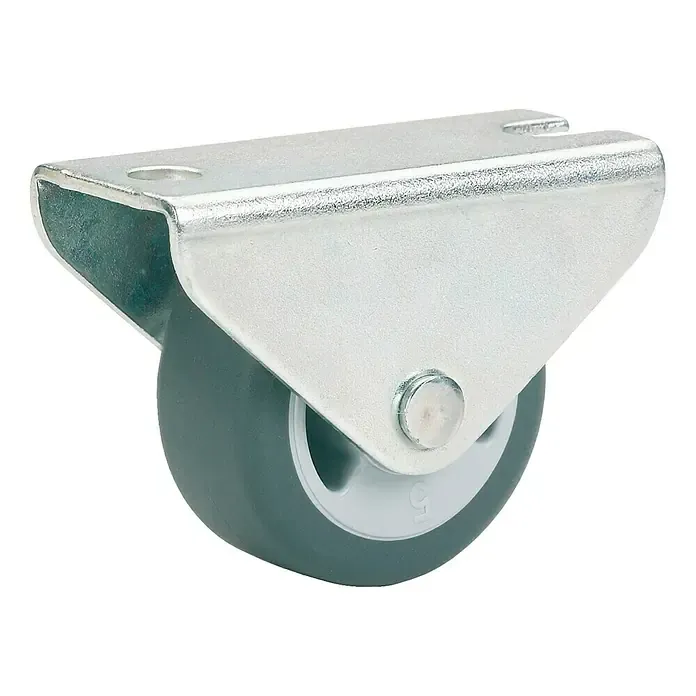

• 2 × Fix Bearing Castor Wheel



  • Mounting surface: 46 × 20 mm
  • Hole spacing: 35 mm
  • Wheel Size: 30 mm

🛠️ Notes

• Assembly is straightforward and beginner-friendly.

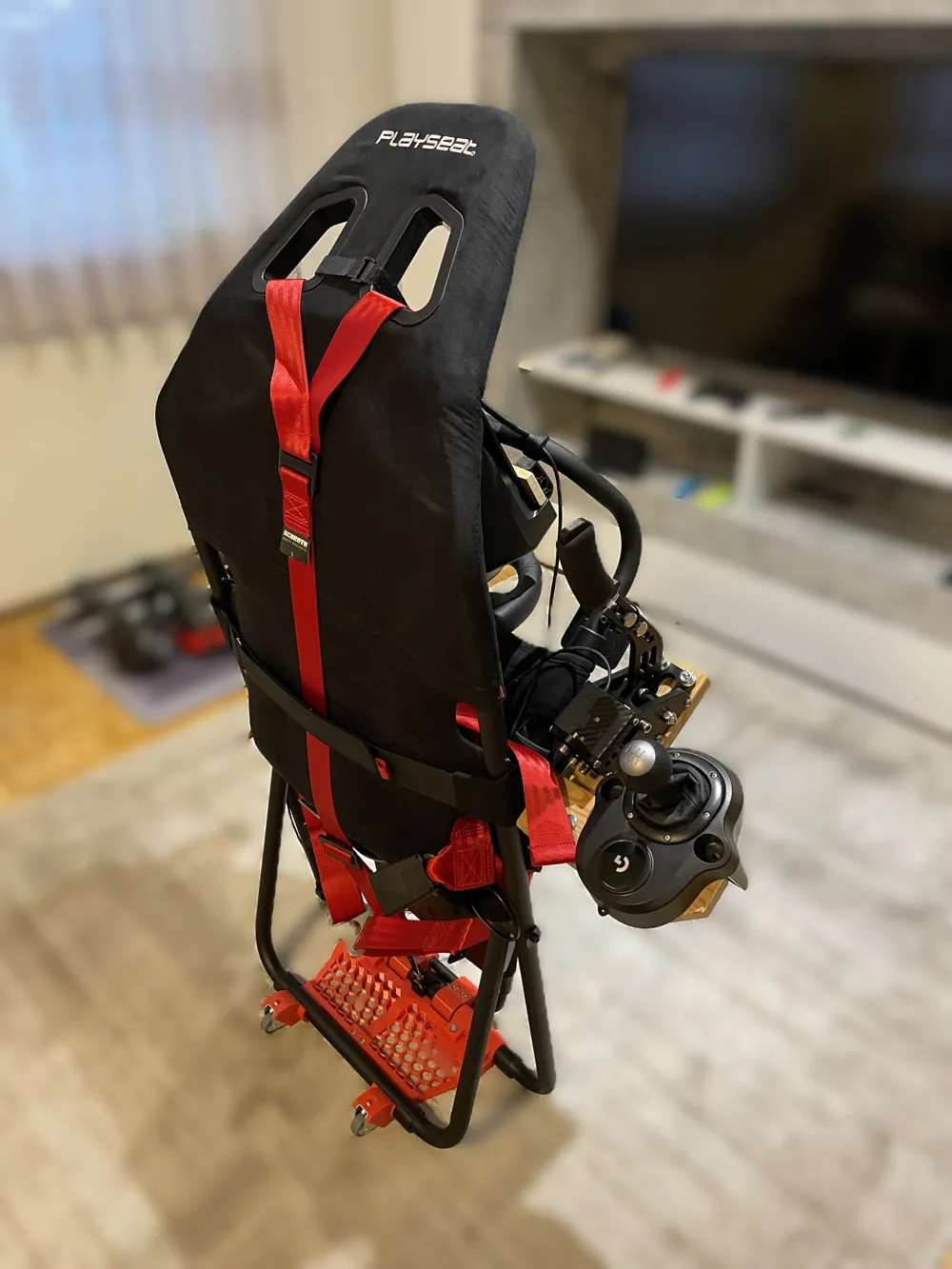

• The design ensures smooth rolling movement and secure positioning when folded.
• All dimensions are optimized for the Playseat Challenge, Gen 1.

Download it, print it, and put it to good use! 😊

Happy printing!
