VFC G17 Gen.5 Slide

Replacement Slide for VFC G17 Gen.5

Fits all stock parts aside from the Gen.5 Backplate and Faux Ejector

Designed to replace a broken slide or to switch up colours etc…

Printing Vertically is important for printing quality and strength so ensure slow print speeds if using your own print profile

Supports can be difficult to remove and take a while to remove fully and require tools to remove it correctly in most areas

The Slide may feel tight at first but will loosen up with a bit of use

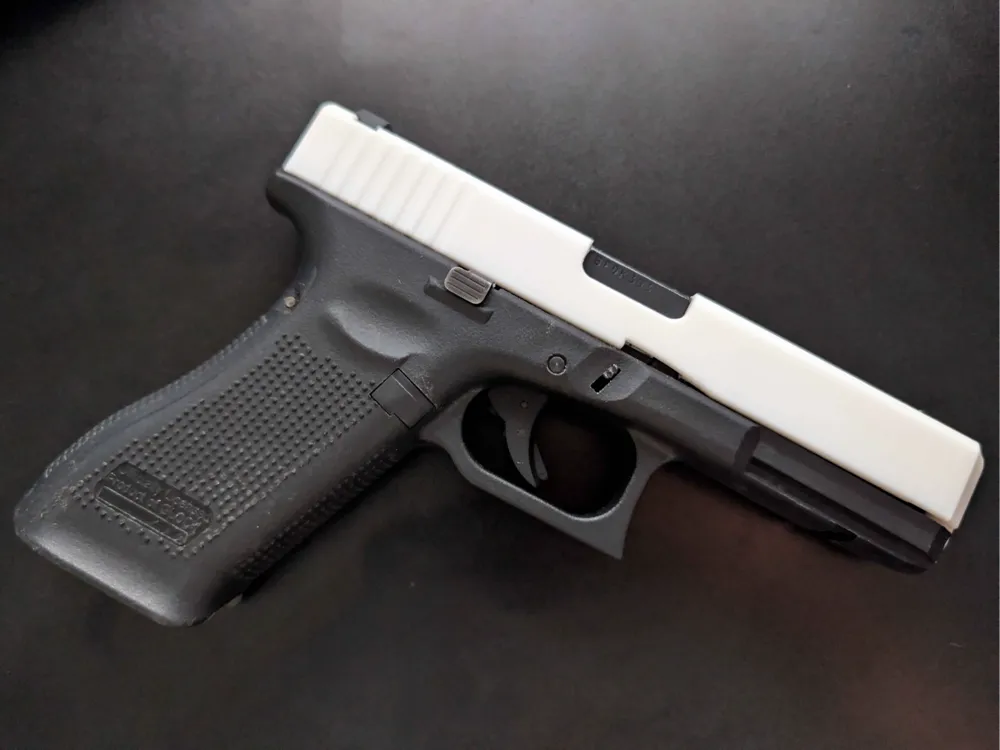

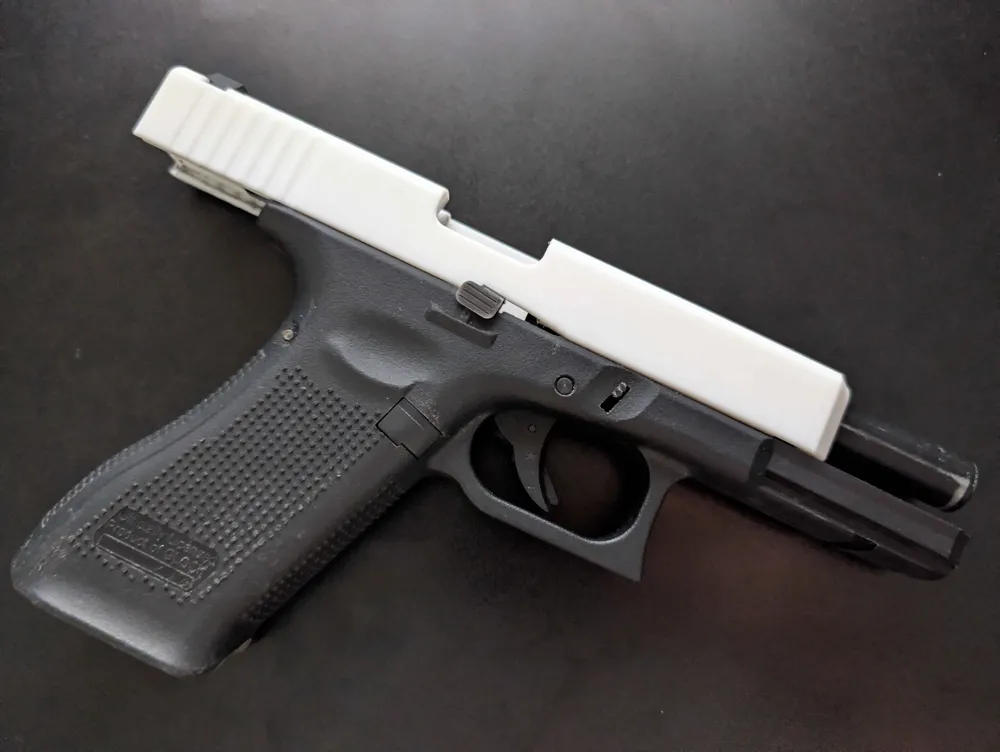

The Slide in the pictures has been through over 500 shots with Vorsk v8 (Nuprol 3.0 Equivelant) at 20 degrees celsius in single and full auto and still performs perfectly

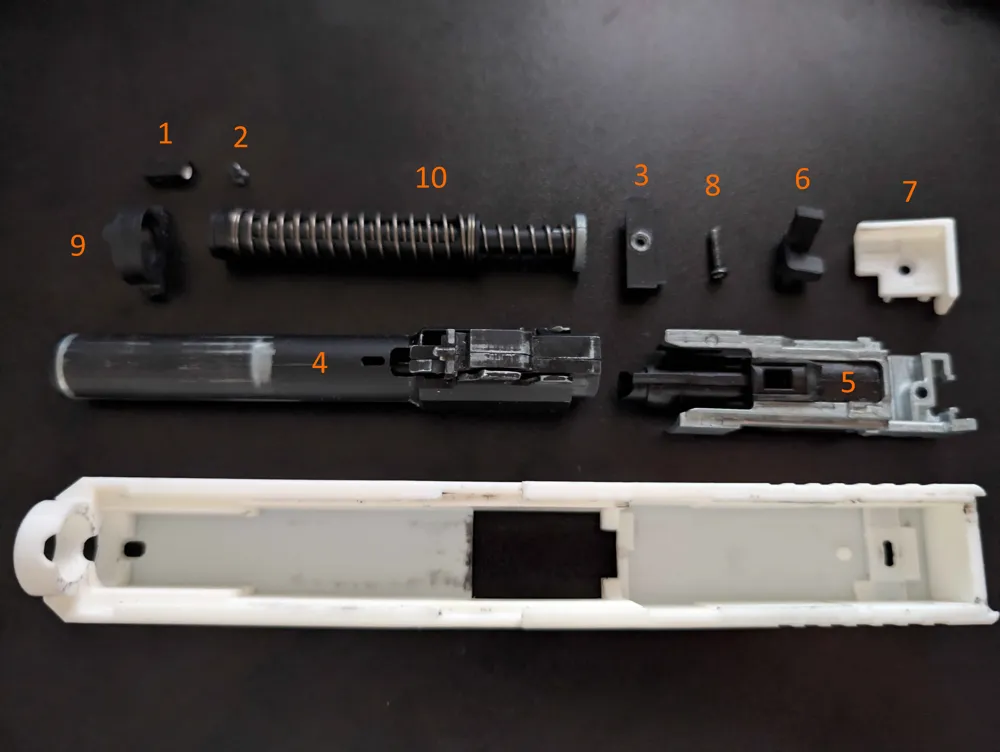

Assembley:

1. Install parts 1 & 2 onto the front of the slide and align facing forward (be careful not to crossthread the front sight)
2. Slide in part 3 to the rear of the slide and align the screw with the centre of the gap in the slide
3. Insert part 4 into the slide and move it as far forward (left) as can be done
4. insert part 5 into the slide as flat as possible or it wont fit properly
5. install part 6 into the open area of part 5 and move it as far towards you as possible (part 6 is optional and only for full auto)
6. install part 7 ontop of part 5 & 6 and screw them down using part 8 (dont screw too tightly or it can damage the slide)
7. move part 4 as far to the rear (right) as you can and then install part 9 into the space near the front of the slide
8. part 10 will only fit under a certain orientation. insert the black end into part 9 and then rest the metal end up againt the nub on part 4

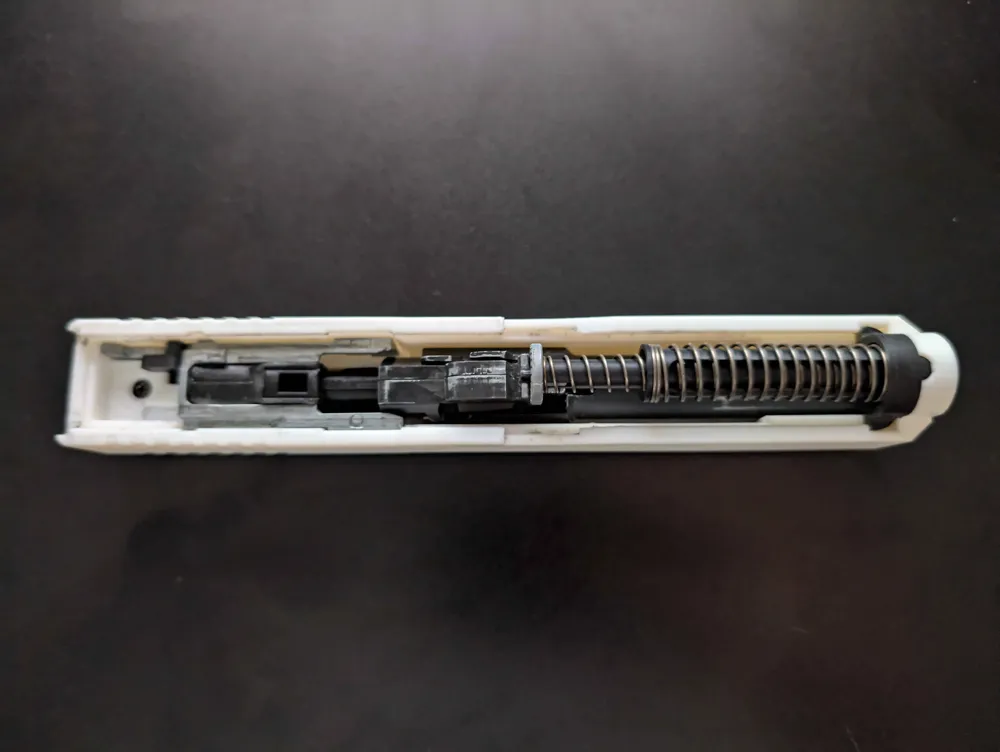

9. rotate part 10 until it slots into place correctly
