Work Rezax Centre Cap Hex Tool Wrench 17"-18"

Hi,

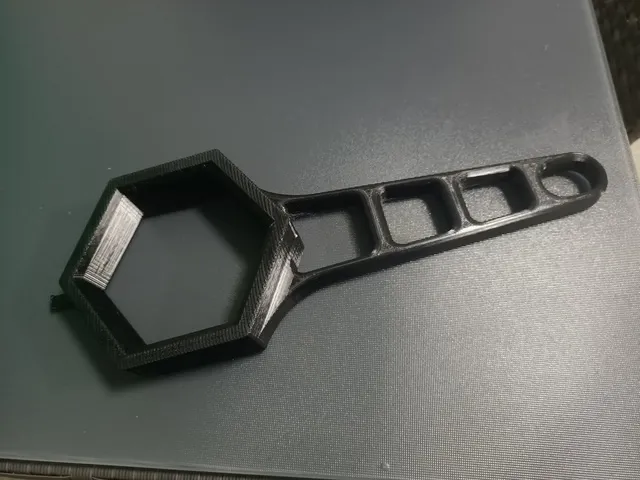

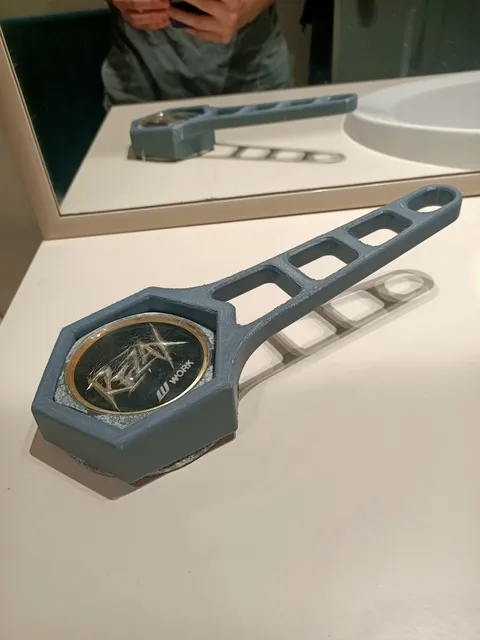

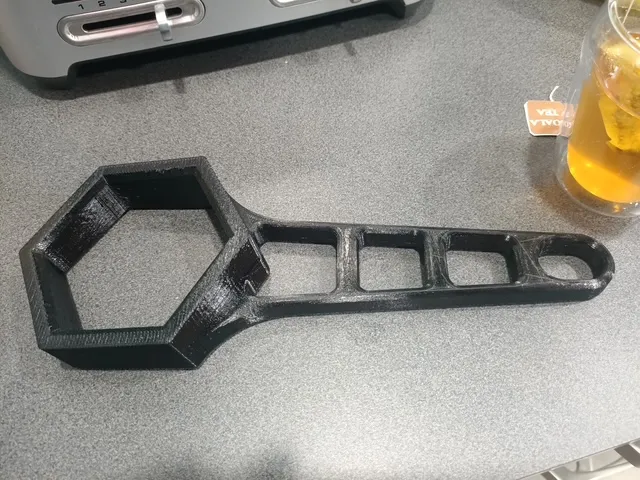

This is a quick hex tool I drew up in order to screw down properly the hex cap on work rezax rims as they have a tendency to come loose.
There's a small pry bar on the end to help lift up the waffle upon removal.

Infill should be at least 20% but ideally 40% (although it's up to you), would much rather the tool break than the plastic threads on the hex strip.

I recommend printing in petg but anything else is fine.

Print fits inside 256x256mm build plate, but not A1 mini.

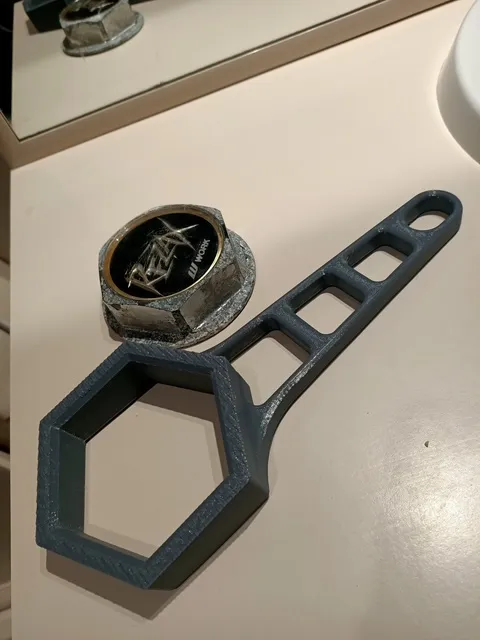

This works on both 17'' and 18'' hex caps both tall and short.

Designed to be printed without supports.

Let me know if there's anything that needs to be edited.

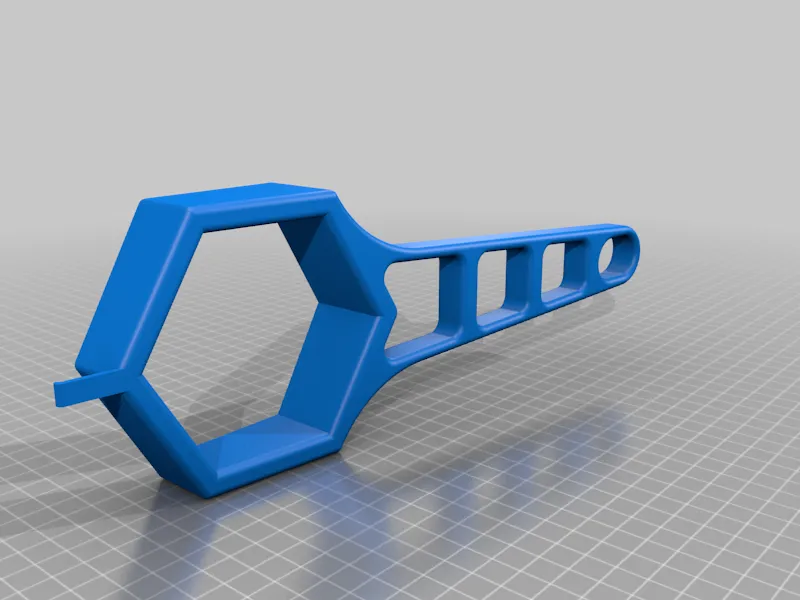

Step and SolidWorks files available for editing.

Thanks.
