L298N Motor Driver Mount
Print Profile(1)
Bill of Materials
Description

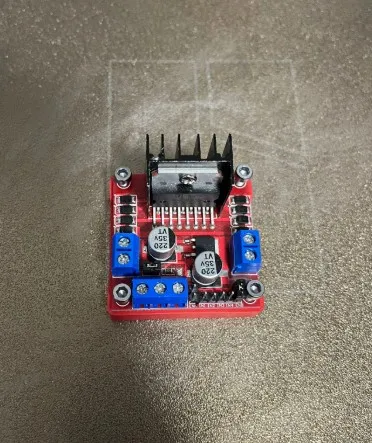

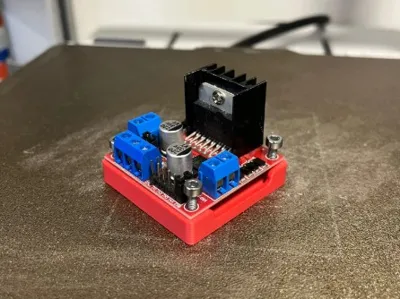

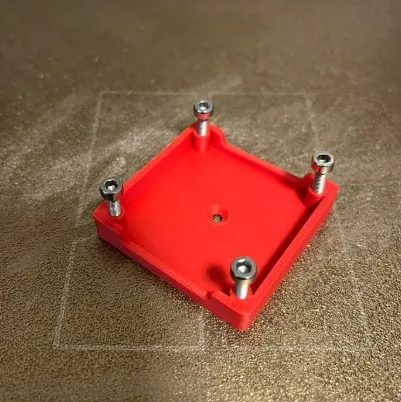

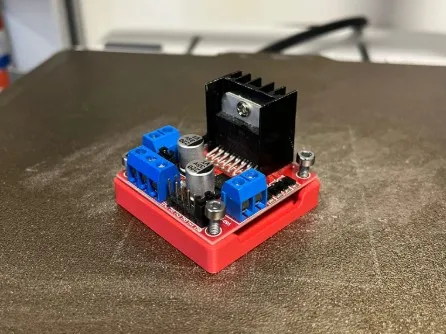

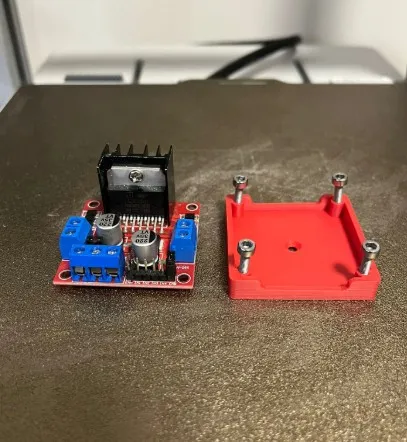

This 3D printed mount is designed to securely hold an L298N dual H-bridge motor driver module, commonly used for robotics, RC vehicles, and Arduino projects. It provides a snug fit with clearance for the onboard heatsink, capacitors, and screw terminals, ensuring stability and easy wiring. The board is mounted on top with 4 - M3x5mm screws. Their is a countersink hole in the middle of the mount to attach to wood with a M3 screw. Or you can use 3m tape on the bottom. The four holes on the mount already have threads, so no need for inserts or self tapping screws.
