Description

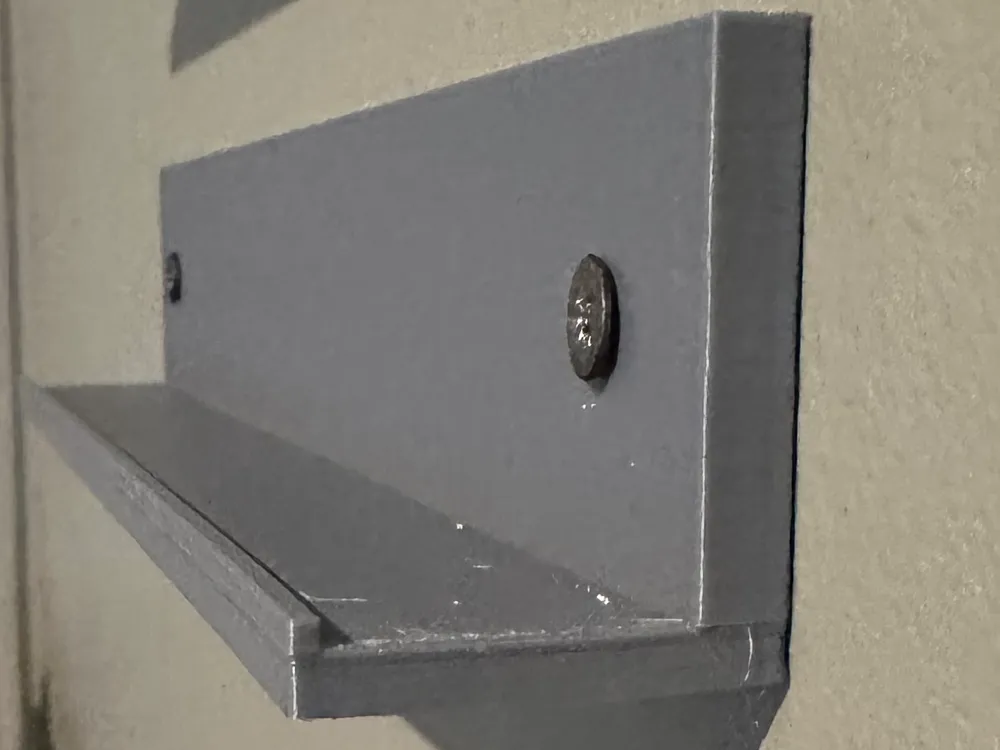

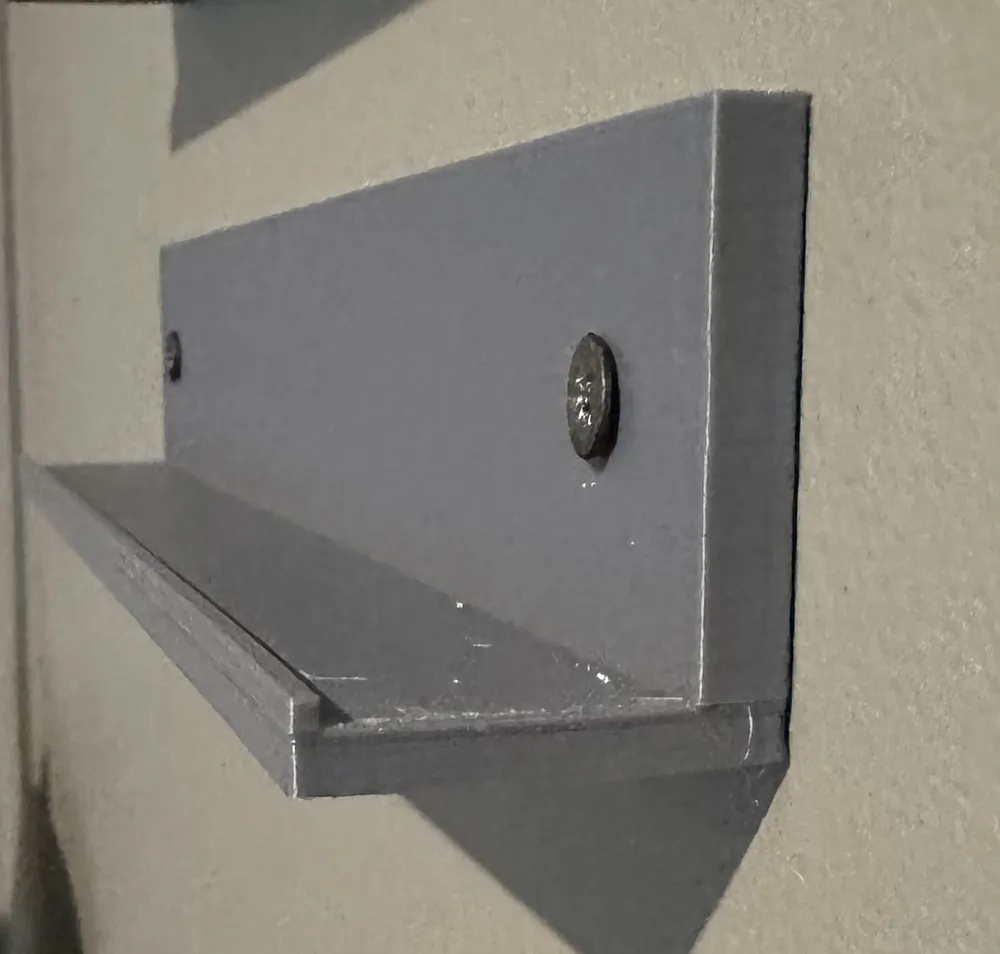

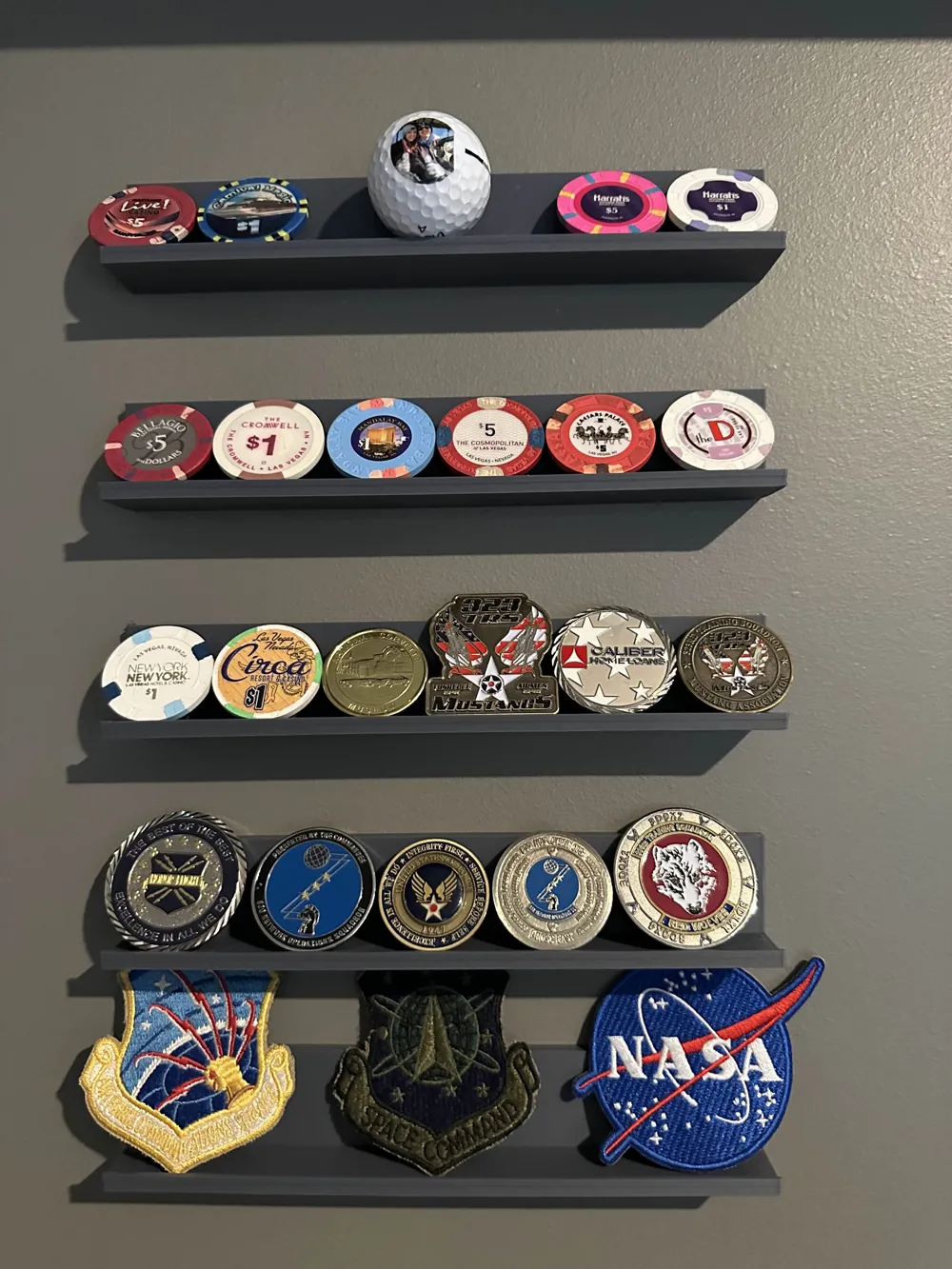

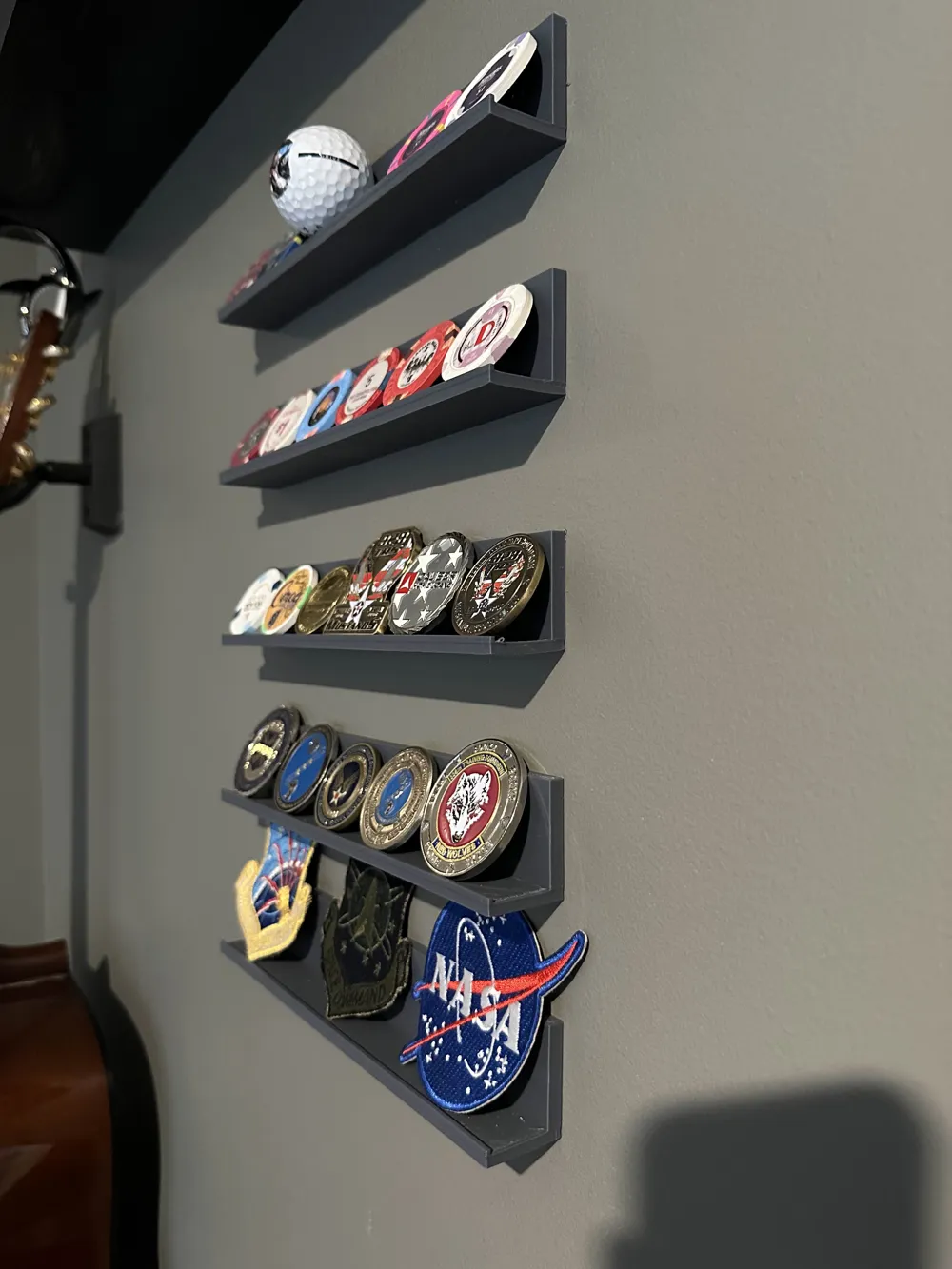

Clean, straight-line wall shelf designed to display challenge coins and poker chips without visible clutter. This single-row bar holds up to 5 coins/chips with comfortable spacing and a subtle front lip to keep items in place. Includes a flat backplate with visible screw holes for simple, secure mounting.
Highlights
- Capacity: 5 coins/chips (fits 39 mm poker chips and most coins up to ~50 mm)
- Dimensions (approx): 238 mm W × 40 mm H × 31 mm D
- Backplate: 40 mm tall × 6 mm thick
- Shelf: 25 mm deep × 4 mm thick
- Front lip: 2 mm
- Mounting: Two 6 mm through-holes ~18 mm from top/side edges (use wall anchors as needed)
- Style: All straight lines (no arch), minimal, modern look
Printing
- Orientation: Backplate flat on the bed, shelf facing up
- Material: PLA or PETG (indoor use)
- Layer height: 0.2 mm (typical)
- Walls/Infill: 3–4 perimeters, ~20% infill
- Supports: Not required (optional brim if your bed adhesion is tricky)
Hardware (not included)
- Works well with M5 / #10 screws (6 mm hole). Use washers and appropriate wall anchors for your surface.
Notes
- The STL is sized for 5 items at ~42 mm spacing. If you need more/less capacity, larger coin spacing, or different hole positions (e.g., to hit studs), scale or request a variant.
- Indoor display recommended.
