💡 What is SealGen?

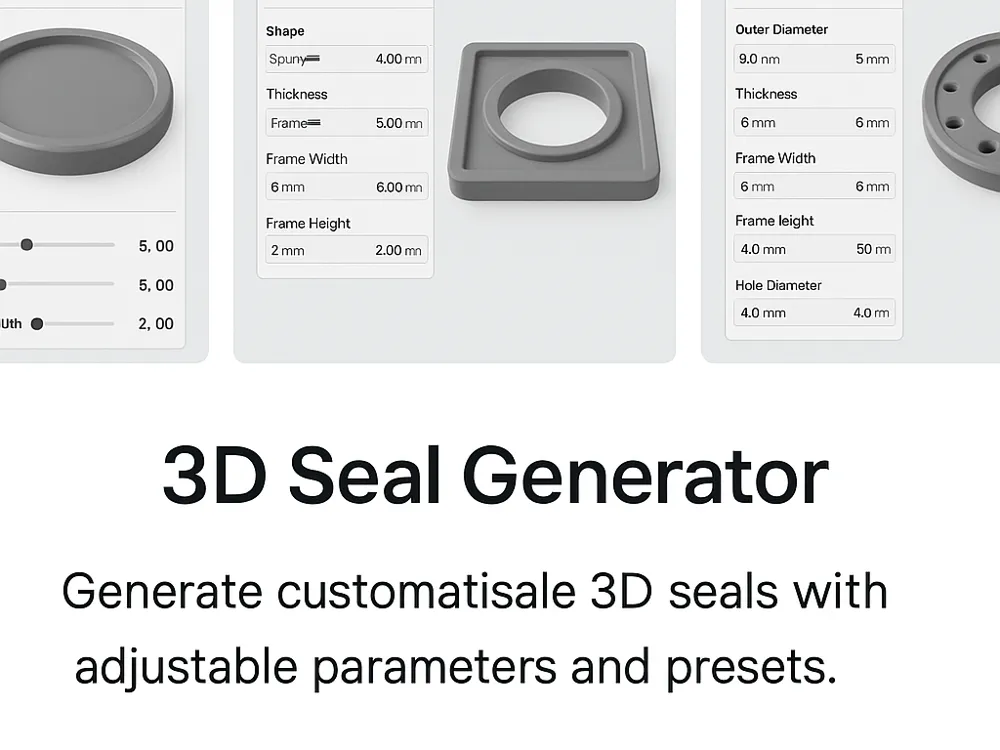

SealGen is a fully parametrizable seal and groove generator for OpenSCAD, which creates individually adapted seals or housing grooves – ideal for TPU, silicone or plastic prints.
Create your own seals and matching grooves directly in the browser – fully parametrizable, lightweight and print-optimized.
With SealGen BASIC you can generate various types of seals – from classic O-rings and X-rings to rectangular, elliptical or polygonal frame seals – each including matching groove geometries.
🔧 Features:

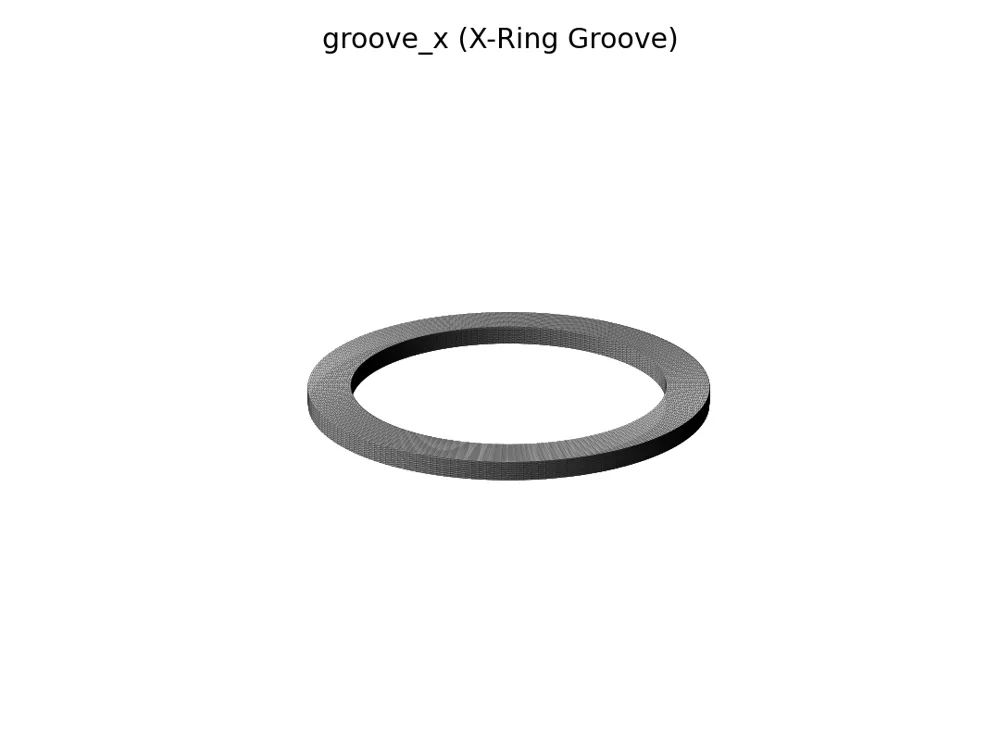

- O-ring and X-ring (quad-ring) with automatic groove calculation
- Frame seals (rectangular, elliptical, polygonal)
- Matching grooves as positive bodies (for subtracting in CAD)
- Bolt circle generator with optional countersink
- Compression and tolerance control for a perfect fit
- MakerWorld compatible (no offset, no functions – super fast!)
💡 Typical applications:
- 3D printed housing seals
- O-ring grooves for TPU or silicone prints
- Seal tests / tolerance coupons
- Water, dust or airtight connections
