Universal cylindrical electric scooter light - adapted for E2Pro high/low beam switch
IP Report
Print Profile(3)
0.2mm layer, 2 walls, 15% infill
Designer
3.7 h
3 plates
Segway E2 Pro Headlight Mount
Designer
19 min
1 plate
Segway E2 Pro High/Low Beam Switch
Designer
3.3 h
1 plate
Open in Bambu Studio
Boost
1
3
0
0
2
0
Released
Description
Content has been automatically translated.

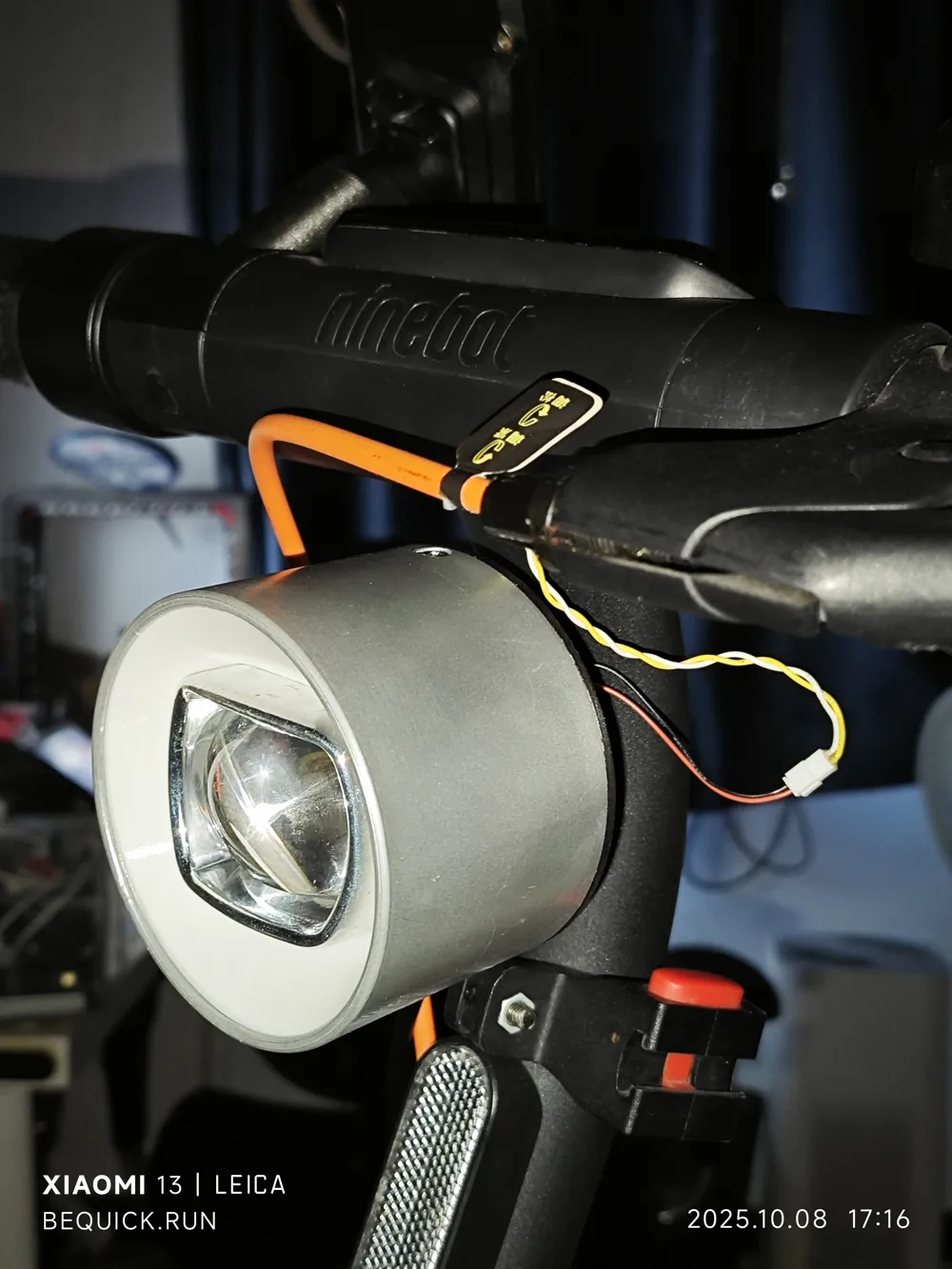

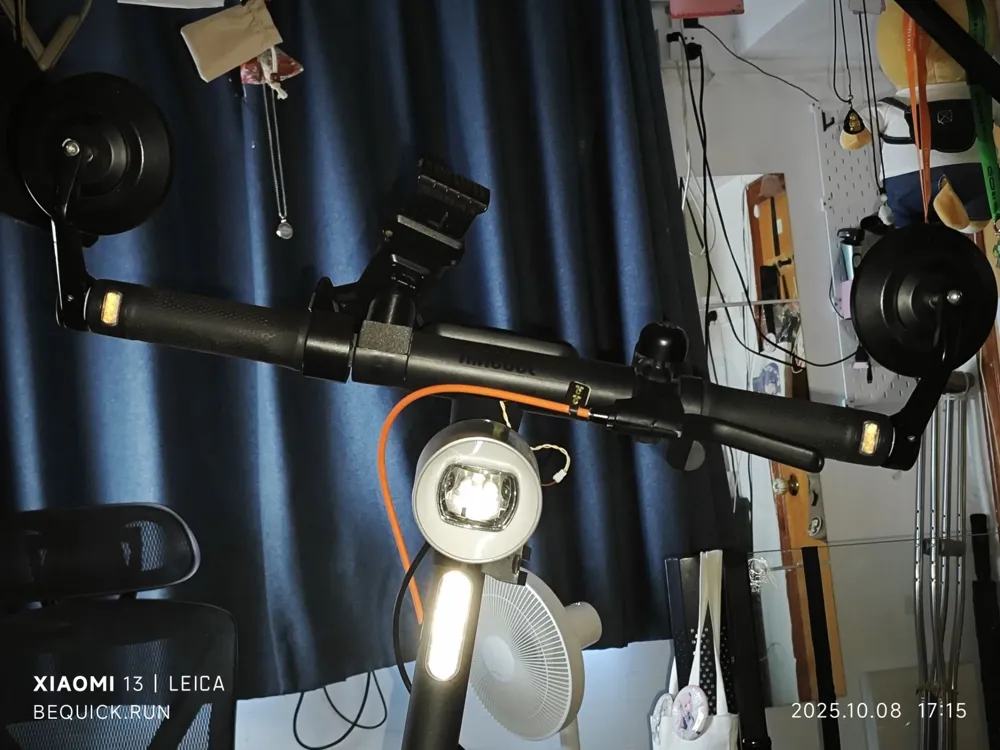

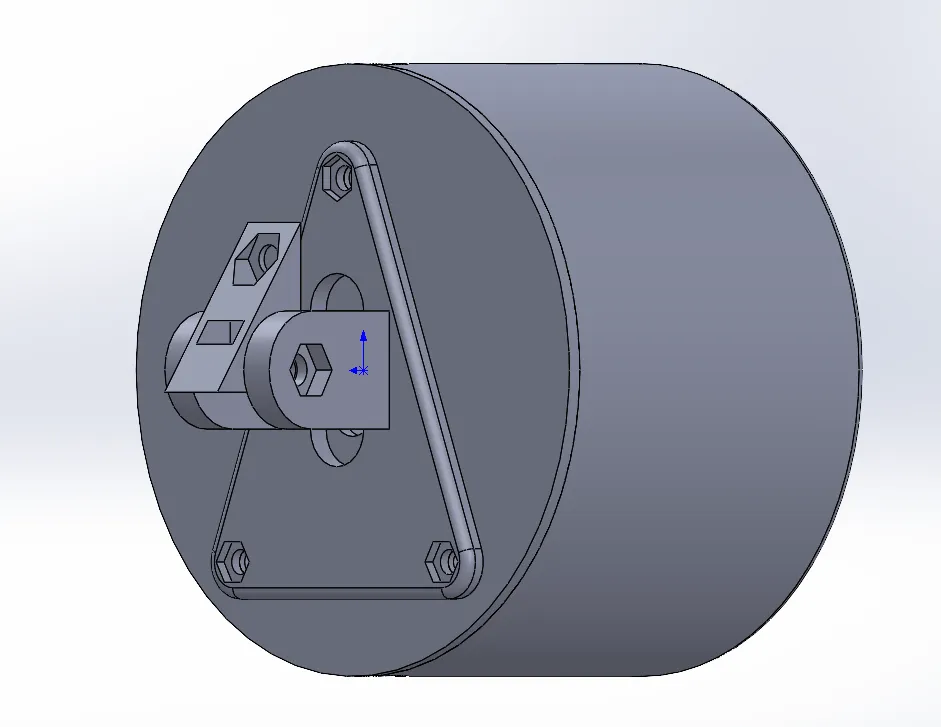

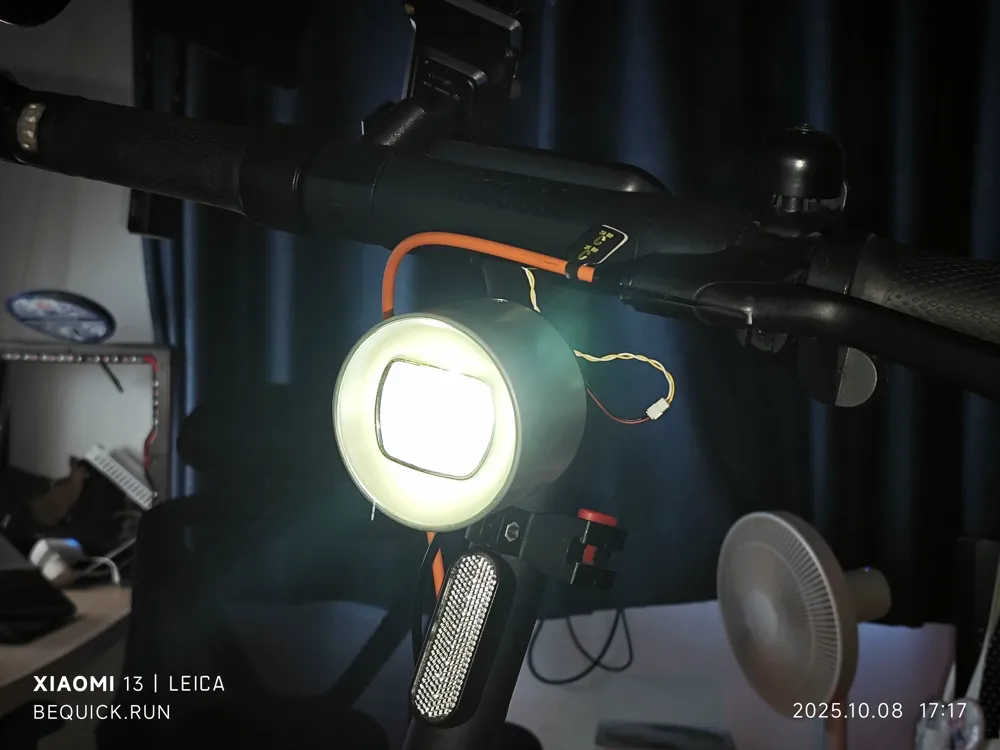

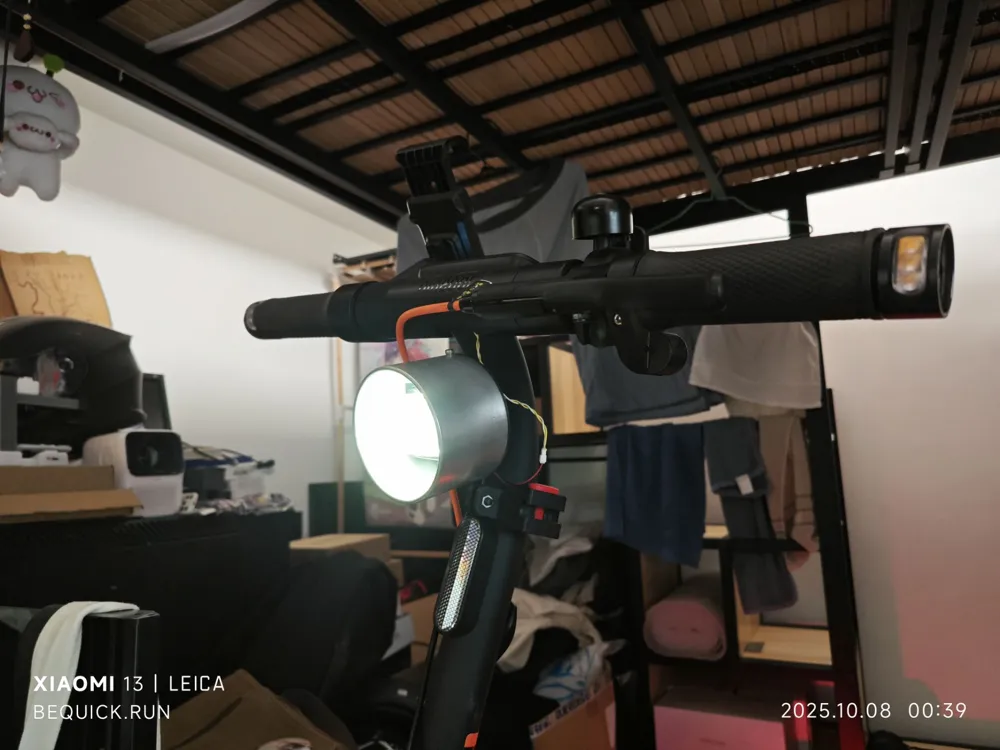

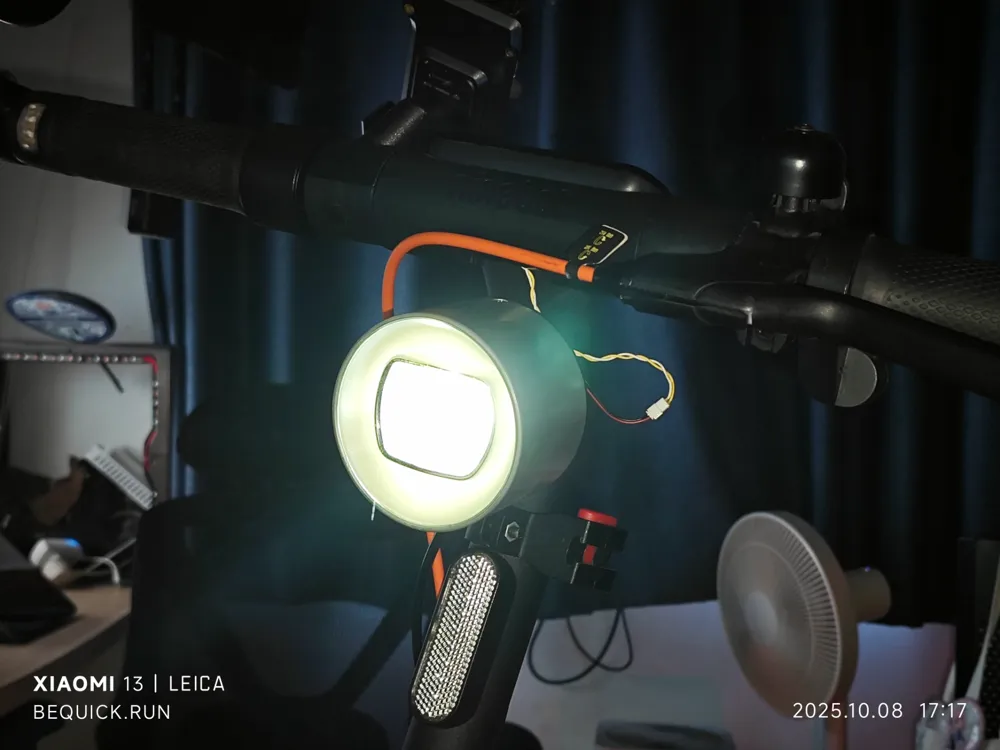

I adapted Lao Wu's light to a scooter, solving the problem of weak night lighting and poor road illumination. In principle, this model can be easily adapted to various vehicles by simply changing the mounting block
Currently compatible with:
- Segway E2 Pro
Optional accessories:

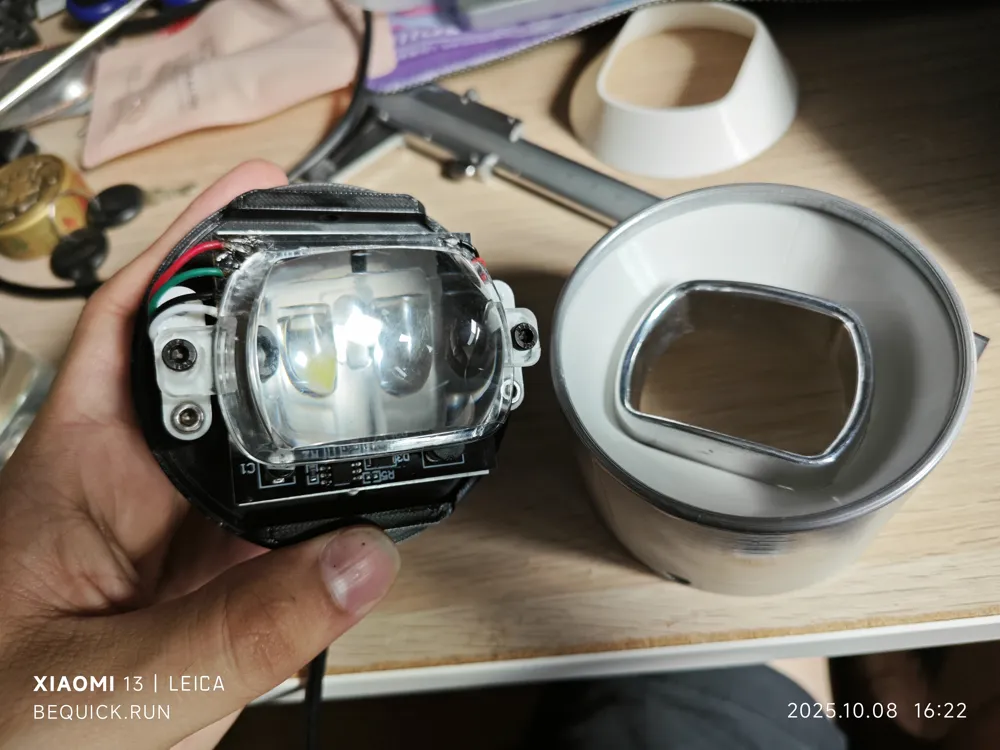

- 35mm lampshade: This lampshade can be printed when a spotlight cover is not needed, saving space
- I-beam structural component: Provides two additional M3 screw holes for mounting a microcontroller to achieve some cool functions
| Fastener | Quantity | Description |
| M3*5 | 3 | For assembling the base plate (8mm or 12mm can be used instead) |
| M3*8 | 6(+2) | For assembling the main structure (12mm can be used instead) |
| M3*12 | 2 | For assembling the lens and structural components |
| M3 nut | 11(+2) | Two extra when using the I-beam structural component |

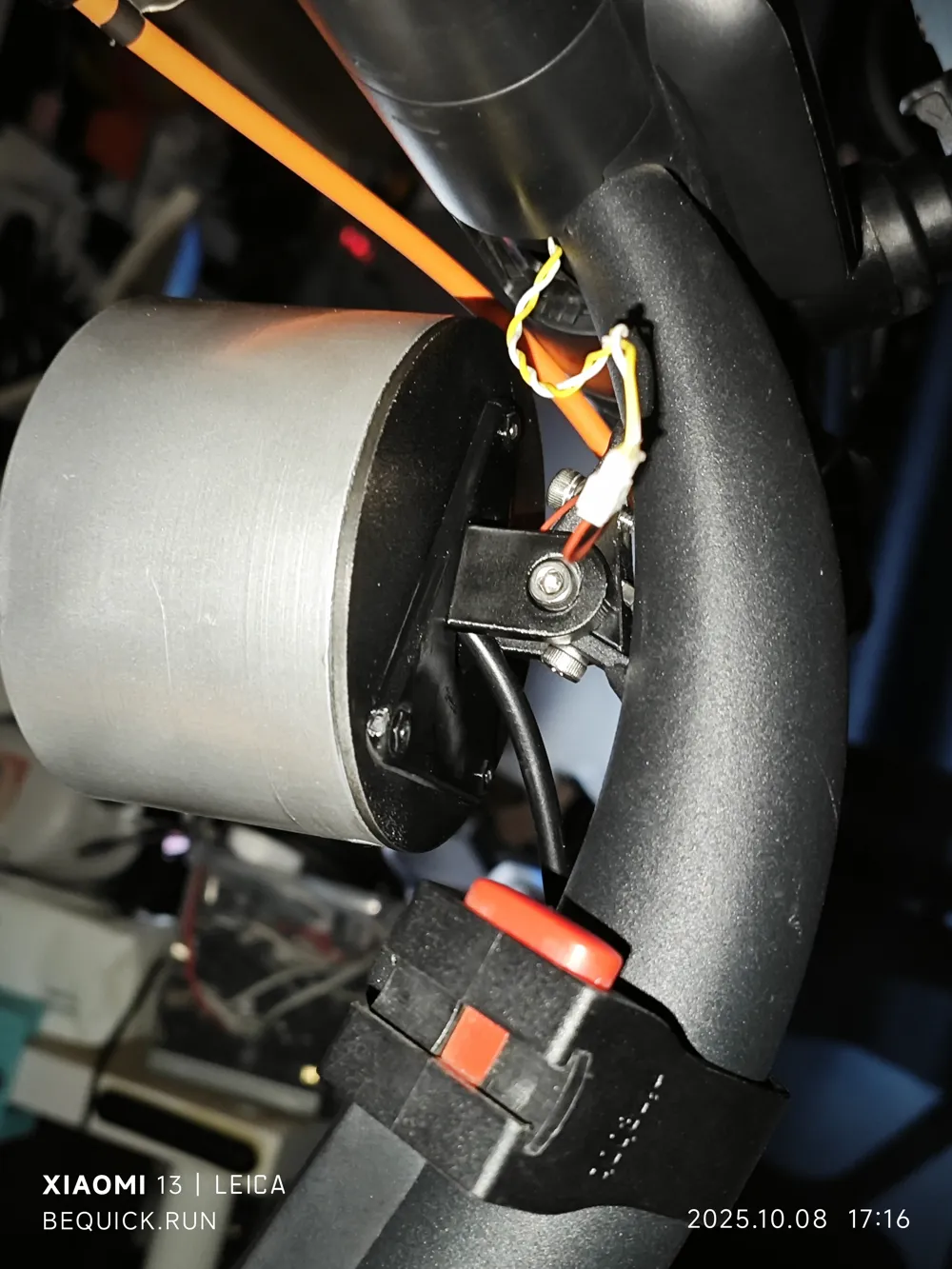

| M4* | 1 | For adjusting the pitch angle |
| M4 lock nut | 1 | For adjusting the pitch angle |

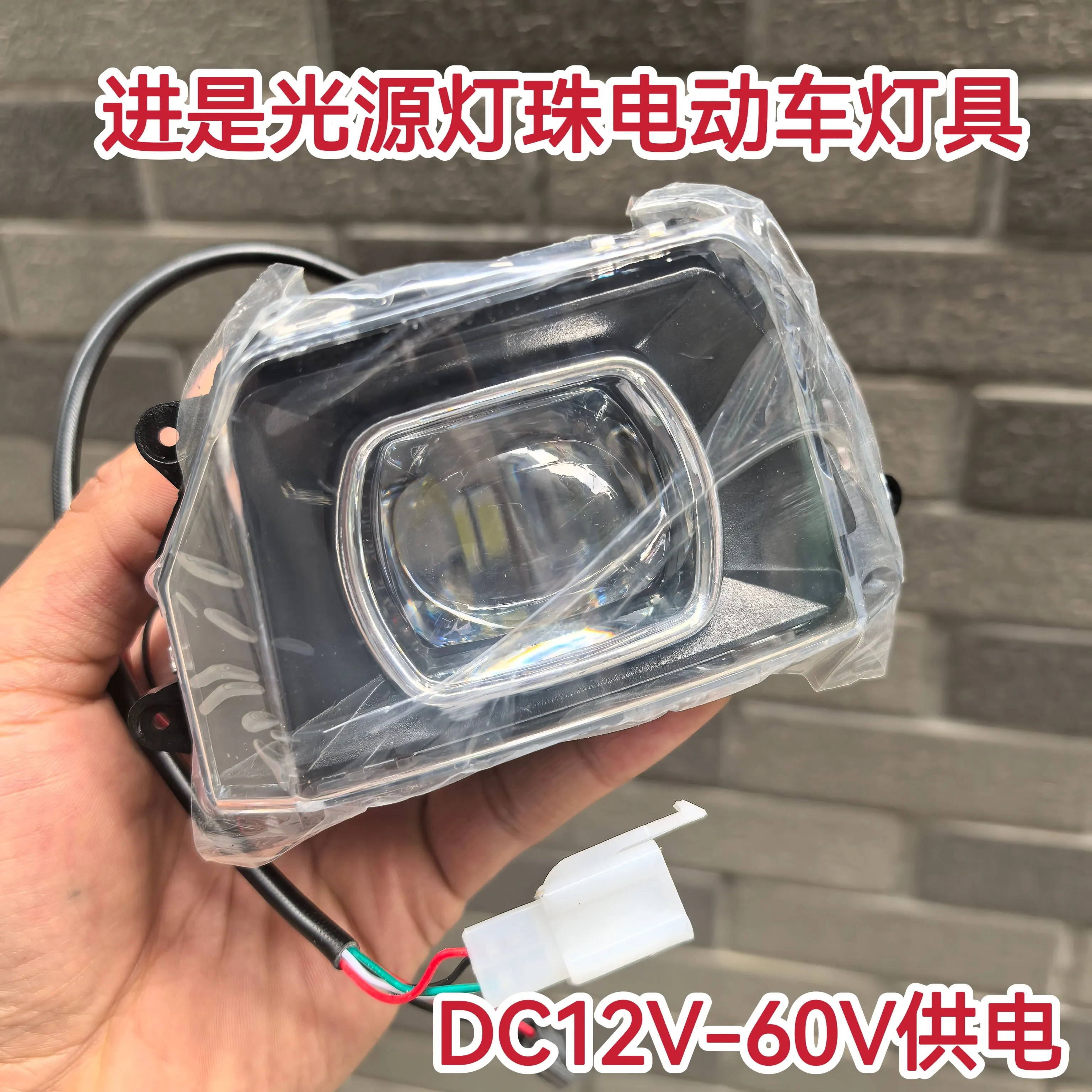

 | 1 | Purchased from Lao Wu's, costs a few dollars |
===========================
2025-12-28 Update

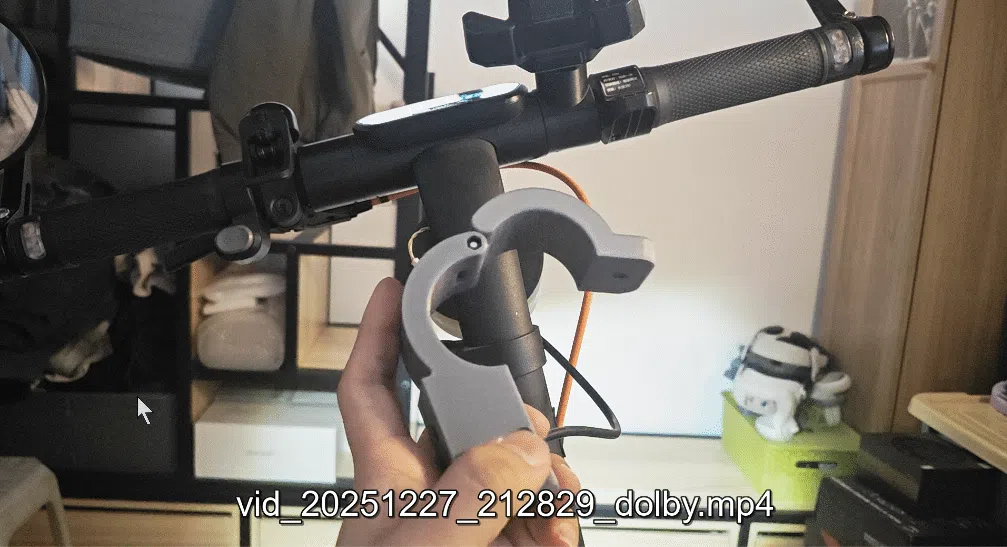

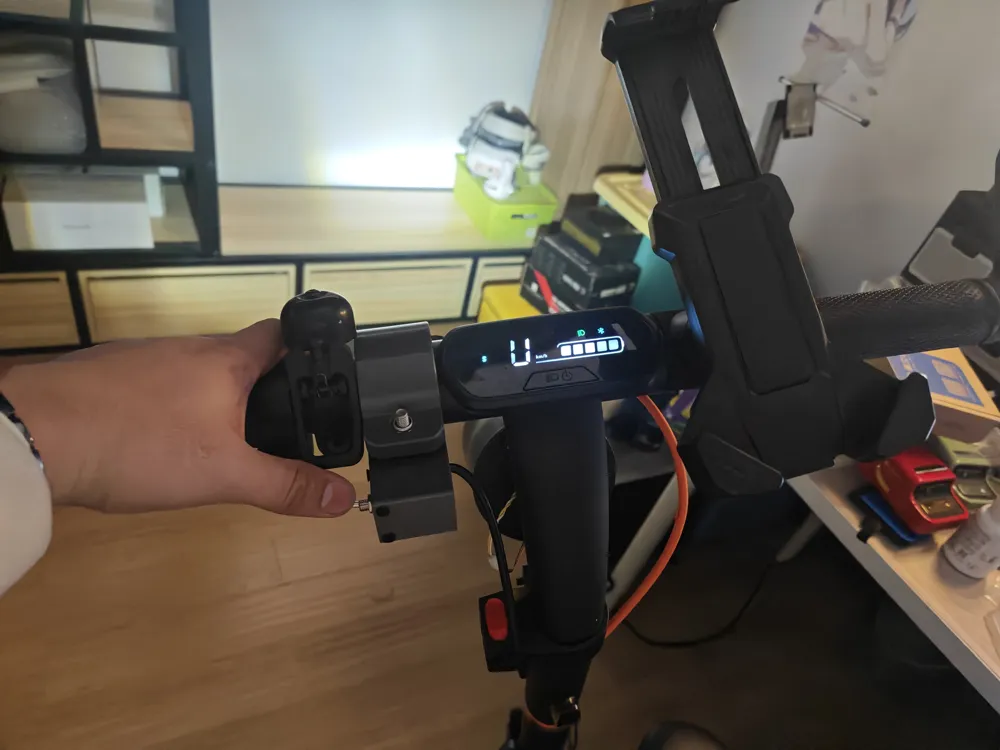

- Made a high/low beam switch compatible with E2 Pro, now you can switch between high and low beams while riding to blind oncoming electric bike riders!
| Fastener | Quantity | Description |
| M3*(5,15 | 4 | For fixing the panel |
| M3*30 | 1 | Acts as a pivot, cannot be too short but can be longer |
| M3 nut | 1 | Preferably a lock nut, 304 material for rust prevention |
| M6*50 | 1 | For fixing the bayonet mount, cannot be too short but can be longer |
| M6 nut | 1 | Preferably a lock nut, 304 material for rust prevention |

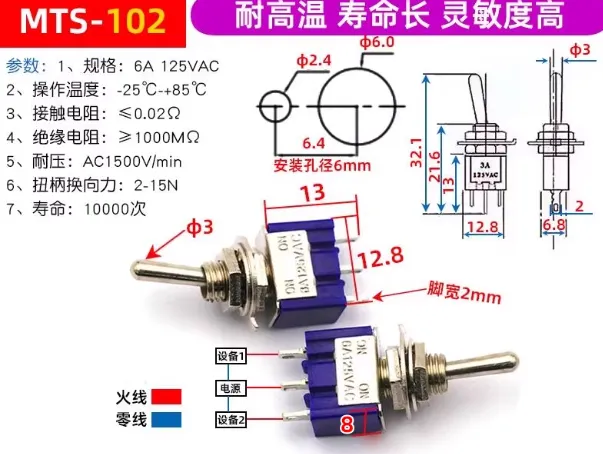

| Toggle switch | 1 |  |
