esp32 AI agent - minimalist version & post-apocalyptic wasteland style
Print Profile(1)
Description

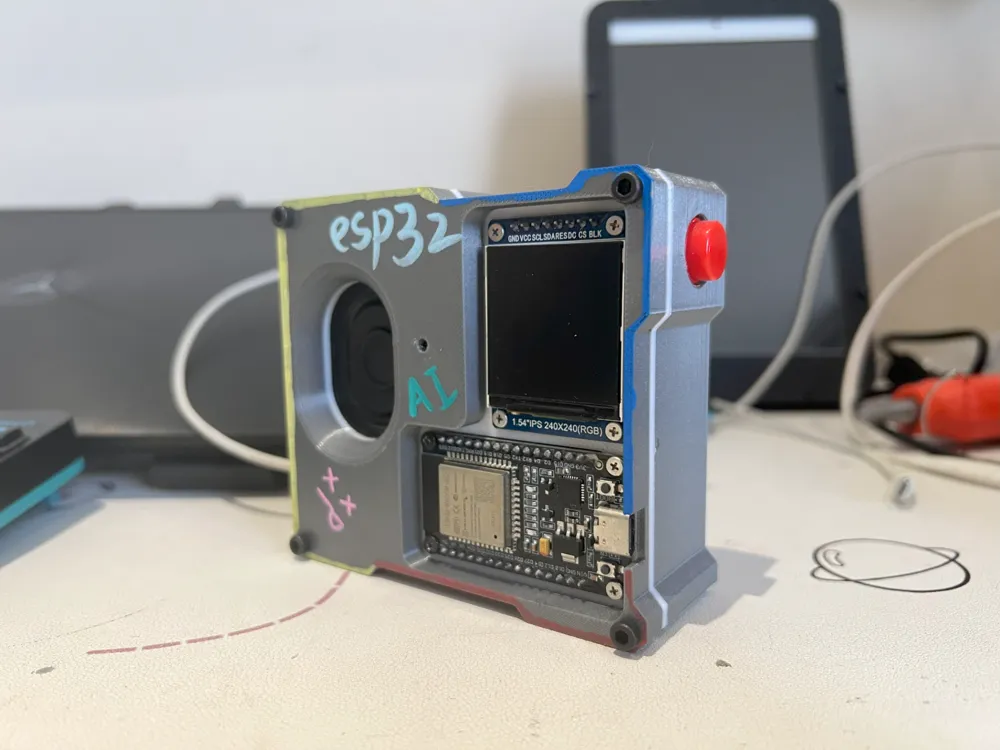

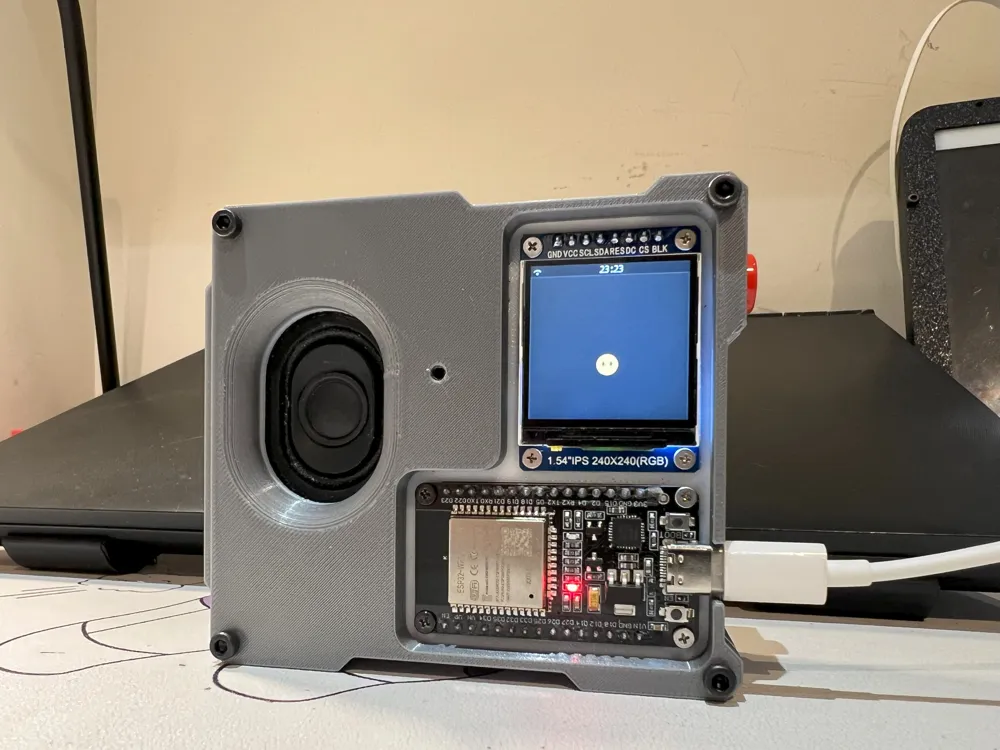

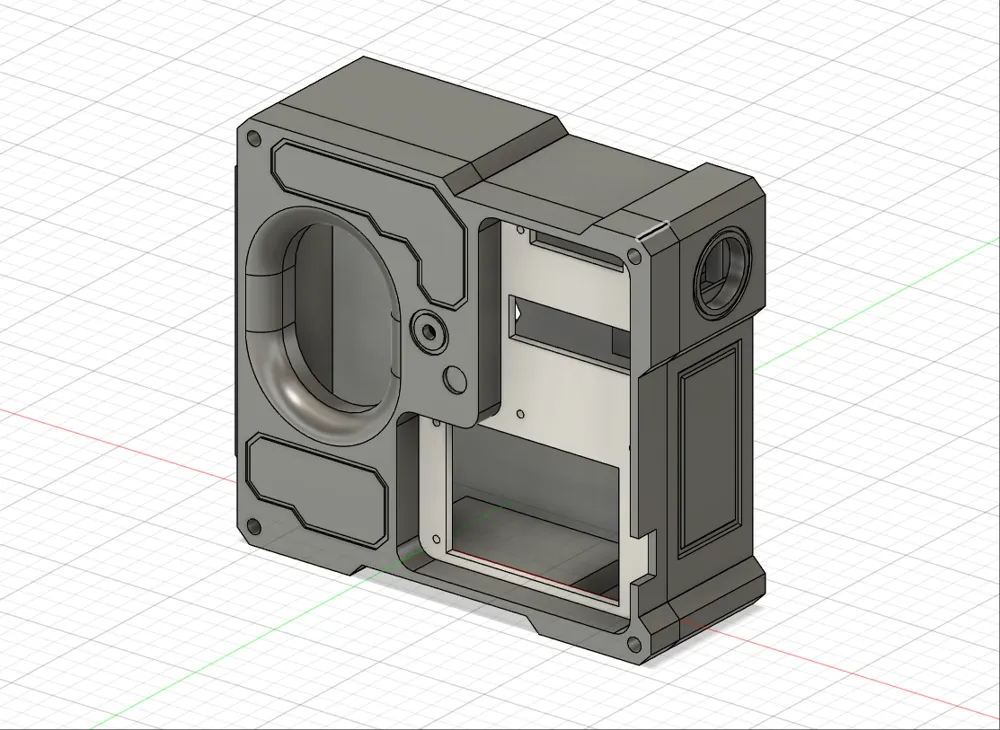

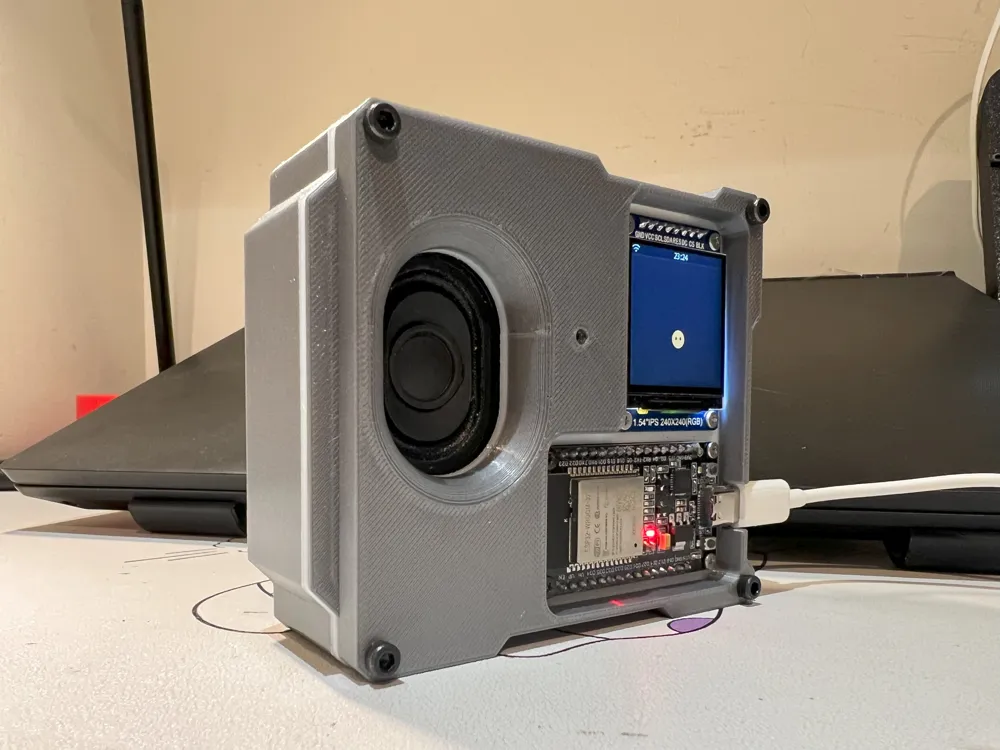

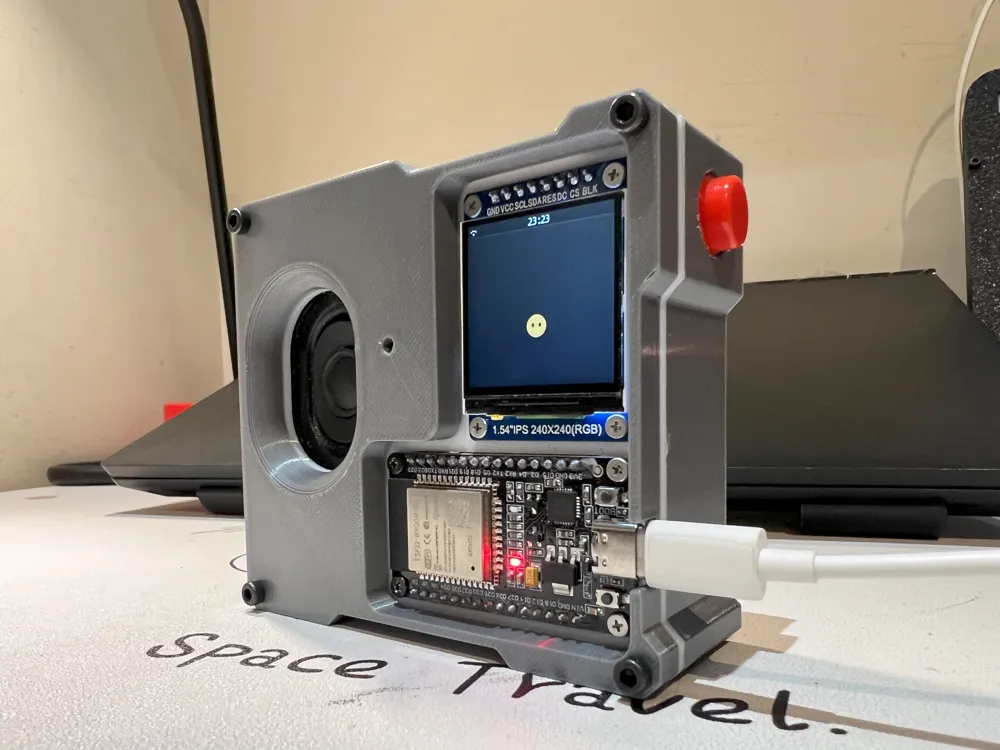

ESP32 AI projects are very popular now, so if you have spare parts at home, feel free to assemble one. This version is the most basic board, requiring a button for wake-up. If you want voice wake-up, please modify the model yourself. The internal wiring is extensive, and existing enclosures cannot accommodate it, so I designed one myself to ensure ample internal space. Aesthetics were also a priority, finally opting for a wasteland style with exposed circuit boards, hope you like it
Boost Me (for free)
Come on
Materials: ESP32-S = 15 yuan, 3W speaker = 3.5 yuan, INMP441 microphone = 6 yuan, MAX98357A amplifier = 8.2 yuan, 1.54-inch TFT display = 17 yuan. Button = 0.5 yuan. Dupont wires, 10 M2 screws, 4 M3 screws. Wiring diagram and firmware can be found on the AI XiaoZhi official website. For more interesting designs, check out the video channel "Xiaoye Tongxue in Chongqing".https://v.douyin.com/G3aZZskg_cc/
