Bill of Materials
- O-Ring 16x11x2,5 x 6:
Description

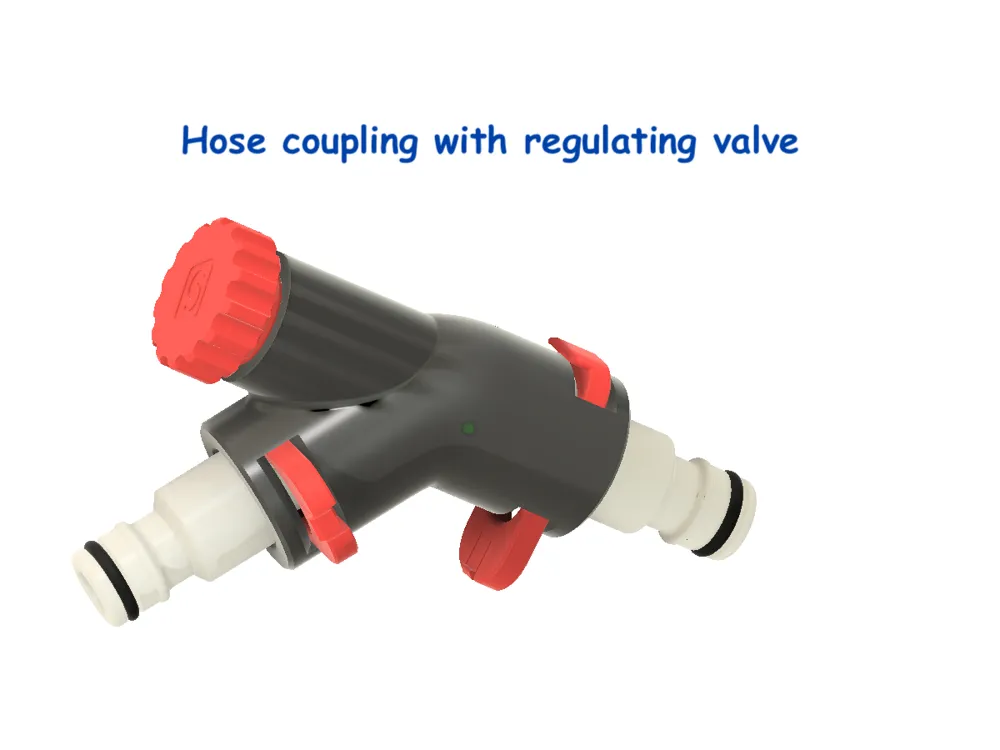

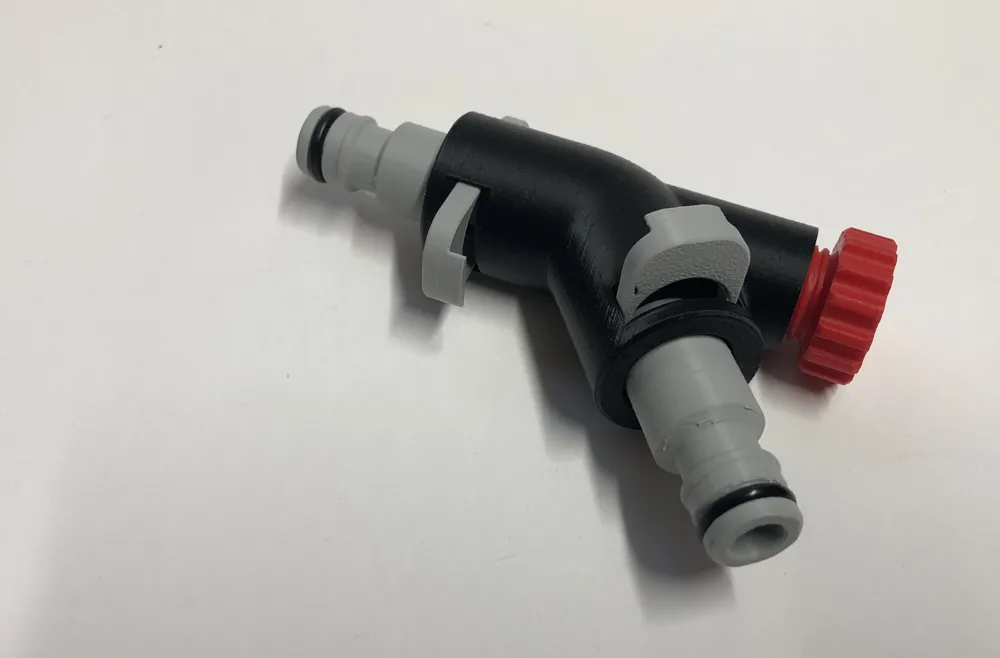

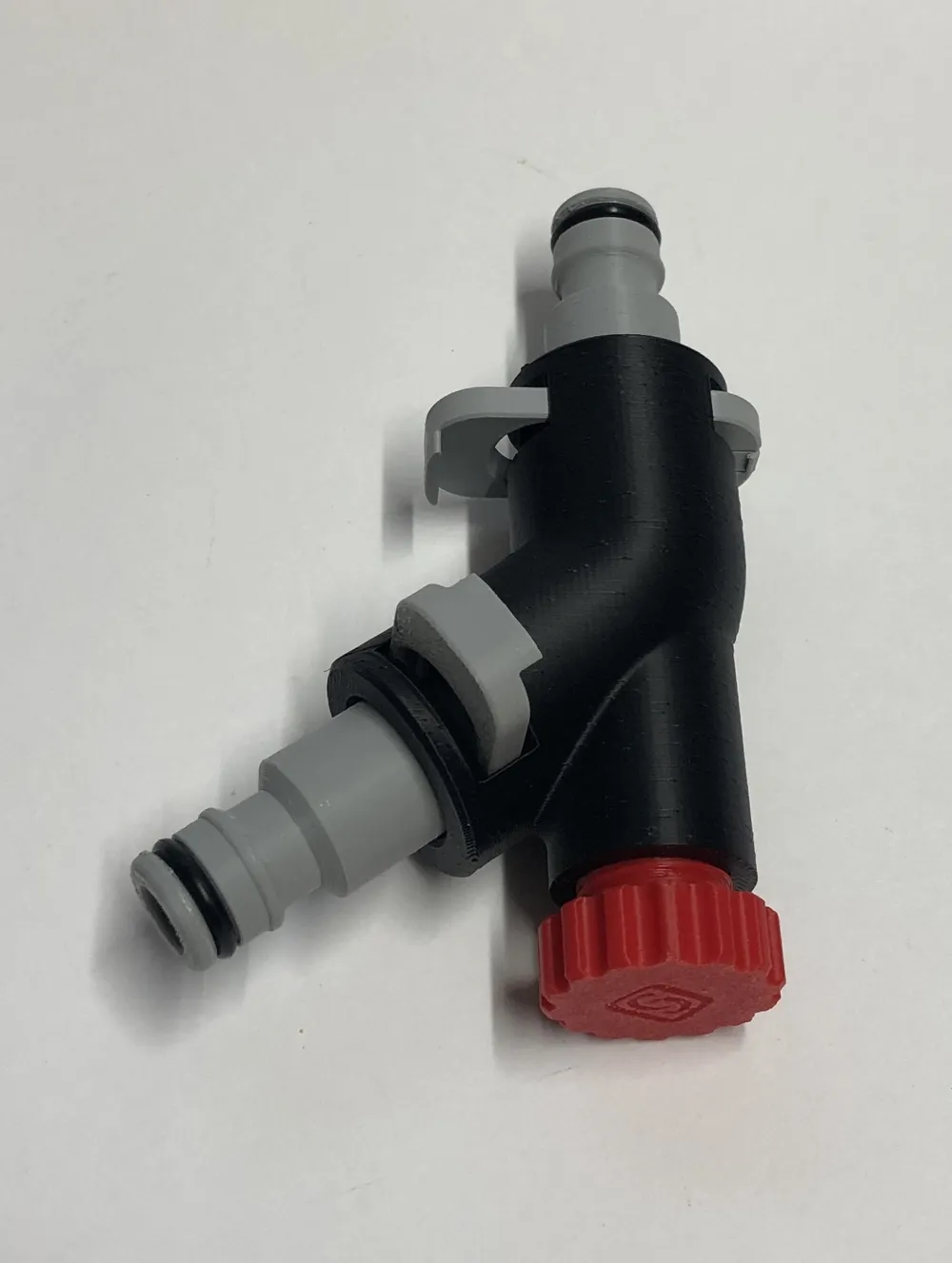

This is a control valve / shut-off valve for garden hoses The connectors are compatible with common hose coupling systems

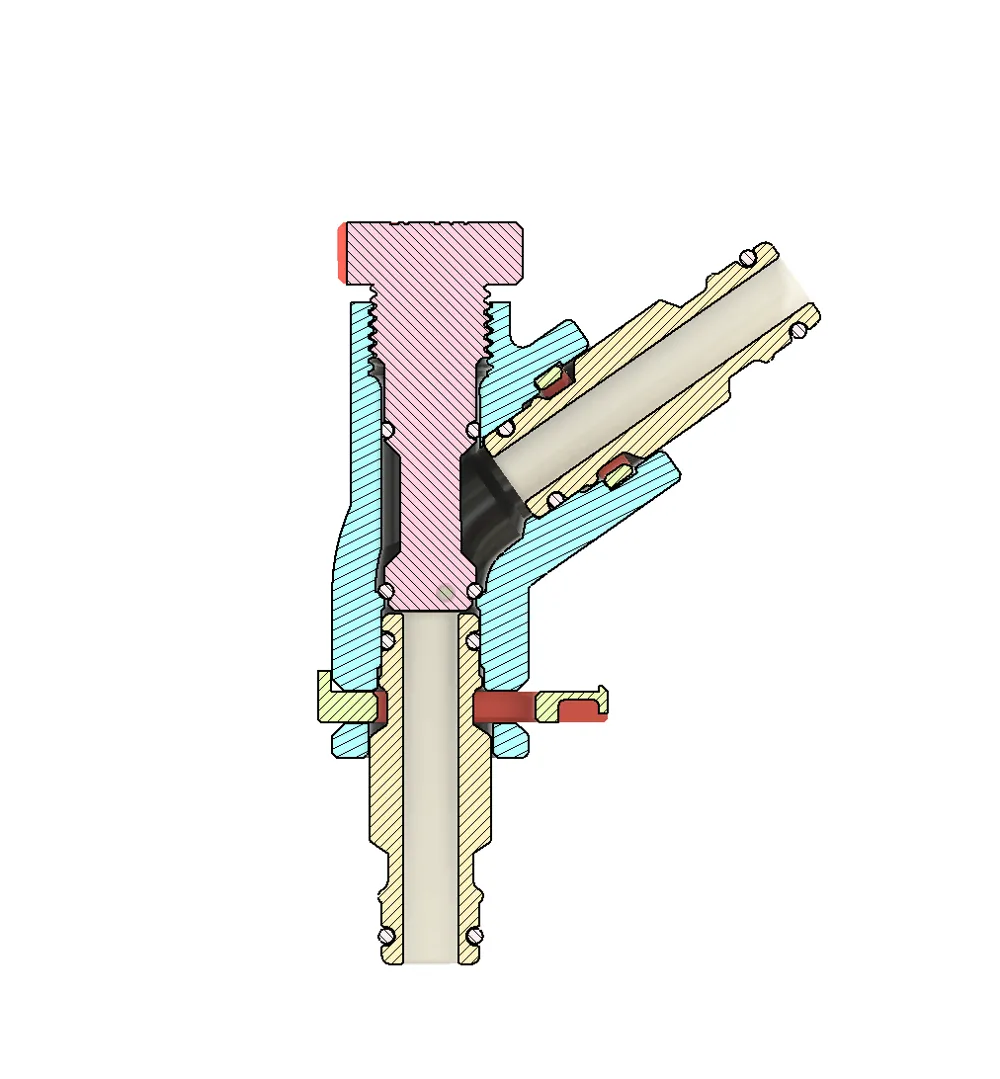

The flow rate is regulated via the red rotary knob and can be continuously adjusted down to zero

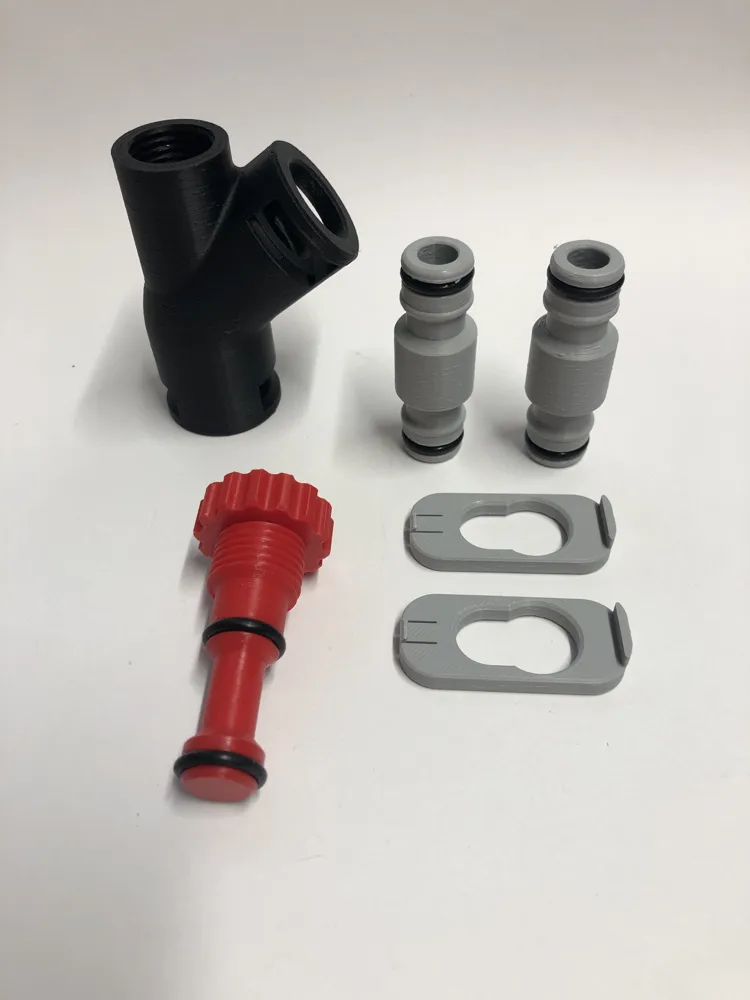

Standard O-rings with dimensions OD=16mm, ID=11mm, thickness=2.5mm are required for sealing
Lightly grease the O-rings during assembly

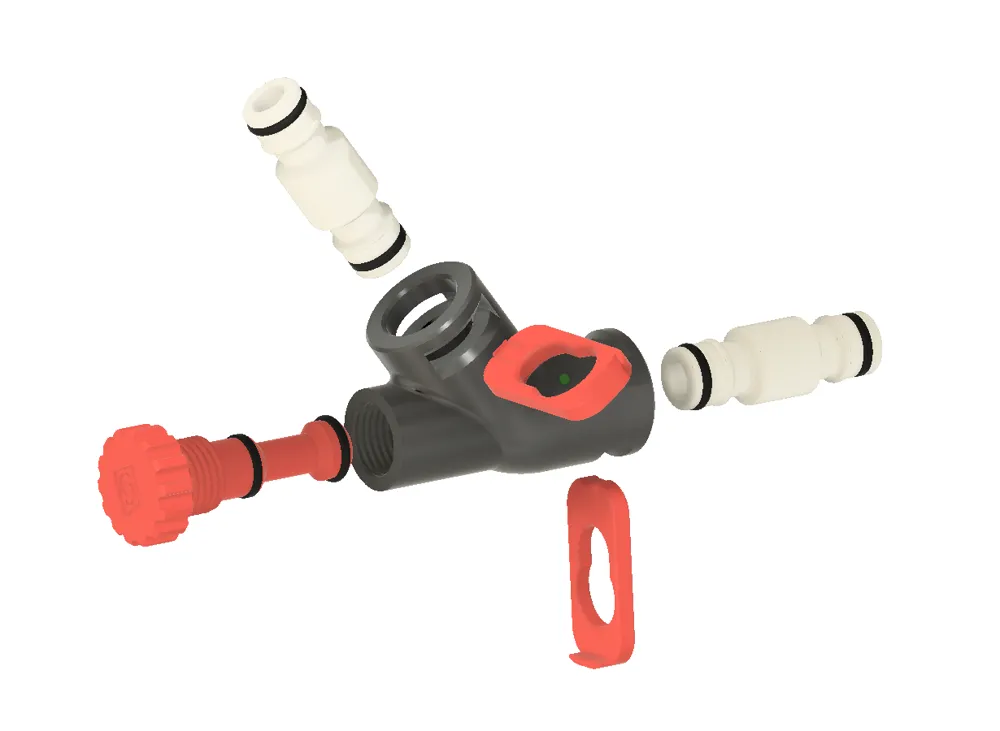

Once the double connector or a suitable tool has been inserted into the coupling, it can be secured against accidental removal using the locking slider
Best printed in PETG-HF

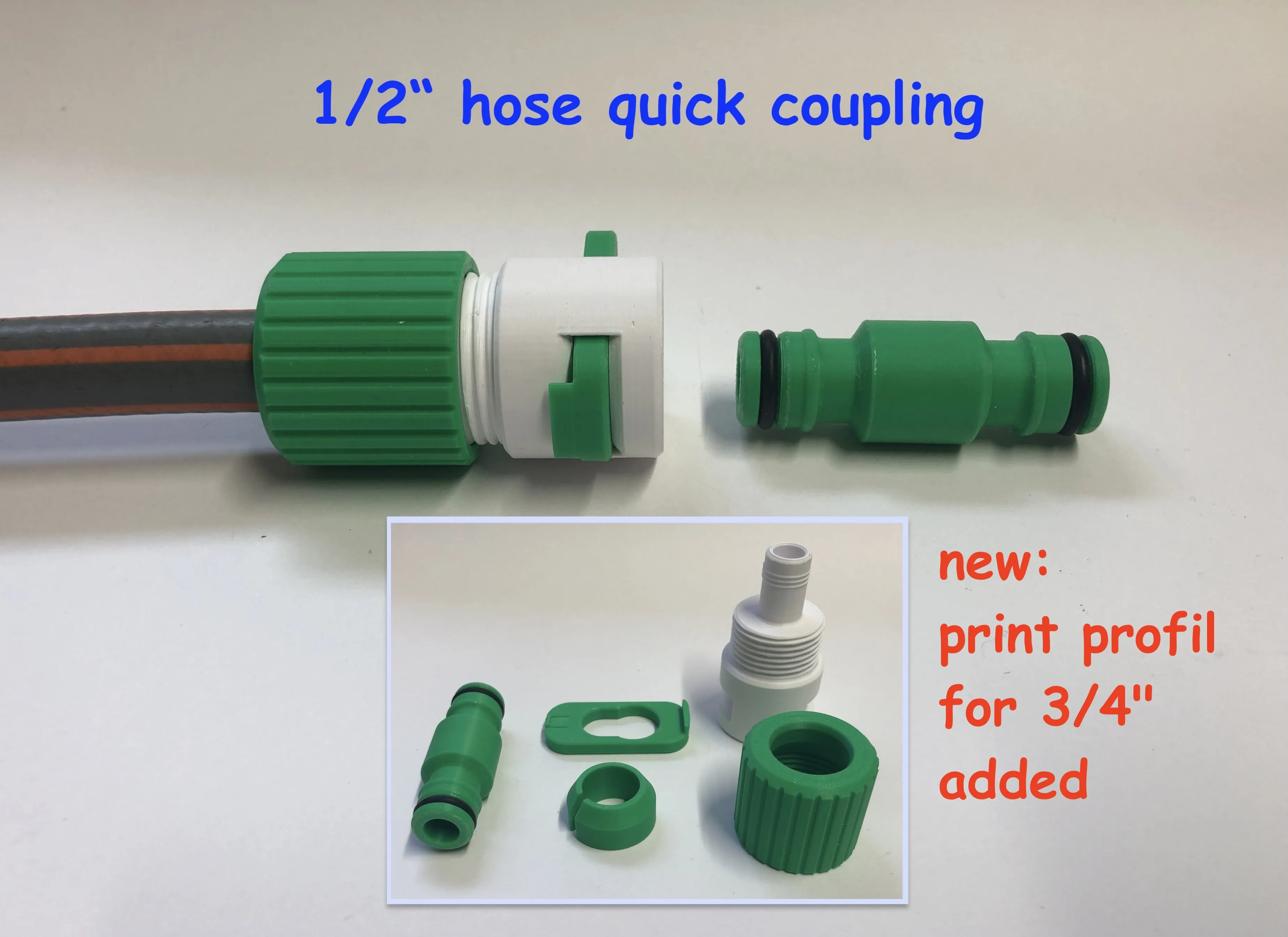

Feel free to also check out my hose quick-coupling system:https://makerworld.com/en/models/1342958-hose-quick-coupling-1-2-and-3-4#profileId-1383901
