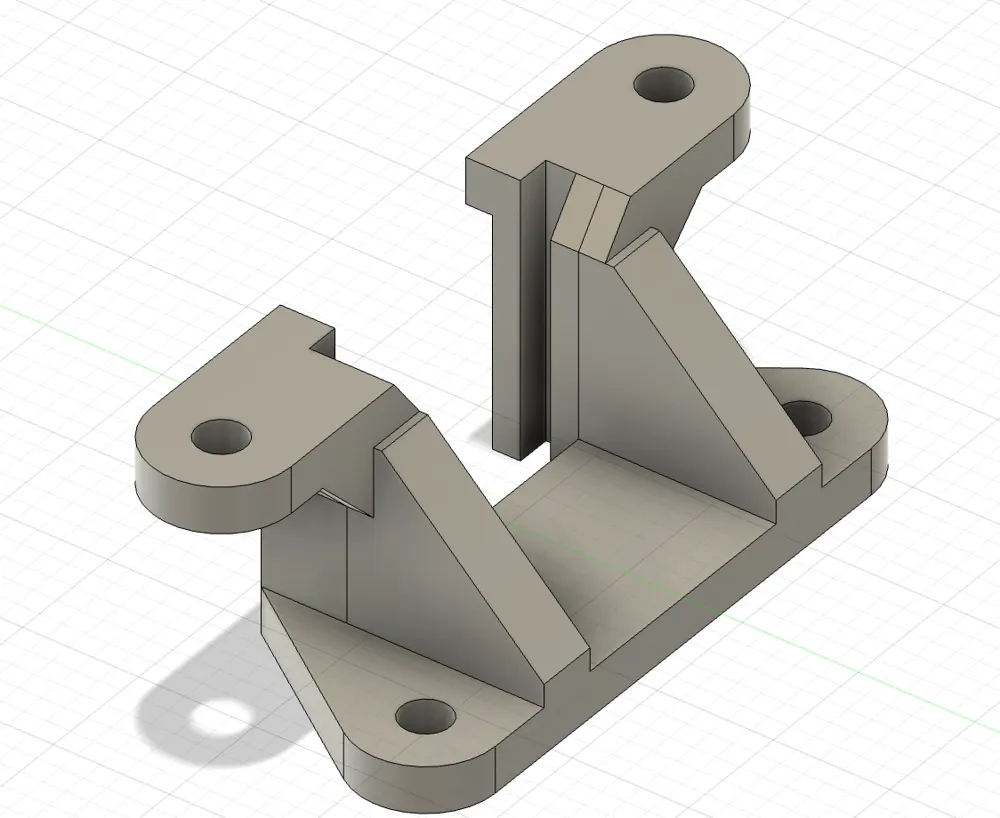

HGLRC Rekon 5 Lite to Pavo20Pro Head Adapter

Key points

• The first two flight controller screws need to be replaced with longer m2x20 screws to directly secure the Pavo head
• The clearance between the front propellers and the Pavo head is quite tight; you can trim a bit to leave more clearance. Please note that if you switch to 5.1-inch propellers, the space might not be enough, requiring significant trimming or even damaging the Pavo head

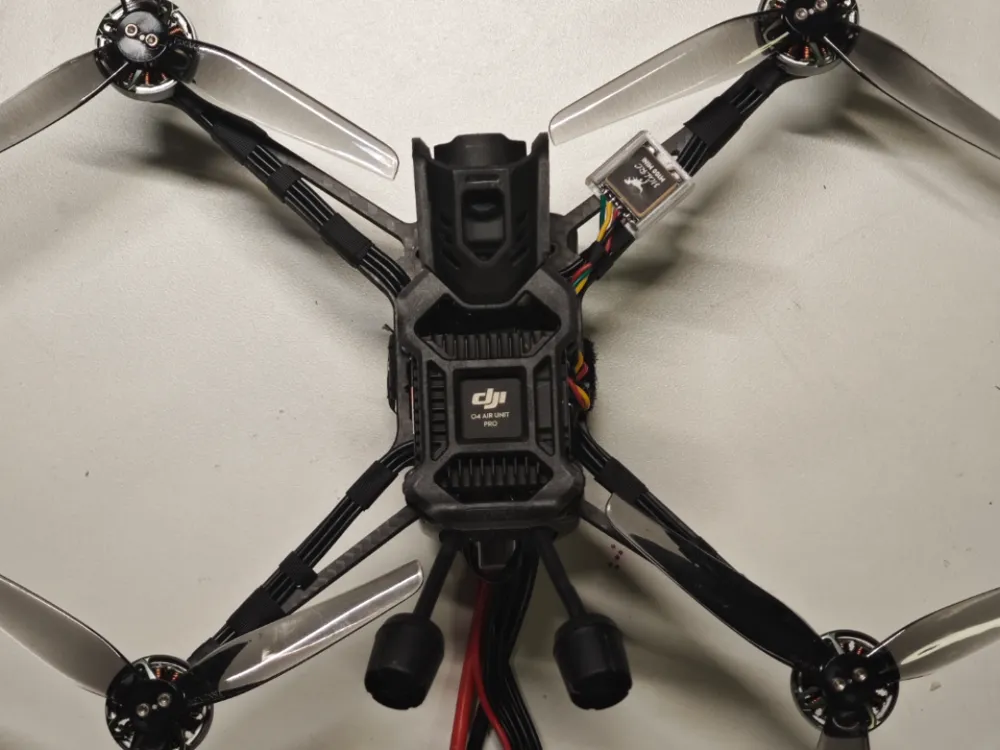

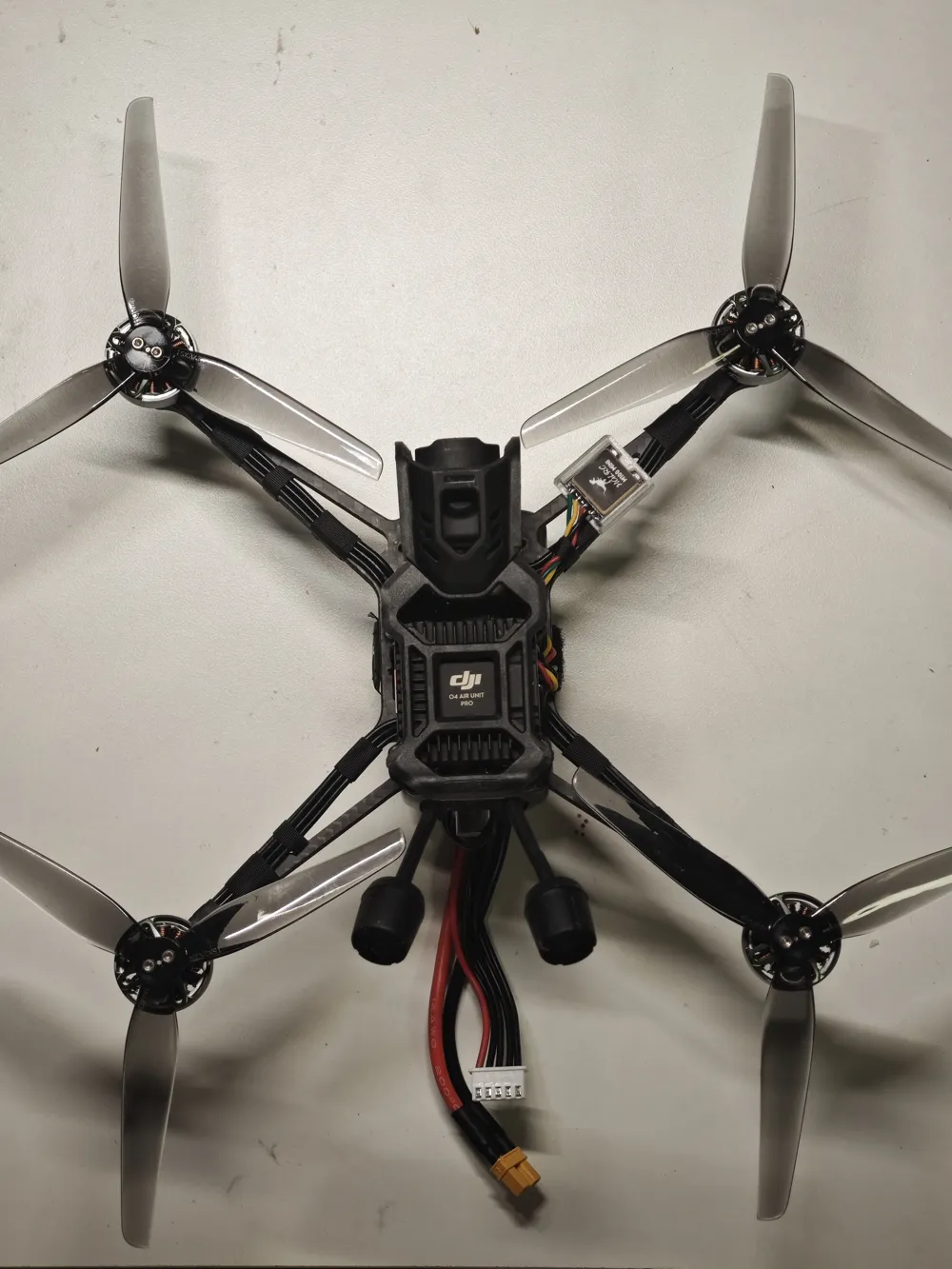

• The GPS needs to be moved to the arm or the top of the Pavo head. For easier head swapping, I placed it on the arm; you can simply secure it with tape

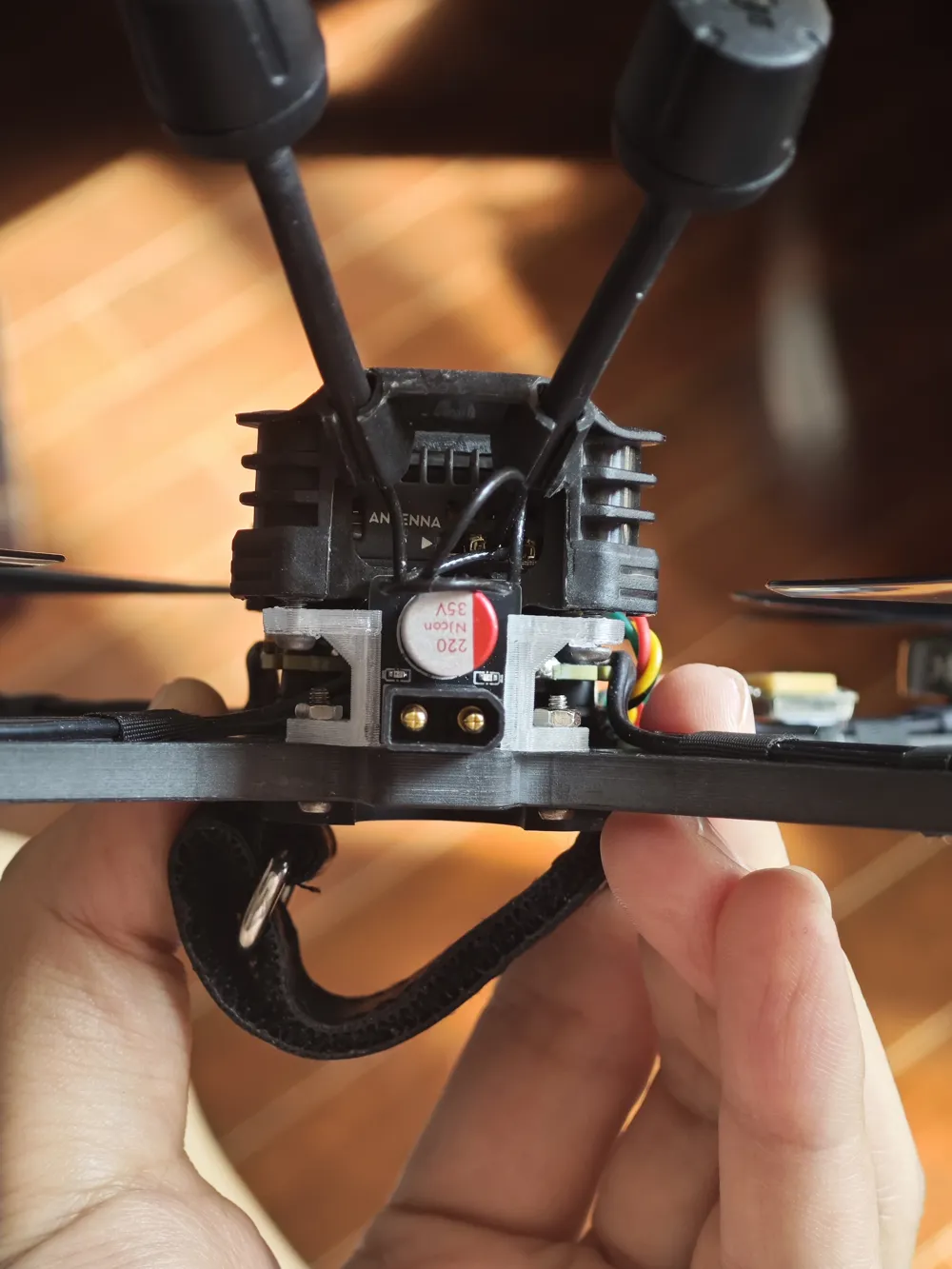

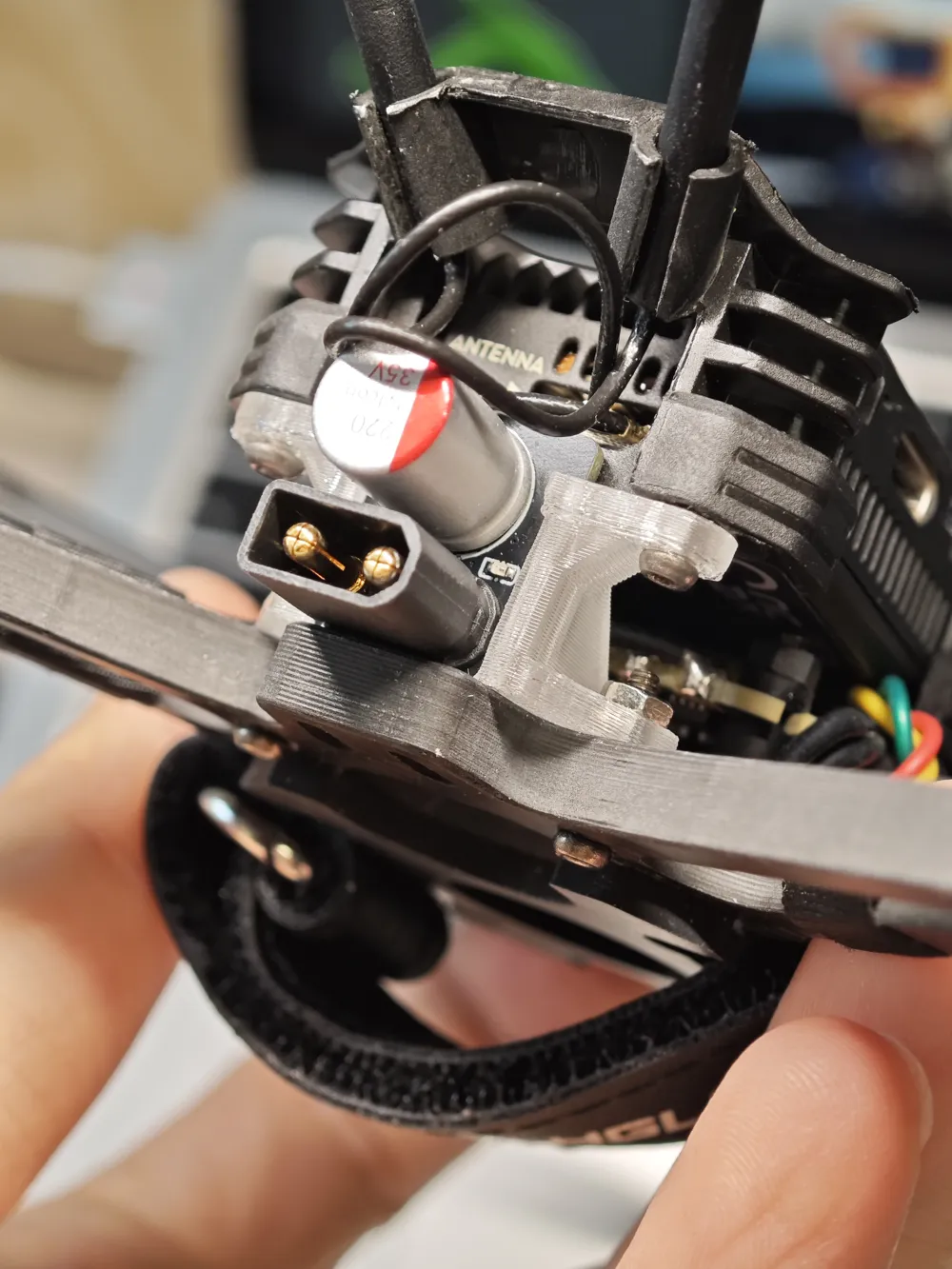

• For the adapter and carbon plate, m2x10 screws are recommended, secured with nuts; the adapter and Pavo head are secured with m2x5 screws
