NoedelWorks – New Glenn (1:96)

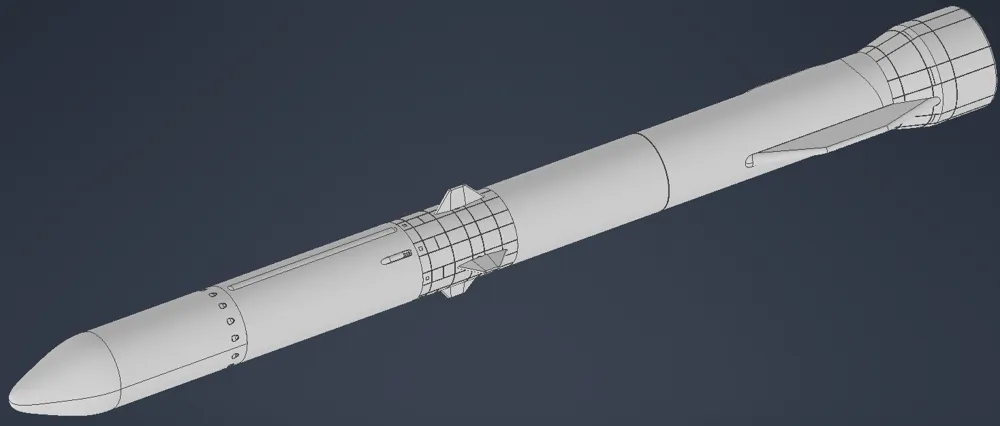

A detailed 3D printable model of Blue Origin’s New Glenn launch vehicle, scaled at 1:96.

This is my first fully self-made model. I hope you guys enjoy!
Feel free to post your makes. I'd love to see your versions!


Other scales are available here:

1:200 → Release 10/10/2025
1:144 → Release 08/10/2025
1:100 → Release 12/10/2025


Features

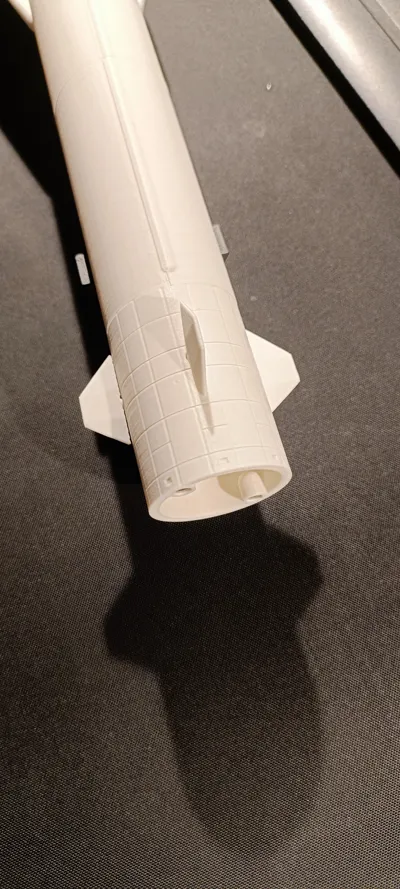

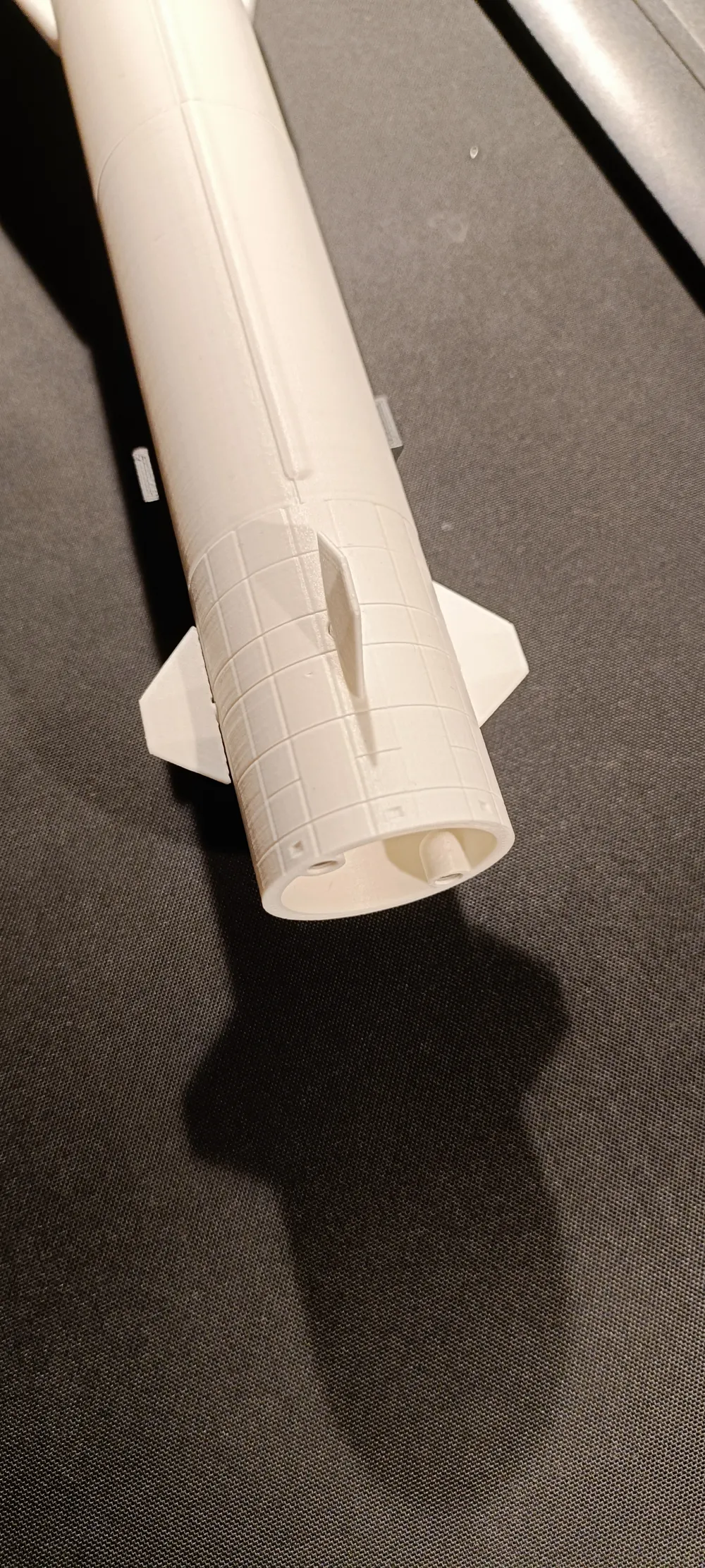

• Movable fins (future update: extended landing legs).

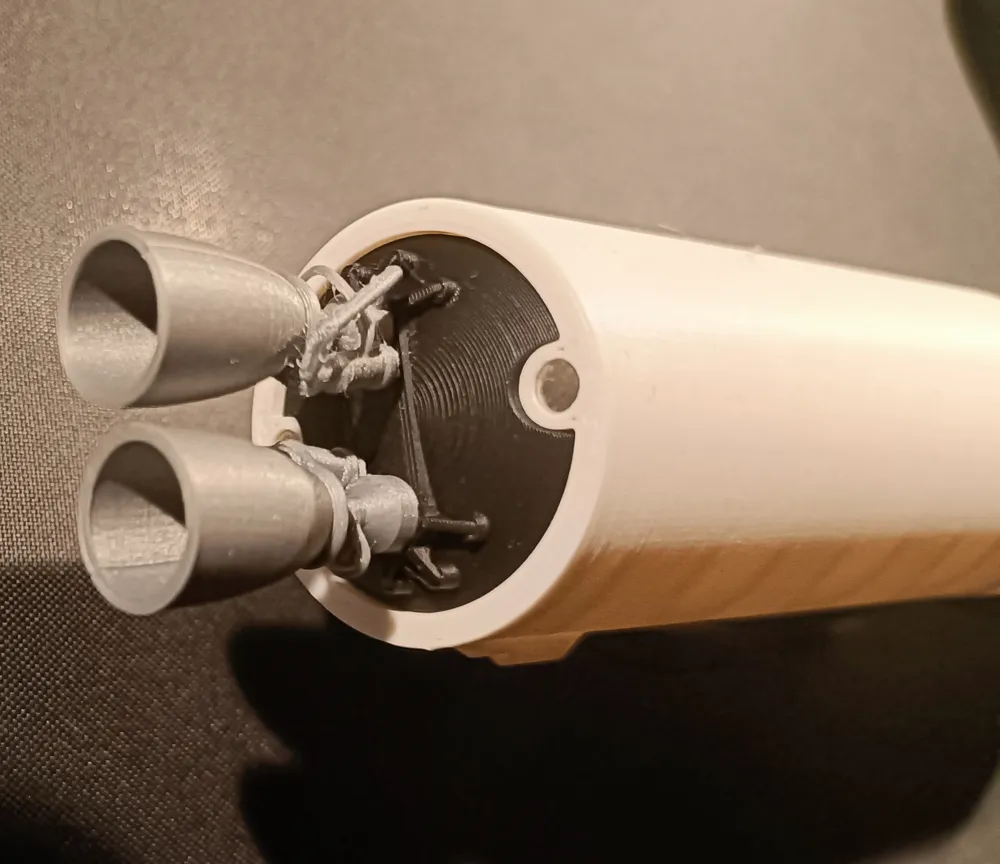

• Magnetic stage separation for a realistic two-stage configuration.

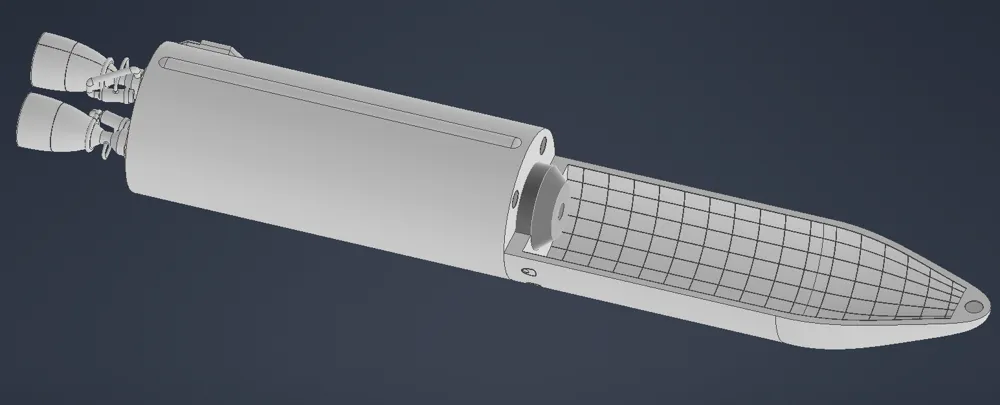

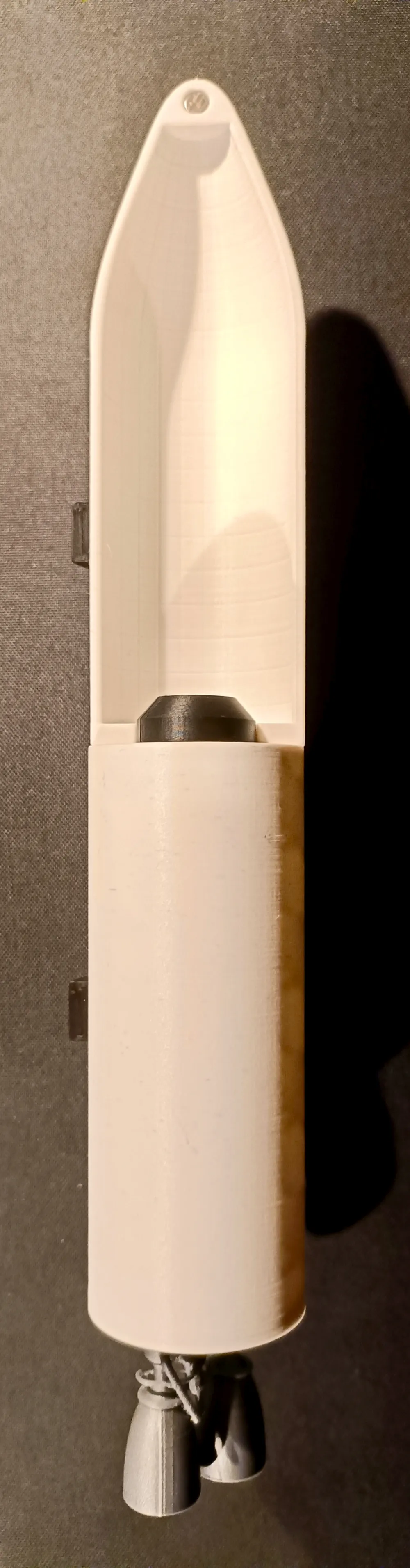

• Fairing assembly with magnetic payload adapter, allowing for custom payload integration.

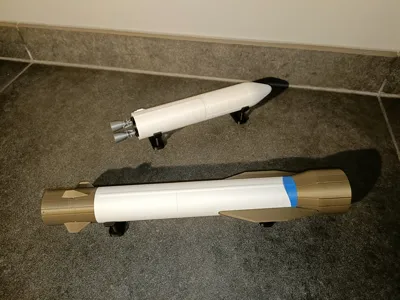

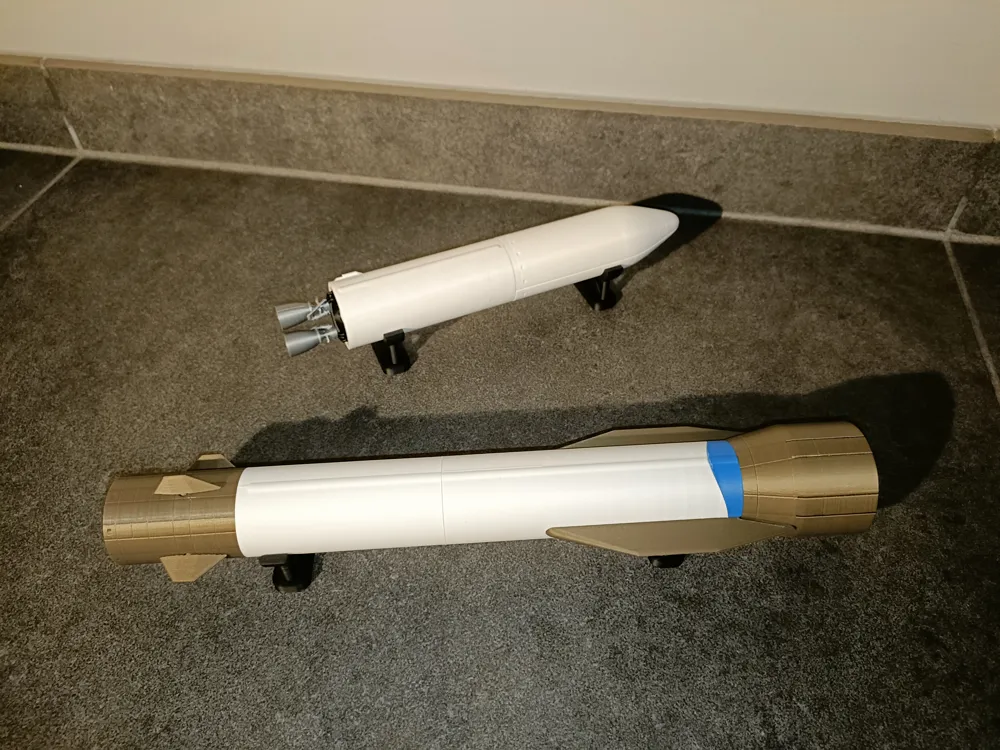

• Horizontal stand included (future update: vertical stand).

This model is designed for both display and hands-on demonstration of New Glenn’s modular systems.

Requirements

• Magnets:
  • 31× D8H4 (check polarity before installation!) (Could not include this in the "Bambu Bill of Materials as these are not available)
  • 4× D4H2    (check polarity before installation!)
• See attached Bill of Materials (BOM) for full part list (recommended print colors and quantities).
• Standard FDM printer with fine layer height for best results.

Printing Notes

• Scale: 1:96
• FDM printer friendly.
• Parts optimized for easy assembly with magnets.
• Orientation can be checked in the included .pdf files

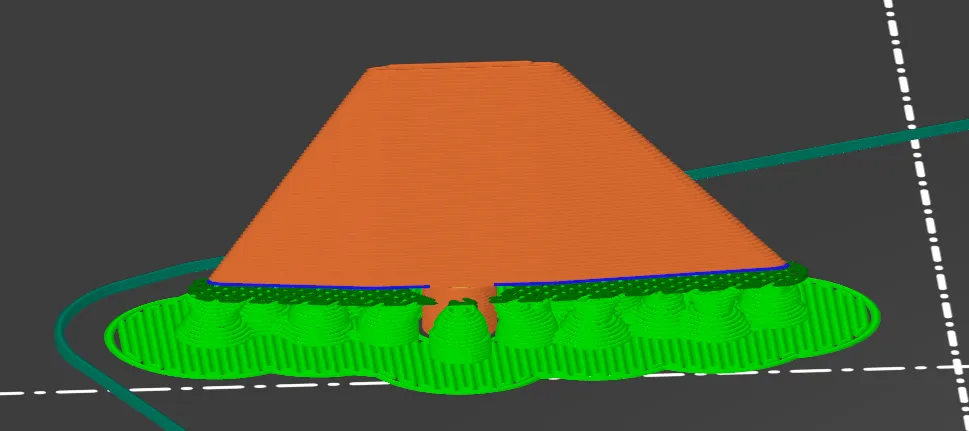

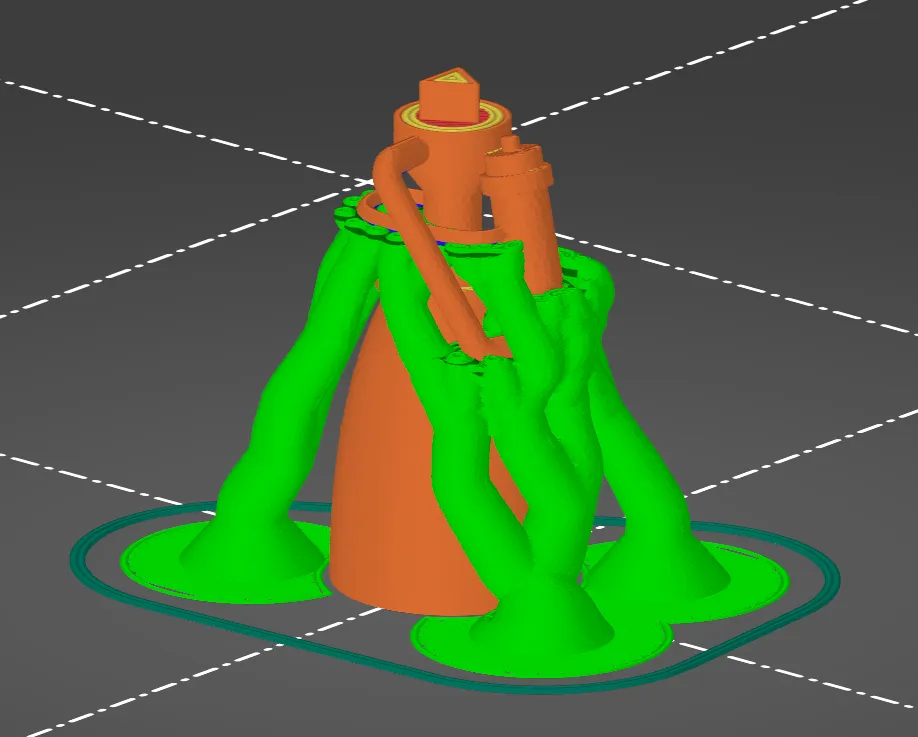

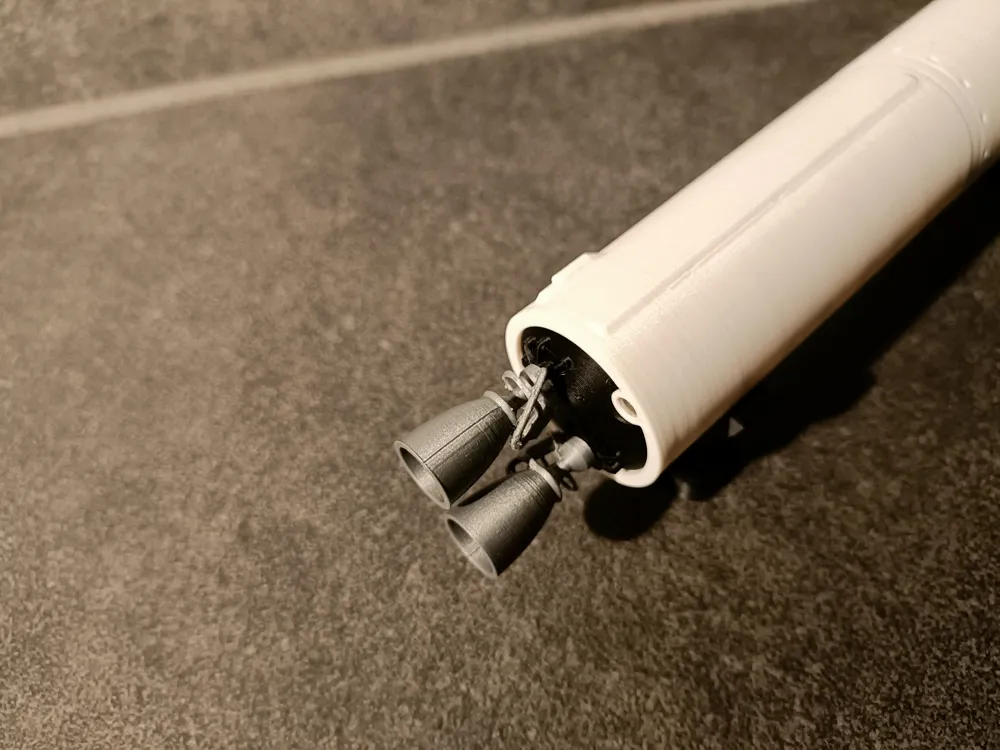

• Supports required on the Stage_2_Engine and Stage_1_Interstage_Fin (Organic supports)

License

• Personal use only
• No commercial use
• Attribution required
• No redistribution or derivative works (except for custom payload designs)

Update v1.1

Added:

• Deployed landing legs for NG1, with open and closed upper door

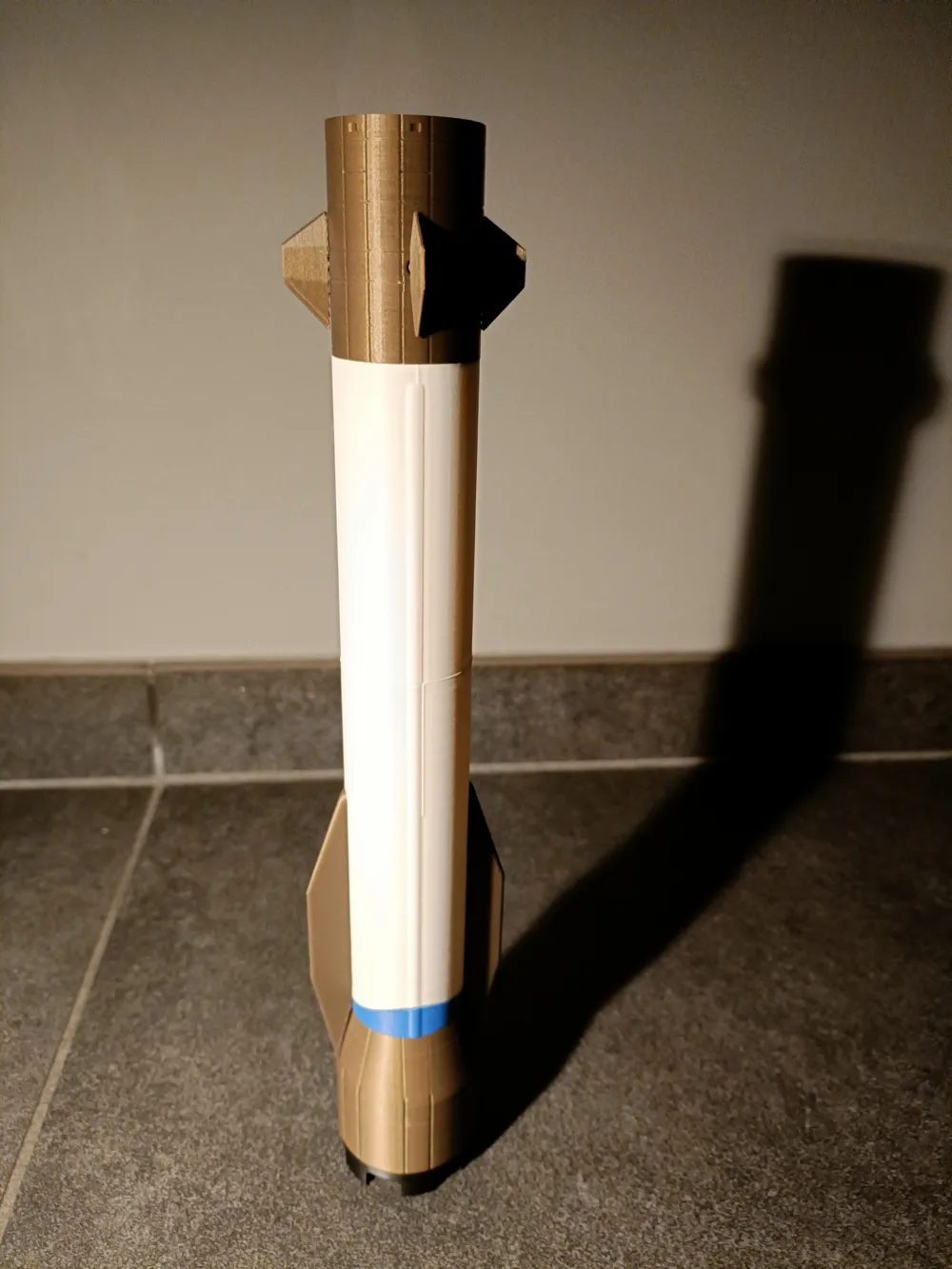

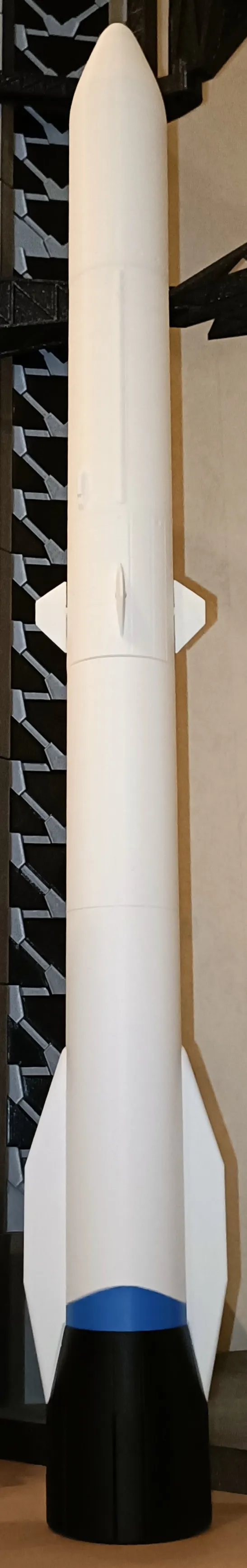

• Vertical display stand
