This model is designed to attach

✅ a Bambu Lab 4-in-1 PTFE Adapter
and
✅ a Bambu Lab PTFE Tube Coupler

to the Bambu Lab H2S

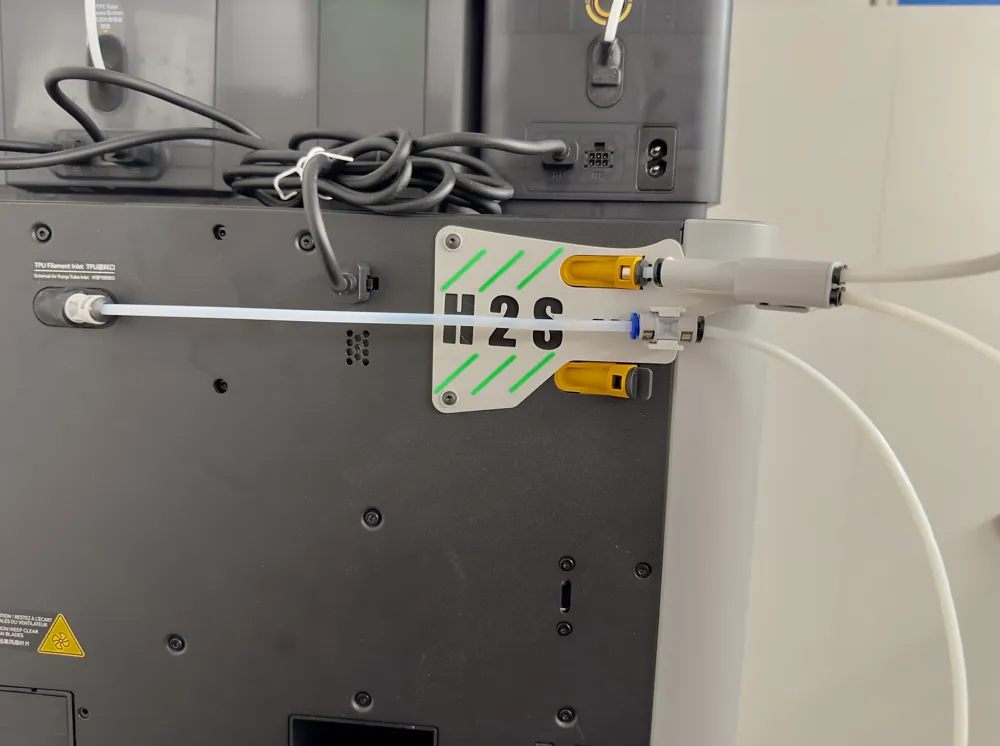

This model can be attached to the H2S housing with three screws

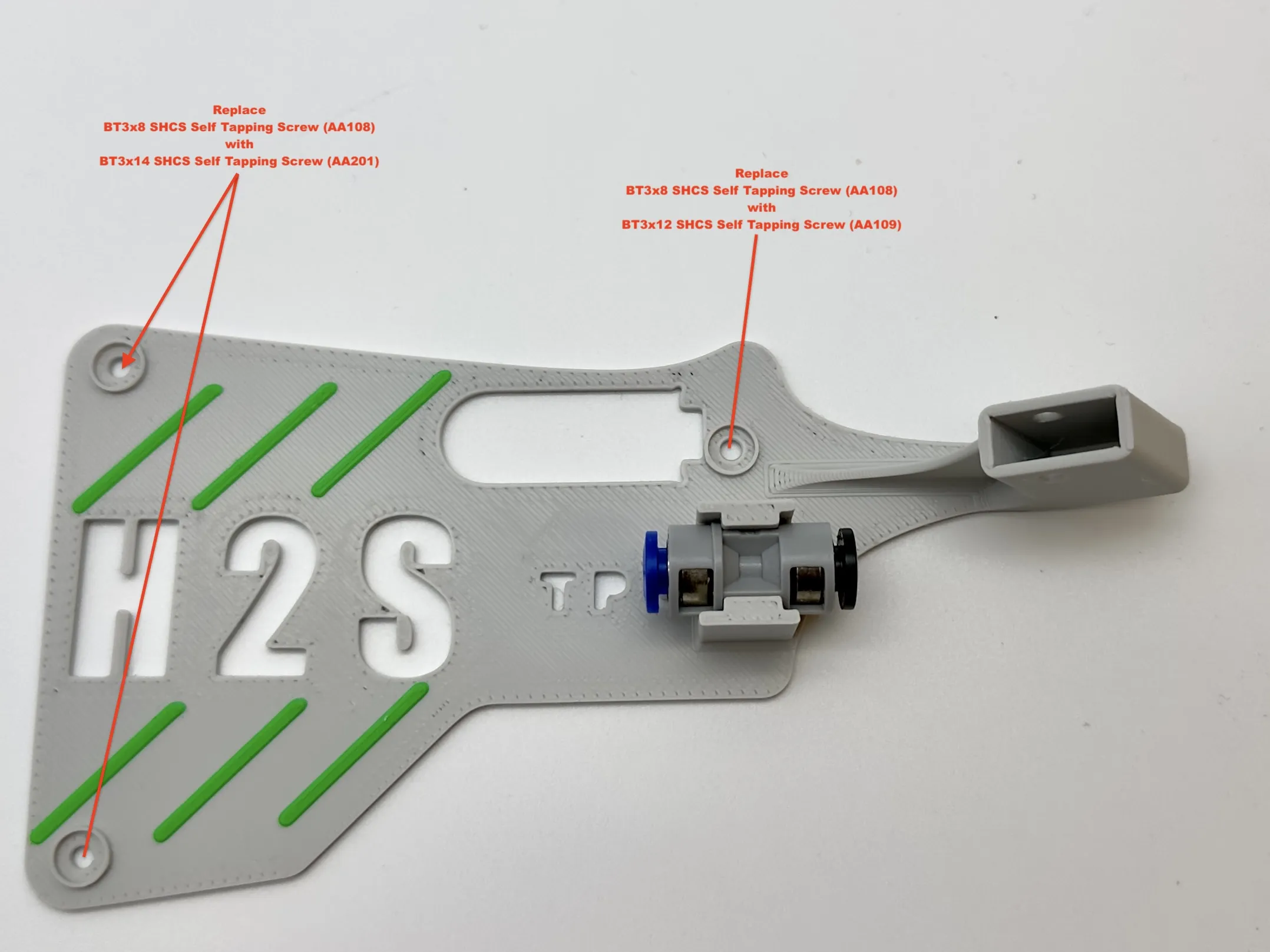

Replace the two original BT3x8 screws at the rear with two "BT3x14 SHCS sheet metal screws - AA201"
Replace the original BT3x8 screw at the front with a "BT3x12 SHCS sheet metal screw - AA109"

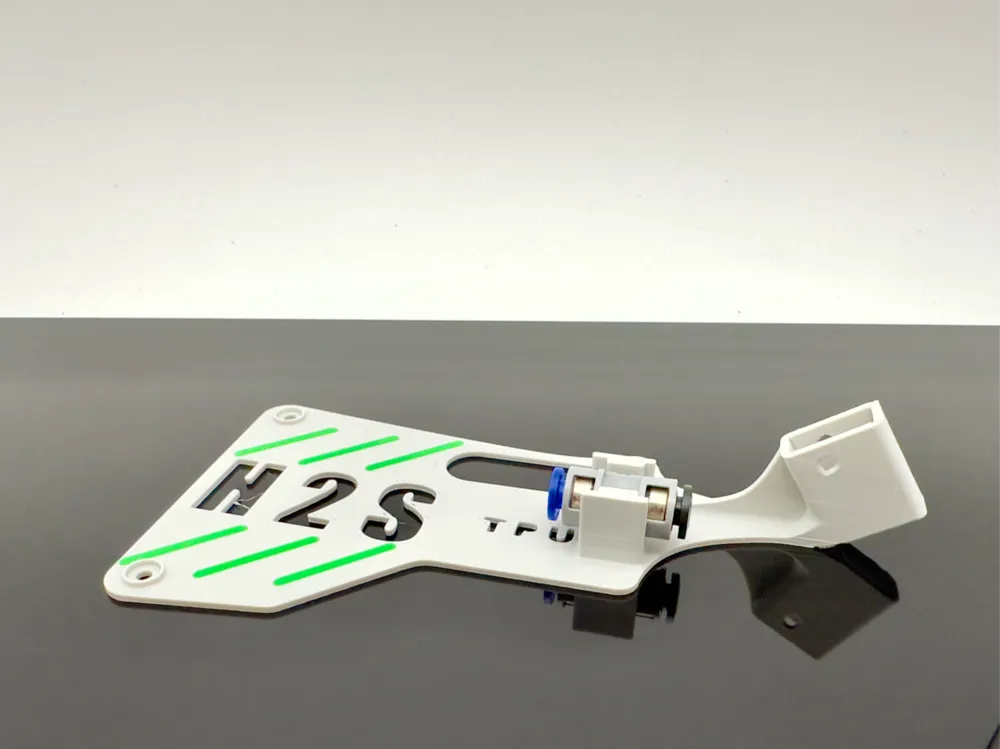

The mount snaps onto the orange H2 PTFE Tube Coupler to the right of the black retaining ring
The coupler is flexibly mounted and can be pushed in and pulled out of the printer housing a little
in case it doesn't fit right away

You can use a "BT3x10 SHCS sheet metal screw - AA200" to attach the 4-in-1 adapter to the mount!

The model is with support
In my prototypes, Z-wobble occurred in the mounting area without support
However, the support is very easy to remove and requires very little post-processing

The model can, of course, also be printed in a single color

‼️Disclaimer/Exclusion of Liability: ‼️
This 3D model is provided "as is". Assembly, use, and any modifications are carried out solely at your own risk
I do not guarantee functionality, safety, dimensional accuracy, or suitability for a particular purpose and am not liable for property damage, personal injury, or consequential damages resulting from downloading, printing, assembly, or use. Before use, dimensional accuracy, material, print settings, and operating environment must be independently checked; furthermore, all applicable laws, standards, and manufacturer specifications must be observed (use may affect device manufacturer warranties). There is no connection to or endorsement by device/printer manufacturers. By downloading/using, you agree to these terms

This Model is based on Dual Bambu 4-in-1 PTFE adapter + TPU mount for H2D
from User beo:
https://makerworld.com/de/models/1770113-dual-bambu-4-in-1-ptfe-adapter-tpu-mount-for-h2d?from=email_notification#profileId-1884365

Have fun printing and using my model!
I would be very happy about nice comments, pictures, and a boost :)

Boost Me (for free)

I would be very happy about a boost!

bambu 4-in-1 ptfe adapter
