Junction Box for Reolink RLC-811A / 810A / 510A
IP Report
Print Profile(1)
0.28mm layer, 2 walls, 15% infill
Designer
2.1 h
1 plate
Open in Bambu Studio
Boost
21
110
1
1
109
51
Released
Description

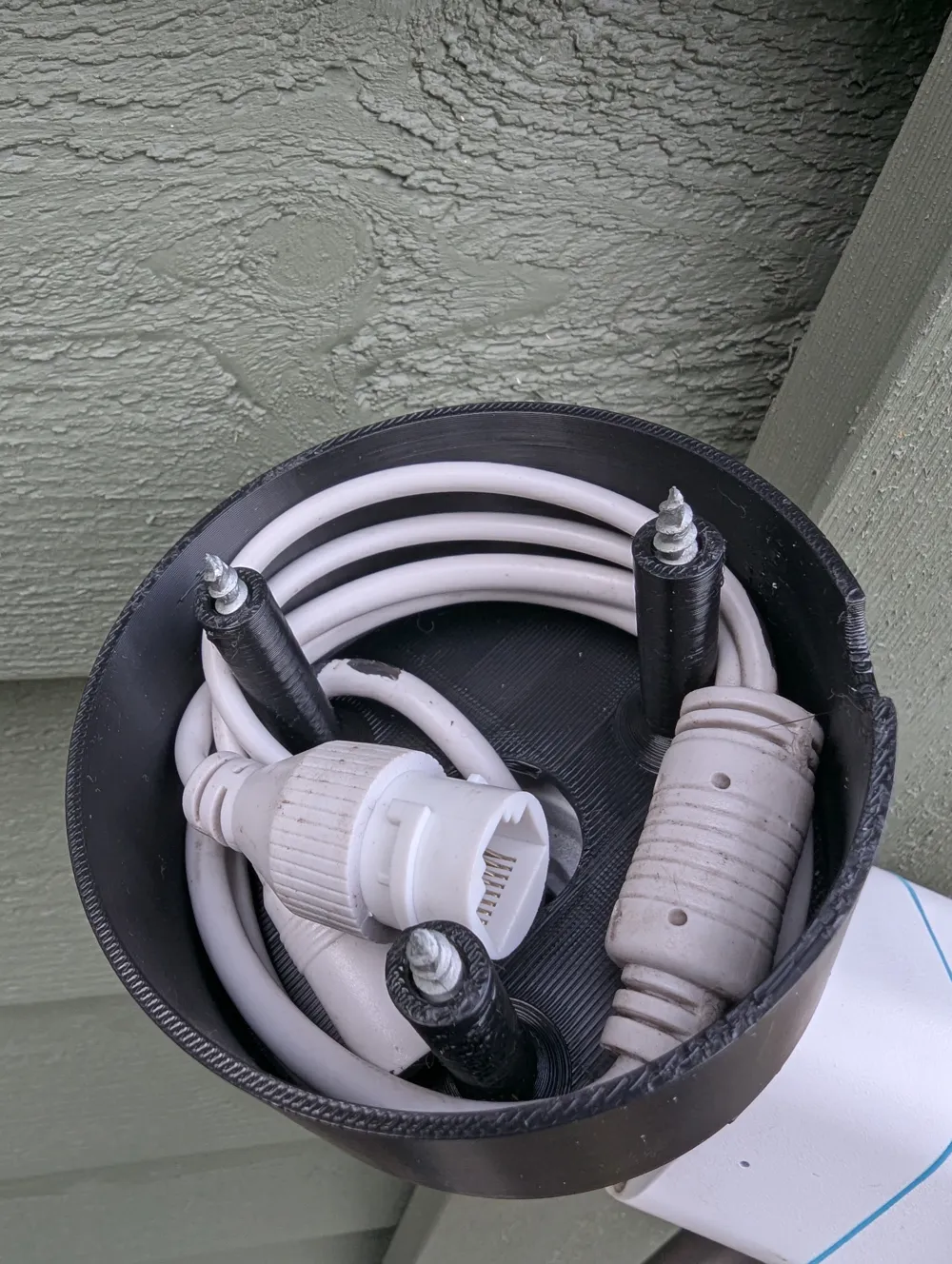

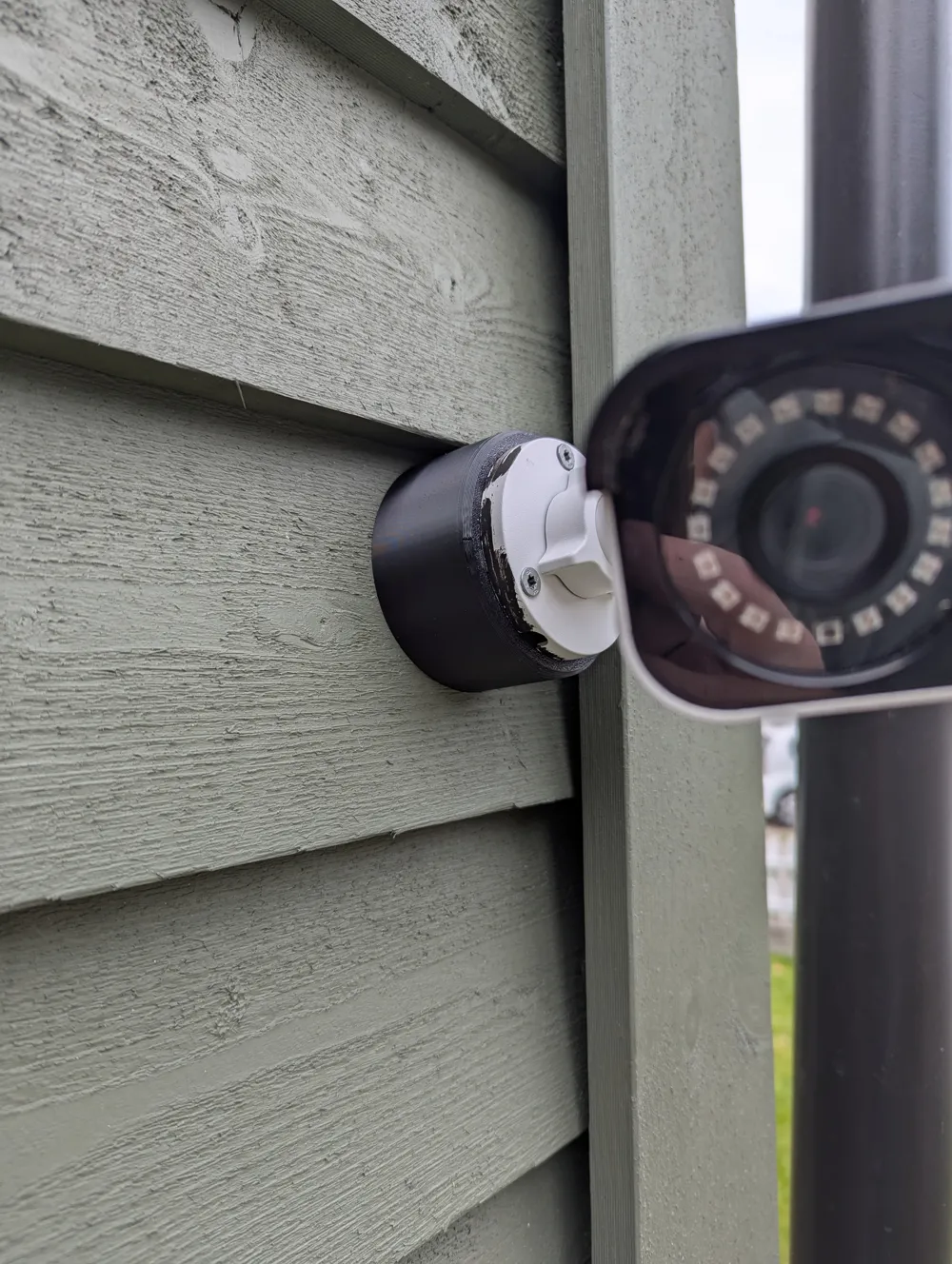

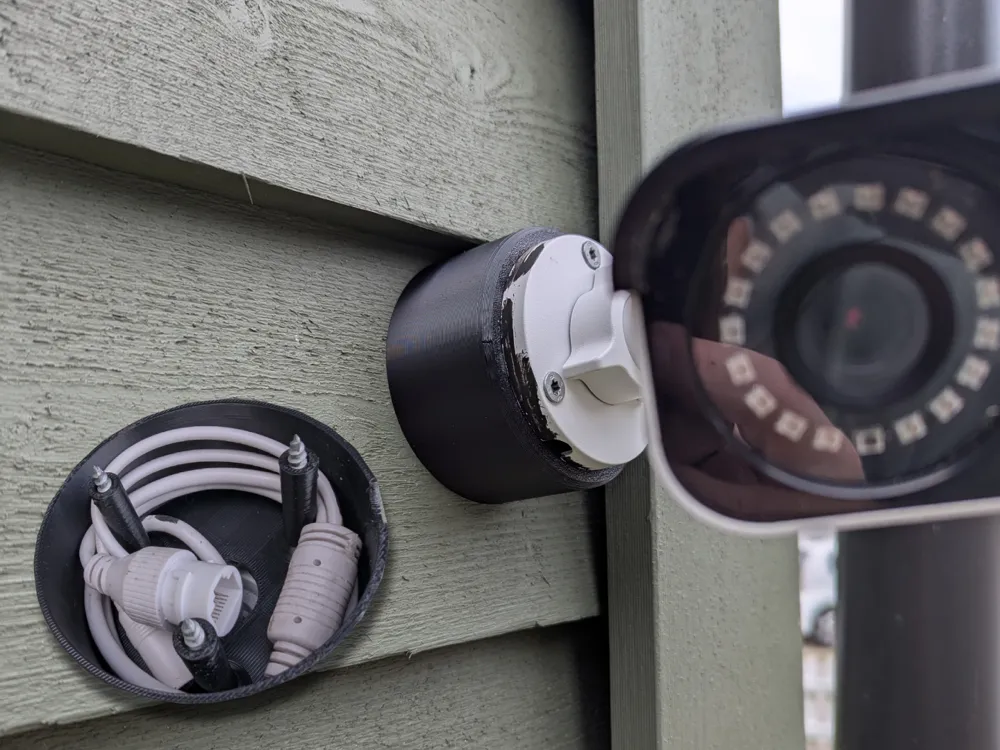

The box is just large enough to conceal the Ethernet connection, including the power and reset button. It extends 4 cm from the wall, with a circular diameter of 8 cm, just slightly larger than the camera base.

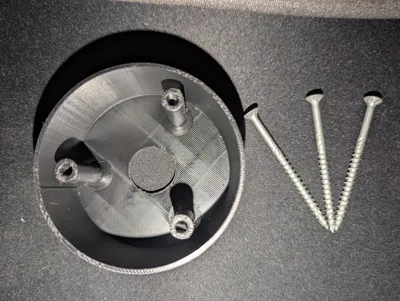

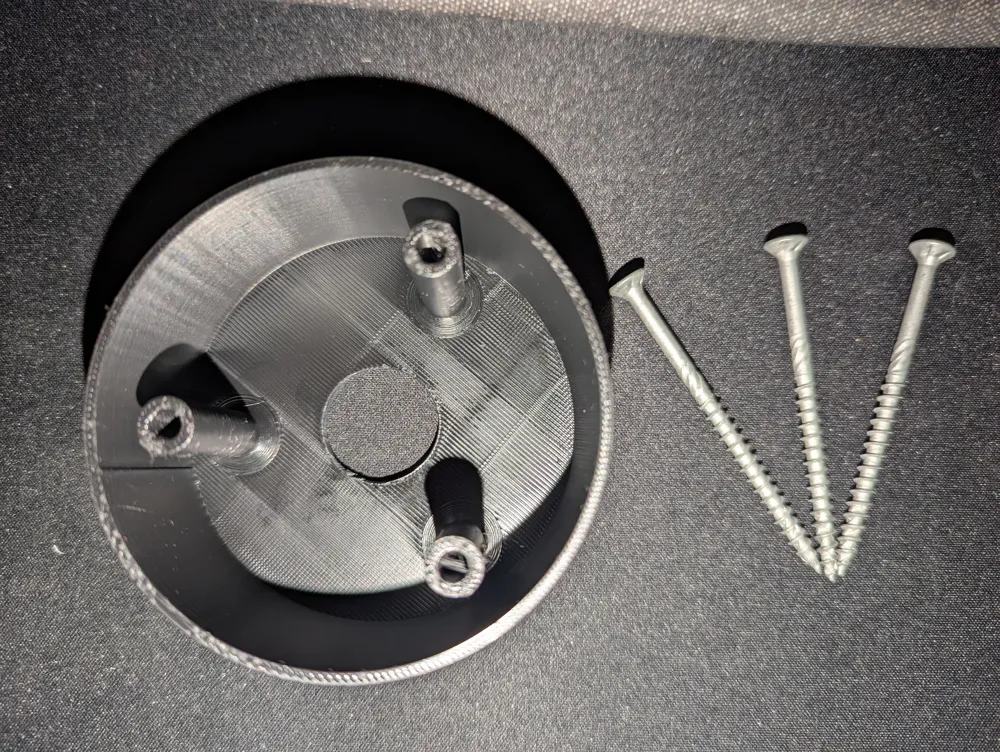

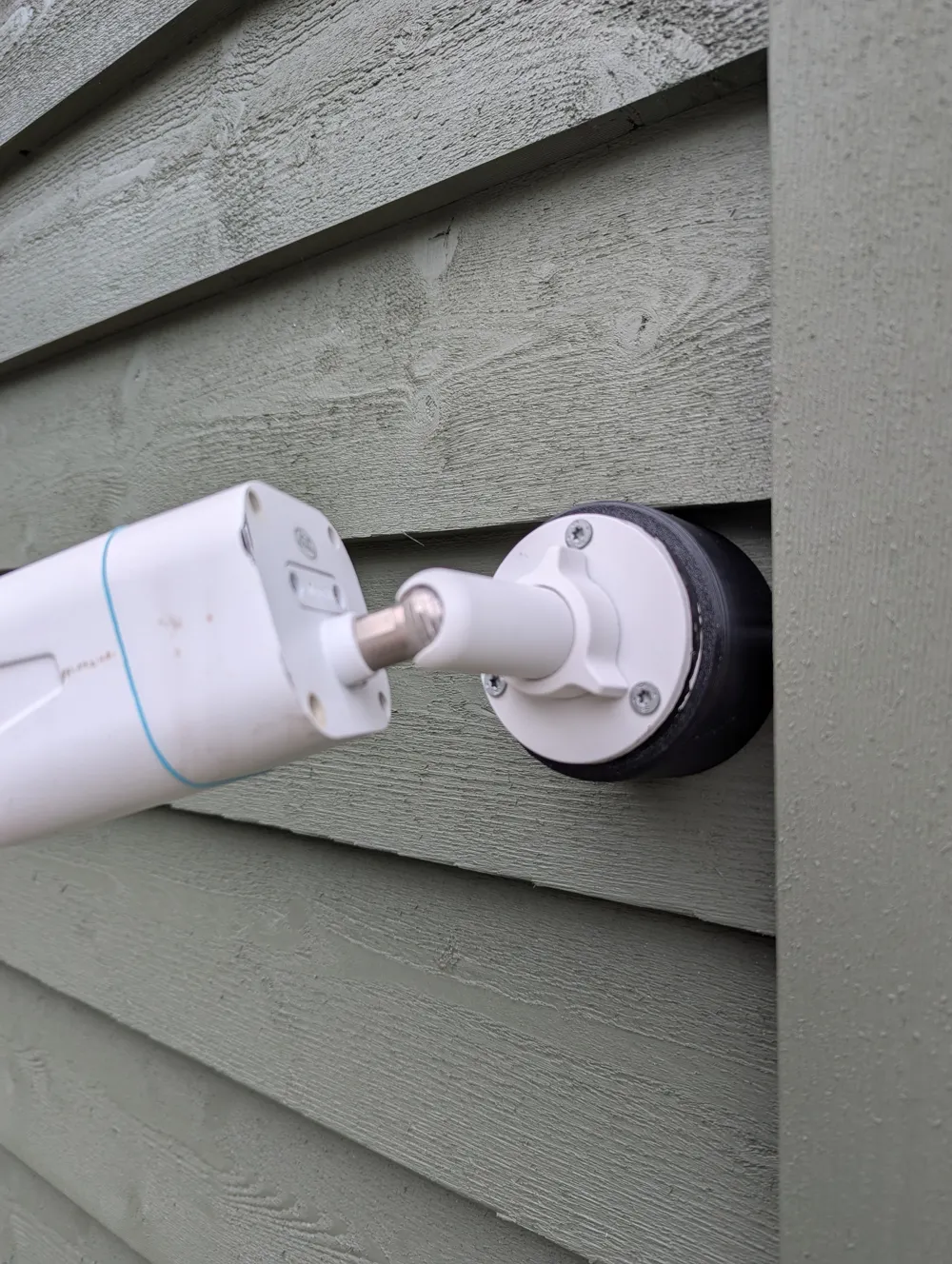

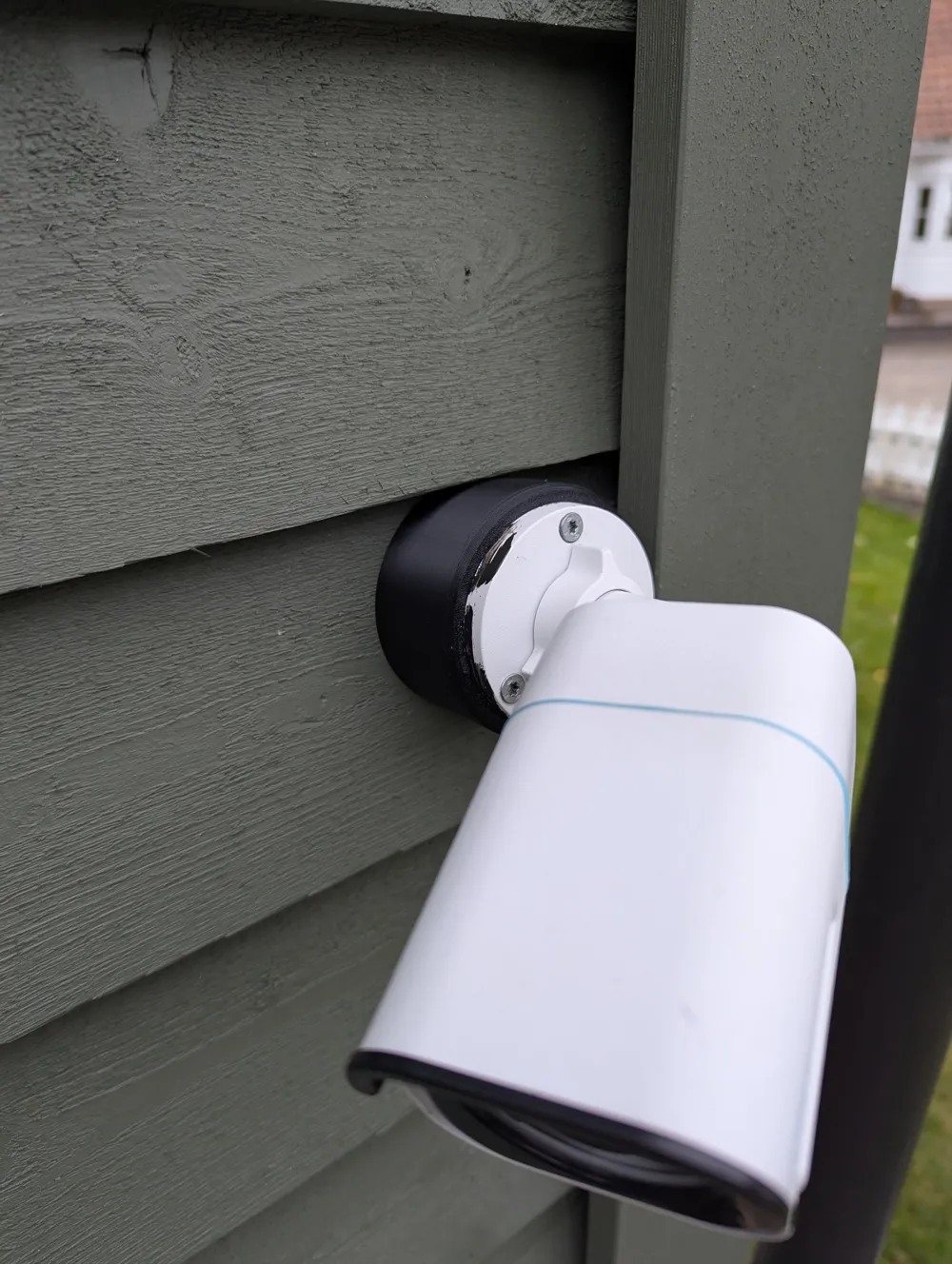

The box features three holes for through-screws, When mounting the camera to the wooden wall, I used 4.5x70 mm TX20 screws and had to slightly enlarge the holes on the camera mount. Therefore, I recommend using 4x70 mm TX20 screws instead.
The file includes two junction boxes: one with a side hole and one without.
The boxes shown in the picture are printed in ABS.
