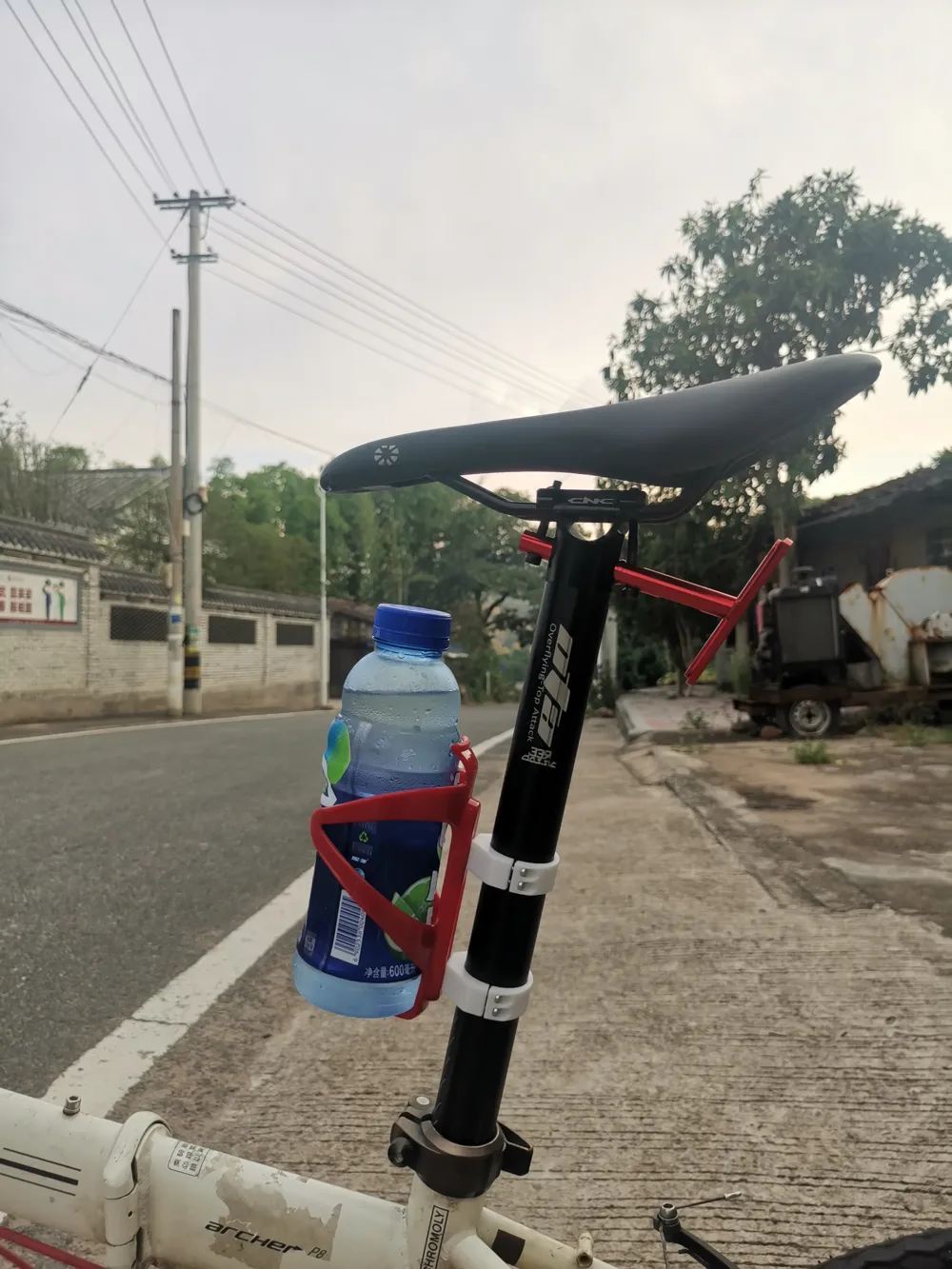

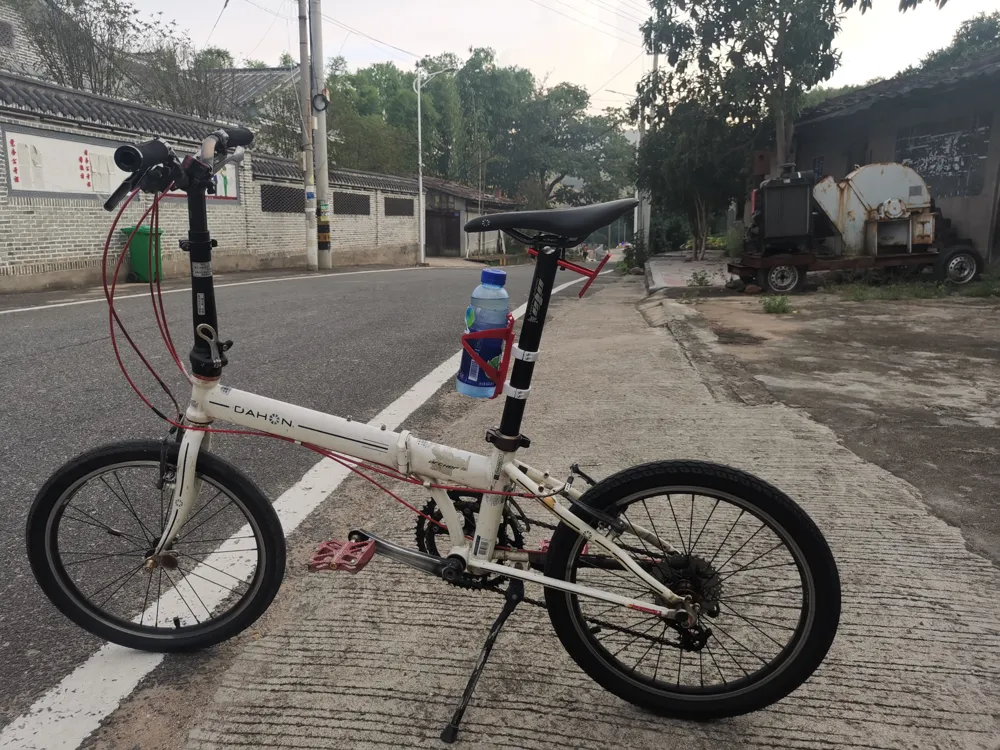

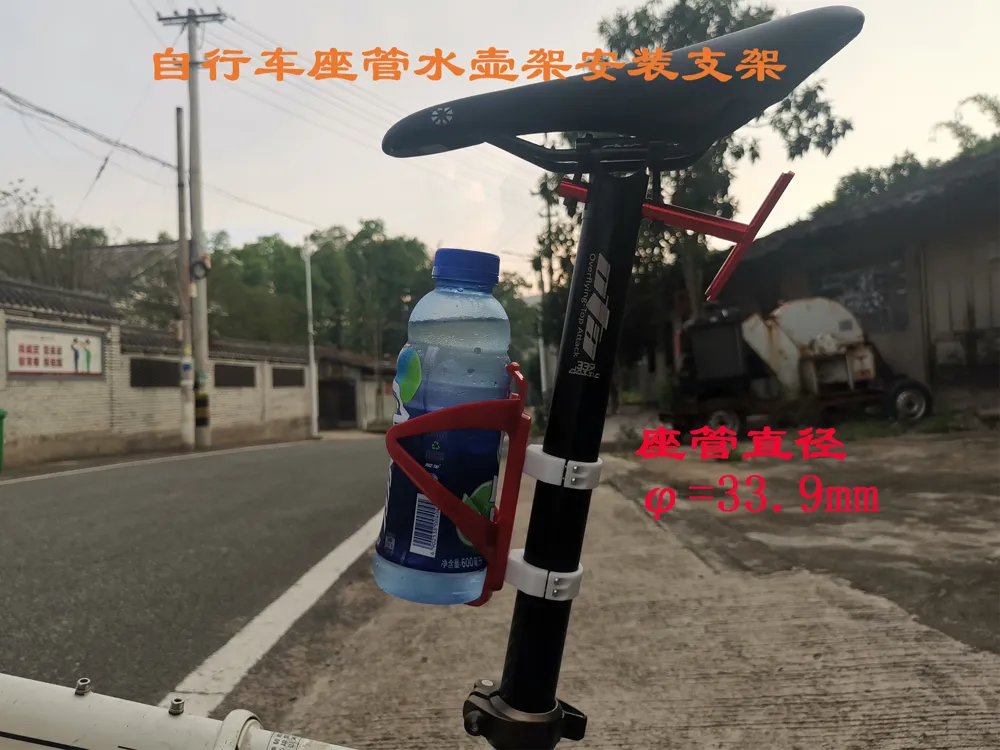

Dahon and other folding bike seatpost water bottle cage mounting bracket Seatpost diameter 33.9mm
Print Profile(1)
Description
Boost Me (for free)
Reason for design:
The original water bottle cage mounting position on the beam of a folding bike is nearly horizontal, making it very inconvenient as beverages placed there can easily fall out during riding. The seatpost area has ample space that can be utilized, so this water bottle cage mounting bracket designed for the seatpost position was created.
Required hardware accessories:
1.M3x12 flat head self-tapping screws with flat tail*8pcs (304 material recommended)
2.M5 hex nuts*2pcs (304 material recommended)
3.M5x10 pan head hex nuts*2pcs (304 material recommended)
