Go 1 Wolf detachable wing assembly kit

Go 1 Wolf detachable wing assembly kit

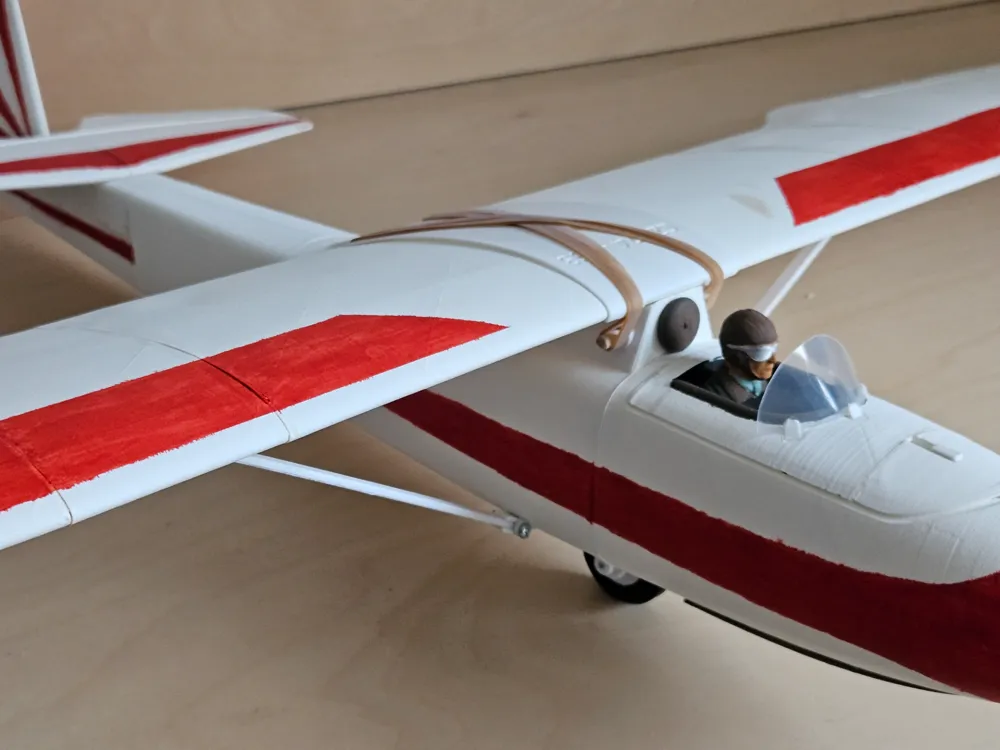

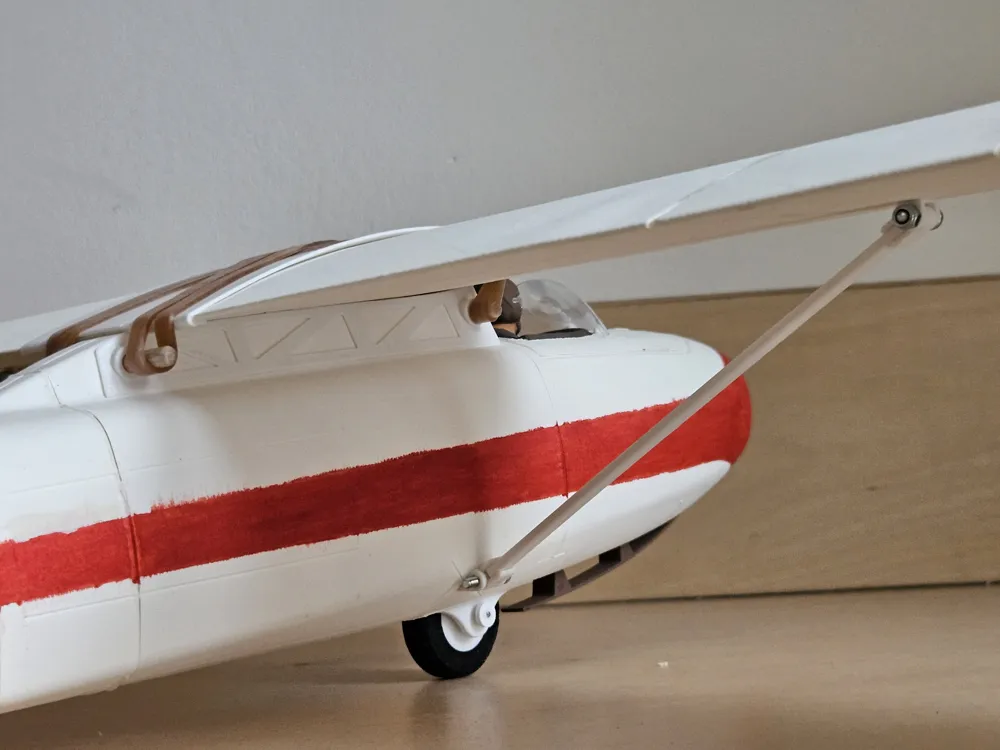

This kit is designed for Eclipson Go 1 Wolf 3D printed RC plane trainer – available free from https://www.eclipson-airplanes.com/g%C3%B61wolf to have detachable wing for better transport and handling.

Original kit has wing glued to the fuselage.

The parts were designed to fit easily into original fuselage and wing - see document with instructions.

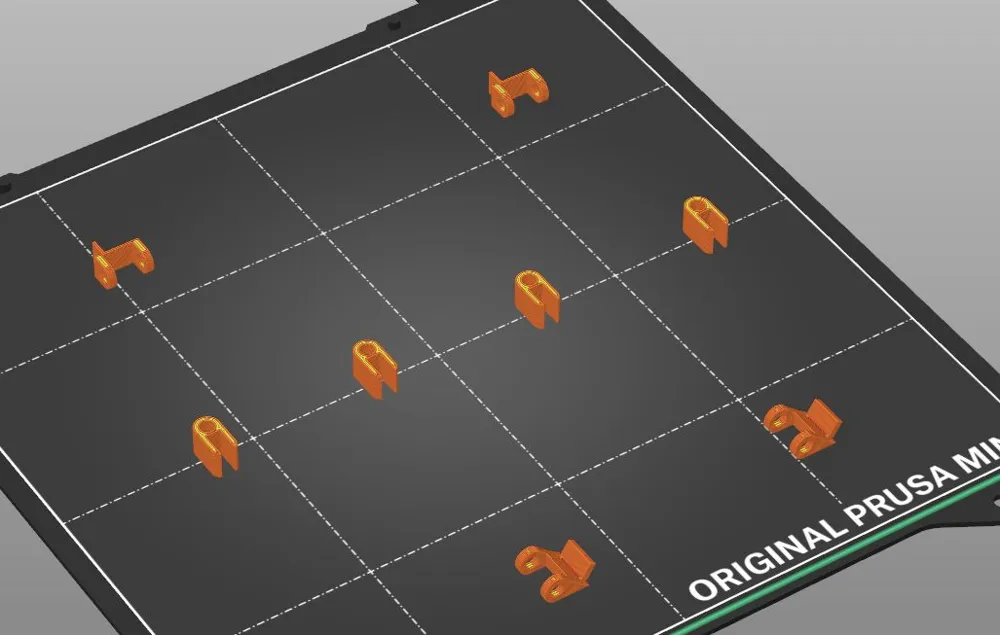

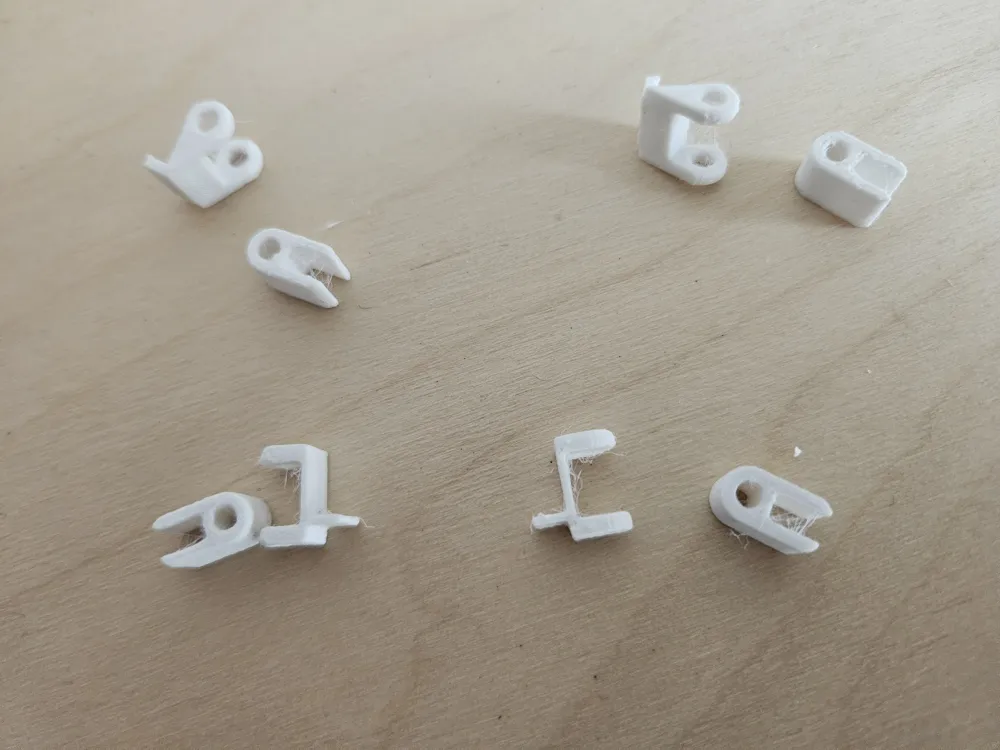

Printed parts of the assembly kit:

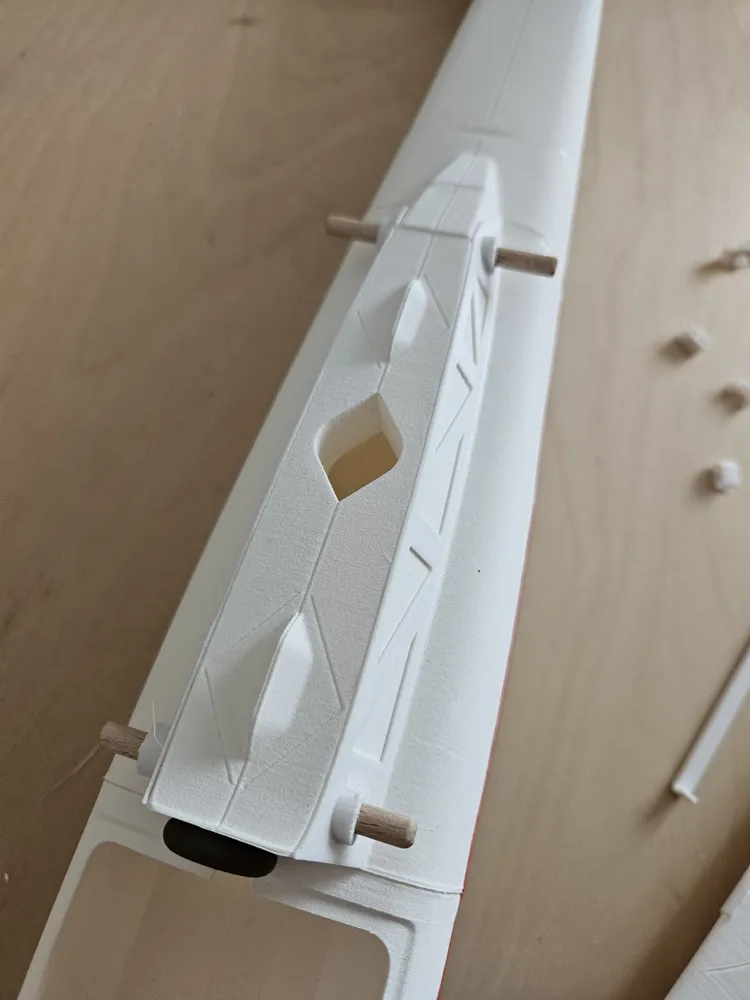

• Fuselage reinforcement – left (print 1x)
• Fuselage reinforcement – right (print 1x)
• Wing joint (print 2x)

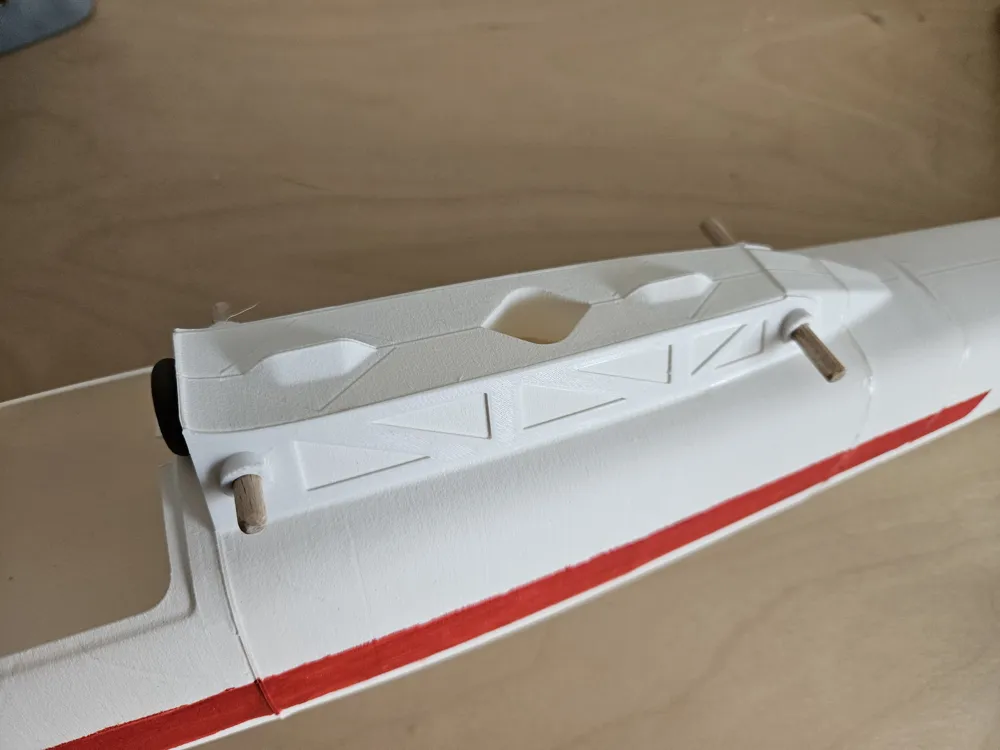

• Fuselage joint (print 2x)

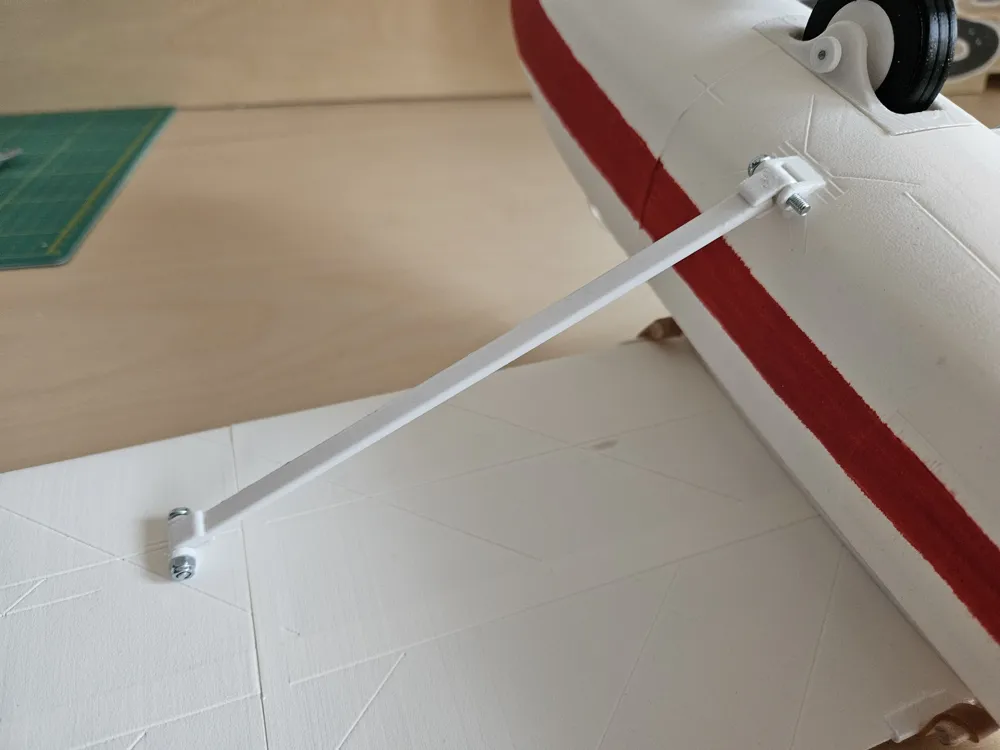

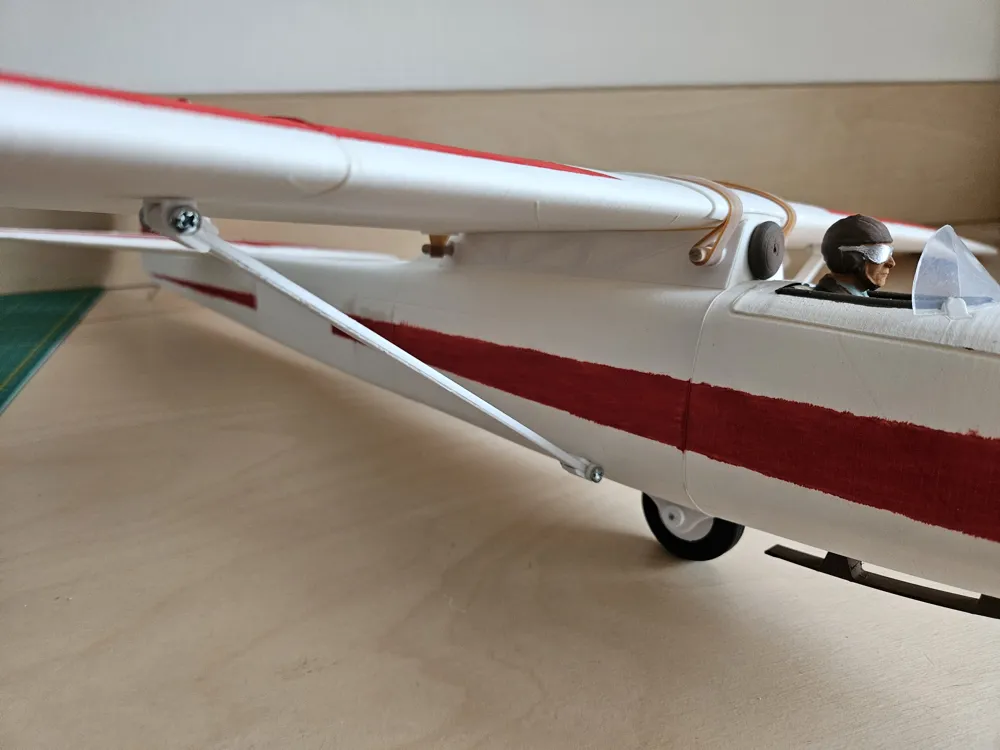

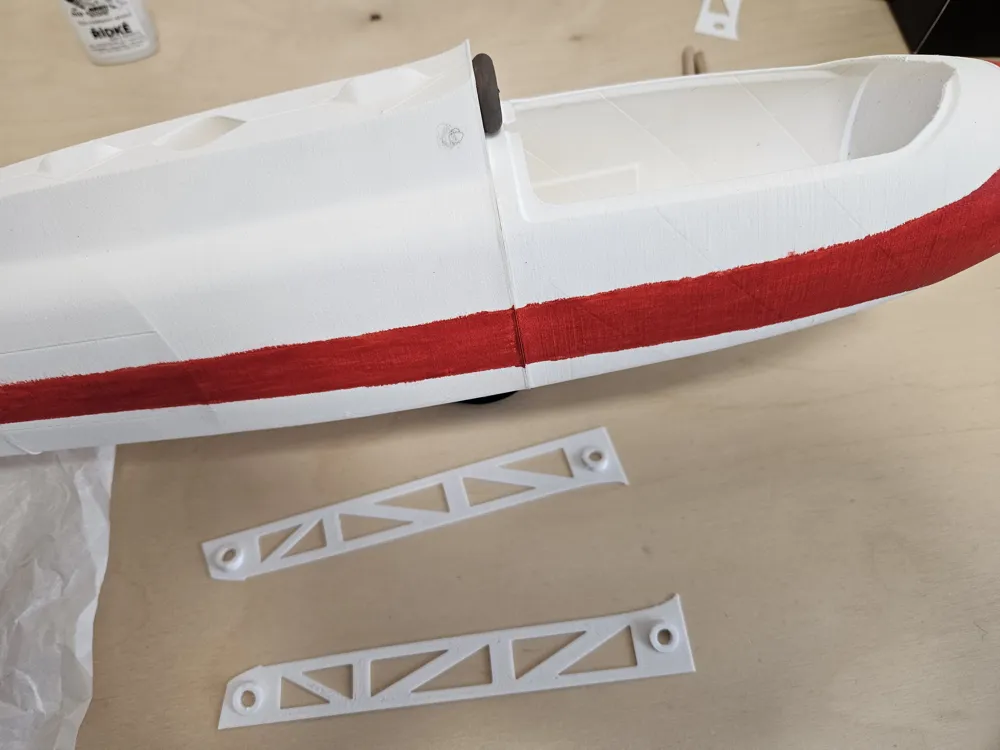

• New strut (print 2x)

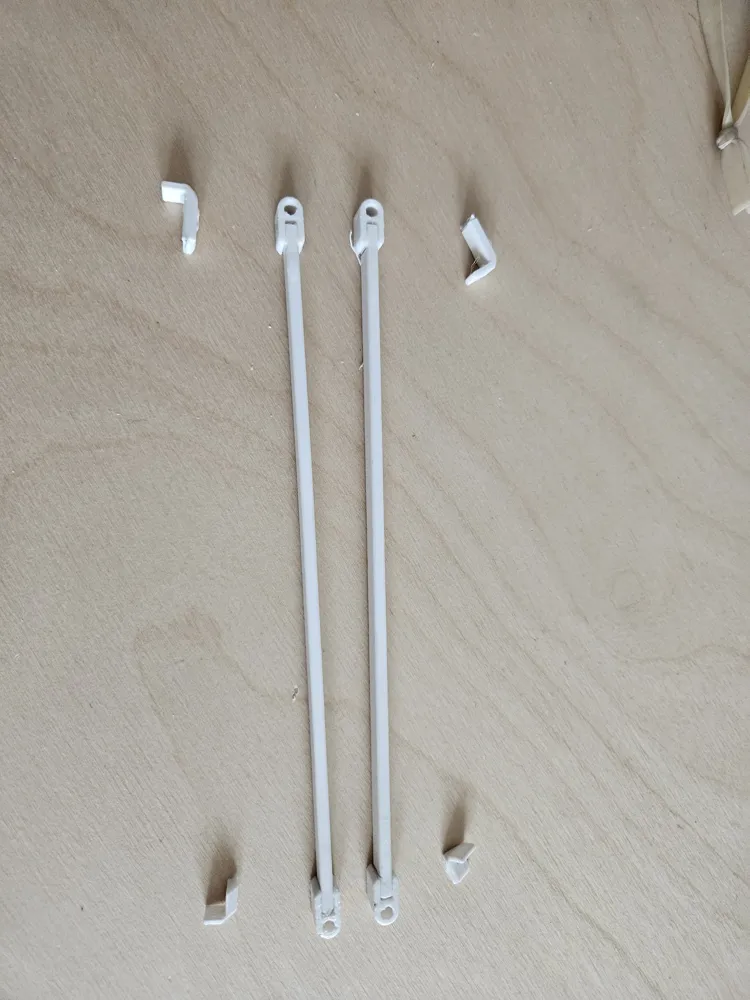

Note: If you already printed original struts and don´t want to throw them away, print Strut joint 4x instead of New strut. Cut ends of original struts and glue with strut joints. Space between strut joints edges should be 148,5 mm (see picture)

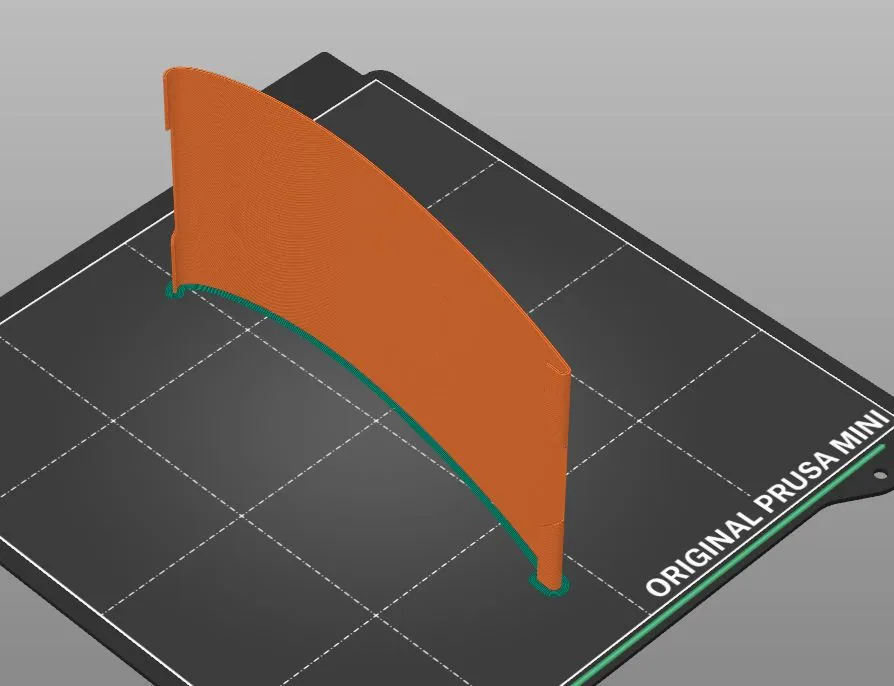

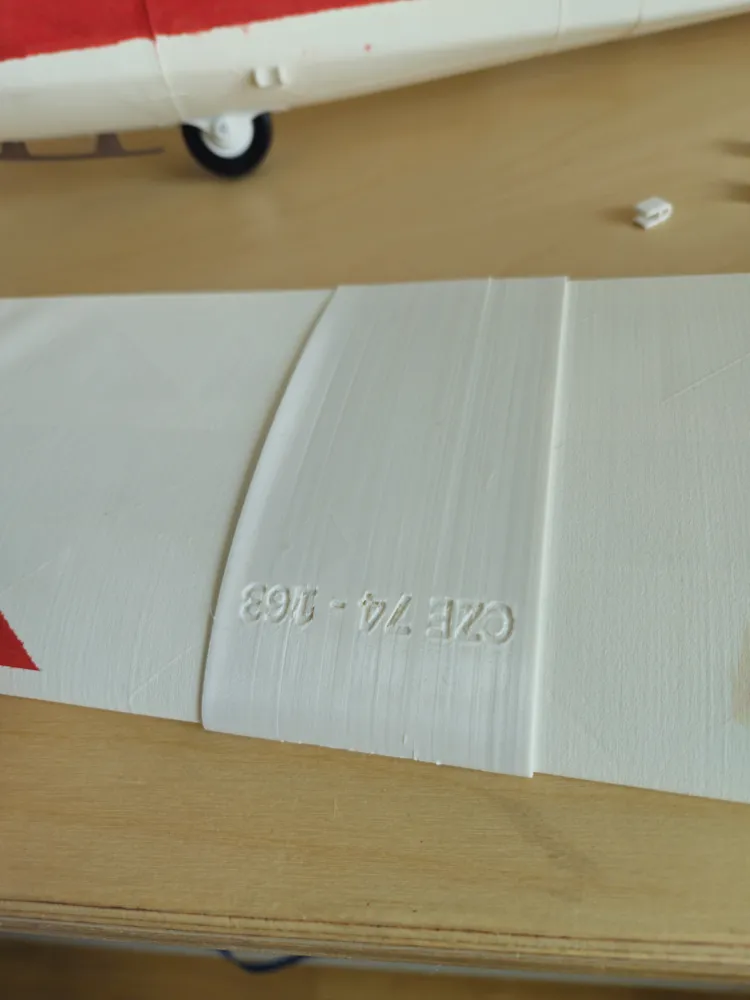

Hint: If your country requires identification, you can emboss your ID into Wing reinforcement in the slicer.

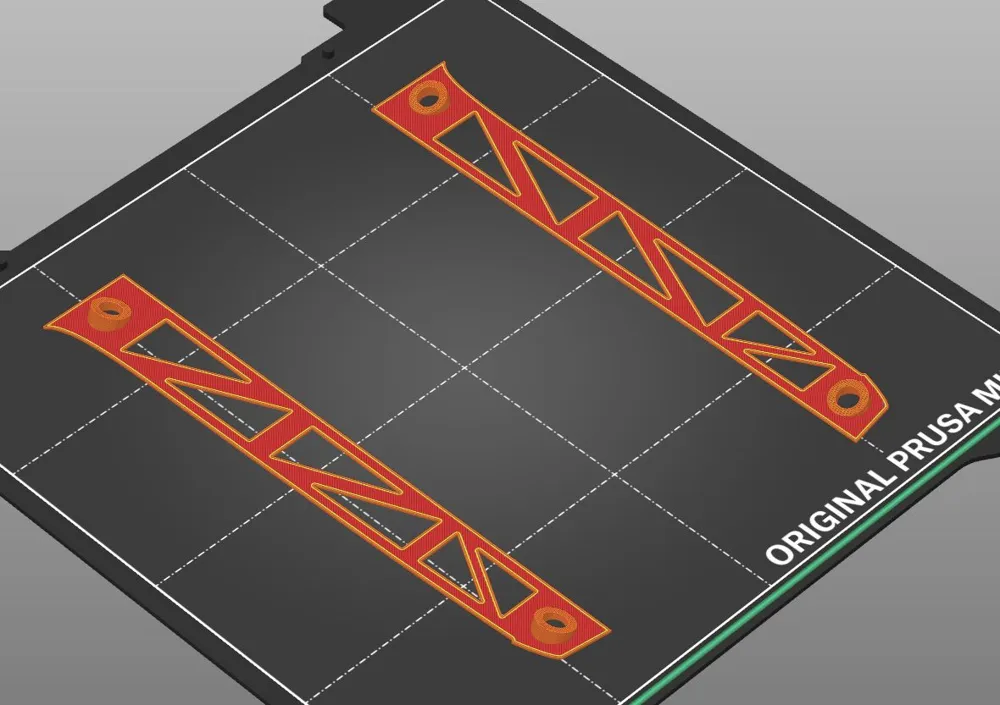

Printing instructions (not mandatory – follow your experience):

Material             PLA / PETG

Supports          no

Brim                    yes        for Wing reinforcement

Perimeters       2

Infill                     30%

Other parts you need:

•  Wooden or carbon pins diameter 5 mm
• Rubber band
• 4x screw M3 x 15
• 4x self-locking nut M3
