GEPRC Vapor D5/X5 TPU Mount Kit XR1 Nano & O4 Pro

### 💡 The Problem: Installing the Receiver and Air Unit cleanly and protected

Whoever wants to equip a GEPRC Vapor D5/X5 drone with an external ELRS receiver and the DJI O4 Air Unit Pro faces a double challenge: The Radiomaster XR1 Nano doesn't fit, and often the necessary clearance for the Air Unit is missing, while vibrations stress the electronics

This 3-piece flexible TPU mounting kit is the field-tested complete solution that solves all these problems at once

---

### The Solution in Detail: A Vibration-Dampening System

The kit consists of three parts that work together perfectly to form a clean, stable, and optimally vibration-decoupled electronics stack:

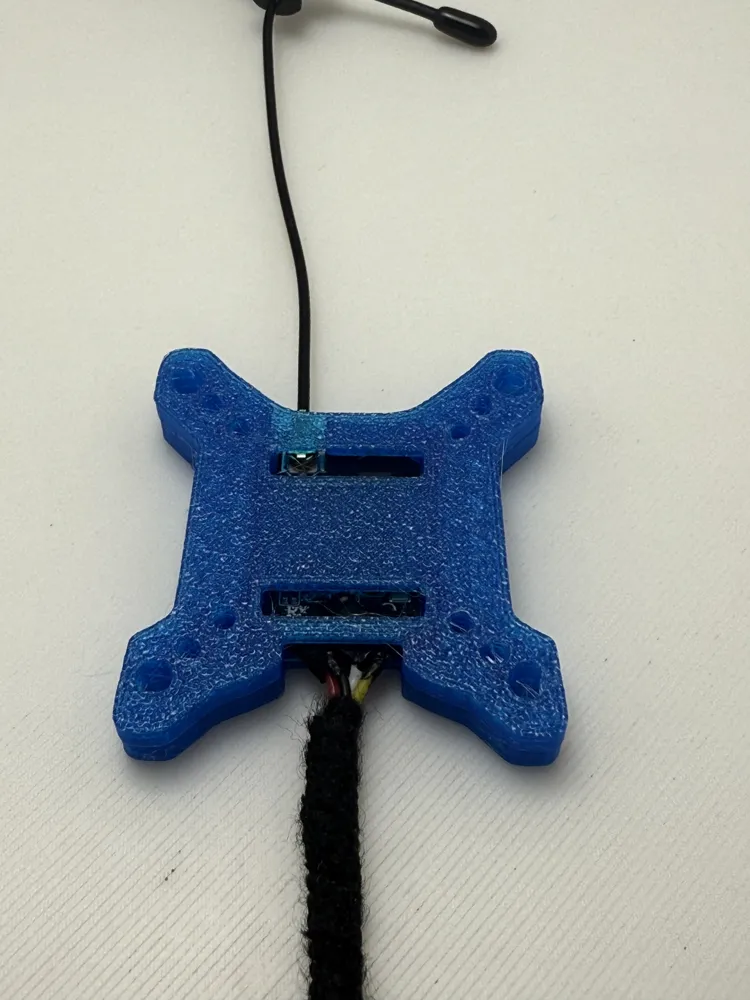

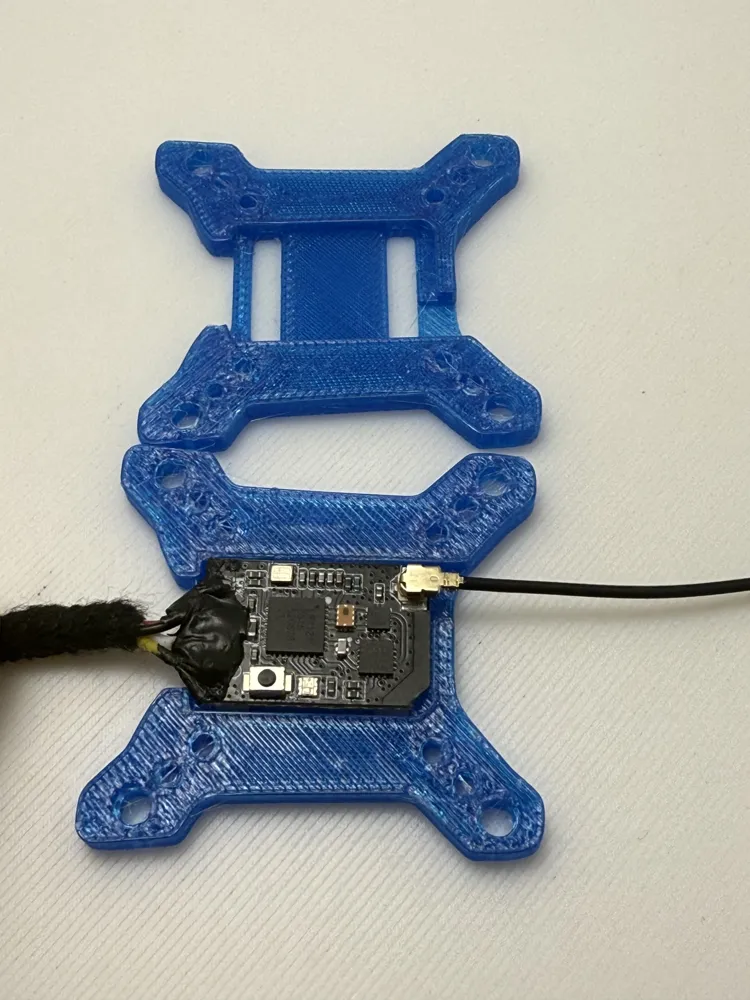

* ✅ **Part 1 & 2: The Receiver Shell:** A precisely fitting, two-part shell that securely encloses the Radiomaster XR1 Nano Dual-Band ELRS Receiver

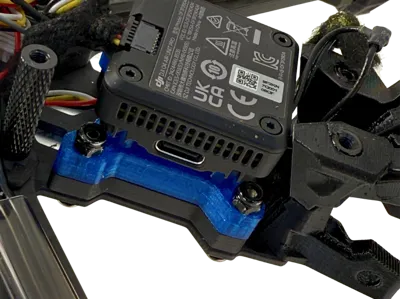

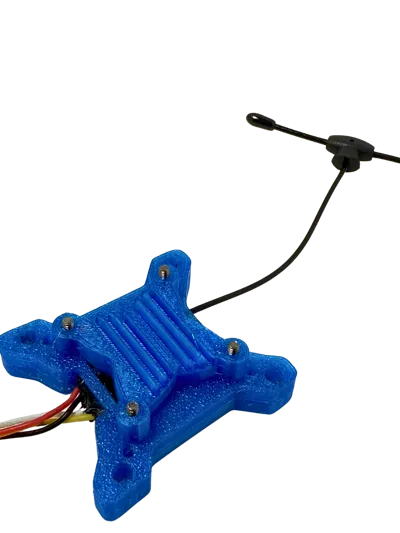

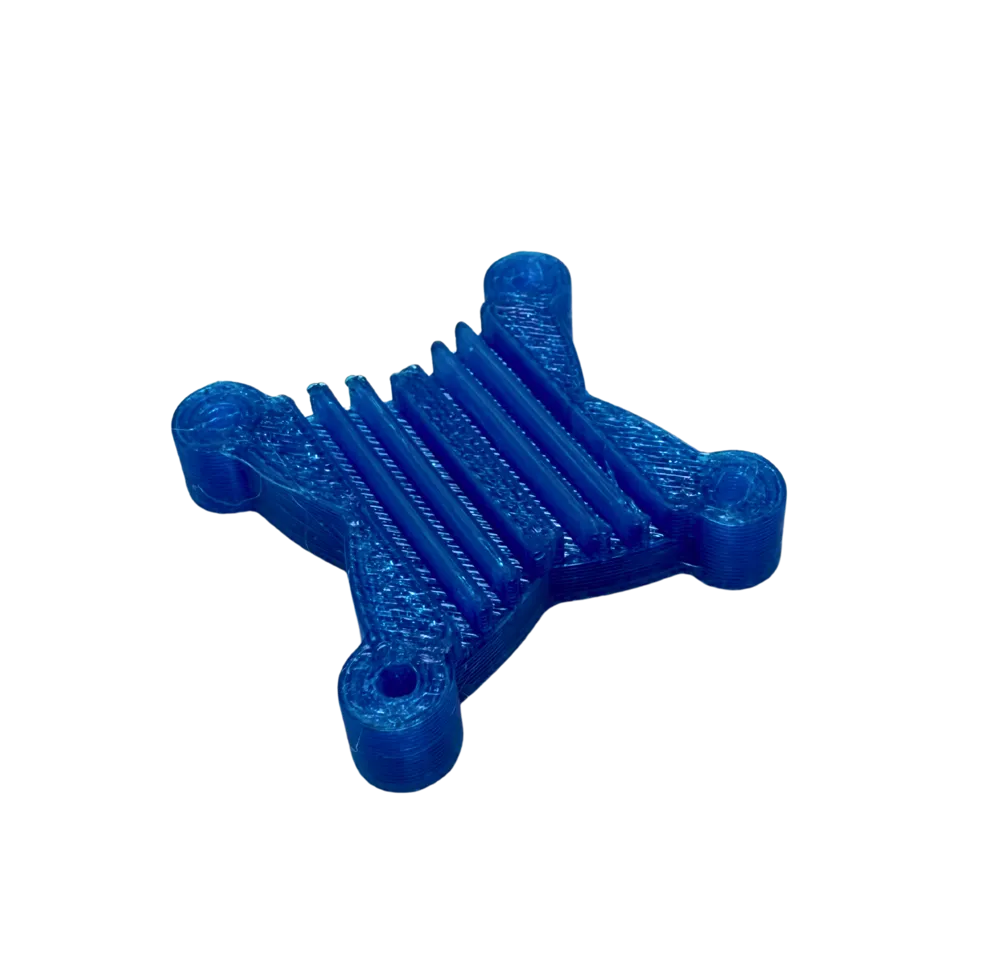

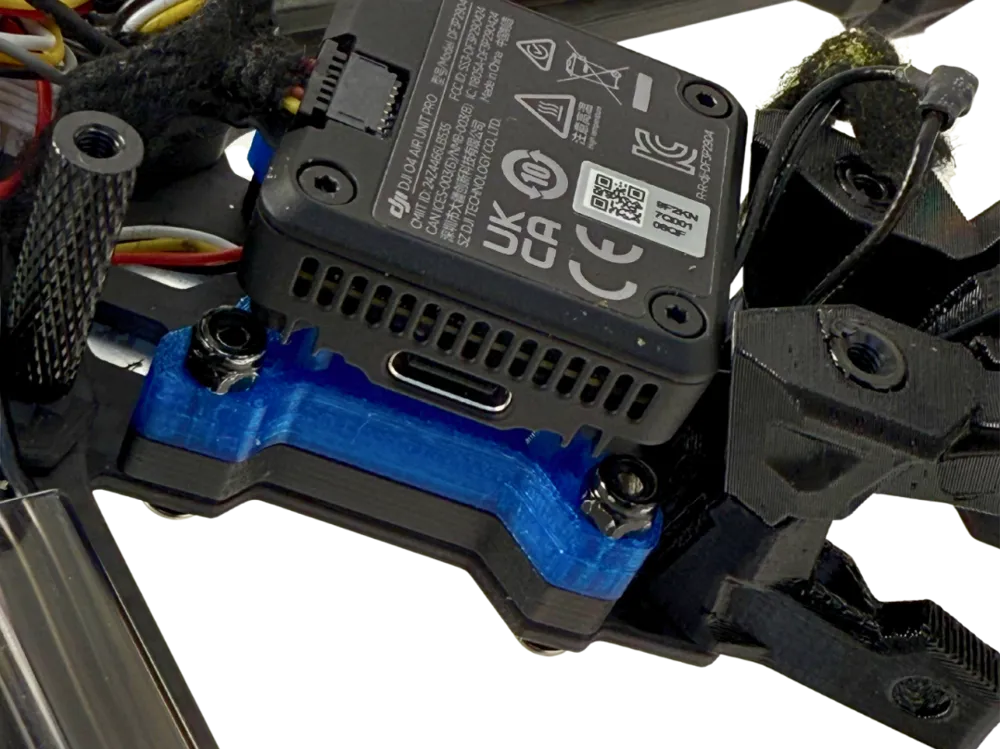

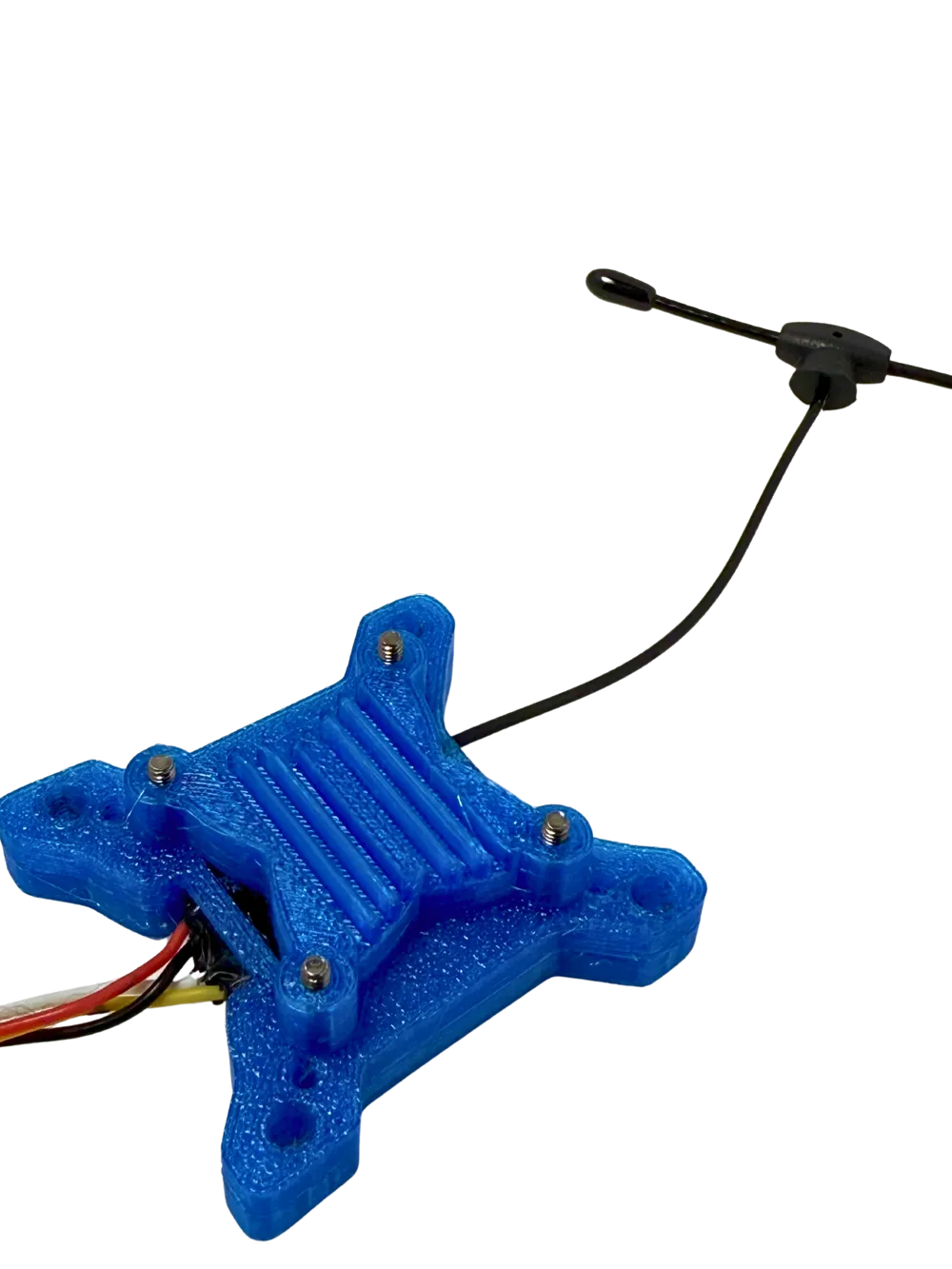

* ✅ **Part 3: The 5mm Air Unit Spacer/Damper:** This spacer is placed on the receiver shell and creates 5mm of space under the DJI O4 Air Unit Pro for cables and cooling
* ✅ **Optimal Protection through TPU:** The entire system is optimized for printing with TPU. This ensures excellent vibration dampening for the entire stack and protects both the receiver and the Air Unit from harmful frame resonances
* ✅ **Compatible with Original Screws:** The system is designed so that all original drone mounting screws, including the M2x12 screws, can continue to be used. No searching for suitable hardware is necessary
* ✅ **Optimized for 3D Printing:** The entire system is designed to be easily printable and **without any support structures**

---

### ⭐ Optimized 3MF Project File

You will receive a .3mf project file that can be loaded directly into Bambu Studio (and other compatible slicers). The file contains all three system components, already optimally aligned on the print bed

---

### 🔧 Recommended Print Settings

* **Material:** The entire kit is optimized and recommended for printing with **TPU**
* **Walls:** 3
* **Infill Density:** 25%
* **Infill Pattern:** Gyroid
* **Supports:** Not required

If this design helped you, I would appreciate a like or a boost. Thank you
