MGL-40 | Toy Grenade Launcher
Print Profile(3)
Bill of Materials
- 2x10x0.3mm Spring x 1:
- 3x5x0.5mm Spring x 1:
- 4x15x0.3mm Spring x 2:
- 7x20x0.7mm Spring x 2:
- 12x70x1mm Spring x 1:
- 20x70x1.5mm Spring x 1:
- 2x8mm Round Dowel Pin x 4:
- 3x22mm Dowel Pin x 3:
- 4x20mm Dowel Pin x 1:
- M2x8mm Self-tapping SHCS x 1:
- M4x20mm SHCS x 7:
- M4x35mm SHCS x 1:
- M5x45mm BHCS x 3:
- M4 Nut x 6:
- M4 Nylock Nut x 1:
- M5 Nut x 1:
- M4x6x8mm Brass Insert x 1:
Description
READ OWNER'S MANUAL BEFORE USE

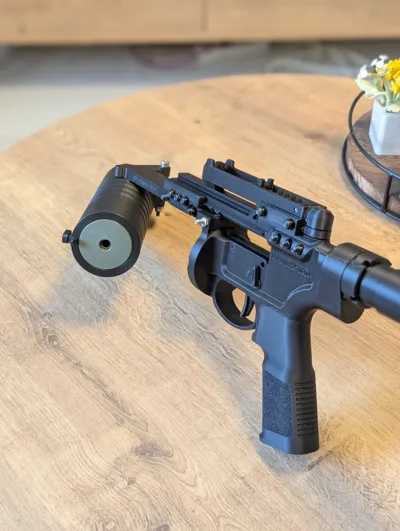

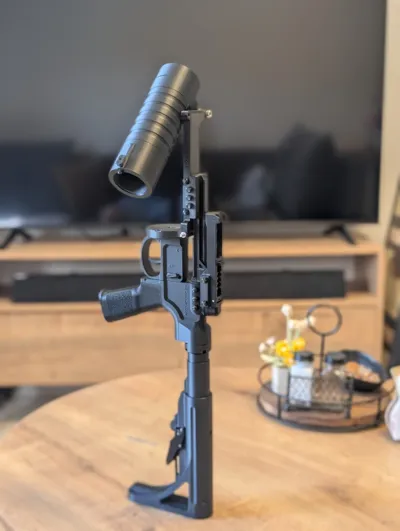

Introducing the MGL-40: a new, fully modular projectile launching system. Completely detachable grenade launcher module, with a separate mounting frame, providing a firing solution both as an underbarrel attachment and a separate, self-sufficient unit.
Check out THIS VIDEO to see the features
This model consists of 51 individual components, providing realistic detail and rewarding assembly process. Be it for cosplay, a prop collection, or just funsies, the MGL-40 offers an authentic and well built system.
Boost Me (for free)
A token of appreciation if you like this model 🎖️🏆
Membership
This is a way to support my work, to help me continue creating more models, and allow you to make adaptations of your own Your support is a tremendous push to keep doing what I enjoy most and share my efforts with you.
- Features -
Modular design: Fully modular design, with receiver and grenade launcher module as separate parts
Functional Mechanisms:
- Functional trigger and safety lever switch
- Breech loading, side-locking barrel (35 deg. throw)

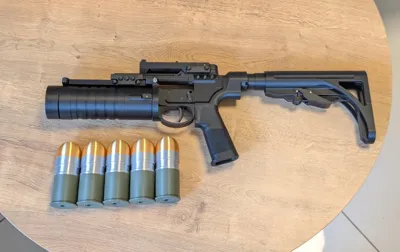

- Loadable and deployable 40mm ammunition (supplied 8x50mm, 2.7gr projectile)
Can chamber Airsoft 40mm grenades and TagInns - Full length, four position buttstock
- Swappable buttstock pads
- Compatibility with underbarrel mounting
40mm shells included: comes with deployable 40mm ammunition, launching an internal projectile
Accessories: comes with a ladder sighting module
Safety Features:
Force restricted trigger pull: trigger pull provides no instantaneous impact
Trigger rolling face element transfers pull force linearly onto a shaft that interacts with the rim of the shell
- Instructions -
Assembly and Fitting:
Included step-by-step instruction for all modules. Easy to follow, full of visual ques and text instructions.
Compatibility:
Compatible with any 40mm grenade meeting the shell specifications
Safety Requirements:
Read owner's manual -- a comprehensive list of protocols and prohibitions before use
DO NOT use the toy before you read and understand the dangers outlined in the manual.
- Support -
Contact:
If you encounter any issues with printing, assembly, etc., please leave a comment below or email me at: vissidus@gmail.com
I'll do my best to help you resolve any and all issues I can
If you've printed the model and enjoyed playing with it, a follow and a like would be greatly appreciated!
Disclaimer: the Author assumes no responsibility or liability for any misuse and damage caused by the contents of this publication. The model and individual parts contained in this publication are not intended to be used to perpetrate any illegal activity.
Under no circumstances shall the Author of this model and publication be liable for any alterations made to the contents of this publication by any party aimed to construct a firearm.
