Description

Total Length: ~1.75m

WARNING:

This might not be a beginner-friendly project; soldering and electronics knowledge is required. Glueing, Sanding, priming and painting is essential for a good final product. (I'm just posting it here as I've already made the files and decided to make them accessible)
There will not be a “step-by-step” assembly guide so good luck!

Printing and assembly should be pretty self-explanatory, (download the 3mf to check out the split of the parts)

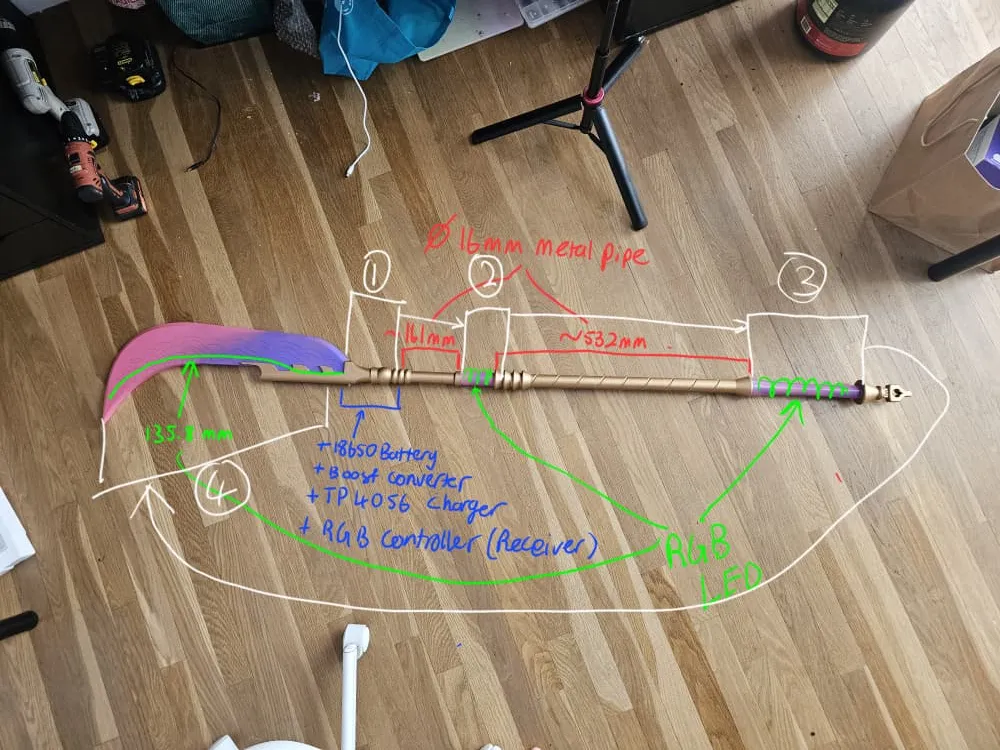

Bill of materials:

Transparent PETG (for the LED sections)
Gold PLA
16mm diameter metal pipe (for strength)
- NO ELECTRONICS: 1050mm length
- WITH ELECTRONICS: 161mm & 532 mm length sections

Optional*:

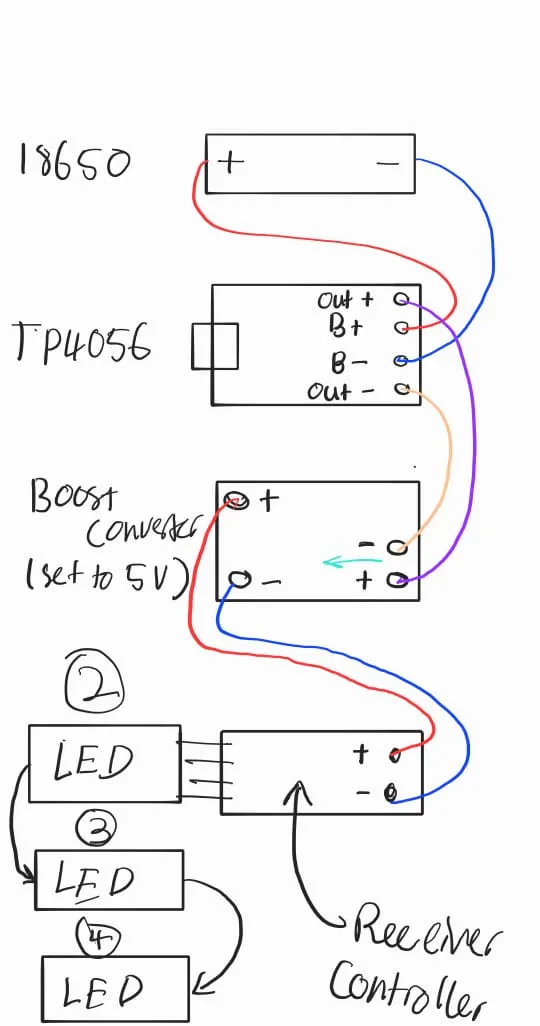

Refer to the wiring schematic below
You're going to need a lot of wires (iirc i used like 5-10m of total of single-core 1mm outer / 0.5mm core diameter insulated wire)

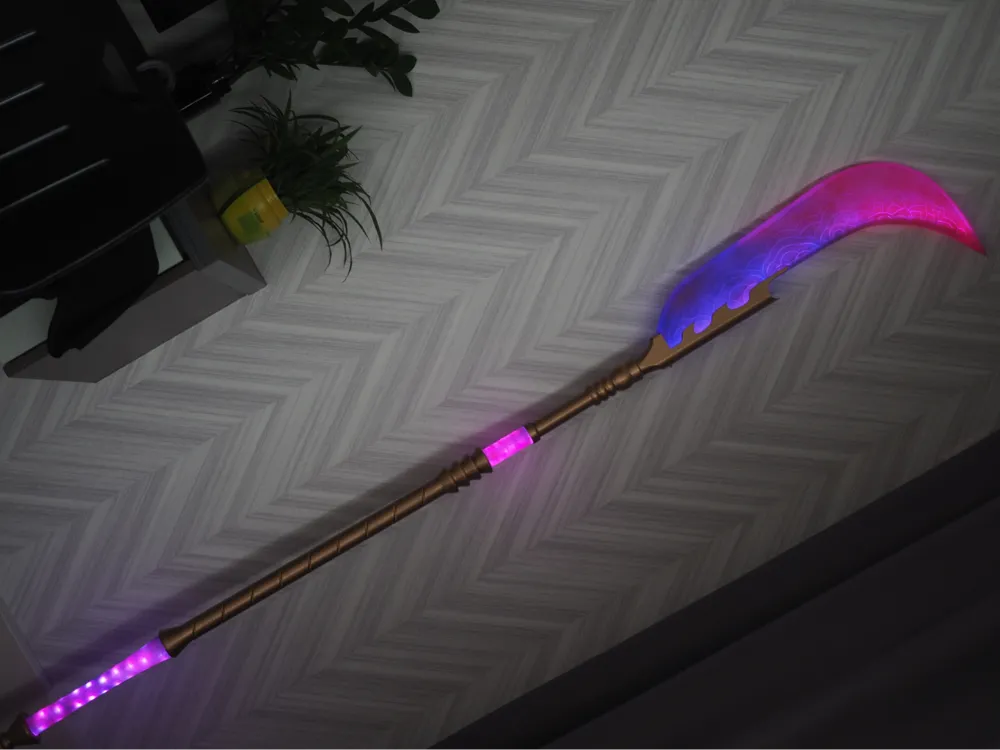

There are slots and holes for optional electronics to add lights detailed below:
